A02 Control Data (A02_03) 0107-001 2-21 Tg0502-PM-CL (A02_03) Cmpnt Pos Correction X [mm], Y [mm] Set the center (coordinate) of a component based on the tape refer- ence position. Whether the value with " + " …

A02 Control Data (A02_02)

0206-001 2-20-1 Tg0502-PM-CL

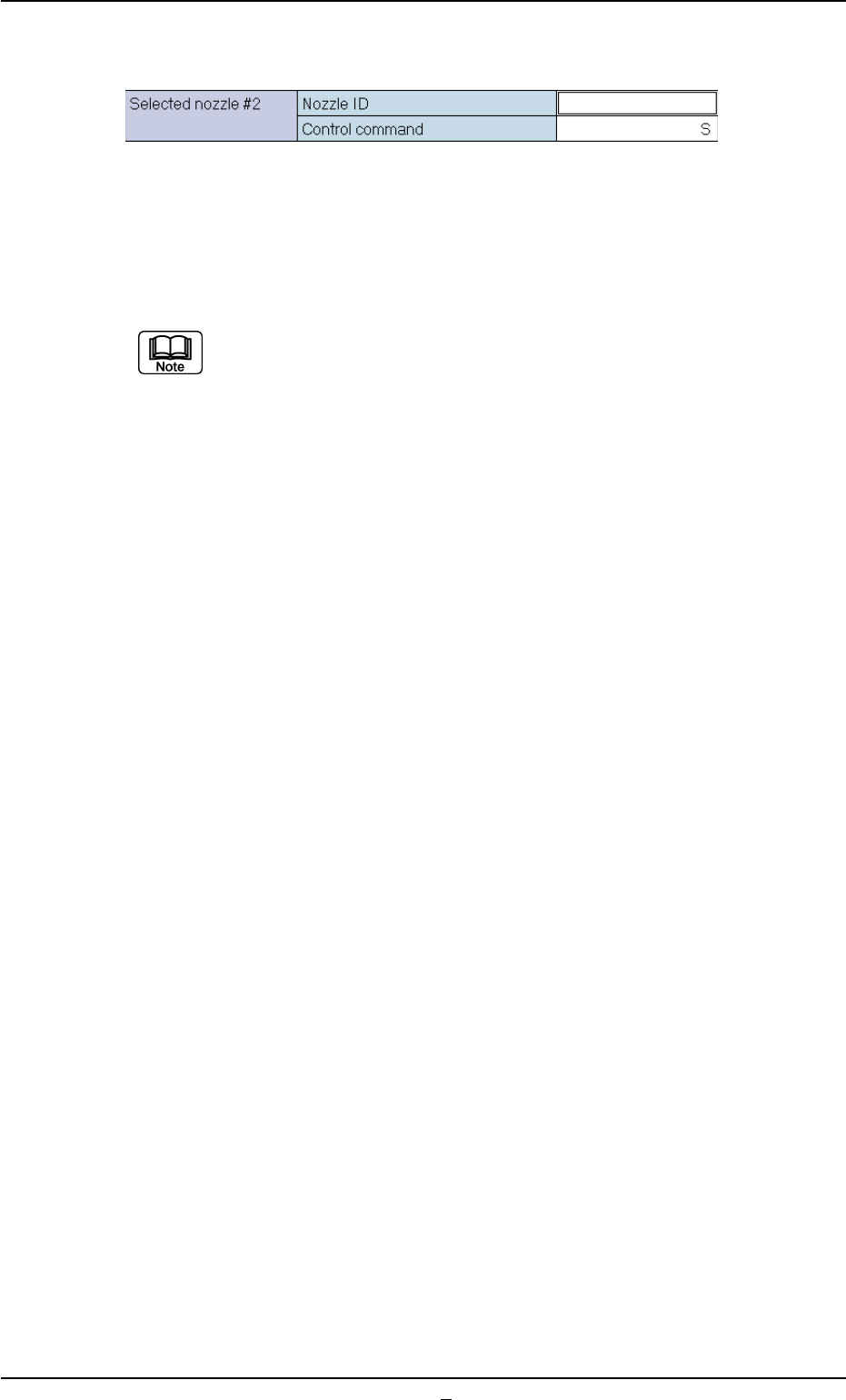

(A02_02) Selected Nozzle #2

Set the nozzle to be used when the nozzle selected in the "Selected

Nozzle #1" data box can not be used.

Refer to "Selected Nozzle #1" for the descriptions for each data.

Nozzles are distinguished according to the difference in end size, shape,

length, etc., and managed using nozzle ID.s.

Fig. B31

A02 Control Data (A02_03)

0107-001 2-21 Tg0502-PM-CL

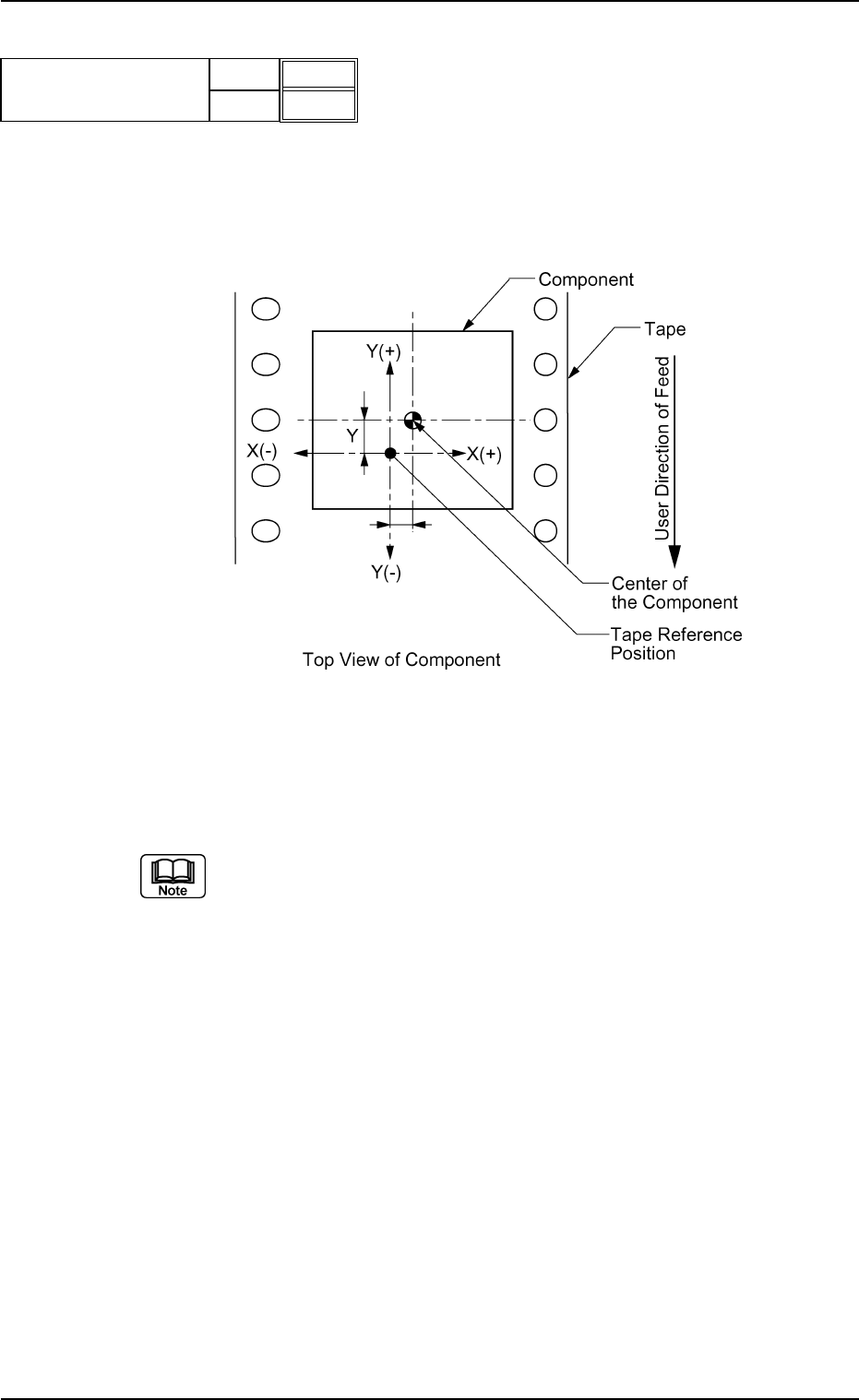

(A02_03) Cmpnt Pos Correction X [mm], Y [mm]

Set the center (coordinate) of a component based on the tape refer-

ence position.

Whether the value with "+" sign or "−" sign should be entered will be

determined according to the following coordinate.

Unit: mm

Data Input Range: −99.9 to +99.9

(a) The reference positions for component pick-up are specified for each

individual feeder No. However, a reference position may deviate from

the center of a component packaged in the tape. In this case, it is

necessary to enter parameters to correct the deviation.

(b) Actual operation range may be regulated (differ from the set values)

due to the control of the machine.

X[mm]

Y[mm]

+0.0

Fig.B32

Cmpnt pos correction

Fig. B33

A02 Control Data (A02_04), (A02_05)

0206-002 2-22 Tg0502-PM-CL

(A02_04) Pickup Pos Correction X [mm], Y [mm]

Enter the coordinates of component pickup position based on the tape

reference position.

Determine which sign (+) or (−) should be used according to the fol-

lowing coordinate system.

Top View of Component

Unit: mm

Data Input Range: −99.9 to +99.9

(a) When a component has a groove, a protrusion, etc., and cannot be

picked up at the center without any hindrance, the pickup position

can be shifted deliberately from the center of component according

to the set parameters. In this case, the automatic feeder axis adjust-

ment function for the pickup position works such that the corrected

position is maintained.

(b) Actual operating range may be regulated (different from the set val-

ues) due to the control of the machine.

(A02_05) Auto Fdr Axis Adjustment X, Y

Select "Enable" or "Disable" to determine whether or not the auto-

matic feeder axis adjustment function should be used.

This function statistically processes the difference between the nozzle

and component center positions calculated at component recognition and

is used to follow up and correct the "Feeder (B) offset".

Enable

Fig. B36

Auto fdr axis adjustment

X [mm]

Y [mm]

+0.0

Fig. B34

Pickup pos correction

Fig. B35
