(1) T ype Select one of the following options as a type of a component carrier . Paper Embossed Adhesive Vibratory Stick T ray No types other than the above are used in TIM-X series. (2) Direction Select one of the follo…
(4) Rejected Cmput Disch Pos
Select one of the following options to designate the position from which
the component must be discharged when a component cannot be
placed due to a component recognition error.
Auto, Recycle Conveyor, Reject Box (Large)
In normal cases, select "Auto".
Select "Recycle Conveyor" only when the machine is equipped with the
recycle component conveyor (option).
(5) Stick Feed Time [sec]
Set the vibration time needed to feed a component from the vibratory
stick feeder.
Unit: second
Data Input Range: 0 to 9.99
(a) After measuring the referential feed time with the [MANUAL FEED]
switch of the vibratory stick feeder loaded with components, enter an
appropriate value in the data box.
(b) When "0" is selected, the feed time is automatically changed to "one
second".
A03 Carrier Data (A03_02)
0206-002 2-32-2 Tg0502-PM-CL
0
Stick feed time [sec]
Fig.B67
Auto
Rejected cmpnt disch pos
Fig.B66
(1) Type
Select one of the following options as a type of a component carrier.
Paper Embossed Adhesive Vibratory Stick Tray
No types other than the above are used in TIM-X series.
(2) Direction
Select one of the following options to designate the component feed-
ing direction.
0° 45° 90° 135° 180° 225° 270° 315°
(a) In normal cases, select "0".
(b) The set parameters are used to specify the angular rotation (dimen-
sional values in X and Y directions) of a component for component
recognition.
A03 Carrier Data (A03_03)
0206-003 2-33 Tg0502-PM-CL

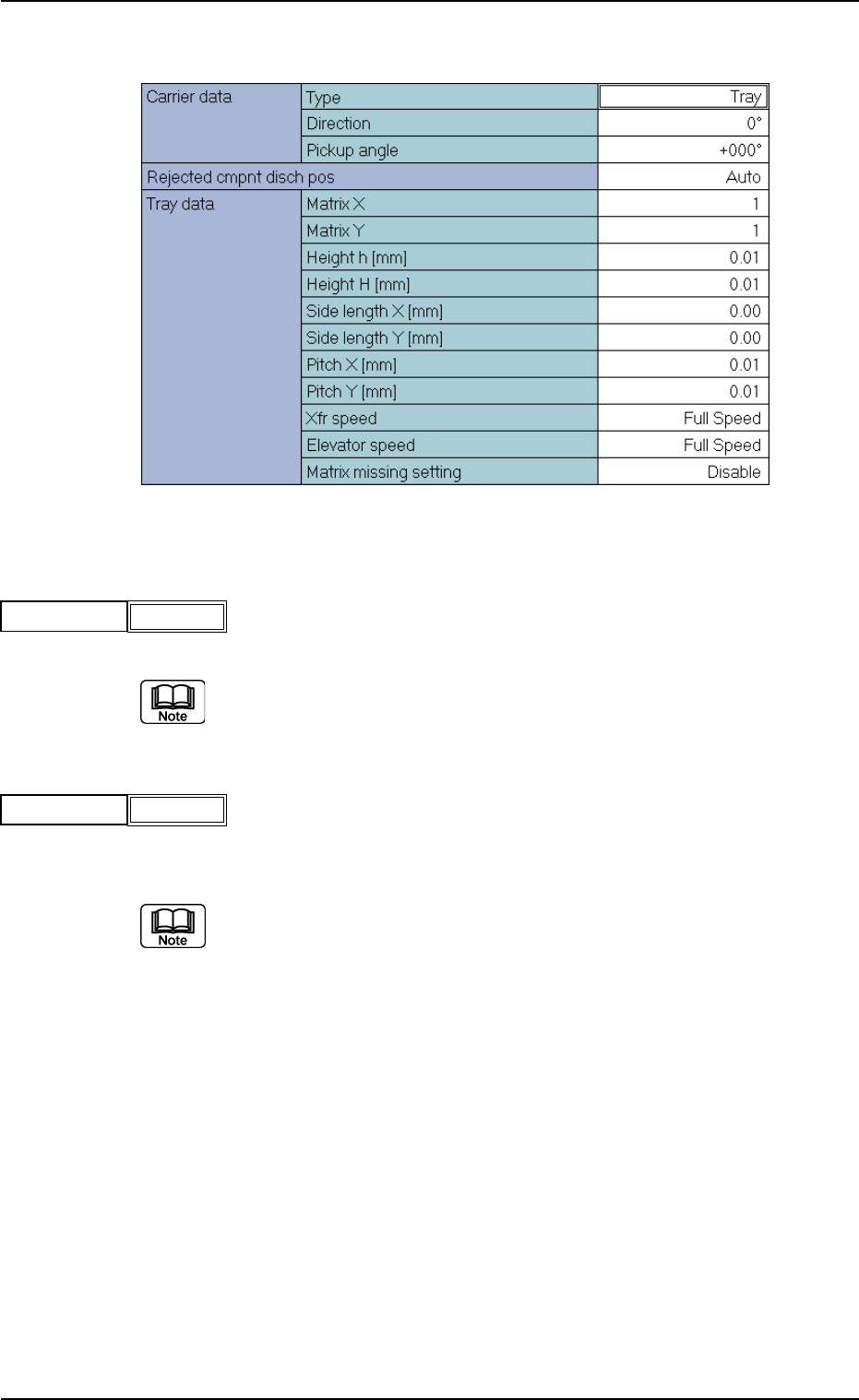

(A03_03) Carrier Data (Tray)
Fig. B68
0°
Direction
Fig.B70
Type
Tray
Fig.B69
(3) Pickup Angle
Set the Angle at which the nozzle should be rotated before a compo-
nent is pickup.
Unit: ° (degree)
Data Input Range: -359° to +359°
(a) Use it for the components (connectors) placed diagonally because of
the restriction due to tray size . (Usually, set to +0*).
(b) When a value other than "0" (zero) is set in the data box, the dimen-
sions as component shape data (X, Y,..) are determined according to
the component posture (packaged posture) for component recogni-
tion.
(c) Set a value with "+" sign to implement the pick-up operation with a
nozzle pre-rotated counterclockwise.
(d) The nozzle is pre-rotated to the angle entered in this box and picks
up a component. When the component recognition is performed, the
nozzle is rotated back to "0" (zero) degree. The component posture
(the orientation of the component positioned by the nozzle rotated
back to "0" (zero) degree) must be set as a placement angle (pack-
age posture) in the pattern program.

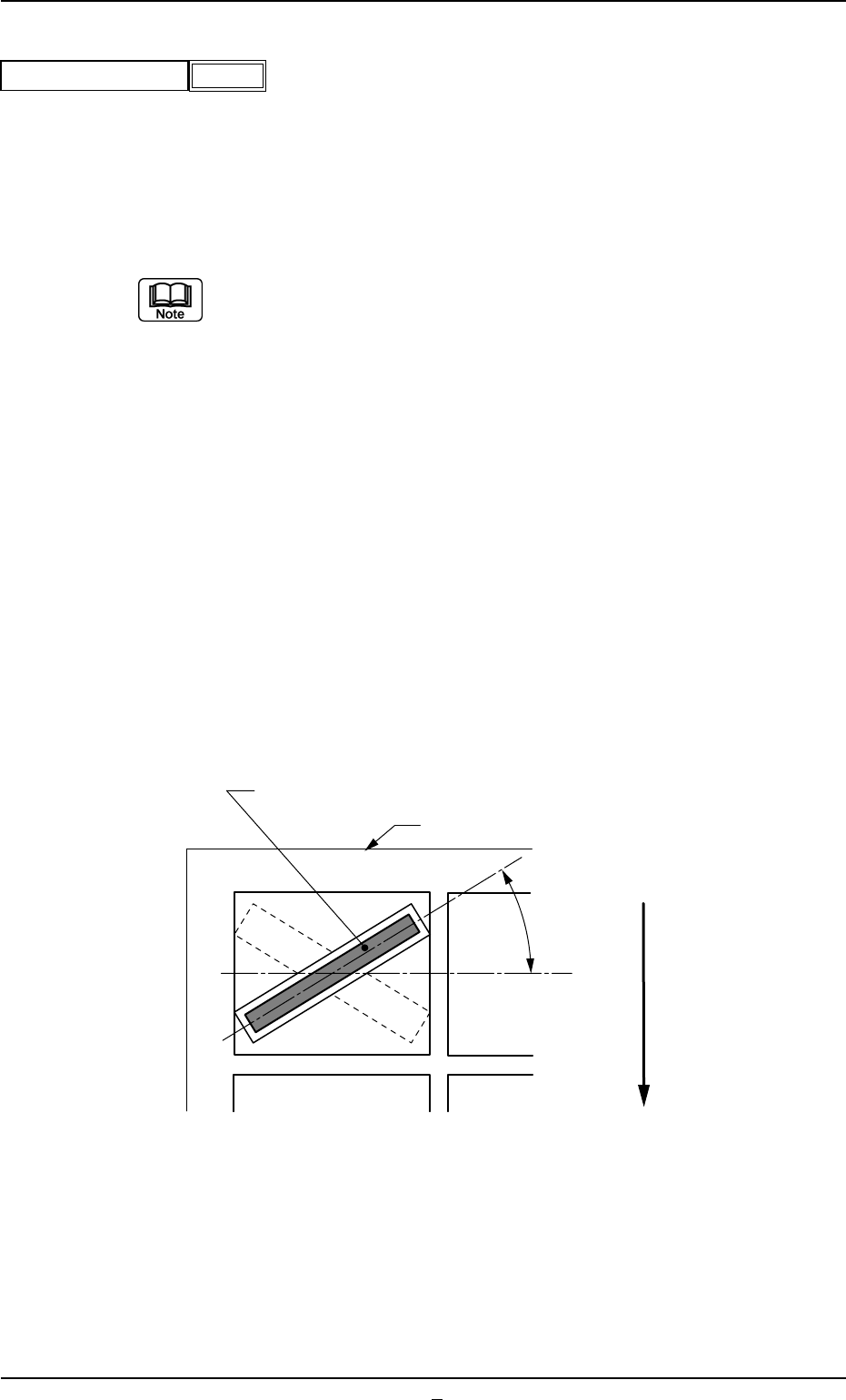

Example: Shown below is a component (a connector) packaged on the
skew.
A03 Carrier Data (A03_03)
0206-003 2-34 Tg0502-PM-CL
-359
Pickup Angle
Fig.B71
Fig. B72
Component (Connector)
Tray
Pickup Angle
User Direction of feed
Top View of Component
