(4) Rejected Cmpnt Disch Pos
Select one of the following options to designate the position from which
the component must be discharged when a component cannot be
placed due to a component recognition error.
Auto, Recycle Conveyor, Reject Box (Large)
In normal cases, select "Auto".
Select "Recycle Conveyor" only when the machine is equipped with the
recycle conveyor (option).
A03 Carrier Data (A03_03)
0206-002 2-34-1 Tg0502-PM-CL
Auto
Rejected cmpnt disch pos
Fig.B73

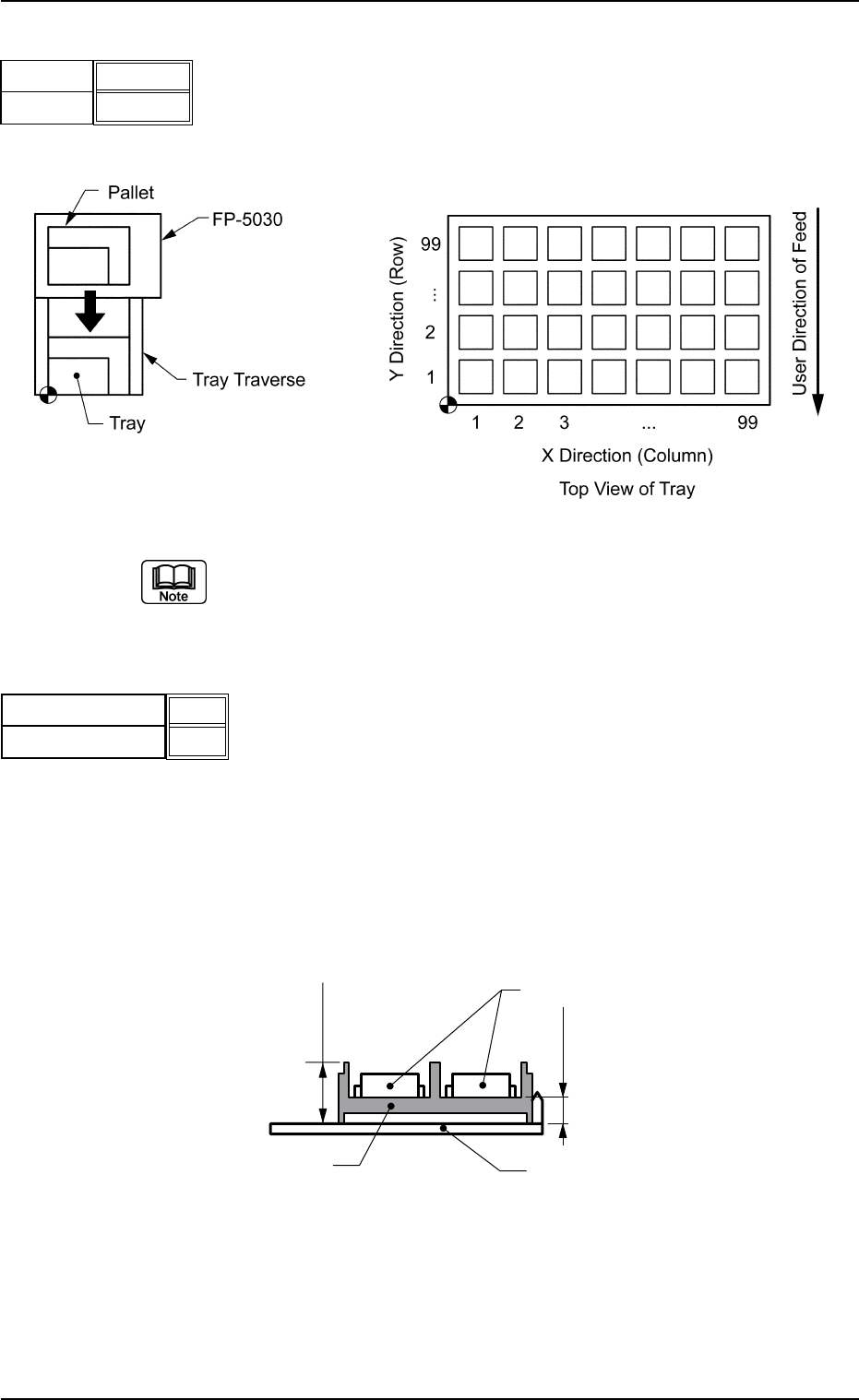

(5) Matrix Counts X, Y
Set the numbers of columns (X) and rows (Y) of the matrix in the data
box.
Data Input Range: 0 to 99
Components are picked up in the order of the matrix elements "(1, 1),
(1, 2), (1, 3),.. (2, 1), (2, 2),..", and so on.
(6) Height H [mm], h [mm]
H : Set the distance (height) between the lower surface of the tray
and the upper surface of the tray in the data box.
h : Set the distance (height) between the lower surface of the tray
and the bottom of the cell (the cell in which a component is stored)
in the data box.
Unit: mm
Data Input Range: 0.01 to 99.99
A03 Carrier Data (A03_03)
0206-003 2-35 Tg0502-PM-CL
Fig. B74-1
Fig.B74
1
1
Matrix X
Matrix Y
Component
Pallet
Height h
Height H
Tray
Side View
Fig. B74-3
Fig.B74-2
0.01
0.01
Height
Height
H [mm]
h [mm]
The center of the mark is the tray origin.

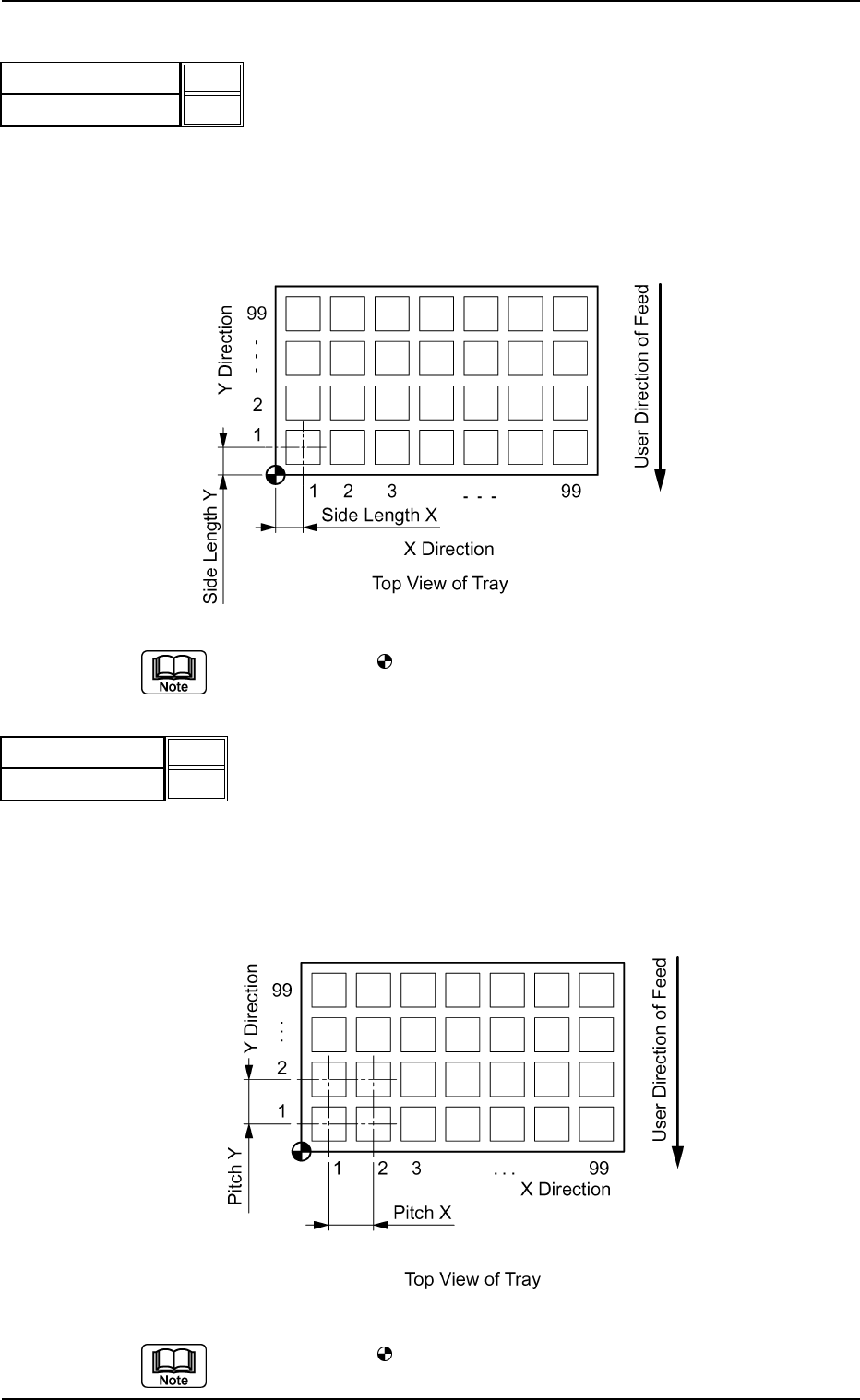

(8) Pitch X [mm], Y [mm]
Set the dimensions X and Y between the matrix elements (between
the centers of the cells in which components are stored) in the data
boxes.
Unit: mm
Data Input Range:
X: 000.01 to 199.99
Y: 000.01 to 199.99
(7) Side Length X [mm], Y [mm]
Set the dimensions X and Y between the tray origin and the center of
the cell (the cell in which a component is stored) located at "(X, Y) =
(1, 1)" in the data boxes.
Unit: mm
Data Input Range:
X: 000.01 to 199.99
Y: 000.01 to 199.99
A03 Carrier Data (A03_03)
0206-003 2-36 Tg0502-PM-CL
Fig.B74-6
0.00
0.00
Pitch
Pitch
X [mm]
Y [mm]
Fig.B74-4
0.00
0.00
Side length
Side length
X [mm]
Y [mm]
The center of the mark is the tray origin.
Fig. B74-5
Fig. B74-7
