4OM-1610 1-45 3. Maintenance Spots : Chap.1 091 1-001 3.2.1 1 Nozzle Stocker Section Nozzle Storage Section Every Month Cleaning Suck dirt and dust with a vacuum cleaner . Nozzle Stocker Sliding Area Every 3 Months Clean…

100%1 / 251
4OM-1610
1-44
3. Maintenance Spots : Chap.1

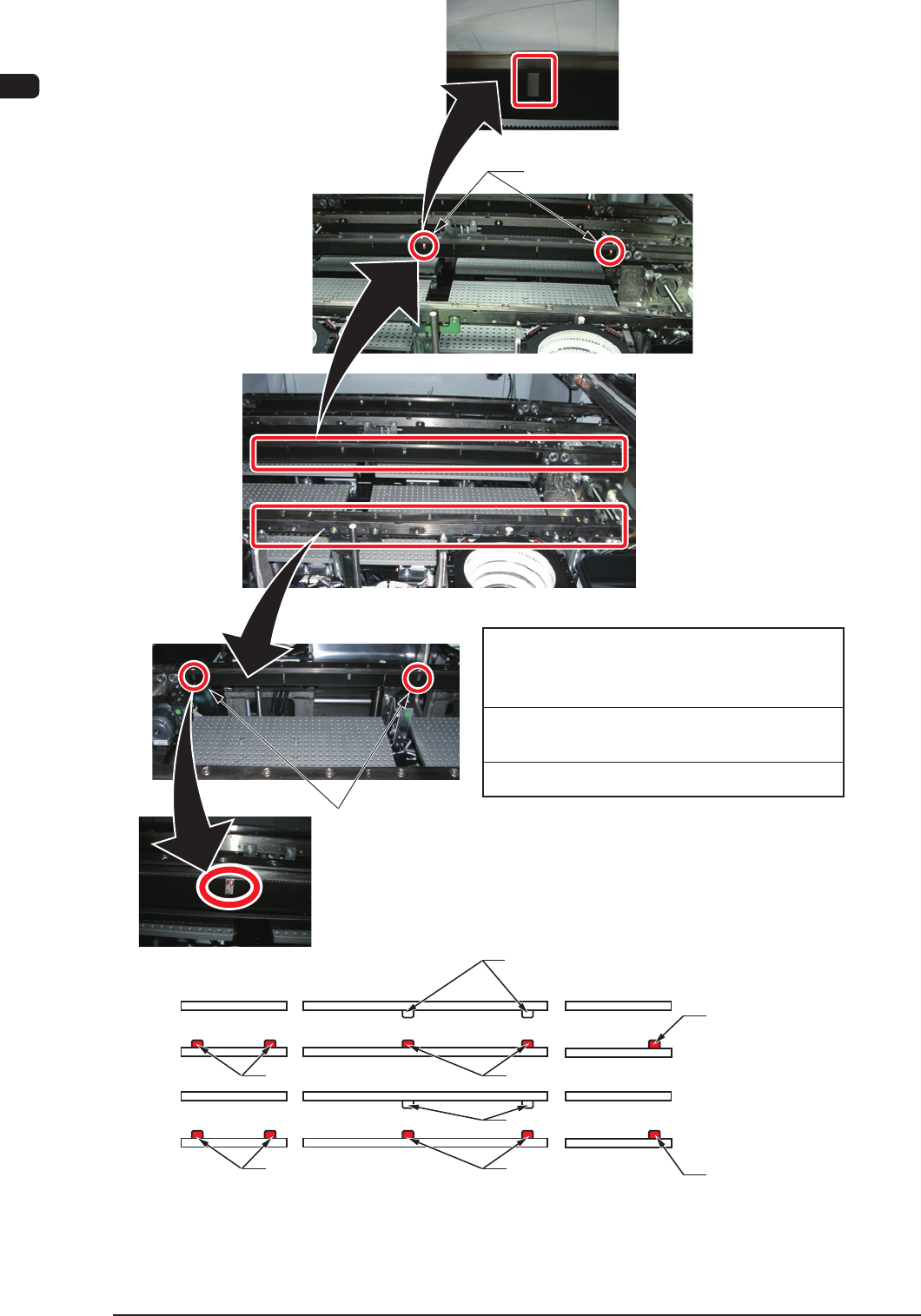

PCB Detection Sensor Mirror
At the time of Dual Transfer (Arrangement Image Diagram)
PCB Detection
Sensor Mirror
PCB Detection Sensors
PCB Detection Sensors
PCB Detection Sensor Fiber
P
CB
Detection Sensor Fiber
PCB Detection Sensors (6 places)
Every Week Cleaning
Required Time: 2 minutes
Clean the PCB detection sensors with a rag.
PCB Detection
Sensor
Fiber (4 places)
PCB Detection Sensor Mirror
(4 places)
PCB Detection Sensor Mirror
P
CB
Detection Sensor Fiber
PCB Detection Sensors
PCB Detection Sensors
F4A35
0911-001
4OM-1610
1-45
3. Maintenance Spots : Chap.1
0911-001

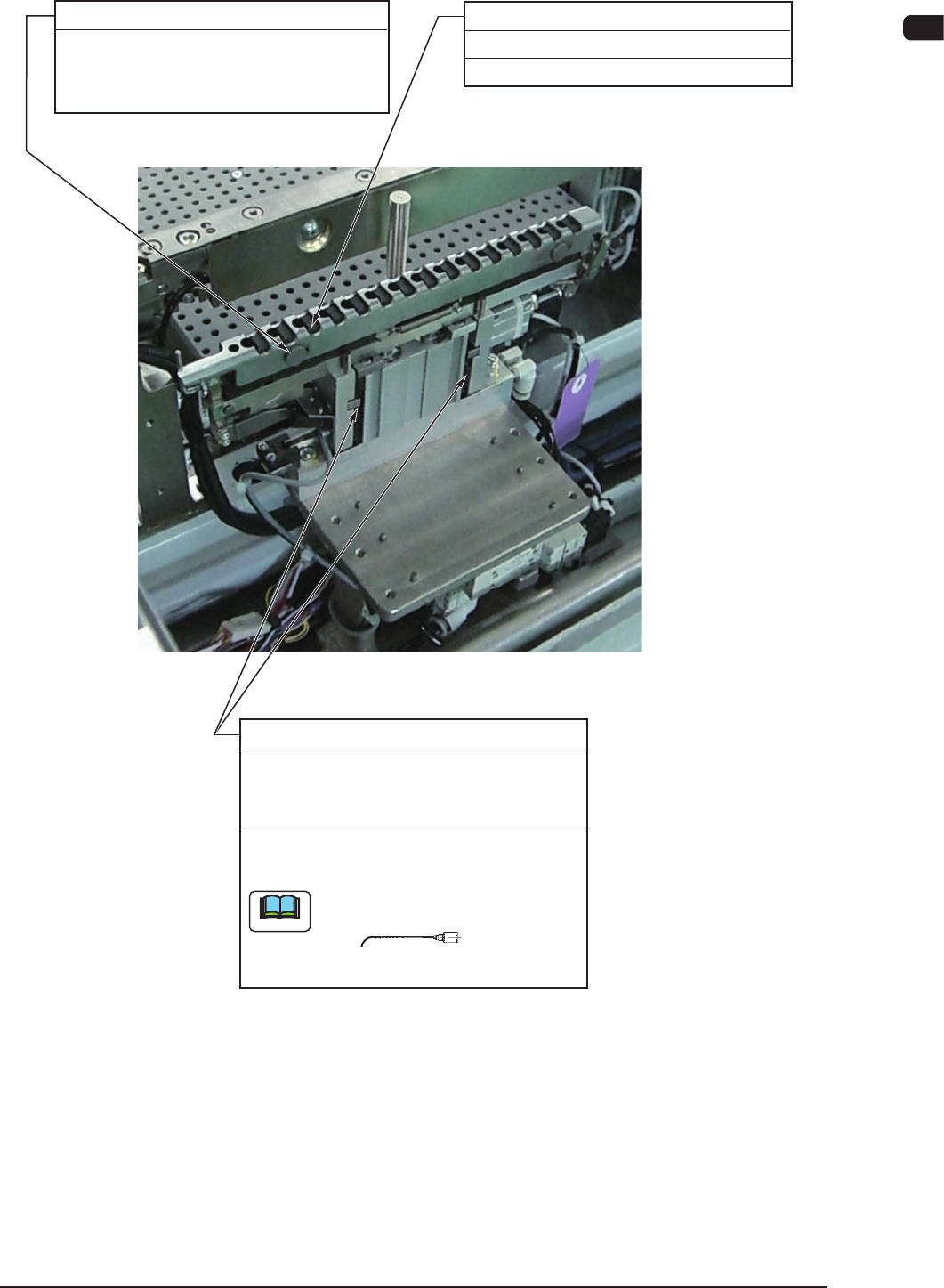

3.2.11 Nozzle Stocker Section
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust with a vacuum cleaner.
Nozzle Stocker Sliding Area
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Shutter Flange Pin Sliding Section
F4A36
4OM-1610
1-46
3. Maintenance Spots : Chap.1
0911-001

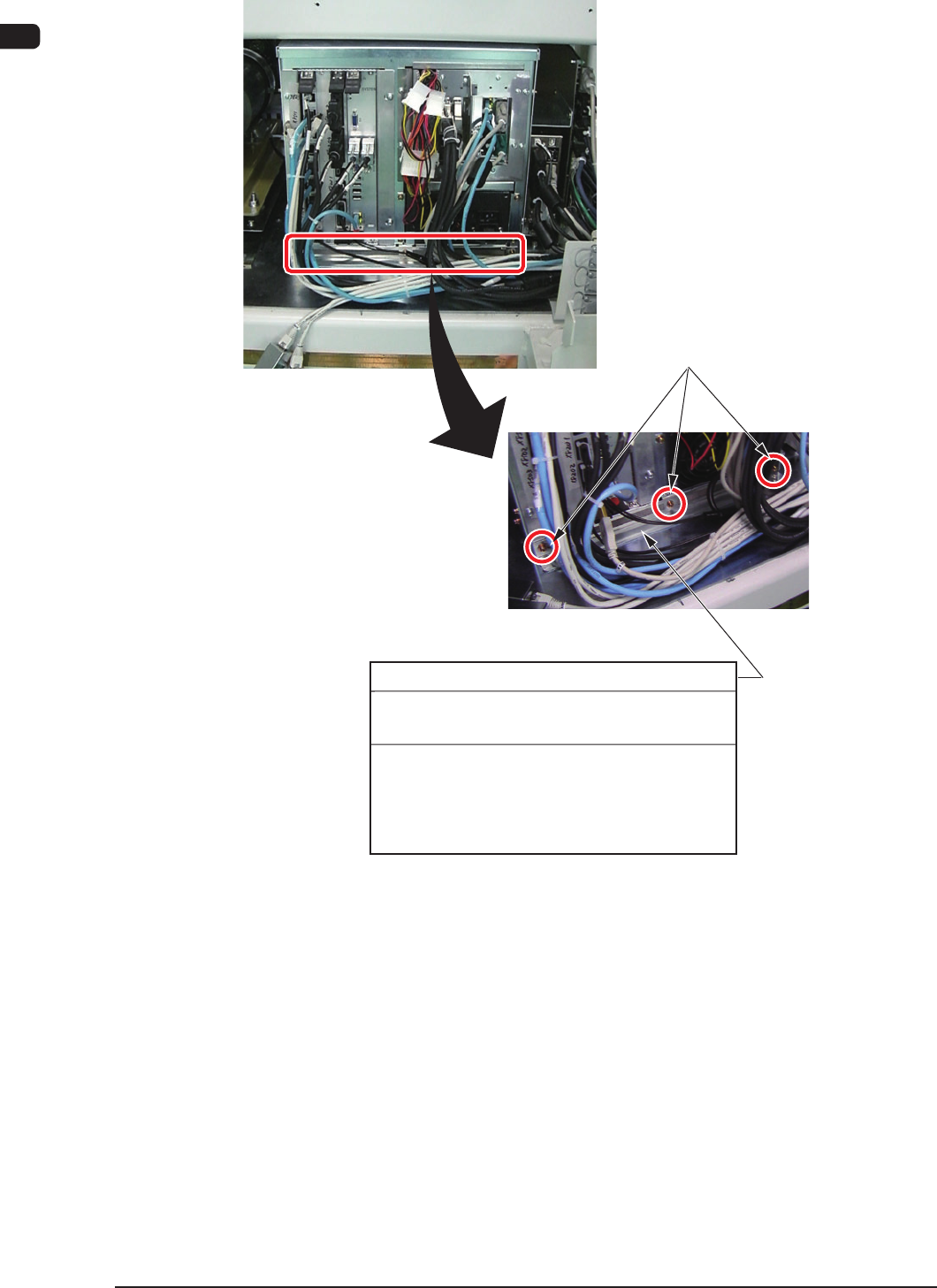

3.2.12 Control Box Section
Screws
Filter (1 place)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove the screws (3 locations) fixing the
dust filter and remove the dust filter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.
F4A37
