1. Lubrication tools and grease
5-1
Chapter 5 Lubrication points and schedule
1. Lubrication tools and grease
This section describes the interval and the procedure of lubrication for each parts for YSP10.
n
NOTE
See "Safety instructions" in this document for the way to deal with grease at safe.
1.1 Compatible grease
For greasing procedures, always use the YAMAHA prescribed products.
►
Prescribed grease
Name Part name Part No. Note
Lithium-based grease GREASE PACK K48-M3856-00X NSL 80g, supplied with machine
c
CAUTION
Using unauthorized grease could damage the machine.
1.2 Grease gun

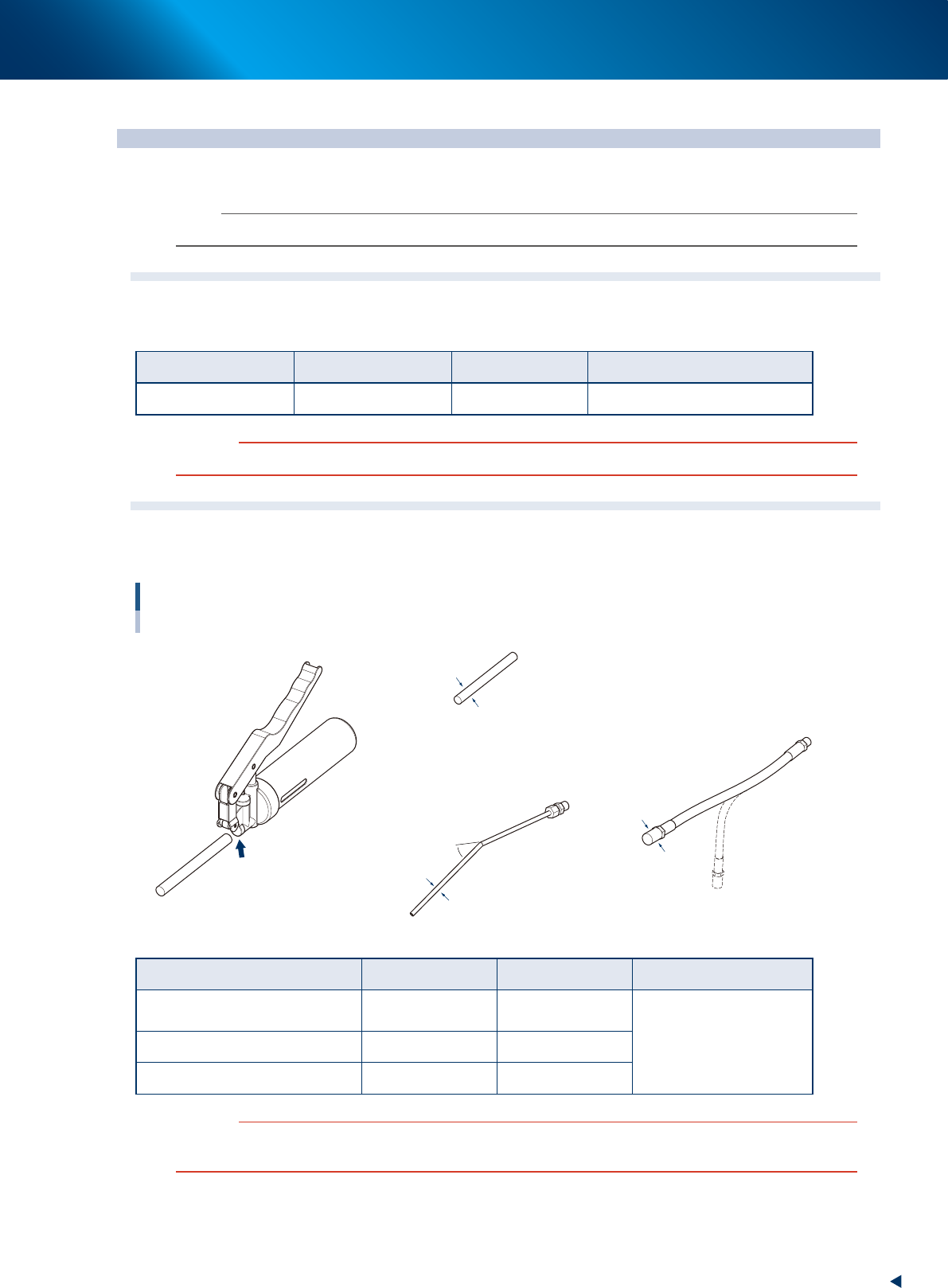

The grease gun has 3 interchangeable nozzle types to accommodate the various greasing point
configurations.Always use the prescribed nozzle for the greasing point in question.
Grease gun
Bend type nozzle
Standard nozzle
Flexible type nozzle
Chuck type
Nozzle
30°
OD φ14 tip
OD φ10 tip
OD
φ
0.5 tip
Grease gun
The various nozzle tips
are inserted here
53501-KMJ-00
Name Part name Part No. Note
Grease gun (with standard
nozzle)
GREASE GUN K48-M3852-00X
GREASE GUN SET
KHW-M3852-A0X
Nozzle (flexible type) GREASE NOZZLE K48-M3857-00X
Nozzle (bent type) GREASE NOZZLE K48-M3854-00X
c
CAUTION
Prepare the tip nozzle for grease to be used. If two or more kinds of grease with different characteristics are mixed in the
nozzle and it is applied, this may cause the machine performance to lower.
2. Lubrication points
5-2
Chapter 5 Lubrication points and schedule
2. Lubrication points
2.1 Printing head unit
2.1.1 SY-axis
Lubrication section
Lubrication
points
Interval Procedure Nozzle type, and other
SY-axis guide 4
Every 3 month Grease gun Bend type nozzle d5 mm
SY-axis ball screw 1

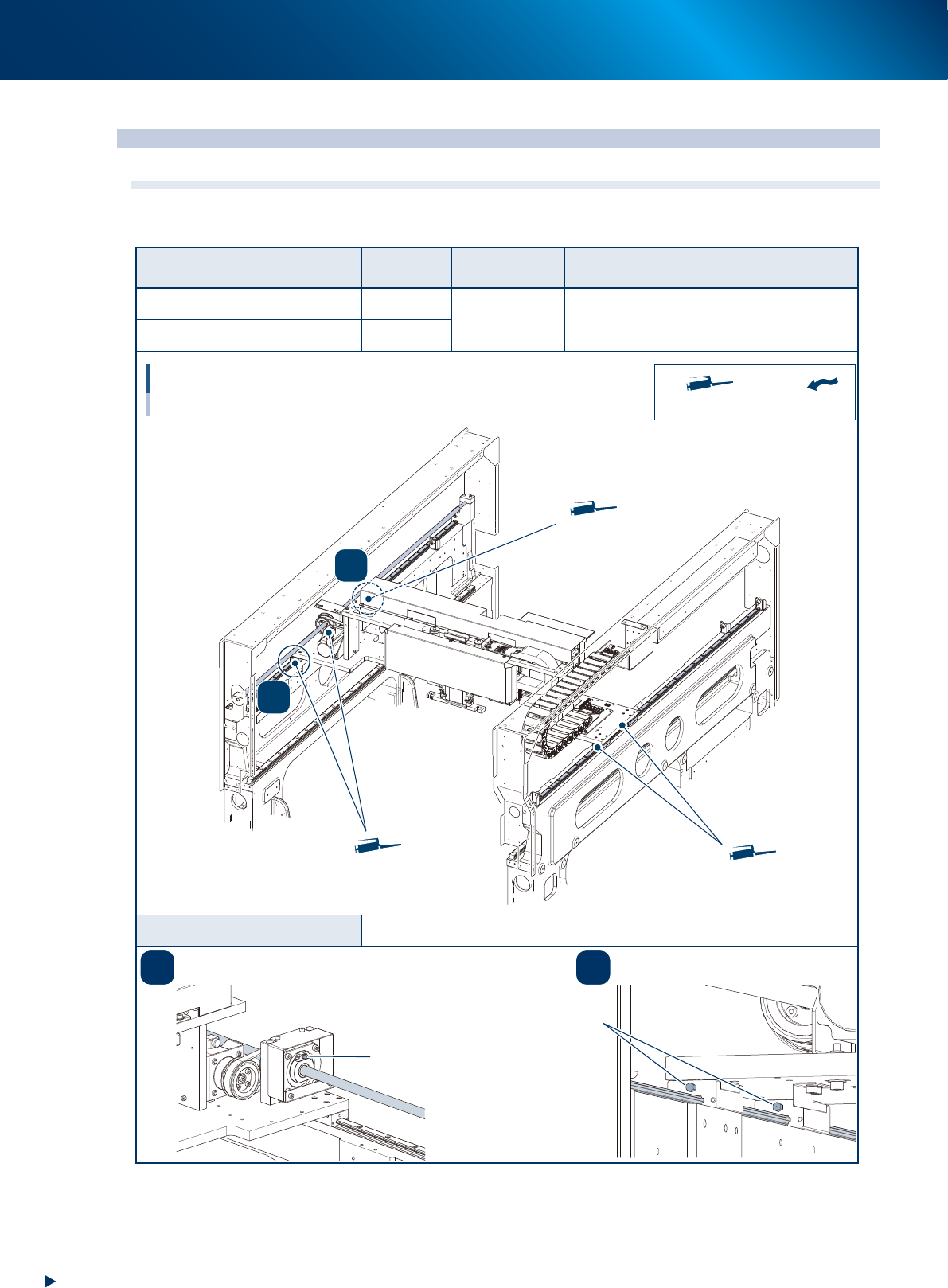

SY-axis lubrication points
SY-axis guide
SY-axis ball screw
Grease gun
Manual lubrication
SY-axis guide
A
B
Details of lubrication points
SY-axis guide unit
Grease nipple
SY-axis ball screw unit
Grease nipple
A B
