2. Lubrication points 5-7 Chapter 5 Lubrication points and schedule 2.3.3 Z-axis Lubrication section Lubrication points Interval Procedure Nozzle type, and other Z-axis ball screw 4 Every 3 month Grease gun Standard nozz…
2. Lubrication points
5-6
Chapter 5 Lubrication points and schedule
2.3.2 Y-axis
Lubrication section
Lubrication
points
Interval Procedure Nozzle type, and other
Y-axis guide 2
Every 6 month
Manual lubrication
Y direction guide 6
Y-axis ball screw 1 Grease gun Standard nozzle
Y-axis lubrication points
Y direction guides
Y direction guides
Y-axis guides
Y-axis ball screw
Y direction guides
Grease gun
Manual lubrication
A
Details of lubrication points
Y-axis
：Grease gun insertion direction
A
53503-KMJ-00
2. Lubrication points
5-7
Chapter 5 Lubrication points and schedule
2.3.3 Z-axis
Lubrication section
Lubrication
points
Interval Procedure Nozzle type, and other
Z-axis ball screw 4
Every 3 month
Grease gun Standard nozzle
Z-axis shaft guide 3 Manual lubrication
Z-axis lubrication points
Z-axis
Ball screws
Z-axis
Shaft guides
Z-axis
Ball screws
Grease gun
Manual lubrication
D
A
B
C
Details of lubrication points
For B, C and D above,
perform the same procedure as A
Z-axis ball screw
Grease nipple
Grease gun
Grease gun insertion hole
A
53504-KMJ-00
2. Lubrication points
5-8
Chapter 5 Lubrication points and schedule

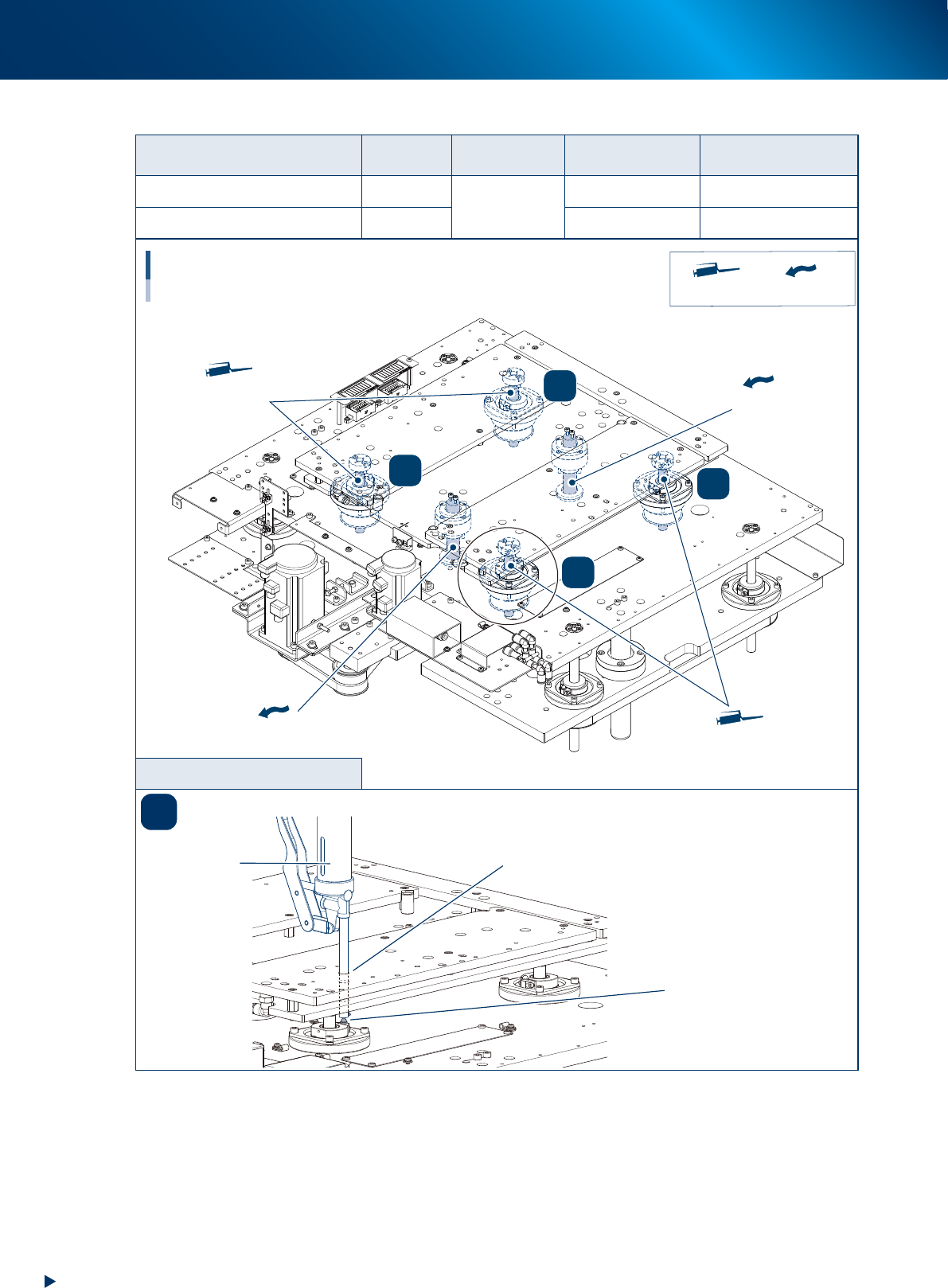

2.3.4 PU-axis
Lubrication section
Lubrication
points
Interval Procedure Nozzle type, and other
PU-axis ball screw 4
Every 3 month
Grease gun Standard nozzle
PU-axis shaft guide 2 Manual lubrication
PU-axis lubrication points
PU-axis
Ball screws
PU-axis
Shaft guide
PU-axis
Shaft guide
PU-axis
Ball screws
Grease gun
Manual lubrication
A
B
D
C
Details of lubrication points
For B, C and D above,
perform the same procedure as A
PU-axis ball screw
Grease nipple
Grease gun
Grease gun insertion hole
A
53507-KMJ-00
