2. Lubrication points
5-11
Chapter 5 Lubrication points and schedule
2.5 Other lubrication points

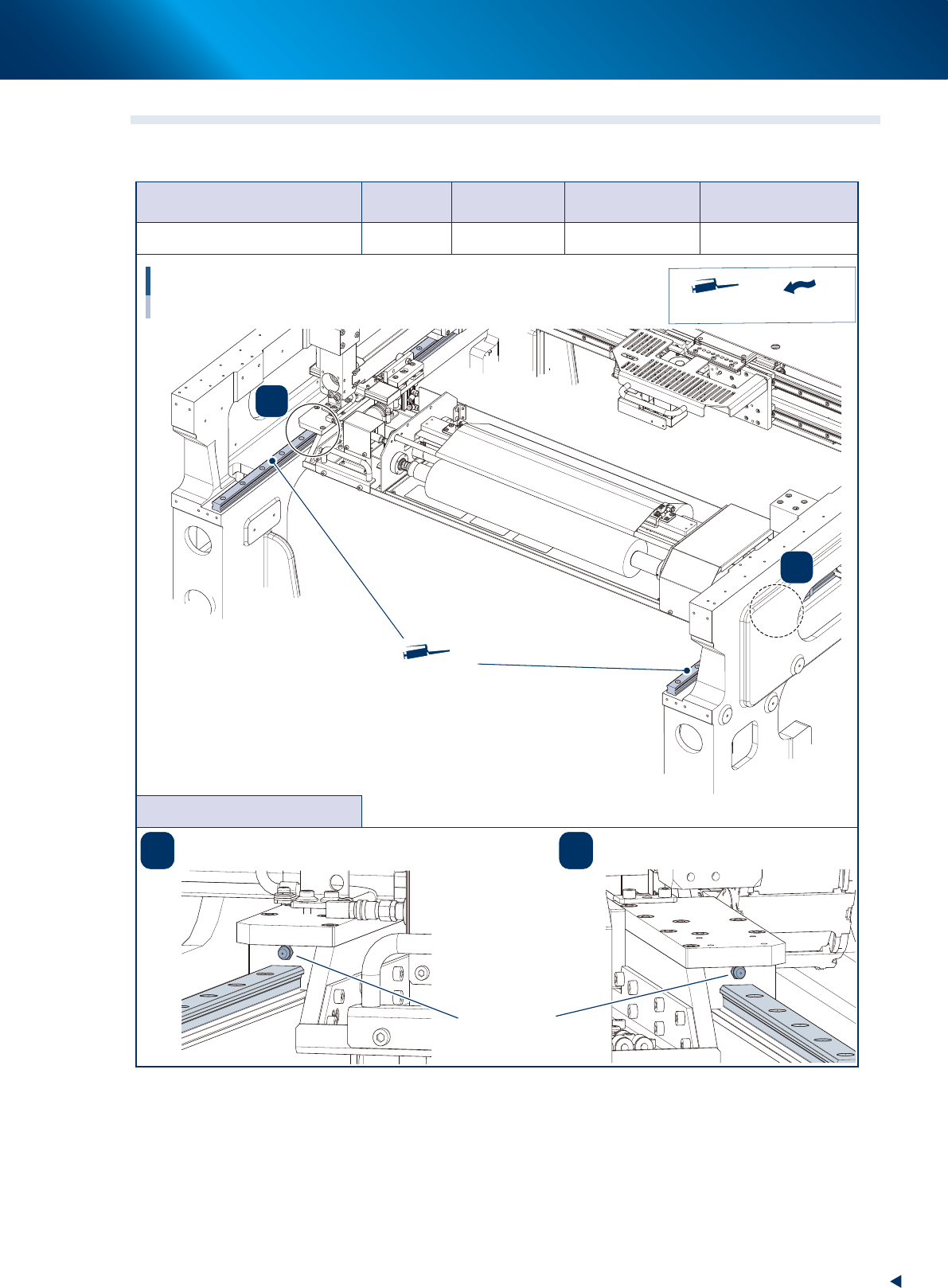

2.5.1 Cleaning unit
Lubrication section
Lubrication
points
Interval Procedure Nozzle type, and other
Y direction guide 2 Monthly Grease gun Bend type nozzle
Cleaning unit lubrication points
Y direction guide
Grease gun
Manual lubrication
A
B
Details of lubrication points
Y direction guide
Grease nipple
A B
53512-KMJ-00
2. Lubrication points
5-12
Chapter 5 Lubrication points and schedule

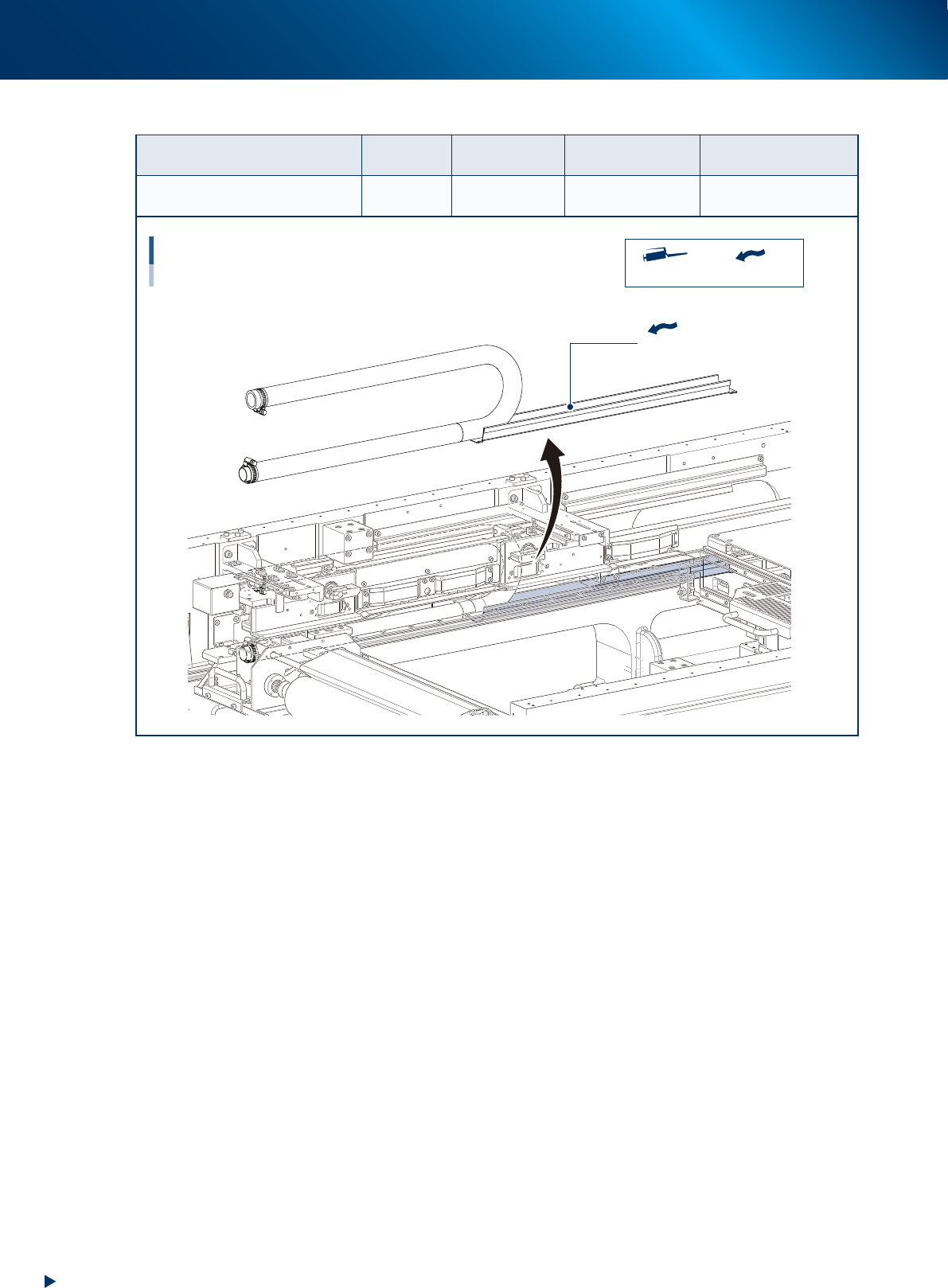

2.5.2 Suction unit
Lubrication section
Lubrication
points
Interval Procedure Nozzle type, and other
Blower hose guide 1
At
replacement
Manual lubrication
Lubricate when the
hose is replaced.
Suction blower unit
Blower hose guide
Blower hose guide
Grease gun
Manual lubrication
53511-KMJ-00
Appendix
Contents
1. Specification A-1
1.1 Air regulator unit A-1
1.1.1 Supply air pressure A-1
1.2 Power connection terminals A-2
1.3 Connection between machines A-3
1.3.1 PREVIOUS INTERFACE connector A-4
1.3.2 NEXT INTERFACE connector A-5
1.4 Adapted mask A-6
1.4.1 The mask flame size and the mask standard position A-6
1.5 Inverter A-7
2. Periodic inspection check sheet A-9
3. User support A-12
3.1 YAMAHA Service website A-12
4. YSP10 Maintenance parts A-13
