1.Specication
A-2
Appendix
1.2 Power connection terminals
Open the lower front panel to locate the power connection terminals. Connect the power cable leads as
shown below to the primary side terminal of the main breaker (L1 and L2) and to the ground terminal of the
machine.
►
Power supply specification
Items Specification Note
Power source Single phase 200/208/220/230V +/- 20V
Frequency 50/60Hz
Power capacity 6.9kVA Except for the temperature adjustment unit (option).
Power
consumption
1.2kW
Operating the machine without peripherals/Normal
operation
c
CAUTION
When installing an electrical leakage breaker upstream, use a sensed current is 30mA or higher.

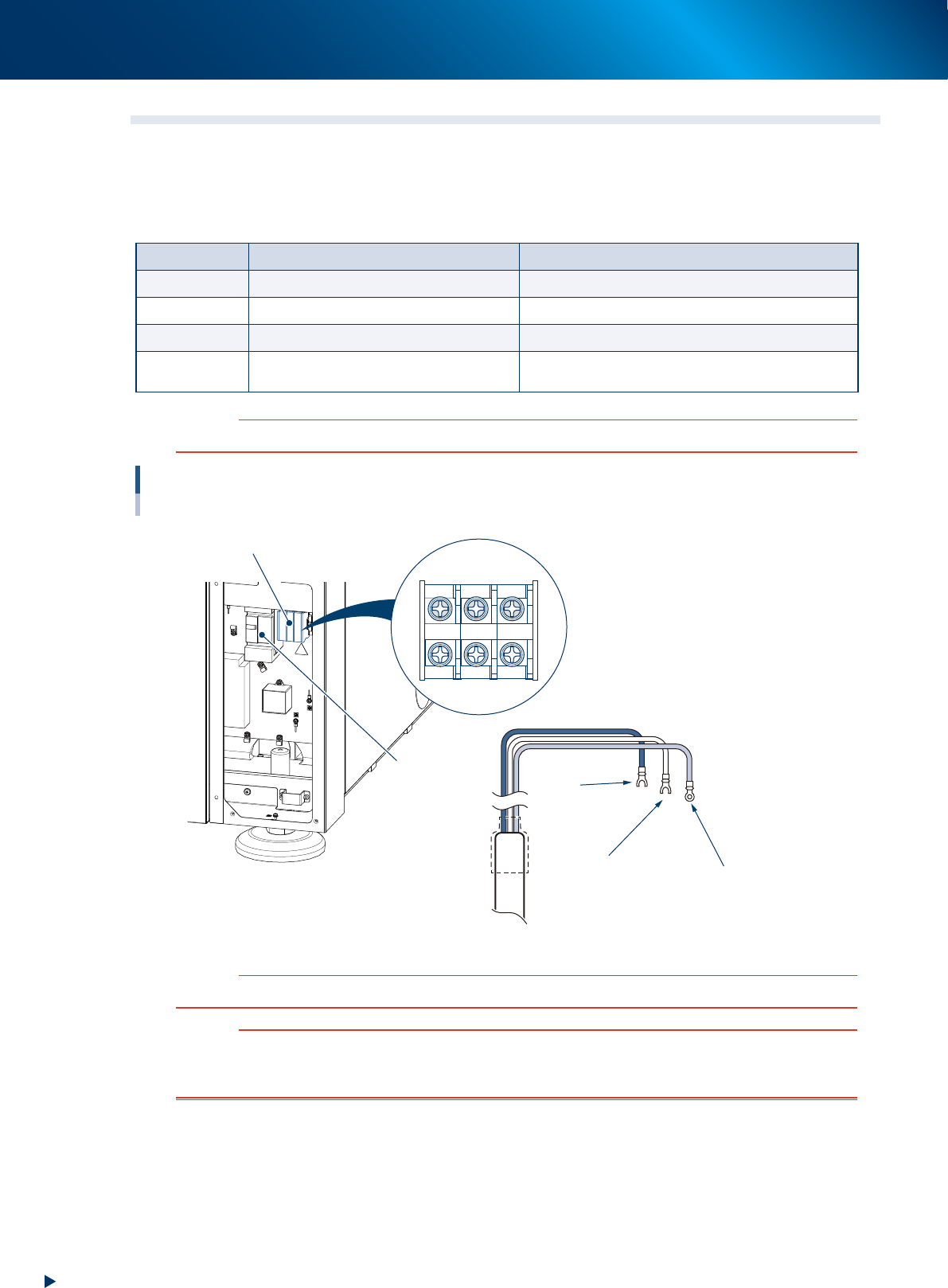

Power input terminals and cables
Lower-left part of the machine front
Power input terminals M5
Power cables
Terminal block
Main breaker
L1 L2 PE
L1
L M5
L2
N M5
L=350mm
Ring-tongue crimp terminal M5
Ground terminal (green)
53A03-KME-10
c
CAUTION
Use a power cable whose conductor cross-section area is greater than 6mm
2
.
w
WARNING
TO AVOID THE RISK OF ELECTRICAL SHOCK, MAKE SURE THAT THE EXTERNAL POWER SOURCE IS OFF BEFORE
CONNECTING THE POWER CABLE. ALSO MAKE SURE THAT THE GROUND CABLE IS SECURELY CONNECTED TO THE
MACHINE.
1.Specication
A-3
Appendix
1.3 Connection between machines
To exchange signals such as board request and operation status with the downstream or upstream machine,
the "NEXT INTERFACE" and "PREVIOUS INTERFACE" connectors in the lower panel on the rear of the
machine are used.
The "NEXT INTERFACE" connector connects to the downstream machine, and the "PREVIOUS INTERFACE"
connector connects to the upstream machine such as a loader.
On the left part of the rear side of the machine, of standard "right to left" flow type, PREVIOUS INTERFACE
is on the left side and NEXT INTERFACE on the right. These two connectors adopt AMP 206043-1 (14-pin
receptacle).
Connection between machines
Lower panel on the rear side
NEXT
Interface connector
PREVIOUS
AMP 206043-1
(14-pin receptacle)
AMP 206043-1
(14-pin receptacle)
14
11
12
7
4
8
1
3
14
11
12
7
8
3
1
4
53A05-KMJ-00
1.Specication
A-4
Appendix
1.3.1 PREVIOUS INTERFACE connector
When the following three conditions are met, the PREVIOUS INTERFACE circuit in the machine allows the
next board to be carried in.
• Machine is ready for carrying in a board (BUSY OUT : ON)
• Board carry-in signal is input from the upstream (pre-process) machine. (BA IN : ON)
• Automatic operation signal is input from the upstream (pre-process) machine. (UR IN : ON)
n
NOTE
• When the automatic operation signal (UR IN) of the upstream machine turns off during transfer of a board, the
machine temporarily stops carrying in the board.
• When the board being carried in is detected by the entrance sensor of the machine, the BUSY OUT signal turns off.
• Carrying in the board is finished when both the BUSY OUT and BA IN turn off.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
DC +24V
PNP input
DC +24V
PNP input
Input
Relay output
Relay output
Relay output
Relay output
Relay output
Input
Input
I/O BOARD
7
12
4
8
1
14
11
3

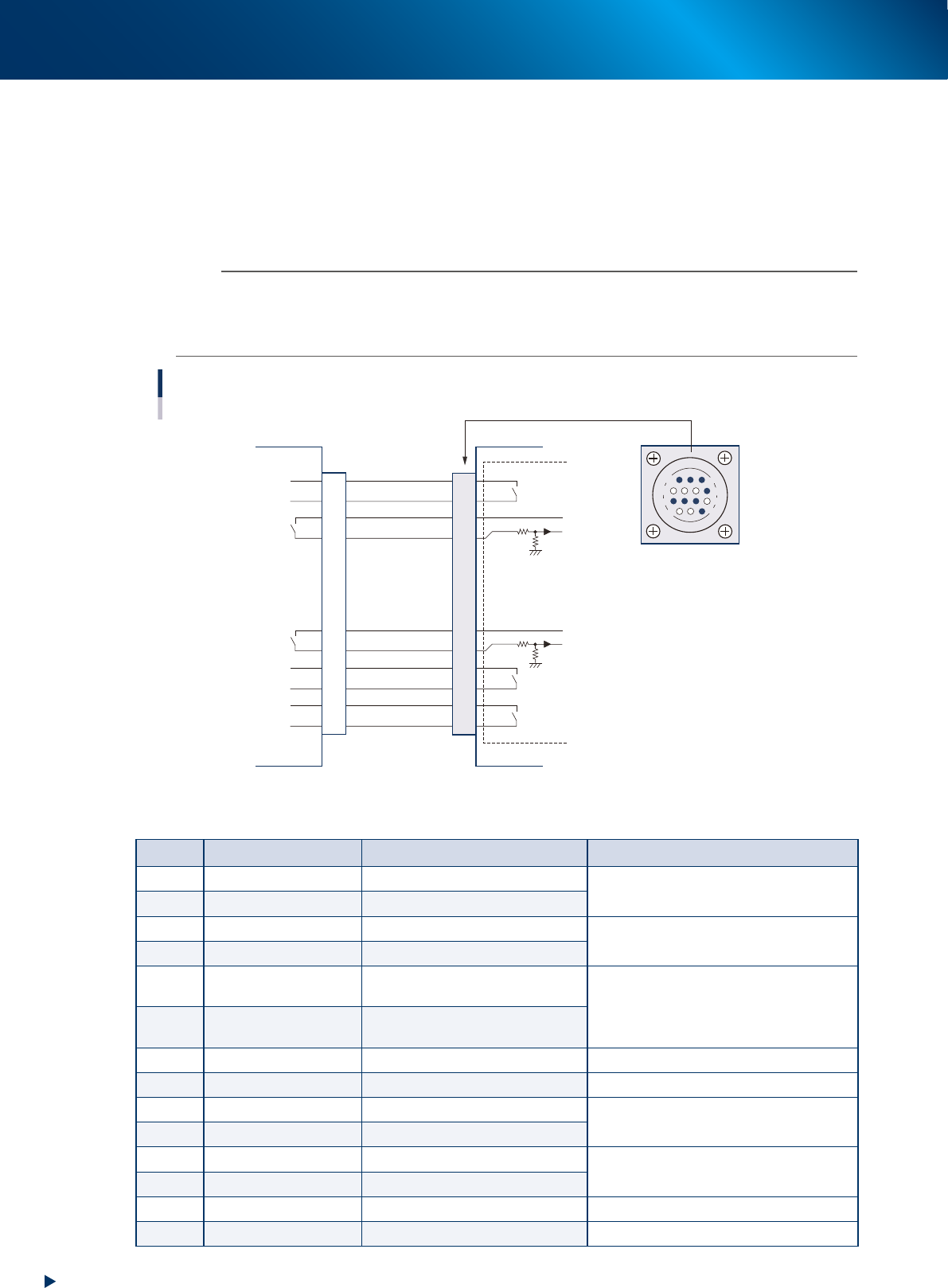

PREVIOUS INTERFACE circuit
Connection between the YSP10 and the pre-process machine.
YSP10
PREVIOUS INTERFACE
Pre-pricess machine
NEXT INTERFACE
AMP 206043-1
(14-pin receptacle)
53A06-KMJ-00
►
Board transfer signal specifications (PREVIOUS INTERFACE)
Pin No. Signal name I/O specifications Signal specifications
1 BUSY OUT (output) Relay contact (zero voltage) output
Signal output during board carry-in to the
YSP10
2 BUSY OUT (output) Relay contact (zero voltage) output
3 BA IN (com) DC +24V
Signal input when the pre-process machine
can carry-out the board.
4 BA IN (input) PNP input
5
Exclusive for fitting
specify
Prevents misinsertion.
Use for prevention of mis-connection
6
Exclusive for fitting
specify
Prevents misinsertion.
7 NC
8 NC
9 UR IN (com) DC +24V
Signal input during the automatic operation
of pre-process machine
10 UR IN (input) PNP
11 LR OUT Relay contact (zero voltage) output
Signal output during the automatic
operation of YSP10
12 LR OUT Relay contact (zero voltage) output
13 Not use
14 Not use
