2. Preparing for maintenance works
1-3
Chapter 1 Maintenance
2. Preparing for maintenance works
Tasks described in this section focus mainly on replacing parts (consumable parts) that are used to
keep machine function and might deteriorate gradually during use. This section also describes how the
user can easily replace parts (replaceable parts) when a breakdown occurs.
2.1 Consumable parts
Choose the following parts when some parts need to be replaced after the periodic inspections.

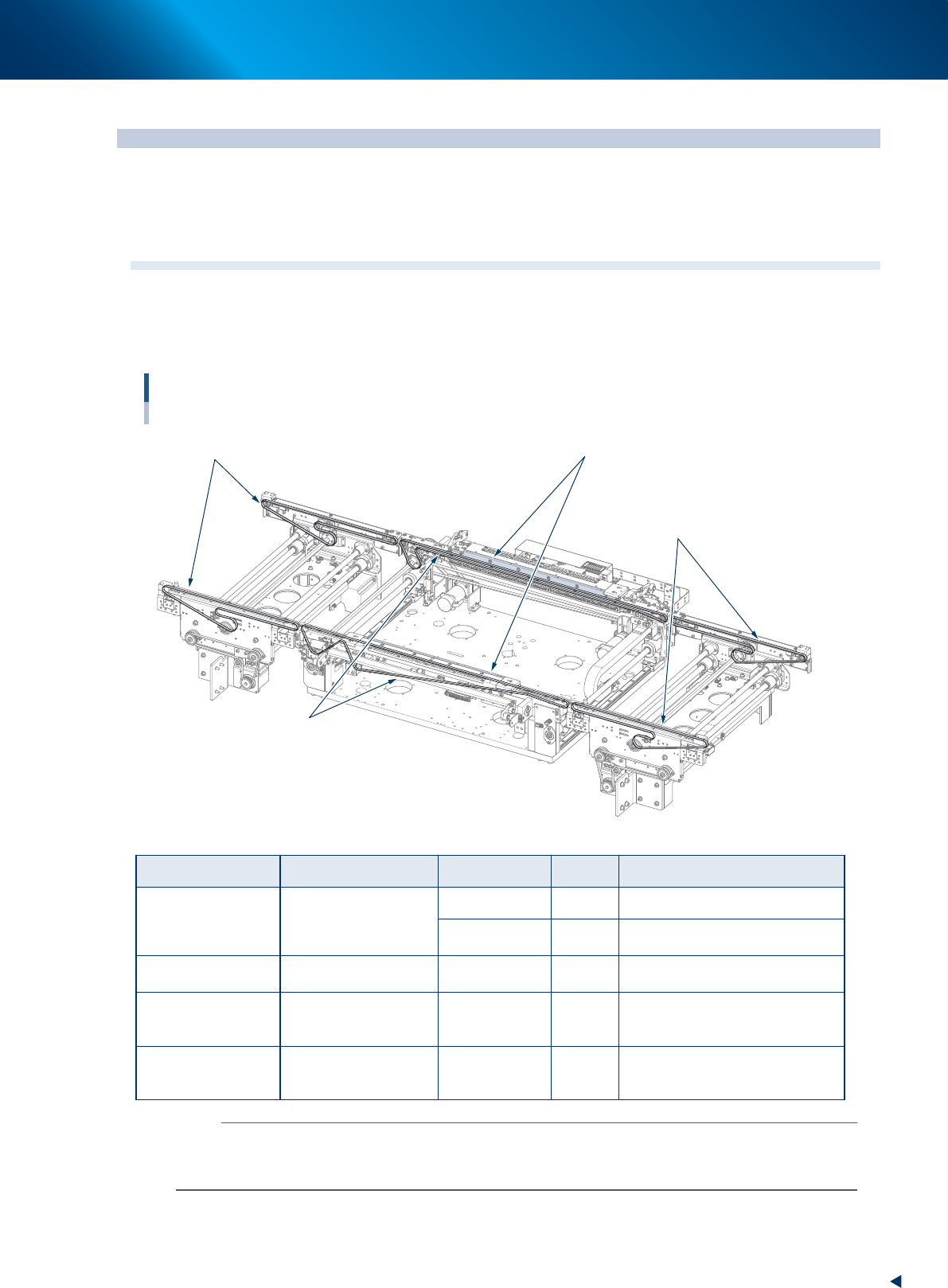

2.1.1 Conveyor related parts
Conveyor related consumable parts
Conveyor transfer belt and board clamp units
Edge clamp plates
Conveyor transfer belts (center)
Conveyor transfer belts (entrance/exit)
Conveyor transfer belts (entrance/exit)
53401-KMJ-00
Subject to replace Part name Part No. Quantity Note
Edge clamp plate PLATLE, EDGE CLAMP
KMJ-M9166-00X 2 Judge by the worn status of the parts.
KMJ-M9166-L0X 2
Judge by the worn status of the parts.
For L650 type only.
Conveyor transfer belt
(center)
BELT, CONV. KMJ-M9135-00X 2
Judge by the worn status of the parts.
Belt size: 1722mm
Conveyor transfer belt
(entrance/exit)
TRANSFER BELT W1 KHT-M9314-01X 4
Judge by the worn status of the parts.
Belt size: 1,000mm
Common to entrance and exit
Conveyor transfer belt
Extension of exit side
(option)
TRANSFER BELT W3L KMJ-M9346-00X 2
Judge by the worn status of the parts.
Belt size: 1,677mm
n
NOTE
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before ordering
parts.
2. Preparing for maintenance works
1-4
Chapter 1 Maintenance

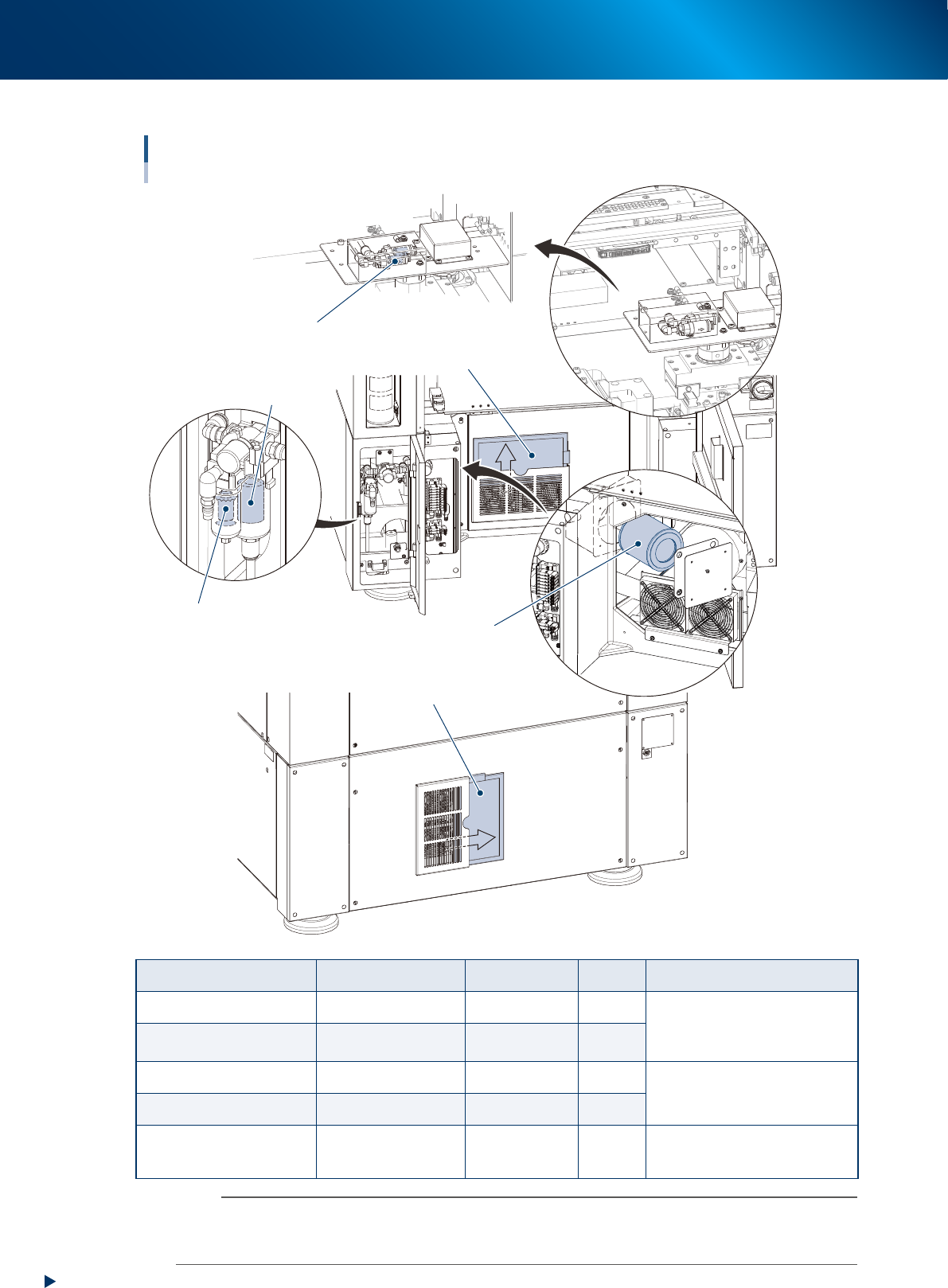

2.1.2 Filters
Filter related consumable parts
Filter elements, fan filter and others
Filter for machine cooling fan
Mask vacuum filter
Front side of machine
Rear side of machine
Mist filter
Air filter
Blower filter element
(NL FILTER ELEMENT)
Filter for machine cooling fan
53402-KMJ-00
Subject to replace Part name Part No. Quantity Note
Mask vacuum filter ELEMENT, SPARE KlW-M99B5-F0X 3
Replace 1 or 2 years later from the
installation, when the contamination
can be seen from outside of its
cover.
Blower filter element INL. FILTER ELEMENT KGY-M3710-40X 1
Air filter for supply air FILTER ELEMENT KLC-M8506-00X 1
Replace when the contamination
can be seen from outside of its
cover.
Mist filter for source air FILTER ELEMENT LG0-M86A2-10X 1
Filter for machine cooling fan FILTER, FAN KLV-M1319-00X 2
Clean regularly, and replace when
the contamination cannot be
removed or the parts are worn.
n
NOTE
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before ordering
parts.
2. Preparing for maintenance works
1-5
Chapter 1 Maintenance
2.2 Replacement parts
It is expected that some parts will wear out or reach the end of their service life without visible problems.
The periodic replacement is recommended to maintain machine performance.
2.2.1 Squeegee
The squeegee can be replaced by assembly or by the scraper only.
█
Squeegee assembly
Squeegee assembly
A 3S metal squeegee
53103-KMJ-00
►
3S squeegee
Object Part No. Part name Quantity Note
Metal
(METAL 3S)
KMJ-M71A0-L0X METAL ASSY,3S 620 1 Squeegee size 620 mm*
KHT-M71A0-00X METAL ASSY,3S 530 1 Squeegee size 530 mm
KHT-M71A0-10X METAL ASSY,3S 440 1 Squeegee size 440 mm
KHT-M71A0-20X METAL ASSY,3S 400 1 Squeegee size 400 mm
KHT-M71A0-30X METAL ASSY,3S 350 1 Squeegee size 350 mm
KHT-M71A0-40X METAL ASSY,3S 300 1 Squeegee size 300 mm
KHT-M71A0-50X METAL ASSY,3S 250 1 Squeegee size 250 mm
Half etching
KHT-M71F0-00X METAL ASSY,3S 530 1 Squeegee size 530 mm
KHT-M71F0-10X METAL ASSY,3S 440 1 Squeegee size 440 mm
KHT-M71F0-20X METAL ASSY,3S 400 1 Squeegee size 400 mm
KHT-M71F0-30X METAL ASSY,3S 350 1 Squeegee size 350 mm
KHT-M71F0-40X METAL ASSY,3S 300 1 Squeegee size 300 mm
KHT-M71F0-50X METAL ASSY,3S 250 1 Squeegee size 250 mm
Urethane
(URETHANE 3S)
KHT-M71B0-00X URETHANE ASSY,3S 530 1 Squeegee size 530 mm
KHT-M71B0-10X URETHANE ASSY,3S 440 1 Squeegee size 440 mm
KHT-M71B0-20X URETHANE ASSY,3S 400 1 Squeegee size 400 mm
KHT-M71B0-30X URETHANE ASSY,3S 350 1 Squeegee size 350 mm
KHT-M71B0-40X URETHANE ASSY,3S 300 1 Squeegee size 300 mm
KHT-M71B0-50X URETHANE ASSY,3S 250 1 Squeegee size 250 mm
* There is no 620mm length half etching squeegee and 620mm length urethane 3S squeegee.
n
NOTE
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before ordering
parts.
