2. Preparing for maintenance works
1-5
Chapter 1 Maintenance
2.2 Replacement parts
It is expected that some parts will wear out or reach the end of their service life without visible problems.
The periodic replacement is recommended to maintain machine performance.
2.2.1 Squeegee
The squeegee can be replaced by assembly or by the scraper only.
█

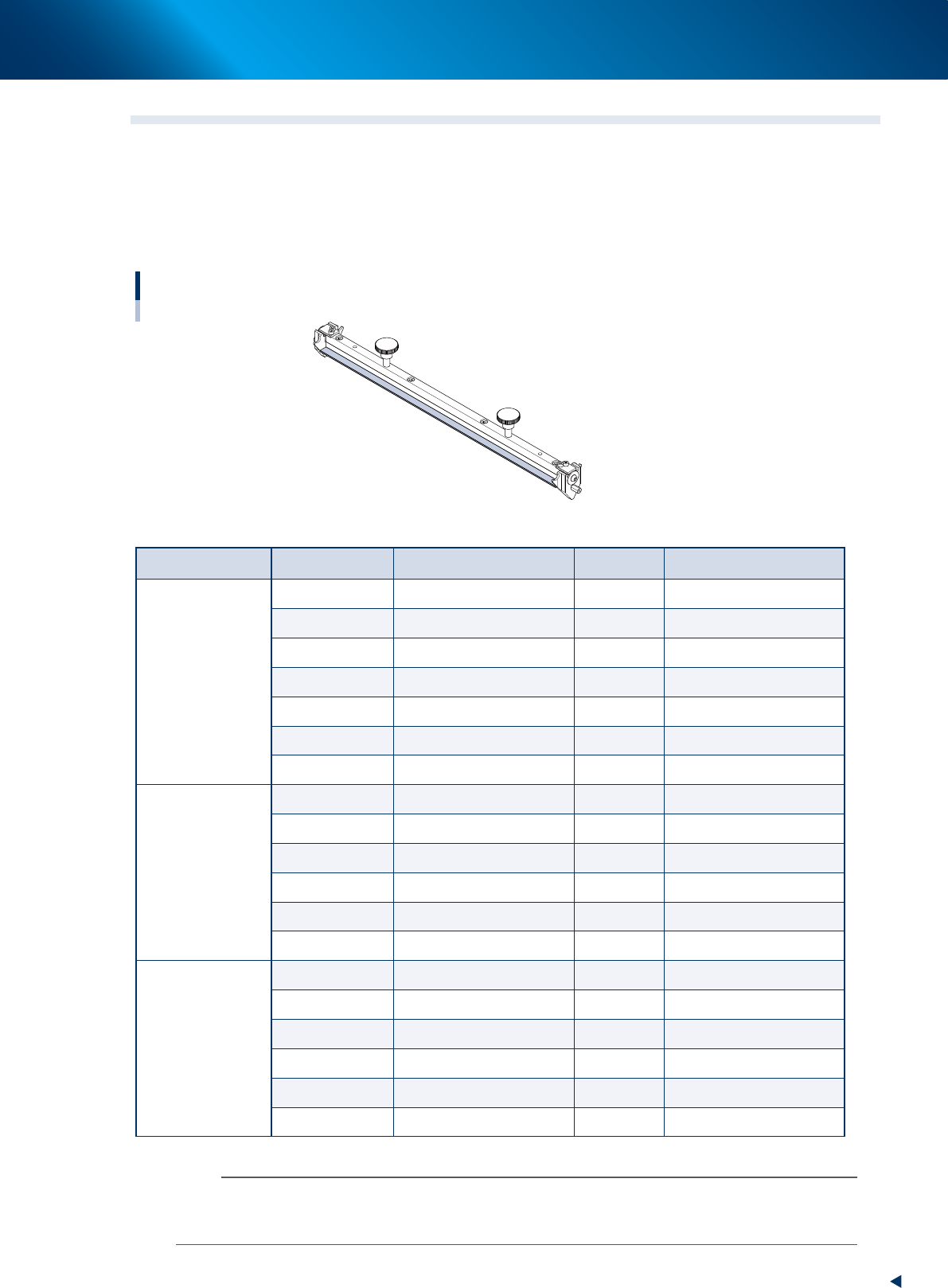

Squeegee assembly
Squeegee assembly
A 3S metal squeegee
53103-KMJ-00
►
3S squeegee
Object Part No. Part name Quantity Note
Metal
(METAL 3S)
KMJ-M71A0-L0X METAL ASSY,3S 620 1 Squeegee size 620 mm*
KHT-M71A0-00X METAL ASSY,3S 530 1 Squeegee size 530 mm
KHT-M71A0-10X METAL ASSY,3S 440 1 Squeegee size 440 mm
KHT-M71A0-20X METAL ASSY,3S 400 1 Squeegee size 400 mm
KHT-M71A0-30X METAL ASSY,3S 350 1 Squeegee size 350 mm
KHT-M71A0-40X METAL ASSY,3S 300 1 Squeegee size 300 mm
KHT-M71A0-50X METAL ASSY,3S 250 1 Squeegee size 250 mm
Half etching
KHT-M71F0-00X METAL ASSY,3S 530 1 Squeegee size 530 mm
KHT-M71F0-10X METAL ASSY,3S 440 1 Squeegee size 440 mm
KHT-M71F0-20X METAL ASSY,3S 400 1 Squeegee size 400 mm
KHT-M71F0-30X METAL ASSY,3S 350 1 Squeegee size 350 mm
KHT-M71F0-40X METAL ASSY,3S 300 1 Squeegee size 300 mm
KHT-M71F0-50X METAL ASSY,3S 250 1 Squeegee size 250 mm
Urethane
(URETHANE 3S)
KHT-M71B0-00X URETHANE ASSY,3S 530 1 Squeegee size 530 mm
KHT-M71B0-10X URETHANE ASSY,3S 440 1 Squeegee size 440 mm
KHT-M71B0-20X URETHANE ASSY,3S 400 1 Squeegee size 400 mm
KHT-M71B0-30X URETHANE ASSY,3S 350 1 Squeegee size 350 mm
KHT-M71B0-40X URETHANE ASSY,3S 300 1 Squeegee size 300 mm
KHT-M71B0-50X URETHANE ASSY,3S 250 1 Squeegee size 250 mm
* There is no 620mm length half etching squeegee and 620mm length urethane 3S squeegee.
n
NOTE
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before ordering
parts.
2. Preparing for maintenance works
1-6
Chapter 1 Maintenance
█

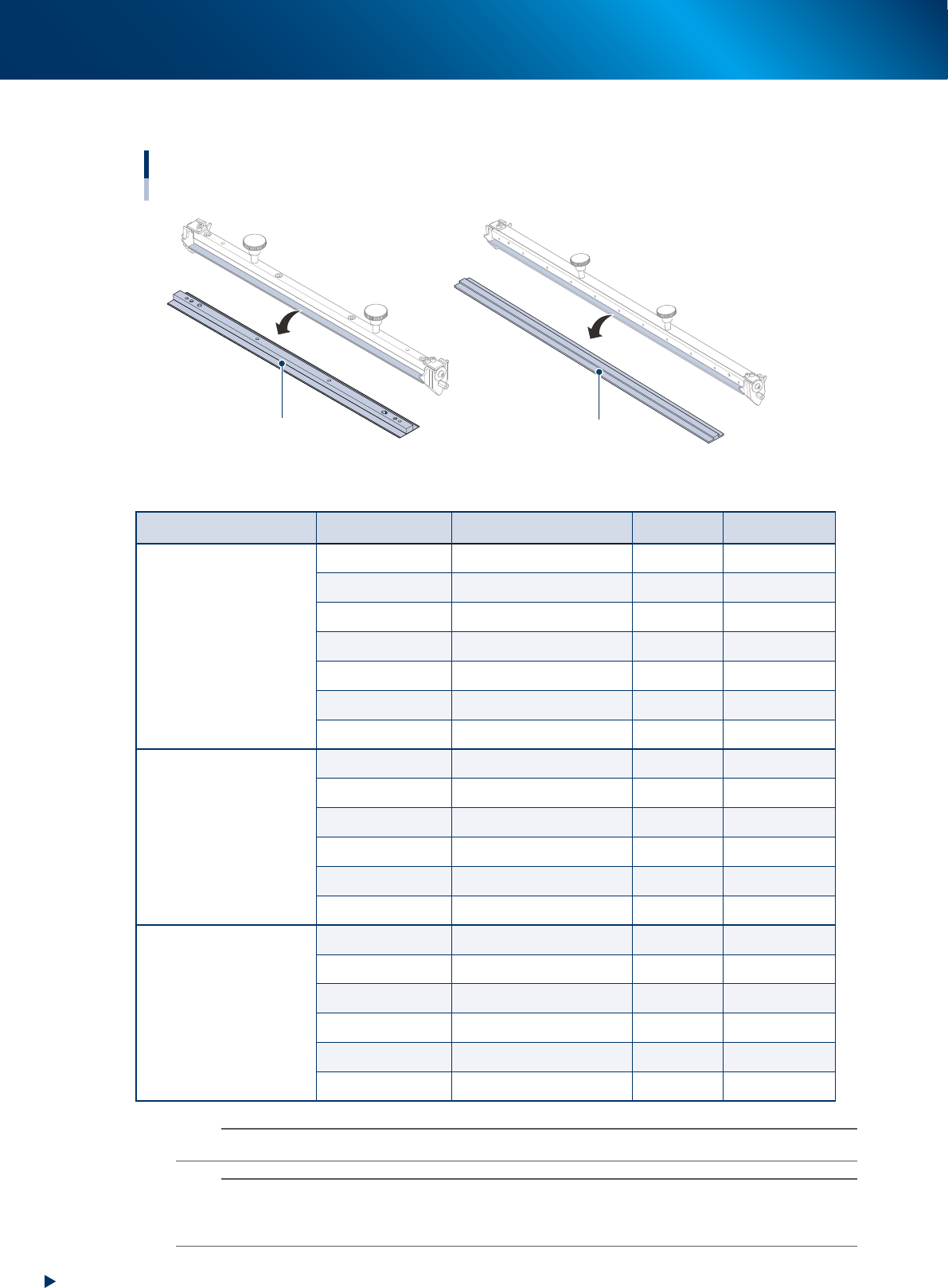

Scraper unit for squeegee
Scraper unit for squeegee
Metal scraper unit
Urethane scraper unit
3S metal squeegee
3S urethane squeegee
53104-KMJ-00
►
3S squeegee
Object Part No. Part name Quantity Note
STANDARD METAL 3S
KMJ-M71GA-00X METAL SQG. 3S 620 1 1 620mm
KHT-M71AA-02X METAL SQG. 3S 530 1 530mm
KGY-M71EA-A0X METAL SQG.WELD,3S 44 1 440mm
KGY-M71DA-A0X METAL SQG.WELD,3S 40 1 400mm
KGY-M71CA-A0X METAL SQG.WELD,3S 35 1 350mm
KGY-M71BA-A0X METAL SQG.WELD,3S 30 1 300mm
KGY-M71AA-A0X METAL SQG.WELD,3S 25 1 250mm
Half etching
KHT-M71AA-11X METAL (S)WELD,3S 530 1 530mm
KGY-M71EA-B0X METAL SQG.(S)WELD,3S 1 440mm
KGY-M71DA-B0X METAL SQG.(S)WELD,3S 1 400mm
KGY-M71CA-B0X METAL SQG.(S)WELD,3S 1 350mm
KGY-M71BA-B0X METAL SQG.(S)WELD,3S 1 300mm
KGY-M71AA-B0X METAL SQG.(S)WELD,3S 1 250mm
URETHANE 3S
KHT-M71B3-00X URETHANE SQG.,3S 530 1 530mm
KGY-M71K3-A0X URE.SQG.ASSY,3S 440 1 440mm
KGY-M71J3-A0X URE.SQG.ASSY,3S 400 1 400mm
KGY-M71H3-A0X URE.SQG.ASSY,3S 350 1 350mm
KGY-M71G3-A0X URE.SQG.ASSY,3S 300 1 300mm
KGY-M71F3-00X URE.SQG.ASSY,3S 250 1 250mm
n
NOTE
See Chapter 4, "1. Scraper unit" about the replacement of the scraper unit for squeegee.
n
NOTE
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before ordering
parts.
2. Preparing for maintenance works
1-7
Chapter 1 Maintenance
2.2.2 The parts recommended to replace periodically

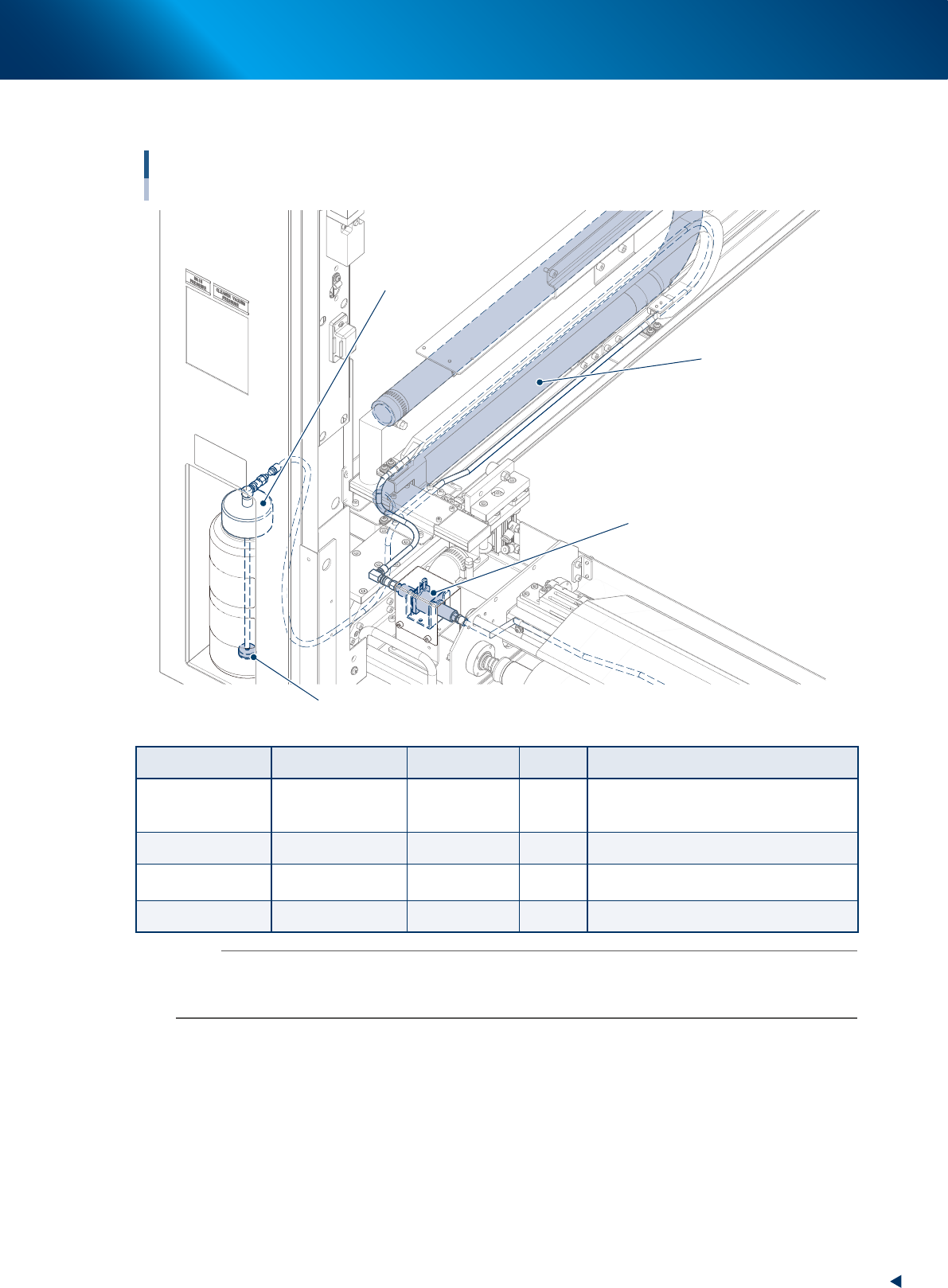

The parts recommended to replace periodically
Alcohol pump, alcohol pump filter and blower hose
Solvent pump
Solvent filter
Blower hose
Solvent tank
53403-KMJ-00
Subject to replace Part name Part No. Quantity Recommended replacement frequency
Solvent pump PUMP KHU-M3756-01X 1
After 1440 thousands motions of pump
(check at the cleaner screen of history 2),
or every 2-years
Solvent filter FILTER SUB ASSY KHT-M362E-20X 1 At pump replacement or every 2 years
Blower hose TUBE 25 KMJ-M3708-00X 1
When visible problem is found at monthly
inspection, or every 2-years
Valve VALVE KLW-M91V1-00X 1 Every 200 millions drives
n
NOTE
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before ordering
parts.
