2. Monthly maintenance 3-16 Chapter 3 Periodic maintenance items 2.6 Mask holder T his section describes the cleaning procedure for the part to set a mask for mask holder (mask holder plate). 2.6.1 Inspection and cleanin…
2. Monthly maintenance
3-15
Chapter 3 Periodic maintenance items
8
e
Lubricate the CY-axis.
1. Press the emergency stop button and open
machine safety button.
2. Change the nozzle of grease gun to the
standard type.
3. Move the camera unit to the position
convenient for lubrication by hand.
4. Inject the prescribed grease (NSL) at the
grease nipples of the ball screw (1 position)
and the guide (2 positions) until the grease
seep out from the gap.
The grease nipples are placed on both left
and right side.
5. Grab the handle of camera unit and move it
backward and forward several times, then
wipe away excess grease from the ball
screw and guide.
9
Reattach the CY-axis ball screw cover to
its original position with a Phillips
screwdriver.
Close machine safety cover.
0
Return the machine rear cover.
• Standard type:
Reattach the machine rear cover to its
original position using Phillips screwdriver.
• With automatic mask exchange unit:
Reattach the machine center rear cover to
its original position using Phillips screw-
driver.
Lubricating the CY-axis
Step 8
CY-axis guide
grease nipple
(at rear side)
CY-axis guide
grease nipple
(at front side)
CY-axis ball screw
grease nipple
53319-KMJ-00
2. Monthly maintenance
3-16
Chapter 3 Periodic maintenance items
2.6 Mask holder
This section describes the cleaning procedure for the part to set a mask for mask holder (mask holder plate).
2.6.1 Inspection and cleaning of mask holder plate
►
Inspection items
Check that there is no dirt as such solder, flux etc., or greasy touch on the surface of four mask holder
plate illustrated below.
►
Cleaning procedure
When any dirt or greasy touch is found, wipe away it using a lint-free cloth applied a few drops of
ethanol.
c
CAUTION
Do not use ethanol for the parts pasted with anti-wear resin tape pointed by white arrow in the figure below to prevent
the adhesibility decrease. Wipe with dry cloth upon cleaning.
Mask holder
Inspection and cleaning of mask holder plate
Lint-free cloth
applied of ethanol
Anti-wear resin tape
Mask holder plate
Mask holder plate
53325-KMJ-00
2. Monthly maintenance
3-17
Chapter 3 Periodic maintenance items
2.7 Base unit and others
This section describes the procedures for cleaning and replacing the fan filters installed at front and rear
side of machine, and the air/oil filters.

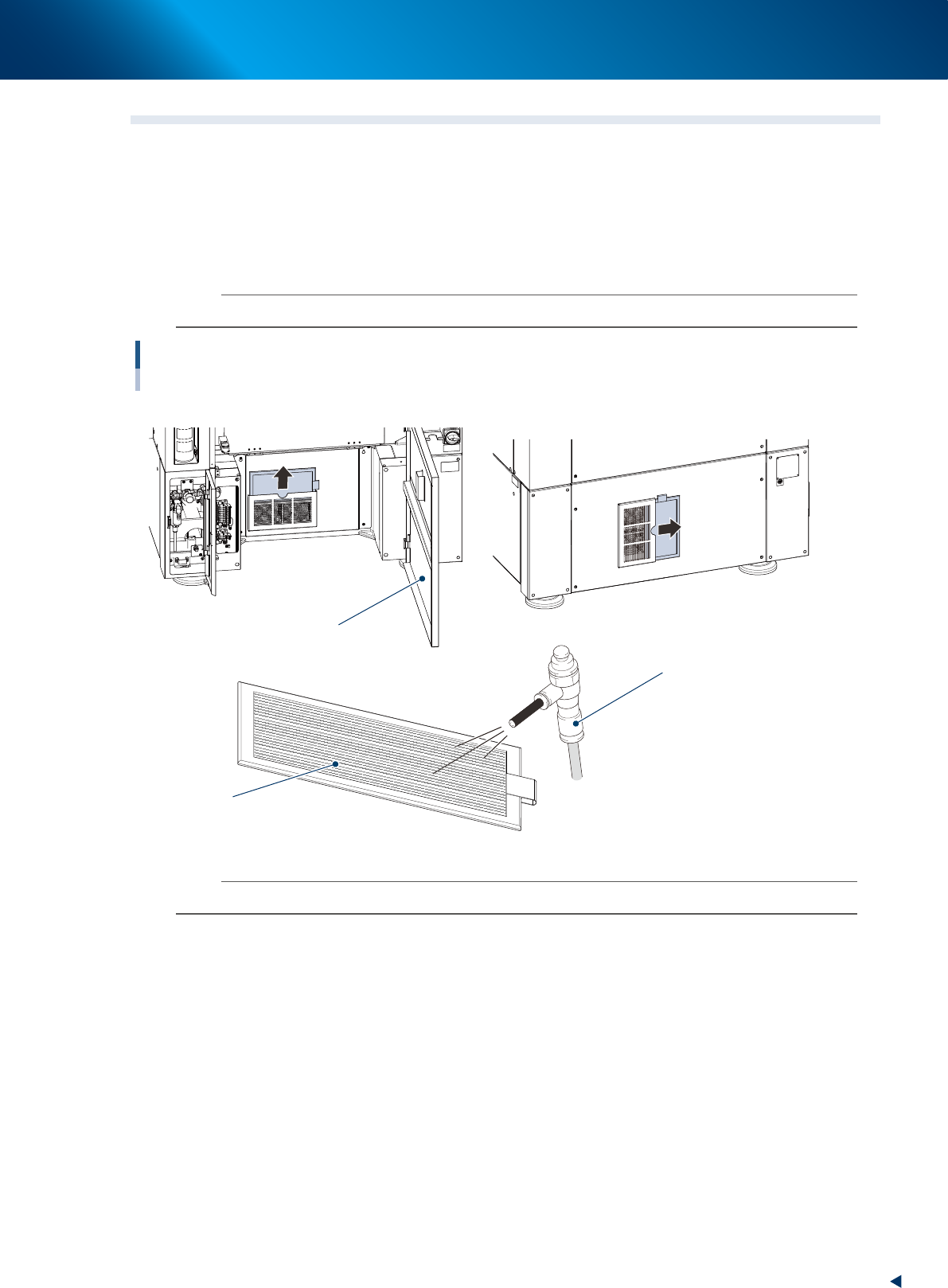

2.7.1 Inspecting and cleaning the fan filters.
Detach the fan filters installed at front and rear side of machine, illustrated below, to check them for soiling
and wearing status. If the filter is not clean, remove the dirt with the air blow tool (optional) etc,.
n
NOTE
Turn the machine power OFF for this work as the dust caught by filter may invade into machine.
Fan filter
Air blow tool
(Optional)
Filter
Lower door
Front side of machine Rear side of machine
53322-KMJ-00
n
NOTE
If the filter has worn out cannot be cleaned, replace the filter with a new one (KLV-M1319-00X).
