2. Monthly maintenance 3-19 Chapter 3 Periodic maintenance items 5 Reattach the lter cup. Oil mist filter Align the button of the cup to the positi on where the cup detached, then push t he cup upward and turn to right …
2. Monthly maintenance
3-18
Chapter 3 Periodic maintenance items
2.7.2 Replacing air/oil mist filter and cleaning cup.
Air filters and oil mist filters are installed to this machine to prevent oil, water, and impurities, etc., from
being introduced into the machine from the air compressor. This section describes the procedures for
inspecting, cleaning and replacing these filters. Make sure to disconnect the air coupler connected to the
supply air to work safely.
█
Cleaning the filter cup
1
Detach the air coupler.
1. Turn the "Air supply/exhaust" switch (valve)
clockwise (Exh) to turn air supply OFF.
2. Disconnect the air coupler on the air supply
connection unit.
c
CAUTION
Be aware that a loud air exhaust sound is heard when
disconnecting the air coupler. Use care to prevent oil,
water, and impurities, etc., from being sprayed out.
2
Check the inside of the lter cup for oil
or water deposits or soiling.
TIP
The drain cock at the bottom of the filter cup is an
auto-drain type. It automatically drains the oil or water
when deposited in the cup. It is recommended to connect a
hose to this drain cock.
3
Detach the lter cup.
Oil mist filter
Turn the cup to the left (arrow direction) and
pull the cup downward while pressing the
button.
Air filter
Turn the cup to the left (arrow direction) and
pull the cup downward. Then pull up filter
elements upward.
53323-KMJ-00
4
Clean the lter cup.
1. Lightly clean the filter cup with water.
2. When the cup is not cleaned well, pour the
water-diluted neutral detergent into the filter
cup and clean the inside.
3. Air blow the filter cup and wipe away any
moisture with clean cloth or paper.
c
CAUTION
Sometimes the cleaning blow air hits the face of the
worker, so that be sure to wear the protective goggles and
protective mask upon air blowing.
n
NOTE
When the filter is not clean upon checking, leave the filter
cup detached and proceed the procedure on the next
page, "Cleaning the filter cup".

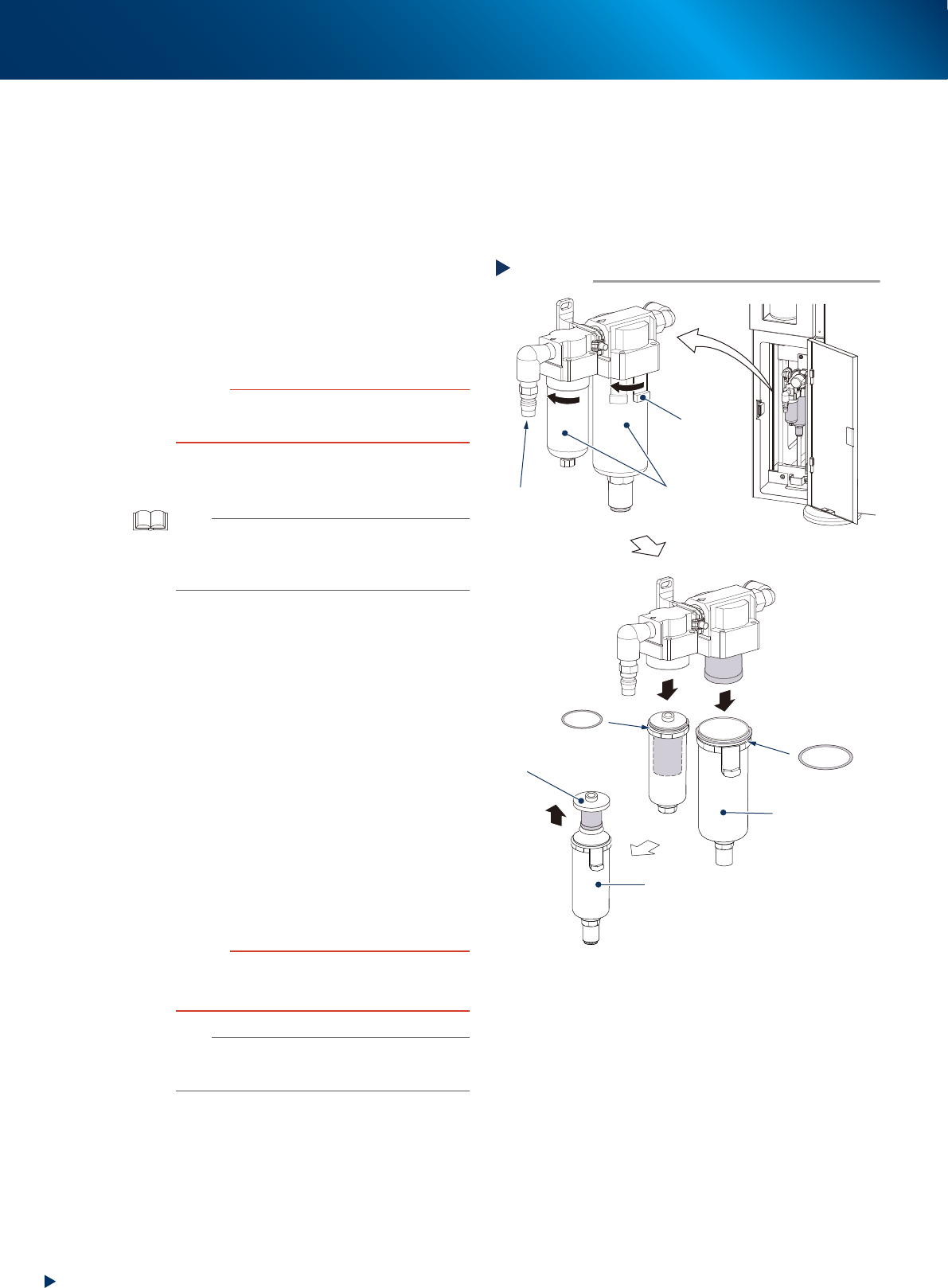

Detaching the filter cups
Step 2
Filter cup
Detach the
air coupler
Button
O-Ring of the cup
O-Ring of the cup
Air filter
Oil mist filter
Filter element
53323-KMJ-00
2. Monthly maintenance
3-19
Chapter 3 Periodic maintenance items
5
Reattach the lter cup.
Oil mist filter
Align the button of the cup to the position
where the cup detached, then push the cup
upward and turn to right until it clicked.
Air filter
Set the filter element with adapters into cup.
Then insert the cup upward and turn to right.
c
CAUTION
Make sure not to drop the O-rings for cup when attaching
the filters and cups.
6
Reconnect the air coupler and check
that no air is leaking.
2. Monthly maintenance
3-20
Chapter 3 Periodic maintenance items
█
Replacing the air filter and the oilmist filter
This section describes the procedures for the replacing of each filter, which is removed their filter cup,
showing above.
1
Deattach the lter elements.
Detaching the oil mist filter element
Oil mist filter element is attached by the screw
which is a part of machine. Rotate the oil mist
filter to remove it.
Detaching the air filter element
Air filter element is set inside the cup in
between the upper and lower adopter. Turn the
adapters to detach the air filter elements like
right figure.
2
Check the lter element status.
Check that no dirt or clogging is in the filter
element. Replace it with new one if it is dirty.
TIP
Parts number of filter elements.
-Air filter element
KLC-M8506-00X FILTER ELEMENT
-Oil mist filter element
LG0-M86A2-10X FILTER ELEMENT
3
Reattach the lter emelents to their
original positions by reversing
procedure of Step1.
4
Reattach the lter cup.
Oil mist filter
1. Align the button of the cup to the position
where the cup detached, then push the cup
upward.
2. Turn the cup to right until it clicked.
Air filter
Insert the cup upward and turn to right.
c
CAUTION
Make sure not to drop the O-rings for cup when attaching
the filters and cups.
5
Reconnect the air coupler and check
that no air is leaking.

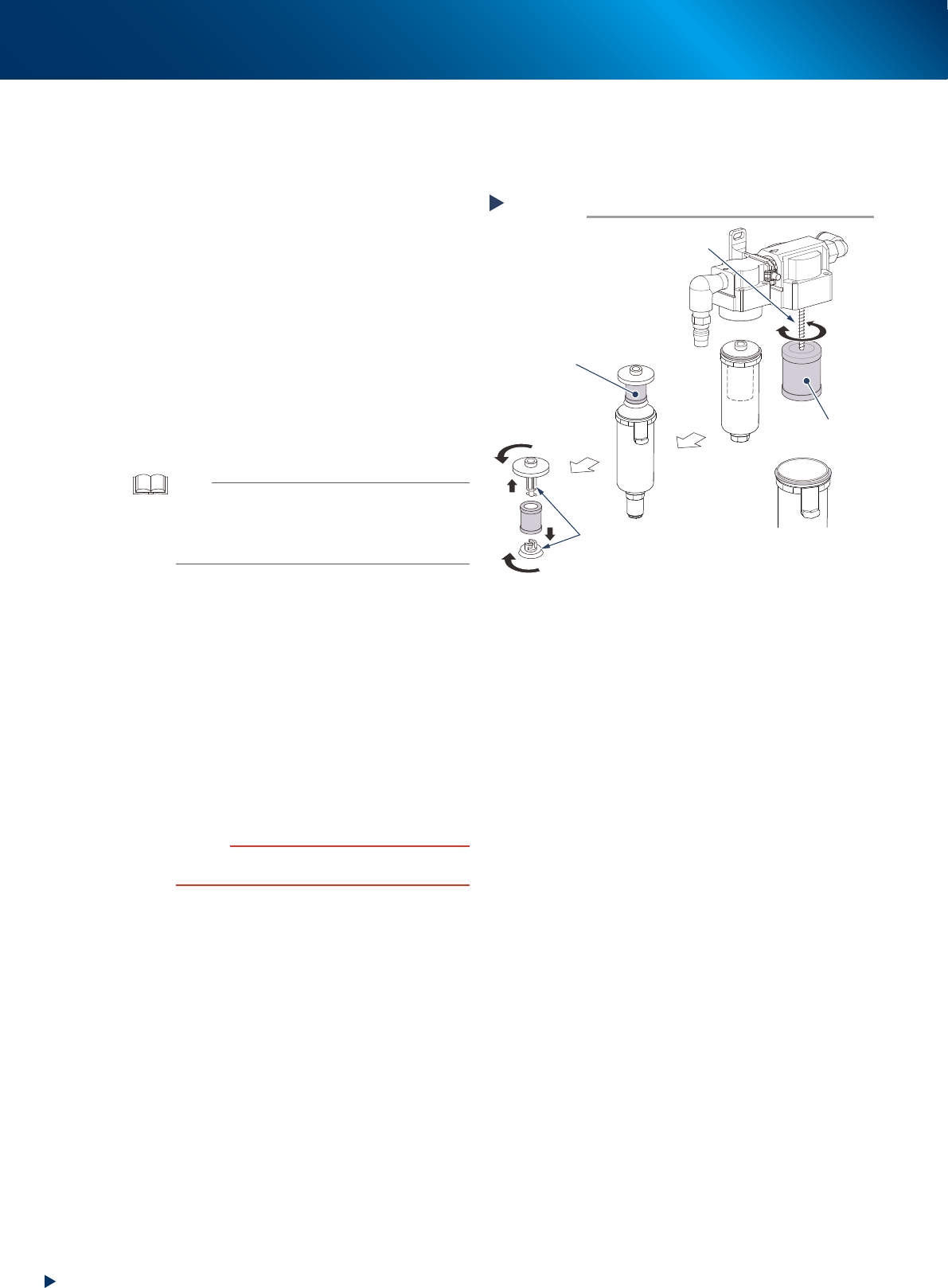

Ejecting the filter element
Step 1
Screw
Oil mist
filter element
Air filter
element
Adapter
Attach
Detach
53324-KMJ-00
