3. 3-month maintenance 3-36 Chapter 3 Periodic maintenance items 3 Lubrica te the SZ-a xis guide. 1. In ject the prescribed grease (NS L) to the grease nipples (2 pos itions) of guide, unti l the grease seep out from gap…
3. 3-month maintenance
3-35
Chapter 3 Periodic maintenance items
3.5.2 Cleaning and Lubricating of SZ-axis with PSC
When PSC is installed with YSP10, the lubrication procedure of SZ-axis varies a little. And this section
describes the cleaning and lubrication procedure of the guide, then that of the shaft guide and ball screw, as
considering the work effectiveness.
1
e
Remove the squeegee and mask.
1. Press the emergency stop button and open
machine safety cover.
2. Move the squeegee unit to machine front
side grabbing its handle.
3. Rotate the squeegee mounting knob
counterclockwise to remove the squeegee
from its holder.
4. Press the [Mask Clamp] button on [Unit]
- [Mask] screen. The mask clamp (4
positions) are released.
5. Pull out the mask frontward.
c
CAUTION
The squeegee and mask should always be removed. If not,
they may clash to the SZ-axis upon Step5.
2
Clean the SZ-axis tuide by wiping away
the grease or soiling on SZ-axis guides
(2 positions) using a lint-free cloth.
n
NOTE
Carefully wipe the guide grooves. Additionally, make sure
that any dirt is not produced.
Mask
Removing squeegee and mask
Step 1
■ Removing mask
■ Removing squeegee
Squeegee
Squeegee mounting knob
[Mask clamp] button
Clamp
Release
Clamp Release
54342-KMJ-00
Cleaning SZ-axis guide
Step 2
Lint-free cloth
Guide
Guide
53377-KMJ-00
3. 3-month maintenance
3-36
Chapter 3 Periodic maintenance items
3
Lubricate the SZ-axis guide.
1. Inject the prescribed grease (NSL) to the
grease nipples (2 positions) of guide, until
the grease seep out from gap.
2. Wipe away the excess grease.
4
Move the PSC to left side by hand, to
facilitate the access to SZ-axis shaft
guide.
5
Lower the SZ-axis downmost.
1. Press the [Move Axes] button on [Unit] -
[Conveyor] screen to open "SY/SZ" screen.
2. Press the [Brake] button of SZ-axis, then the
SZ-axis brake is released and SZ-axis lowers
to its downmost.

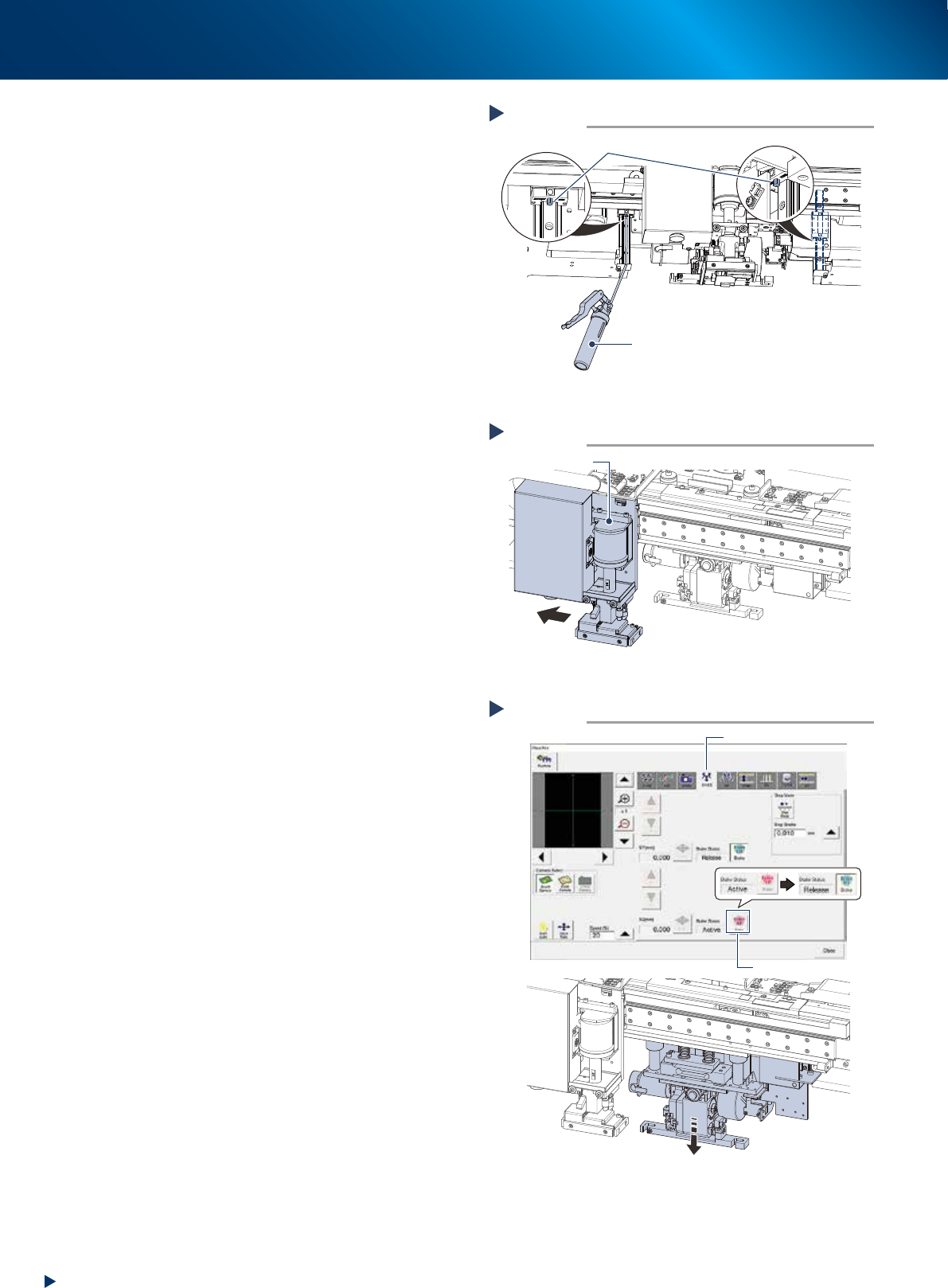

Lubricating SZ-axis guide
Step 3
Grease gun (bent type nozzle)
Grease nipples of guide
53381-KMJ-00
Moving PSC
Step 4
PSC
53378-KMJ-00
Lowering SZ-axis
Step 5
Press the [Brake] button
“SY/SZ” tab
54343-KMJ-00
3. 3-month maintenance
3-37
Chapter 3 Periodic maintenance items
6
Clean SZ-axis shaft guide by wiping
away the grease or soiling from SZ-axis
shaft buide (2 positions) using a lint-
free cloth.
7
Clean SZ-axis ball screw by wiping away
the grease or soiling from SZ-axis ball
screw (1 position), along the arrowed
direction illustrated at right, using a
lint-free cloth.
n
NOTE
Carefully wipe the lead grooves of the ball screw.
Additionally, make sure that any dirt is not remained.
8
Apply the prescribed grease (NSL) by
hand uniformly to shaft guide (2
positions).

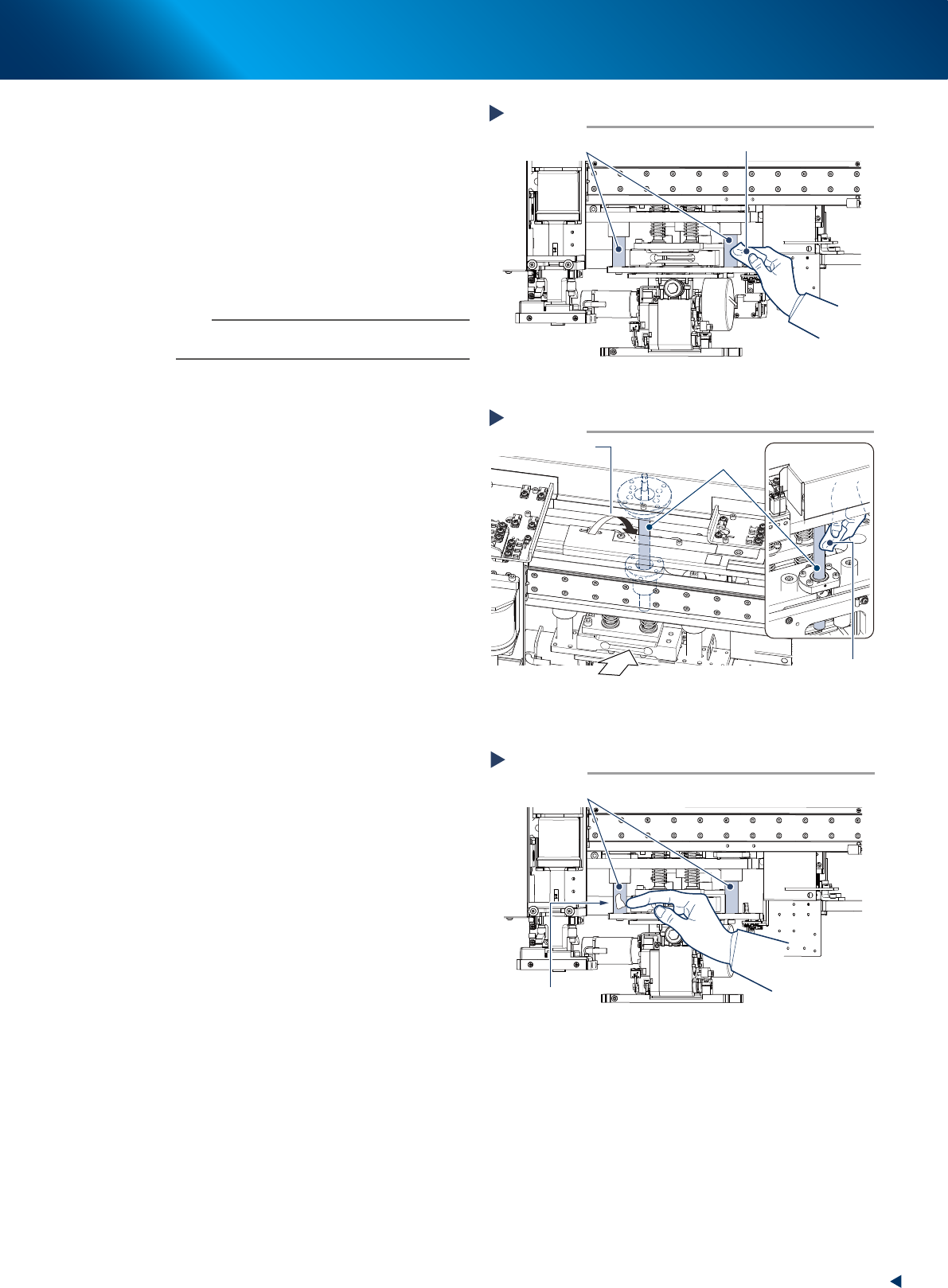

Applying grease to SZ-axis shaft guides
Step 8
Prescribed grease
Shaft guides
53382-KMJ-00
Cleaning SZ-axis shaft guides
Step 6
Lint-free cloth
Shaft guides
53379-KMJ-00
Cleaning SZ-axis ball screw
Step 7
Lint-free cloth
Access from here
Machine front
Viewed from rear
Ball screw
53380-KMJ-00
