V/S Standard Insertion Head Assembly T50090901 Rev. F
This Document Supports Assembly 50090901 Rev. D
17. Tighten the hex nut to secure the cap screw in position in the centering
housing.
18 Select Go To to drive the head drive to the home position, then + Jog
the Head Chain 2000 counts.
19. Remove the gauge pin from the head chain clips.
20. If no additional set ups are to be performed, exit out of the IM Diag-
nostics function.
End of procedure.
Cam Timing
Purpose:
This adjustment sets the timing of the centering mechanism so the centering
function occurs as the component stops in the centering position.
Prerequisites:
Cam Orientation
Centering Finger Alignment
Centering Finger Height Adjustment
Centering Finger Inward Adjustment
Adjustment Procedure:
1. Push the STOP push button.
2. Palm the machine down as detailed in the Operation Reference
Manual.
3. Activate the IM Diagnostics as follows. Refer to the IM-UPS and IM
Diagnostics documentation for specific details relating to the operation
of the machine terminal.
Select the IM Diagnostics icon.
WARNING
When the machine is in the IM Diagnostics function power is provided to
the machine. Exercise caution when performing the following
procedures to avoid Injury to personnel and equipment.
4. Palm the machine up and push the INTLK RESET push button.
Page 46
T50090901 Rev. F V/S Standard Insertion Head Assembly
This Document Supports Assembly 50090901 Rev. D
5. After the IM Diagnostics has completed its initialization, select the fol-
lowing. Machine Set Up>Critical Axis Positions

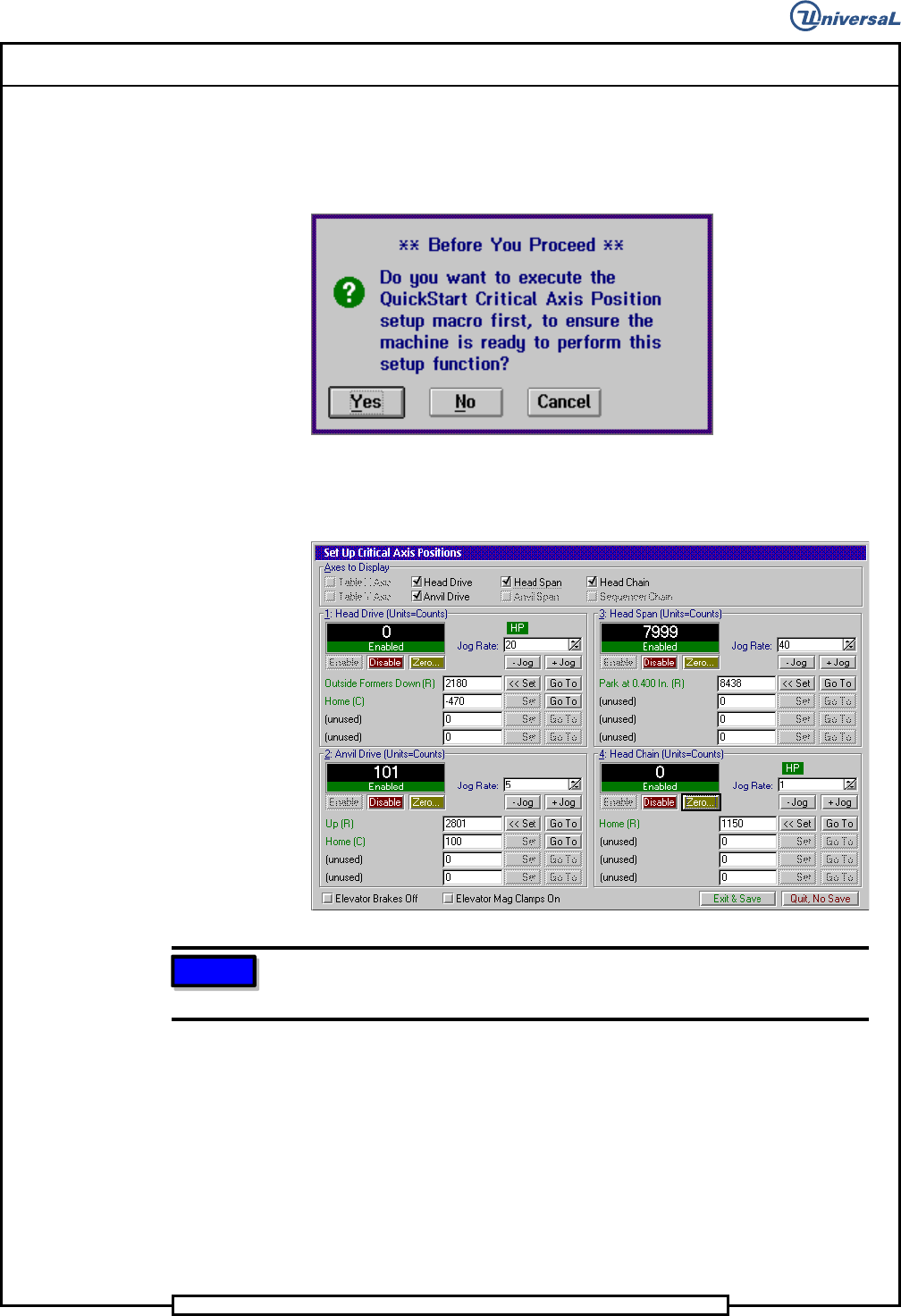

The following message is displayed.
6. Click on Yes. This zeros all axes.
The following screen is displayed
NOTE
If the unit of measurement is not in counts, right click on the rate field and
select Axis Position in Counts.
7. In the Set Up Critical Axis Positions screen, click on the Head Chain
and Head Drive.
8. Select Zero to zero the head drive.
9. Select Go To to drive the head drive to the Outside Formers Down po-
sition.
10. Select +Jog for the head drive and move the tooling 320 counts (this
represents the maximum depth stop value).
Page 47
V/S Standard Insertion Head Assembly T50090901 Rev. F
This Document Supports Assembly 50090901 Rev. D
11. If the centering timing is correct, the centering fingers should be ex-
tended forward and closed so the centering inserts are just touching. If
the timing is not correct, proceed as follows.
12. Loosen the cap screw that secures the centering drive belt tensioner,
move the tensioner to relieve the belt tension and secure the tensioner
to the housing.
13. Remove the centering drive belt from the centering driven pulley and
adjust the centering so the centering fingers are extended forward and
closed so the contact tips are just touching.
14. While holding the centering mechanism in position, engage the center-
ing drive belt on the centering driven pulley.
15. Loosen the cap screw securing the centering belt tensioner, allow the
tensioner to engage the belt then tighten the cap screw to secure the
tensioner in position.
16. A finer adjustment is then made by loosening the two socket head cap
screws that secure the centering drive pulley to the pulley shaft. Rotate
the drive pulley so the centering fingers are extended forward and
closed so the centering inserts are just touching.
17. Select -Jog for the head drive and move the tooling until there is some
separation between the centering inserts (approximately 150 counts).
18. Select +Jog for the head drive and move the tooling until the centering
inserts just touch. Ensure that the head drive position is 320 counts
above the Outside Formers Down position.
19. If no additional set ups are to be performed, exit out of the IM Diag-
nostics function.
End of procedure.
Head Disassembly
Purpose:
The following procedure is presented for disassembly of the head and re-
moval of the tooling housings and insertion tooling.
Special Tools:
Spring Hook (12757000)
Chain Spreader (47639901)
Snap Ring Pliers (47790601)
Adjustment Procedure:
1. Palm the machine down as detailed in the Operation Reference
Manual.
