www.osai-as.com
Vers. 2.4
Laser Marking
GREEN, FIBER & CO
2
Main characteristics:
• Fiducial check for accurate marking position
• 100% data and quality level check on 2D code
• Bad mark recognition
• PCB supplier logo recognition for on-fly optimal
parameter set-up
• OCR for PCB version recognition
• Optical check for component presence/absence
• PCB polarization check
• Automatic parameter adjustment in production
• Automatic width adjustment
• Full library (2D code, Bar code, QR code and others)
• Tailored DB communication for traceability
• Remote connection
• Datalog available for fast diagnostic
Wavelength
Video
YAG on gold
Barcode
Scribing
Trimming
Plastic marking
Deflashing
YAG on copper
CO
2
color change on solder resist

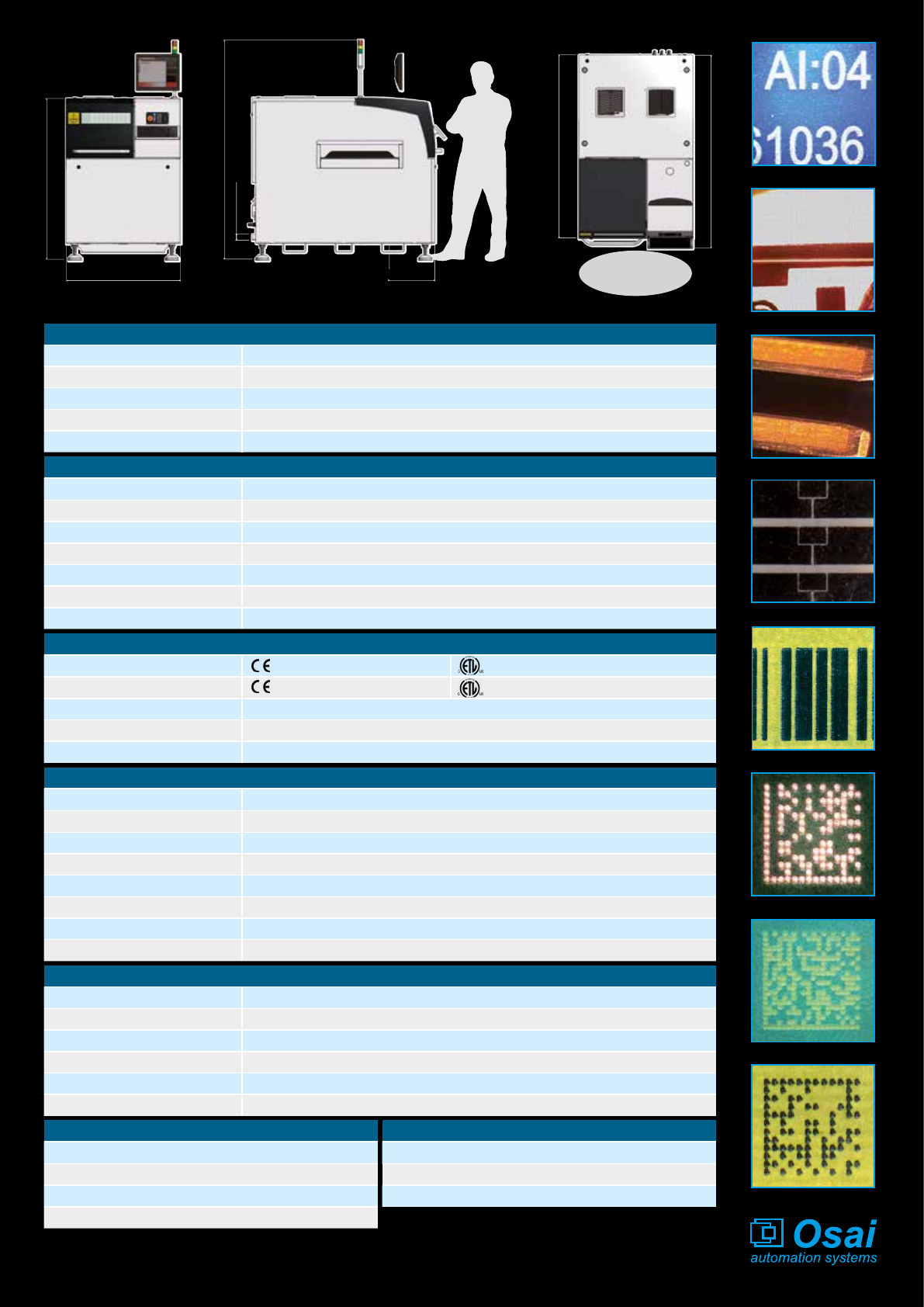

MACHINE DESCRIPTION
Length x Width x Height 1000 mm x 1660 mm x 1880 mm (39.5" x 65.4" x 74")
Codes reading and writing Data Matrix ECC200, Code 39, Code 128, 2/5 Interleaved, QR code
Repeatability +/- 50 μm (1,96 mils)
Accuracy +/- 100 μm (3,93 mils)
Axis speed (X - Y) 48 m/min
Weight Approx. 800 kg (1763 lbs)
Color RAL 9018, RAL 7016
Noise level < 70 dB
UPGRADES AND OPTIONS
• 2D code and fiducial recognition
• Bottom side reader
• In focus belt conveyor
• Bended PCB support
UPGRADES AND OPTIONS
• External Flip unit
• Exhauster
• DB connection
LASER DESCRIPTION
Laser power (Green) Up to 40W
Spot Laser (Green) 35 µm (1,96 mils)
Laser power (Fiber) Up to 100W
Spot Laser (Fiber) 70 µm (2,76 mils)
Laser power (CO
2
) Up to 30W
Spot Laser (CO
2
) 100 µm (3,9 mils)
MACHINE CONFIGURATION
Transport (Height) SMEMA compliant
Max. transport (Width) 480 mm (19") with automatic width adjustment
Interface SMEMA
Transfer direction From left to right (optional from right to left or pass-back)
Operating side – Fixed rail Front of the machine
PANEL DIMENSIONS
Panel (Length) 70 mm to 480 mm (2.8" to 19")
Panel (Width) 50 mm to 480 mm (2" to 19")
Panel (Weight) Up to 3 kg (6,6 lbs)
Transport PCB 3 mm flat belt
Panel thickness 0.5 mm to 3.5 mm (19,7 mils to 138 mils)
Panel clearance Up 66 mm – Down 40 mm
Marking area (Length - Width) Up to 480 mm (Up to 19")
INSTALLATION REQUIREMENTS
Power supply 230V 208/240/277/440/480/575V
Power supply system 1P+N+PE - 50/60 Hz, +/-10% 2Ph+GND 3 Wire - 50/60 Hz, +/-10%
Power consumption Typical 1 kW (+ 0,2 up to 0,8 kW depending on Laser)
Air pressure 6 bar (87 p.s.i.)
Average consumption <10 Nl/min (2,64 gpm)
1000 mm (39.5") 400 mm (15.8")
≈ 1400 mm (55")
≈ 1880 mm (74")
1600 mm (63")
1660 mm (65.4")
operator
working
area
Exhaust tube Ø 50 mm (2")
1000 mm (39.5") 400 mm (15.8")
≈ 1400 mm (55")
≈ 1880 mm (74")
1600 mm (63")
1660 mm (65.4")
operator
working
area
Exhaust tube Ø 50 mm (2")
1000 mm (39.5") 400 mm (15.8")
≈ 1400 mm (55")
≈ 1880 mm (74")
1600 mm (63")
1660 mm (65.4")
operator
working
area
Exhaust tube Ø 50 mm (2")
