USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 61
Analog Input Modules
GoTo Focused Delivery Program: I/O
IndraControl S20 (IP20) - Analog Input Modules
The IndraControl S20 modules record analog voltage or current signals.
They are connected locally to the IndraControl XM controller or remotely
using an IndraControl S20 eldbus coupler.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• IP20 rating
• Electronic device nameplate
• Diagnostic and status indicators
• 4, 8 analog inputs
• Current and voltage measuring ranges
• 500 Ω and 5 kΩ linear inputs
• Linear voltages of -100 mV...+100 mV
• Switchable or programmable lters
Part Number Description Max. Quantity Shipment (Business Days)
R911173249 S20-AI-4-I 3 5 day(s)
R911173256 S20-AI-4-U 3 5 day(s)
R911172536 S20-AI-8 3 5 day(s)
62 Bosch Rexroth Corporation Electric Drives and Controls GoTo | USC00017/10.2021
Analog Output Modules
GoTo Focused Delivery Program: I/O
IndraControl S20 (IP20) - Analog Output Modules
The IndraControl S20 modules are used to output analog voltage or current
signals. They are connected locally to the IndraControl XM controller or
remotely using an IndraControl S20 eldbus coupler.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• IP20 rating
• Electronic device nameplate
• Diagnostic and status indicators
• 4, 8 bipolar outputs
• Current and voltage measuring ranges
• 16 bit output value
• Overload and short circuit protected
Part Number Description Max. Quantity Shipment (Business Days)
R911173248 S20-AO-4 3 5 day(s)
R911172538 S20-AO-8 3 5 day(s)
USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 63

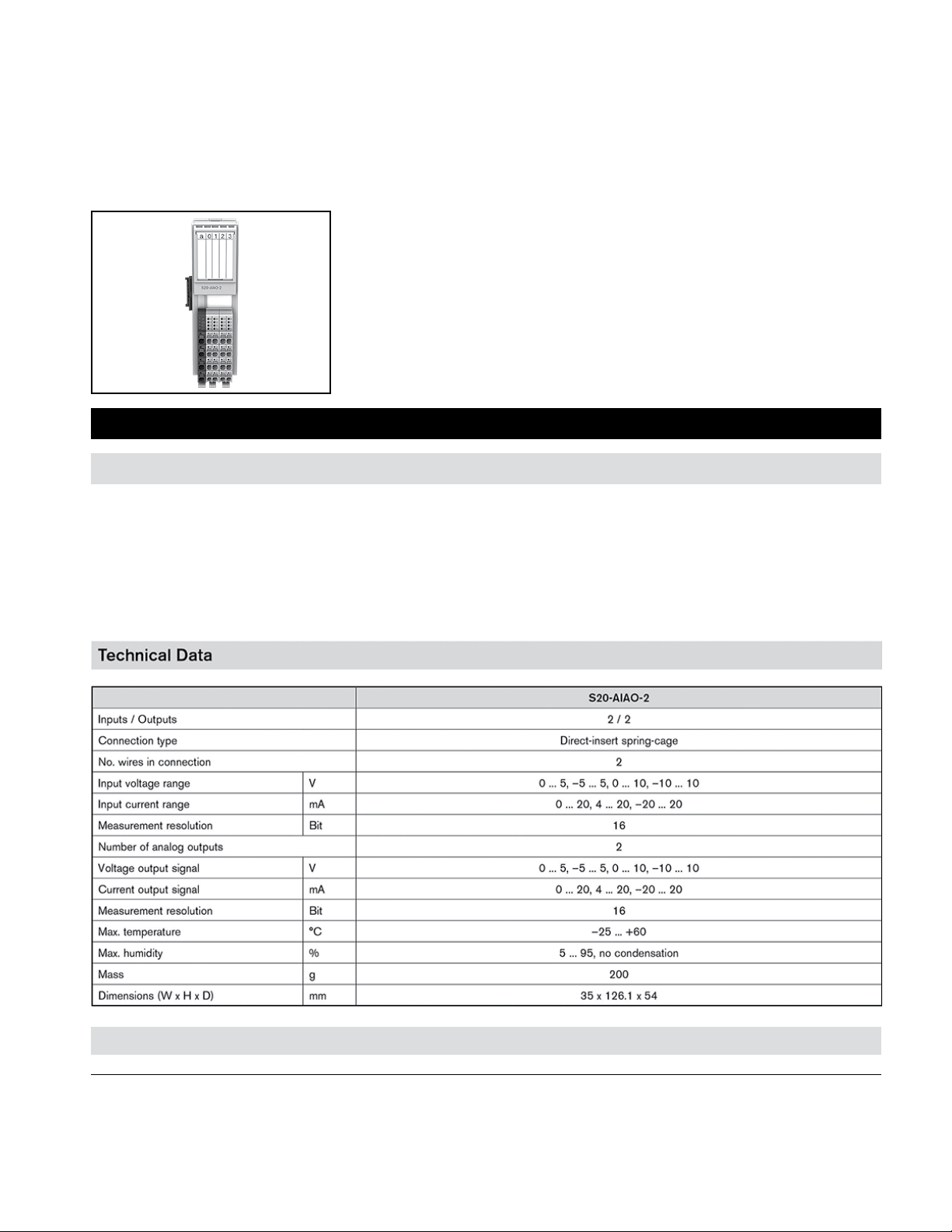

Analog In/Output Modules
GoTo Focused Delivery Program: I/O
IndraControl S20 (IP20) - Analog In/Output Modules
The IndraControl S20 module records and outputs analog voltage or current
signals. The module is connected locally to the IndraControl XM controller
or remotely using an IndaControl S20 eldbus coupler.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• IP20 rating
• Electronic device nameplate
• Diagnostic and status indicators
• 2 analog inputs and 2 outputs
• Current and voltage measuring ranges
• Current and voltage output ranges
• 2-wire sensor and actuator connection
• Process data update < 150 μs
Part Number Description Max. Quantity Shipment (Business Days)
R911173743 S20-AIAO-2 3 5 day(s)
