Block I/O Analog SSI

GoTo Focused Delivery Program: I/O

Inline - Cabinet Mount (IP20) - Block I/O Analog SSI

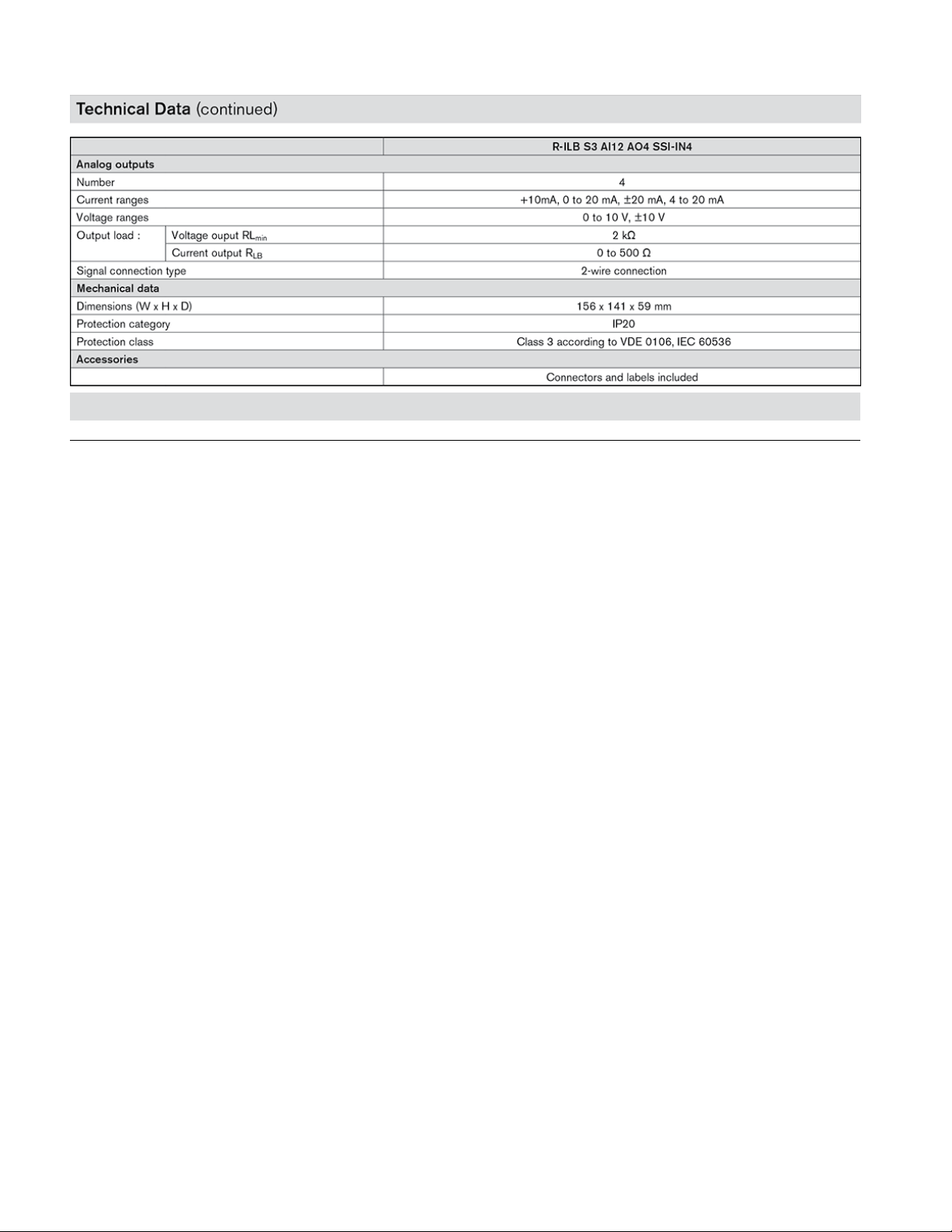

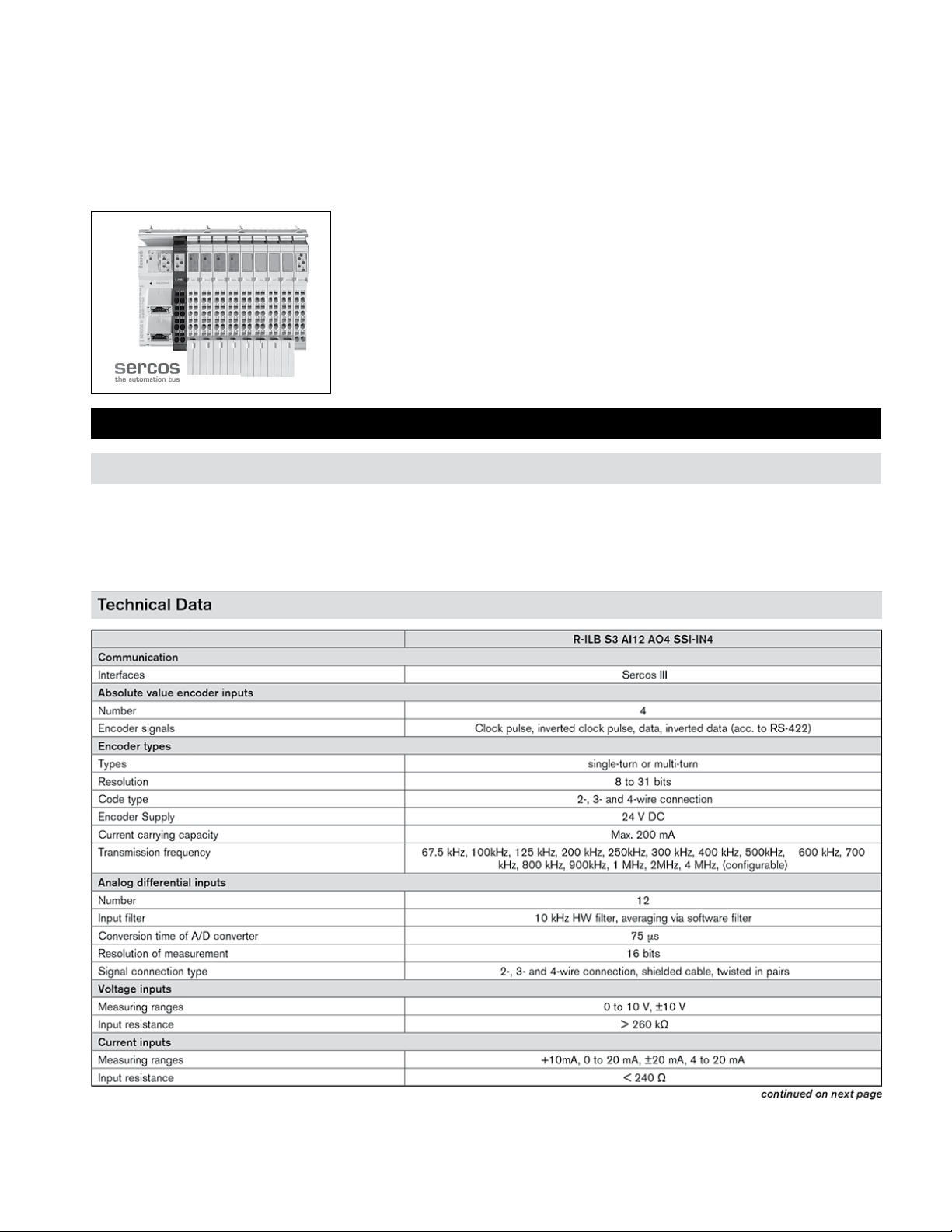

The R-ILB S3 AI12 AO4 SSI-IN4 module is designed for use within a

SERCOS III network and acquiring analog input signals and output analog

signals. The SSI interfaces are used to read data from absolute encoders

with SSI interface up to 31 bits. They support encoders with gray and

binary code.

For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO

Features

• 2 x Ethernet twisted pair according to 802.3u with auto negotiation and auto crossing

• Transmission speed of 100 Mbps

• I/O areas can be parameterized individually for each channel

• 12 analog inputs

• 4 analog outputs

74 Bosch Rexroth Corporation Electric Drives and Controls GoTo | USC00017/10.2021

Part Number Description Max. Quantity Shipment (Business Days)

R911171949 R-ILB S3 AI12 AO4 SSI-IN4 5 3 day(s)

USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 75

Digital Input Modules

GoTo Focused Delivery Program: I/O

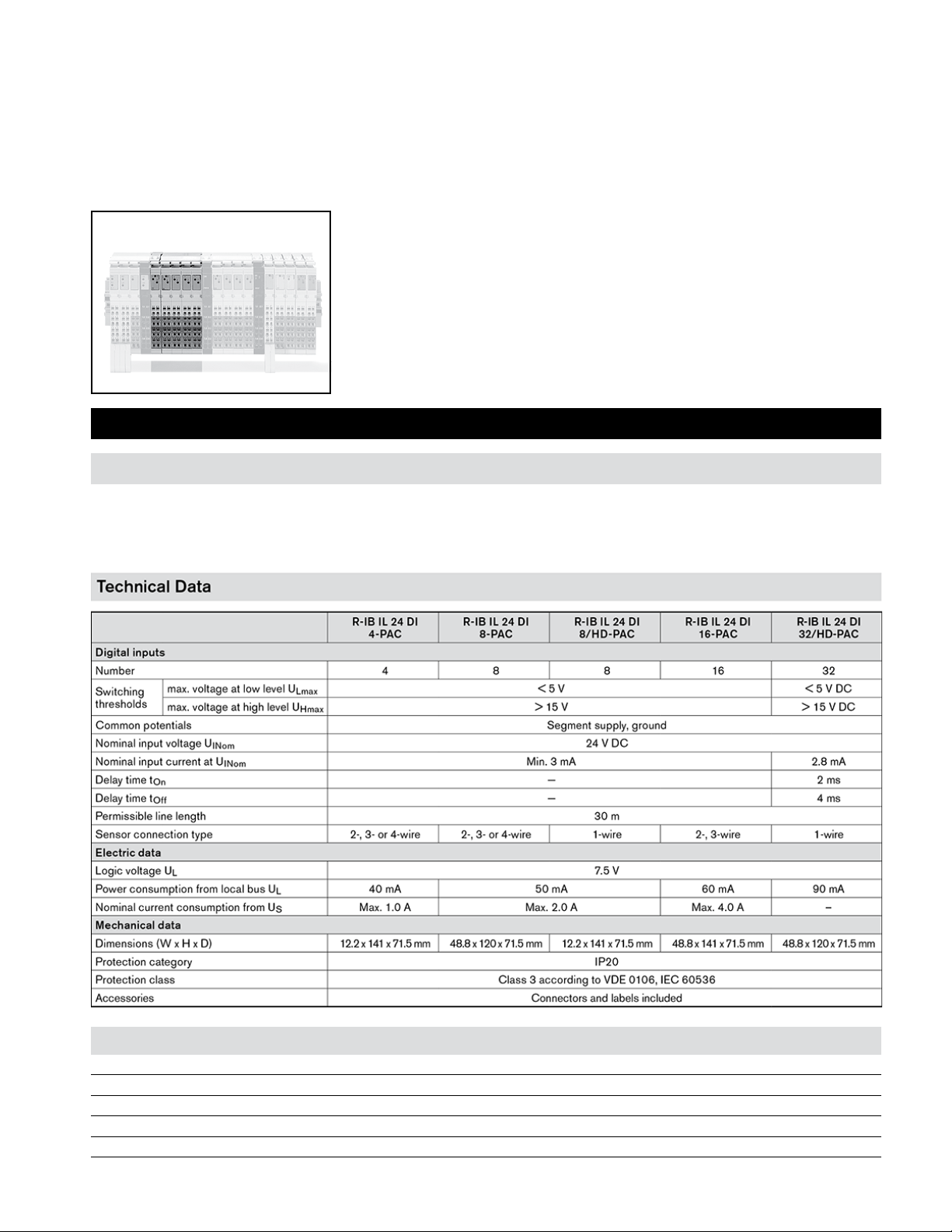

Inline - Cabinet Mount (IP20) - Digital Input Modules

Modules of varying input counts, utilizing spring-cage I/O connectors. Buy

only what you need. Only 24 V DC is available through GoTo program, but

AC I/O is available.

For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO

Features

• Input modules with up to 32 inputs available

• EDI module includes diagnostic LEDs

• Wiring terminals easily removed, to allow module replacement without rewiring

• 2-, 3-, 4-wire inputs available depending on your needs

Part Number Description Max. Quantity Shipment (Business Days)

R911170752 R-IB IL 24 DI 16-PAC 5 3 day(s)

R911170753 R-IB IL 24 DI 32/HD-PAC 5 3 day(s)

R911170750 R-IB IL 24 DI 4-PAC 5 3 day(s)

R911170751 R-IB IL 24 DI 8-PAC 5 3 day(s)

R911171972 R-IB IL 24 DI 8/HD-PAC 5 3 day(s)
