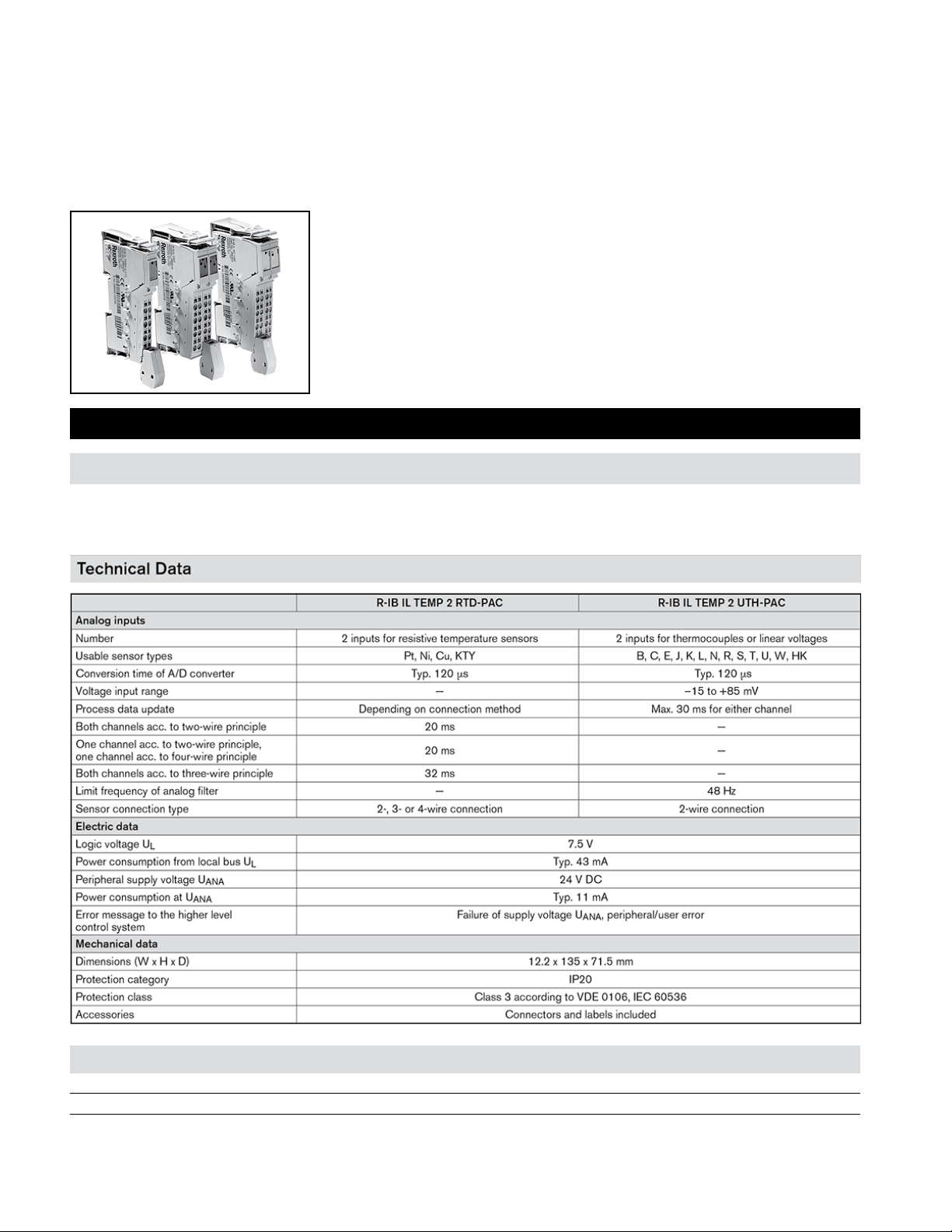

Temperature Modules
GoTo Focused Delivery Program: I/O
Inline - Cabinet Mount (IP20) - Temperature Modules
2, 4, 8 channel modules available. Can read full range of standard
thermocouples and resistive inputs. Spring-cage I/O connectors utilized for
easy wiring.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• Pt, Ni, Cu, KTY, linear resistors can be used with RTD modules
• B, C, E, J, K, L, N, R, S, T, U, W, thermocouples can be used with UTH
• 2-, 3-wire inputs available depending on your needs.
Part Number Description Max. Quantity Shipment (Business Days)
R911170785 R-IB IL TEMP 2 RTD-PAC 5 3 day(s)
R911170431 R-IB IL TEMP 2 UTH-PAC 5 3 day(s)
USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 81

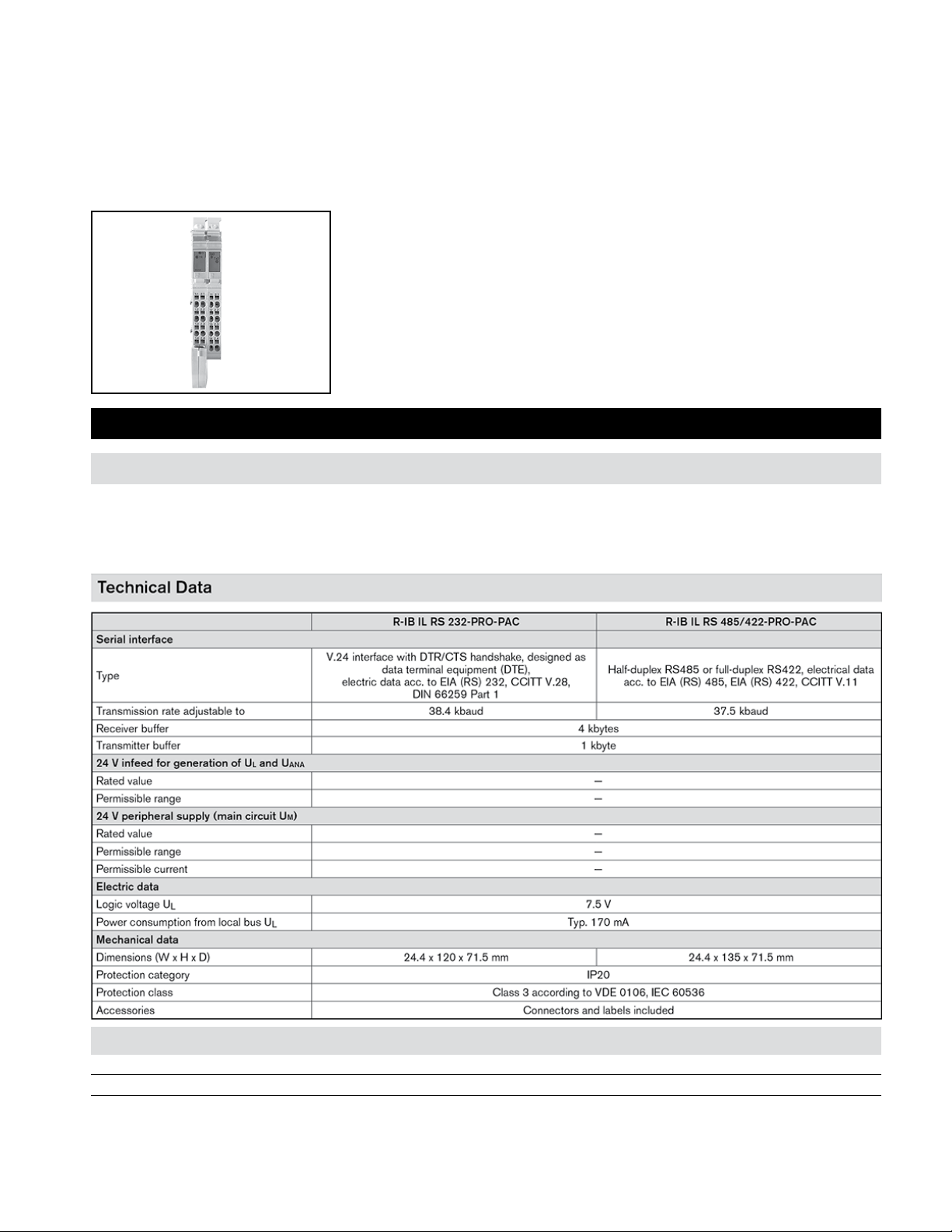

Communication Modules
GoTo Focused Delivery Program: I/O
Inline - Cabinet Mount (IP20) - Communication Modules
These Communication modules are designed for use within an Inline
station. It is used to operate standard I/O devices with serial interfaces on
a bus system Parameterization and data exchange is carried out via the bus
using process data.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• 4 KB receive buffer and 1 KB transmit buffer
• Wiring terminals easily removed to allow module replacement without rewiring
• Serial modules can be congured to read and write different frames and baud rates
• Diagnostic and status indicators.
Part Number Description Max. Quantity Shipment (Business Days)
R911170440 R-IB IL RS232-PRO-PAC 5 3 day(s)
R911170442 R-IB IL RS485/422-PRO-PAC 5 3 day(s)
82 Bosch Rexroth Corporation Electric Drives and Controls GoTo | USC00017/10.2021

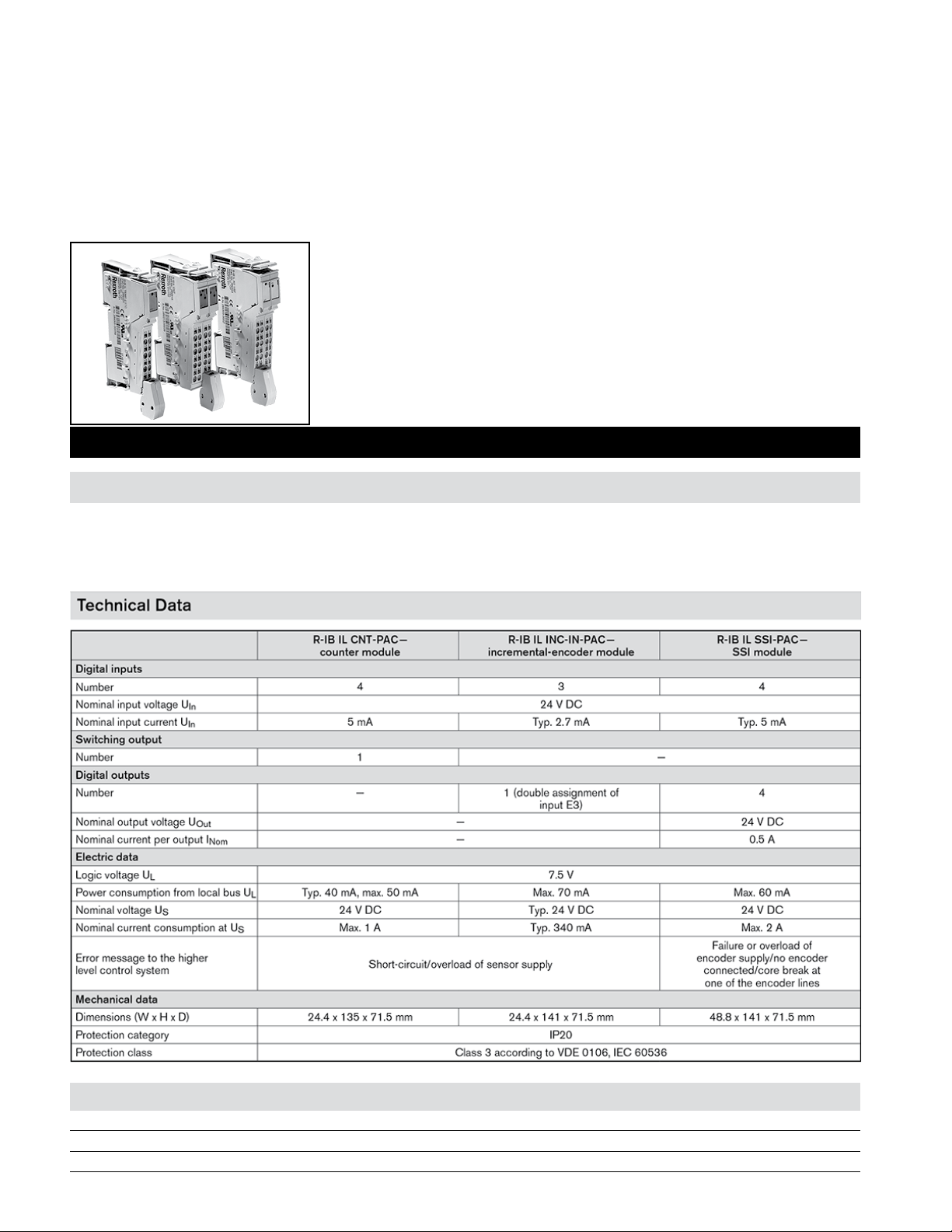

Motion and Counter Modules
GoTo Focused Delivery Program: I/O
Inline - Cabinet Mount (IP20) - Motion and Counter
Modules
Compact modules utilizing spring-cage I/O connectors. Provide the
capability to do basic motion control without resorting to complex motion-
controller PLCs. Step and direction control of steppers is also available.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• Wiring terminals easily removed to allow module replacement without rewiring
• Inputs can read from 5 V DC to 24 V DC inputs
• Incremental and Absolute Encoder Input modules available
• CNT module can count events, calculate frequency and generate pulse streams
Part Number Description Max. Quantity Shipment (Business Days)
R911170788 R-IB IL CNT-PAC 5 3 day(s)
R911308491 R-IB IL INC-IN-PAC 5 3 day(s)
R911308594 R-IB IL SSI-PAC 5 3 day(s)
