84 Bosch Rexro th Corporation Electric Drives and Controls Go T o | USC00017/10.2021 Pa r t Nu mbe r De sc rip tio n Ma x. Q u ant it y Sh ipm en t (Bu sin es s Days) R911170444 R-IB IL PW M/2-P AC 5 3 day(s)
USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 83
PWM Output Module
GoTo Focused Delivery Program: I/O

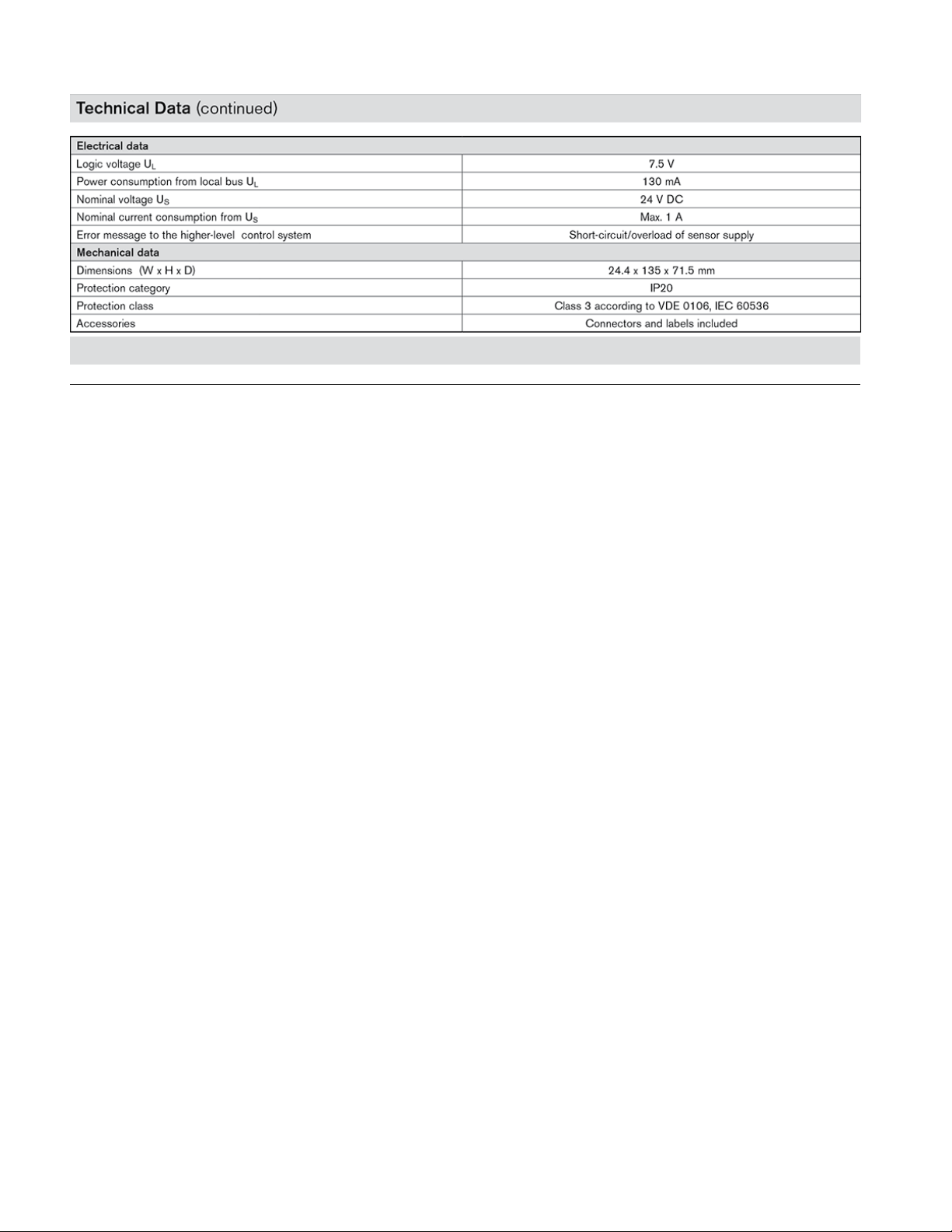

Inline - Cabinet Mount (IP20) - PWM Output Module
The terminal is designed for use within an inline station. It can be used
in the four different operating modes: PWM (pulse width modulation),
frequency generator, single shot (single pulse generator), and pulse
direction signal.
For complete engineering and design information: GoTo www.boschrexroth-us.com/GoToIO
Features
• Two independently operating channels
• Output signals as 5 V or 24 V signals
• Short-circuit protected and overload protected outputs
• Diagnostic and status indicators
84 Bosch Rexroth Corporation Electric Drives and Controls GoTo | USC00017/10.2021
Part Number Description Max. Quantity Shipment (Business Days)
R911170444 R-IB IL PWM/2-PAC 5 3 day(s)
USC00017/10.2021 | Electric Drives and Controls GoTo Bosch Rexroth Corporation 85
Industrial PC and Operator Panels
Compact operator panel - VR21
GoTo Focused Delivery Program: Industrial PC and Operator Panels

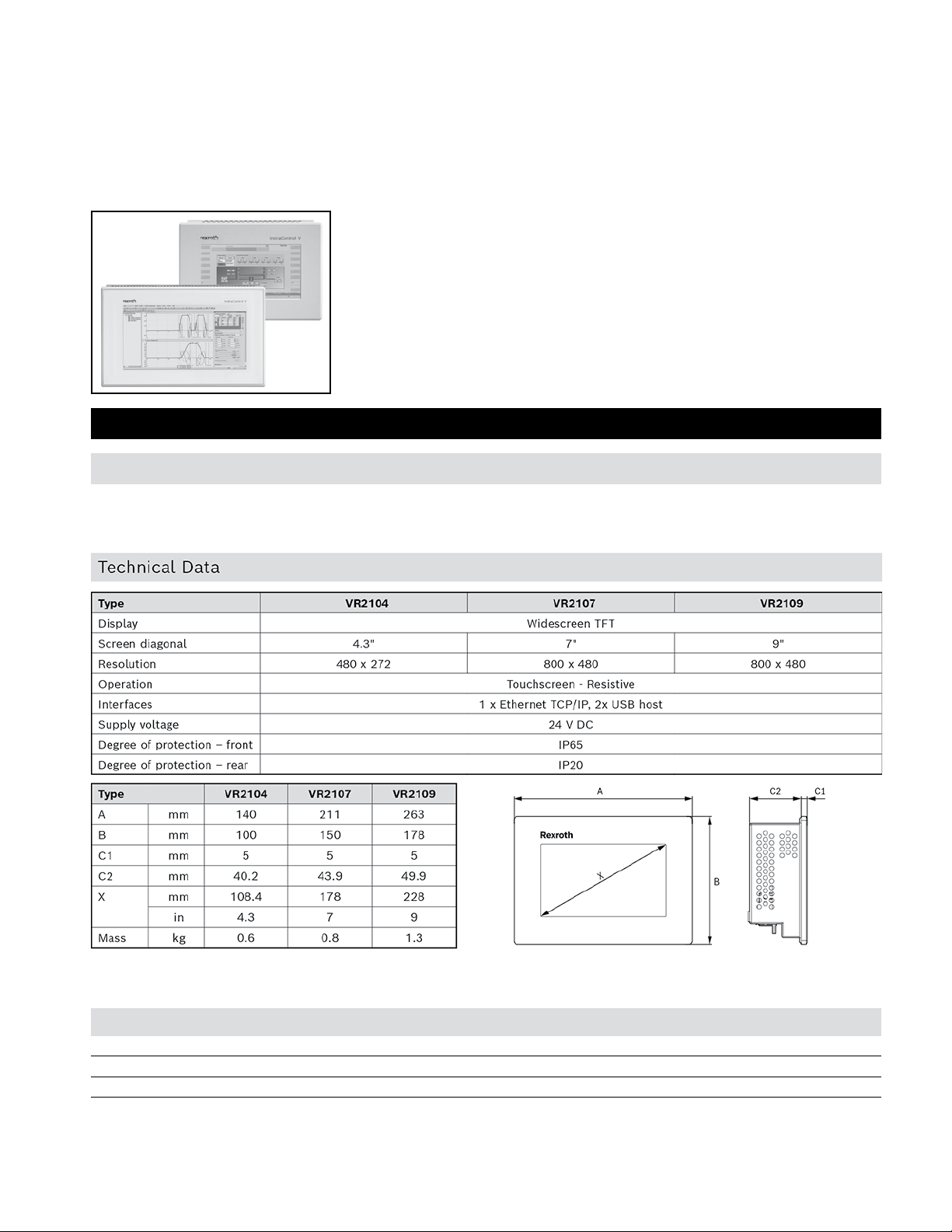

Compact Operator Panel - VR21
The VR21 compact operator panels are used for simple control and
visualization of machines and systems. With its brilliant high-resolution
screen, the VR series provides optimal readability and visualizations of
processes while remaining damage-resistant due to its durable IP65/20
construction. Installation and connection is easy too with a standard on-
board Ethernet 10/100 Mbit port and 2 USB interfaces. A multitude of
available drivers to connect the VR to a controller and its compact design
makes this HMI attractive for a wide variety of industries.
For complete engineering and design information: GoTo www.boschrexroth-us.com/IPC-and-OP-Panels
Features
• No wear parts
• 4/7/9 inch display options
• Flexible WinStudio programming software
Other product variants are available outside the GoTo Focused Delivery Program.
Part Number Description Max. Quantity Shipment (Business Days)
R911340500 VR2104.01-00-01-N2-NNN-AA 1 5 day(s)
R911340503 VR2107.01-00-01-N2-NNN-AA 1 5 day(s)
R911340051 VR2109.01-00-01-N2-NNN-AA 1 5 day(s)
Additional relevant items are listed on page 90.
