Introduction Correct and Incorrect Use 8 User Manual SIPLACE S-Feeder Test Station 1.8 1 . 8 C o r r e c t a n d I n c o r r e c t U s e Correct and Incorrect Use The checking device may only be used to test and set expl…
Introduction
Safety Instructions
User Manual SIPLACE S-Feeder Test Station 7
1.6
1.6 Safety Instructions
Safety Instructions
1.7
1.7 Installation Location
Installation Location
▪ Stand the device on a stabile, sturdy table in your production environment.
▪ Make sure that you have enough room to the left of the device so that you can insert the test tapes
into the feeder modules.
▪ In order to minimize heat and external light, avoid direct sunlight on the device.
Permissible temperature range
For checking the feeder modules: +15°C - +35°C
For setting the feeder modules: +18°C - +25°C
WARNING
Safety Note
The safety instructions in the manual for the relevant SIPLACE S feeder module take prece-
dence. This instruction manual and the safety information within are targeted at use of the
checking device and the feeder module, separately from the machine .
The "external feeder module power supply" is connected to the 230V AC (Europe) / 110V AC
(USA); 50/60 Hz line power supply. When connecting to the 110V supply, you do not need to
perform any conversions or switch over the setting on the power pack.
Technical data for external power supply:
Power output:130 Watt
Input nominal current (max.): 3.2 A
Output nominal current (max.): 4.3 A
The "external feeder module power supply" must not be opened or manipulated.! (Danger of
electric shock)
Always observe the applicable accident prevention and VDE regulations, plus the specific safe-
ty regulations for handling laboratory equipment and systems outside the machine, as applica-
ble in your country.
CAUTION
Purpose of Use
The checking device may only be used to test those feeder modules approved for its use.
The checking device may only be modified or repaired by the manufacturer.
The setting screws are sealed. If the setting screws are loosened or the seal is damaged, any
claims for warranty will be invalidated and cancelled.
Always observe the warnings and safety instructions in the chapters of this manual.
Always transport the testing device in its original packaging.
In order to work safely with the testing and setting device, place it down on a suitably stable and
solid table.
CAUTION
Master Tapes
The test tapes are made of metal. Do NOT handle these near live parts.
CAUTION
Moving the Checking Device
Always carry the checking device by holding on to it at the left and right of the housing! The
device for visual testing (camera tower) is sensitive and NOT suitable for carrying the checking
device.
Introduction
Correct and Incorrect Use
8 User Manual SIPLACE S-Feeder Test Station
1.8
1.8 Correct and Incorrect Use
Correct and Incorrect Use
The checking device may only be used to test and set explicitly approved SIPLACE feeder modules and
may only be operated by specially trained personnel.
Any other use of the checking device is understood to be incorrect and is therefore prohibited.
Hardware Description
Overview of Devices
User Manual SIPLACE S-Feeder Test Station 9
2
2 Hardware Description
Hardware Description
2.1

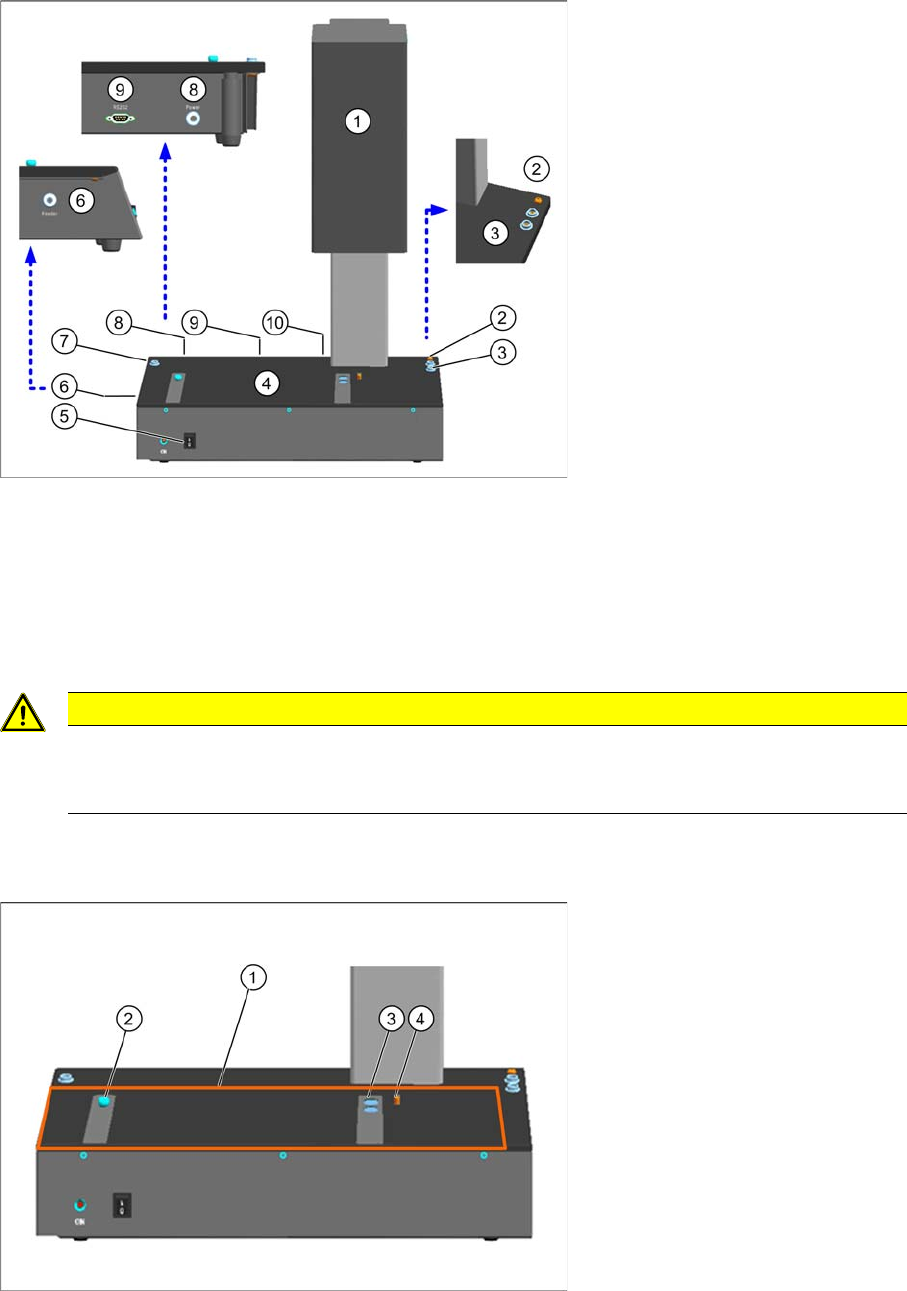

2.1 Overview of Devices
Overview of Devices
2.2
2.2 Introduction - Location Surface
Introduction - Location Surface
1 Camera tower 6 Connection for feeder modules
2 Connection for device ground 7 Connection for ESD wristband
3 Connection for ESD wristband 8 Connection for power supply
4 Contact surface for feeder modules 9 Serial port for communication
5 ON / OFF switch 10 USB camera cable
CAUTION
Damage of Camera
Always carry the checking device by holding on to it at the left and right of the housing! The
(camera tower) is sensitive and NOT suitable for carrying the checking device.
