- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 400-48865 X IL BR 1 2 SL-40408 91 -SC SCREW M4 L=8 2 3 400-48716 X INTERLOCK BR 1 4 SL-60308 92 -TN SCREW 2 5 SM-6030602-TN HEX SCREW M3 X 6 1 6 SL-40306 91 -SC SCRE…
- -

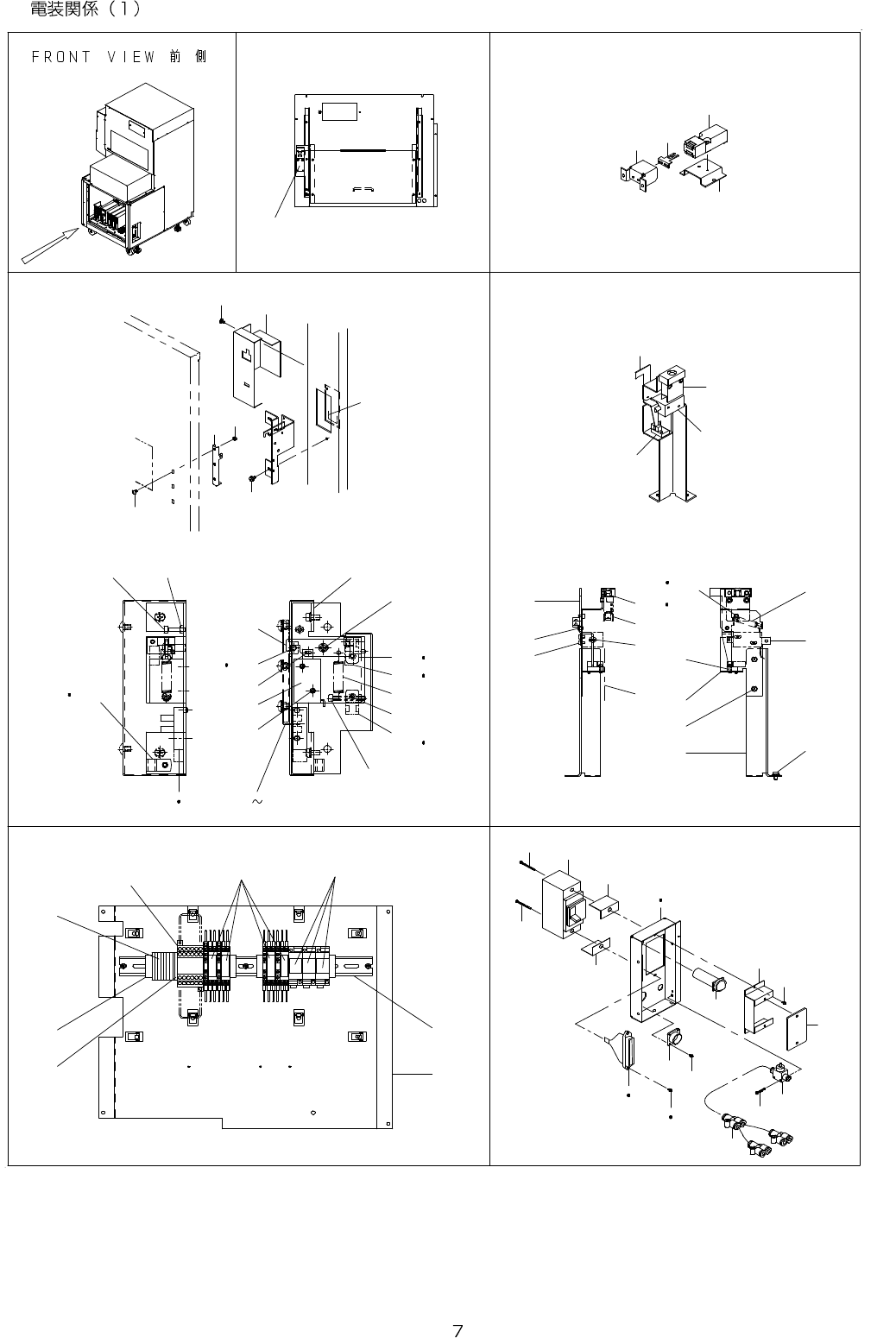

4. ELECTRIC APPARATUS COMPONENTS (1)
4 0
3 0
3 7
2 9
3 4
2 7 2 8
3 8
3 3
3 7
4 7
4 6
3 9
3 1 3 2
1 6
1 3
1 4 1 5
4
2
1
3
1 0
1 1
5 1 7
8
6
9
7
M4 * 8
1 8
2 3
2 4
1 2
2 5
2 2
1 9
2 0
3 6
3 6
3 5
2 1
4 1
4 4
4 3
4 2
4 5
5 0
5 1
4 9
4 8
7 7
5 7 6 8
5 2 7 8
5 8
6 0
5 7 6 8
5 9
5 4
5 3
6 5 6 6
5 6
5 7
5 5
6 2 6 45 2 6 7
6 9 7 0
6 06 1
7 2
2 6
7 1
7 5
7 3
7 4
7 6
7 9 8 0
- -

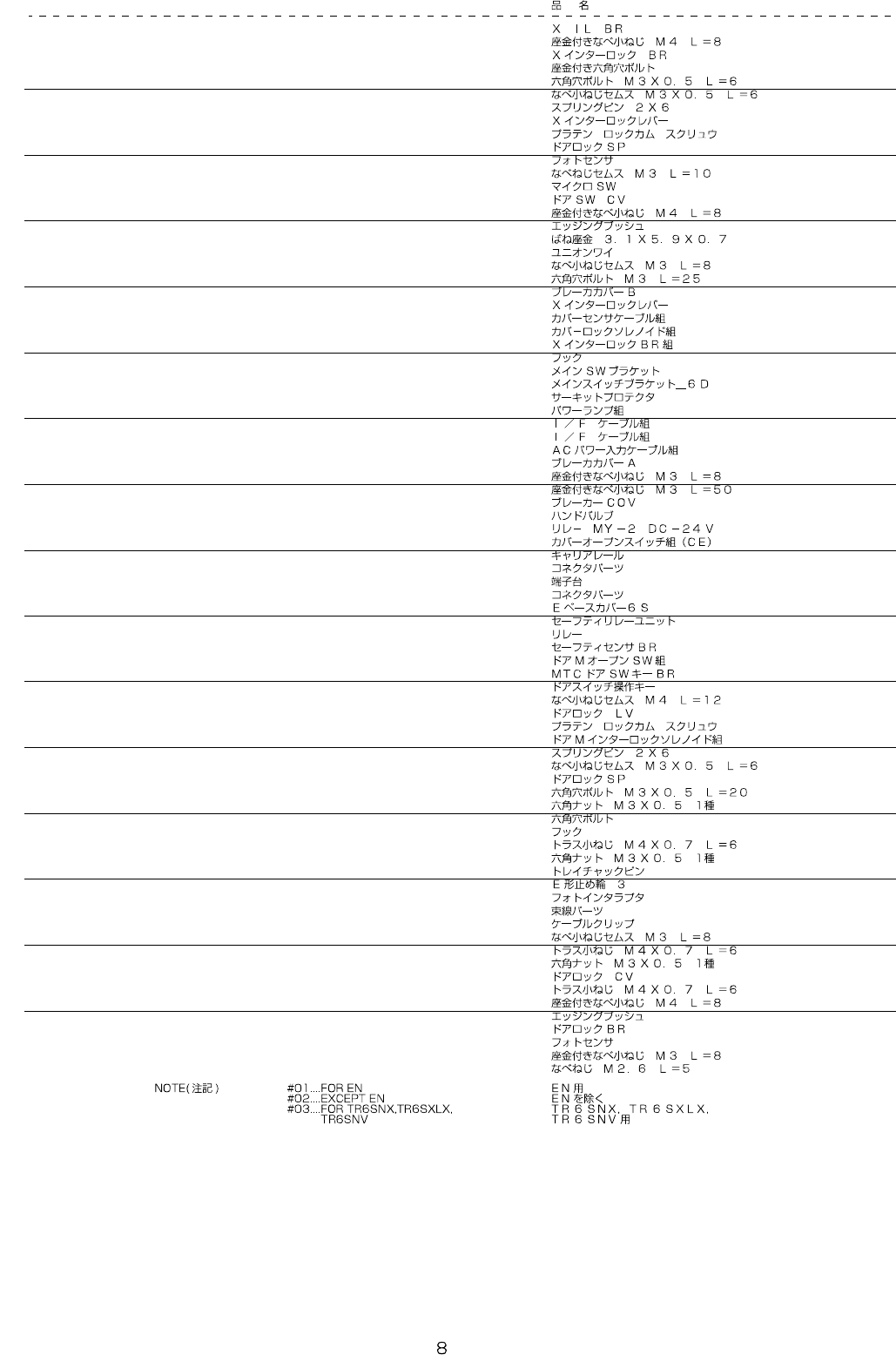

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-48865 X IL BR 1
2 SL-4040891-SC SCREW M4 L=8 2
3 400-48716 X INTERLOCK BR 1
4 SL-6030892-TN SCREW 2
5 SM-6030602-TN HEX SCREW M3 X 6 1
6 SL-4030691-SC SCREW M3X6 2
7 PS-0200062-KH SPRING PIN 2X6 1
8 E2039-723-000 X INTERLOCK LEVER 1
9 E1038-871-000 PLATEN LOCK CAM SCREW 1
10 E1055-717-000 DOOR LOCK SP 1
11 HD-0005700-0A PHOTO SENSOR 1
12 SL-4031081-SC SCREW M3 X 10 1
13 HA-0037900-0A MICRO SW 1
14
#02
400-48718 DOOR SW CV 1
15 SL-4040891-SC SCREW M4 L=8 1
16 HX-0009600-0A BUSH 0.08
17 WS-0310002-KN SPRING WASHER M3 1
18 PJ-3080600-03 Y UNION 3
19 SL-4030891-SC SCREW M3X8 2
20 SM-6032502-TN SCREW M3 L=25 1
21
#01
E2411-723-000 BREAKER COVER B 1
22 E2039-723-000 X INTERLOCK LEVER 1
23 400-45095 COVER SENSOR CABLE ASM. 1
24 400-45102 COVER LOCK SOLENOID ASM. 1
25 400-48716 X INTERLOCK BRACKET ASM. 1
26 400-48895 HOOK 1
27 400-48775 MAIN SW BRACKET 1
28
#03
400-94908 MAIN_SW_BR_6D 1
29 HA-0058500-00 CIRCUIT PROTECTOR 1
30 400-45008 POWER LAMP ASM 1
31 400-45200 I/F CABLE ASM 1
32
#03
400-94573 I/F CABLE ASM 1
33 400-44994 AC POWER INPUT CABLE ASM 1
34
#01
E2410-723-000 BREAKER COVER A 1
35 SL-4030881-SC SCREW M3 L=8 4
36 SL-4035091-SC SCREW M3 L=50 2
37 400-49165 BREAKER COV 2
38 PV-0100060-00 HAND VALVE 1
39
#01
E9641-040-000 RELAY MY-2 DC-24V 3
40
#01
400-45206 COVER OPEN SW ASM. (CE) 1
41
#01
400-50013 CARRIER RAIL 1
42
#01
HK-0498900-00 CONECTOR PARTS 1
43
#01
HK-0498500-10 TERMINAL BASE 10
44
#01
HK-0498900-0D CONNECTOR PARTS 4
45 400-48832 E BASE COVER 6S 1
46
#01
HB-0014300-00 SAFETY RELAY UNIT 1
47
#01
HB-0013900-00 RELAY 4
48
#01
400-48833 SAFETY SENSOR BR 1
49
#01
400-46165 DOOR M OPEN SW ASM 1
50
#01
E2423-723-000 MTC DOOR SW KEY BR 1
51
#01
HA-0045500-30 SWITCH 1
52
#02
SL-4041281-SC SCREW M4X0.7 L=12 1
53 400-48896 DOOR LOCK LV 1
54 E1038-871-000 PLATEN LOCK CAM SCREW 1
55 400-45098 DOOR M INTERLOCK SOLENOID ASM. 1
56 PS-0200062-KH SPRING PIN 2X6 1
57 SL-4030691-SC SCREW M3X6 4
58 E1055-717-000 DOOR LOCK SP 1
59 SM-6032002-TN SCREW M3X0.5 L=20 1
60 NM-6030001-SC NUT M3 2
61 SM-6031402-TN SCREW M3X0.5 L=8 1
62 400-48895 HOOK 1
63 SM-0040601-SC SCREW M4X0.7 L=6 3
64 NM-6030001-SC NUT M3 3
65 E1401-726-000 TRAY CHUCK PIN 1
66 RE-0300000-K0 E-RING 3 2
67
#02
HD-0017100-00 SENSOR 1
68 HX-0034400-00 HARNESS PARTS 2
69 HX-0015000-0A CABLE CLAMP 1
70 SL-4030891-SC SCREW M3X8 1
71 SM-0040601-SC SCREW M4X0.7 L=6 3
72 NM-6030001-SC NUT M3 3
73 400-48743 DOOR LOCK CV 1
74 SM-0040601-SC SCREW M4X0.7 L=6 2
75 SL-4040891-SC SCREW M4 L=8 1
76 HX-0009600-0A BUSH 0.07
77 400-48897 DOOR LOCK BR 1
78 HD-0005700-0A PHOTO SENSOR 1
79 SL-4030881-SC SCREW M3 L=8 2
80
#03
SM-4860501-SB SCREW M2.6 L=5 2
- -
5. ELECTRIC APPARATUS COMPONENTS (2)
1
2
3 4 5
6
7 98
1 2 1 3
1 1
1 0
5 0 1 5
1 7
1 4
1 6
3 4
3 5
3 6
2 3 2 4 2 1 2 2
1 9 2 0
1 8
2 9 3 2
3 0 3 2
3 1
3 2
3 3
2 6 2 8
3 7
3 8 3 9
4 2
4 3 4 4
2 5
4 5 4 6
4 7 4 9
5 1
5 2
5 3 5 4
5 5
4 0 4 1
