- - REF.NO NOTE PA RT NO D E S C R I P T I O N Qty 1 400-40 687 Z SERVO DRV ASM 1 2 400-45 704 R E GEN ERATING R ESISTOR 1 3 400-45 711 X STE PPING MOTO R DRIVER 1 4 400-45 711 Y STE PPING MOTO R DRIVER 1 5 400-45 711 …
- -

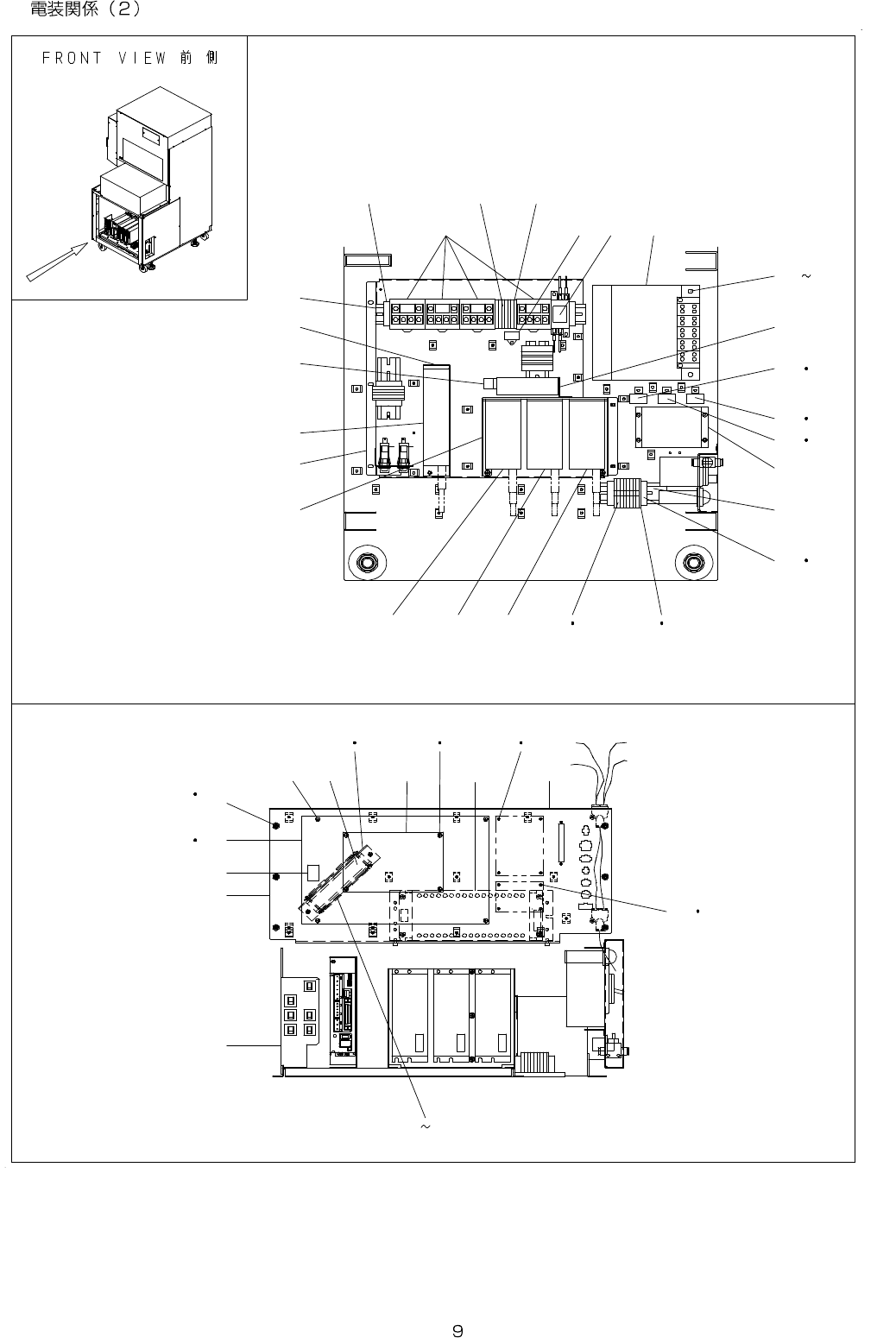

5. ELECTRIC APPARATUS COMPONENTS (2)
1
2
3 4 5
6
7 98
1 2 1 3
1 1
1 0
5 0 1 5
1 7
1 4
1 6
3 4
3 5
3 6
2 3 2 4 2 1 2 2
1 9 2 0
1 8
2 9 3 2
3 0 3 2
3 1
3 2
3 3
2 6 2 8
3 7
3 8 3 9
4 2
4 3 4 4
2 5
4 5 4 6
4 7 4 9
5 1
5 2
5 3 5 4
5 5
4 0 4 1
- -

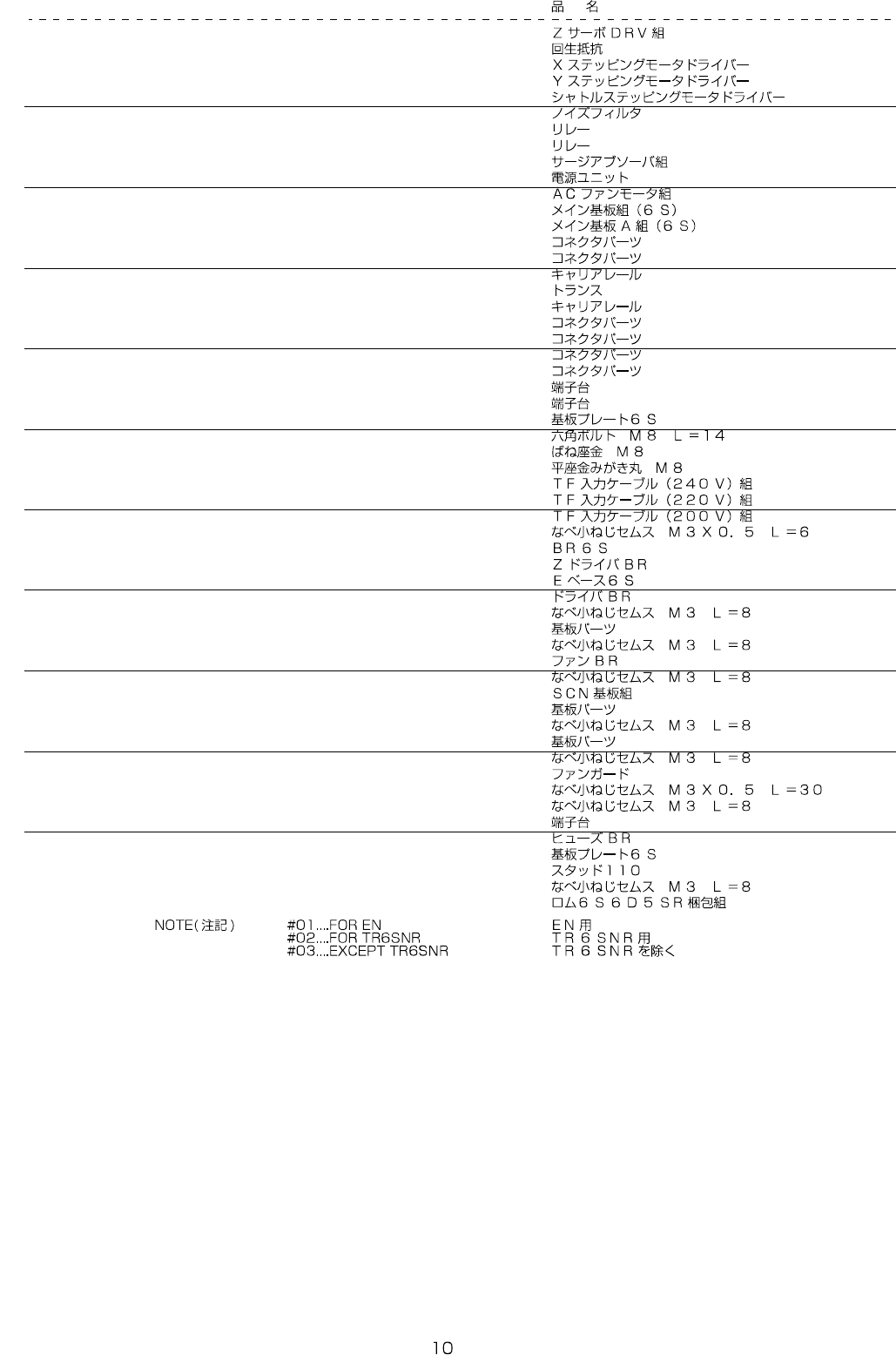

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-40687 Z SERVO DRV ASM 1
2 400-45704 REGENERATING RESISTOR 1
3 400-45711 X STEPPING MOTOR DRIVER 1
4 400-45711 Y STEPPING MOTOR DRIVER 1
5 400-45711 SHUTTLE STEPPING MOTOR DRIVER 1
6 400-45714 NOISE FILTER 1
7 HB-0014200-00 RELAY 4
8 HB-0014000-00 RELAY 1
9 400-45025 SURGE ABSORBER ASM 1
10 HX-0055000-00 POWER SUPPLY UNIT 1
11 400-45016 AC FAN MOTOR ASM 1
12
#03
400-95247 MAIN PCB ASM(6S) 1
13
#02
401-37757 MAIN PCB A ASM(6S) 1
14 HK-0498900-0D CONNECTOR PARTS 2
15 HK-0498900-00 CONNECTOR PARTS 1
16 400-50015 CARRIER RAIL 1
17 400-45701 TRANSFORMER 1
18 400-50012 CARRIER RAIL 1
19 HK-0498900-0D CONNECTOR PARTS 3
20
#01
HK-0498900-0D CONNECTOR PARTS 2
21 HK-0498900-00 CONNECTOR PARTS 2
22
#01
HK-0498900-00 CONNECTOR PARTS 1
23 HK-0498500-10 TERMINAL BASE 8
24
#01
HK-0498500-10 TERMINAL BASE 4
25 400-49173 PCB PLATE 6S 1
26 SM-9081423-SC SCREW M8 L=14 4
27 WS-0820002-KN SPRING WASHER M8 4
28 WP-0841601-SC WASHER 8.4X17.4X1.6 4
29 400-45000 TF INPUT CABLE (240V) ASM 1
30 400-45001 TF INPUT CABLE (220V) ASM 1
31 400-45002 TF INPUT CABLE (200V) ASM 1
32 SL-4030691-SC SCREW M3X6 3
33 400-49168 BR 6S 1
34 400-49171 Z DRIVER BR 1
35 400-49175 E BASE 6S 1
36 400-49166 DRIVER BR 1
37 SL-4030891-SC SCREW M3X8 4
38 HX-0035400-0G BOARD PARTS 4
39 SL-4030891-SC SCREW M3X8 4
40 400-49169 FAN BR 1
41 SL-4030891-SC SCREW M3X8 2
42 400-41117 SCN PCB ASM 1
43 HX-0035400-0G BOARD PARTS 4
44 SL-4030891-SC SCREW M3X8 4
45 HX-0035400-0G BOARD PARTS 4
46 SL-4030891-SC SCREW M3X8 4
47
#01
HM-0003300-30 FAN GUARD 2
48 SL-4033091-SC SCREW M3 L=30 2
49 SL-4030891-SC SCREW M3X8 2
50 HK-0498500-10 TERMINAL BASE 6
51 400-49170 FUSE BR 1
52 400-49173 PCB PLATE 6S 1
53 400-00478 STUD 110 6
54 SL-4030891-SC SCREW M3X8 4
55
#02
400-72503 ROM 6S6D5SR ASM 1
- -

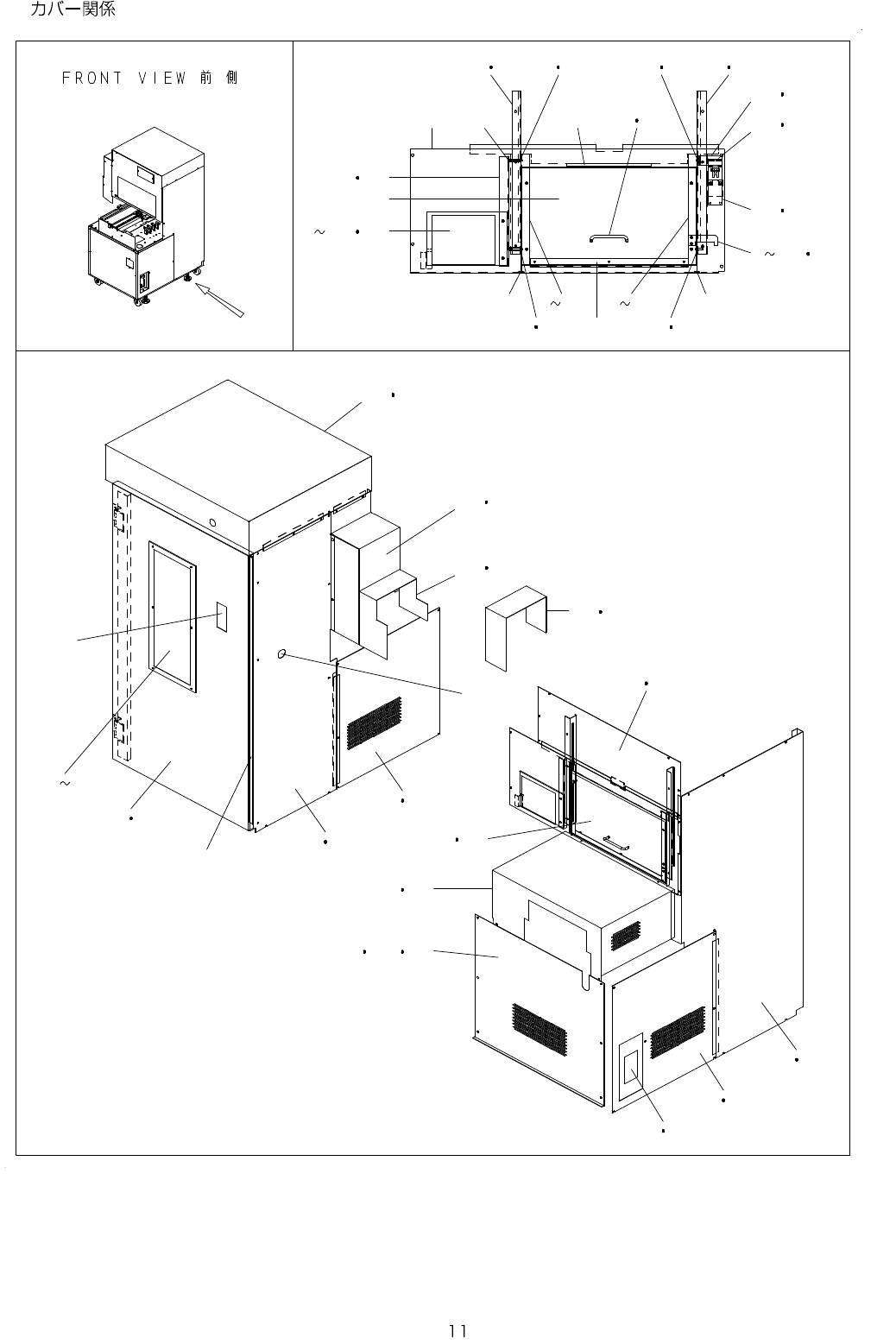

6. COVER COMPONENTS
1
2 33 4
5 57 1 0 8 1 1
1 2 1 3 1 2 1 4
1 2 1 51 2 1 3 2 7
8 1 0 2 2
1 9 2 1
2 8 2 0
6
1 6 1 7
2 3 2 4
1 9 2 5
1 8 1 9
3 2 3 6
2 9 3 0
3 8
3 1
3 7 3 9
3 7 4 2
3 7 4 0
3 7 4 1
4 6 4 8
4 6 5 0 5 4
4 4 5 6
4 6 5 1
4 6 4 7
4 5 4 6
8 1 0 2 6
4 6 4 9
5 2 5 5
4 3
5 3 5 7
