TR6SNR_TR6SNV_TR6SNX-Rev04PDFA - 第16页

- -

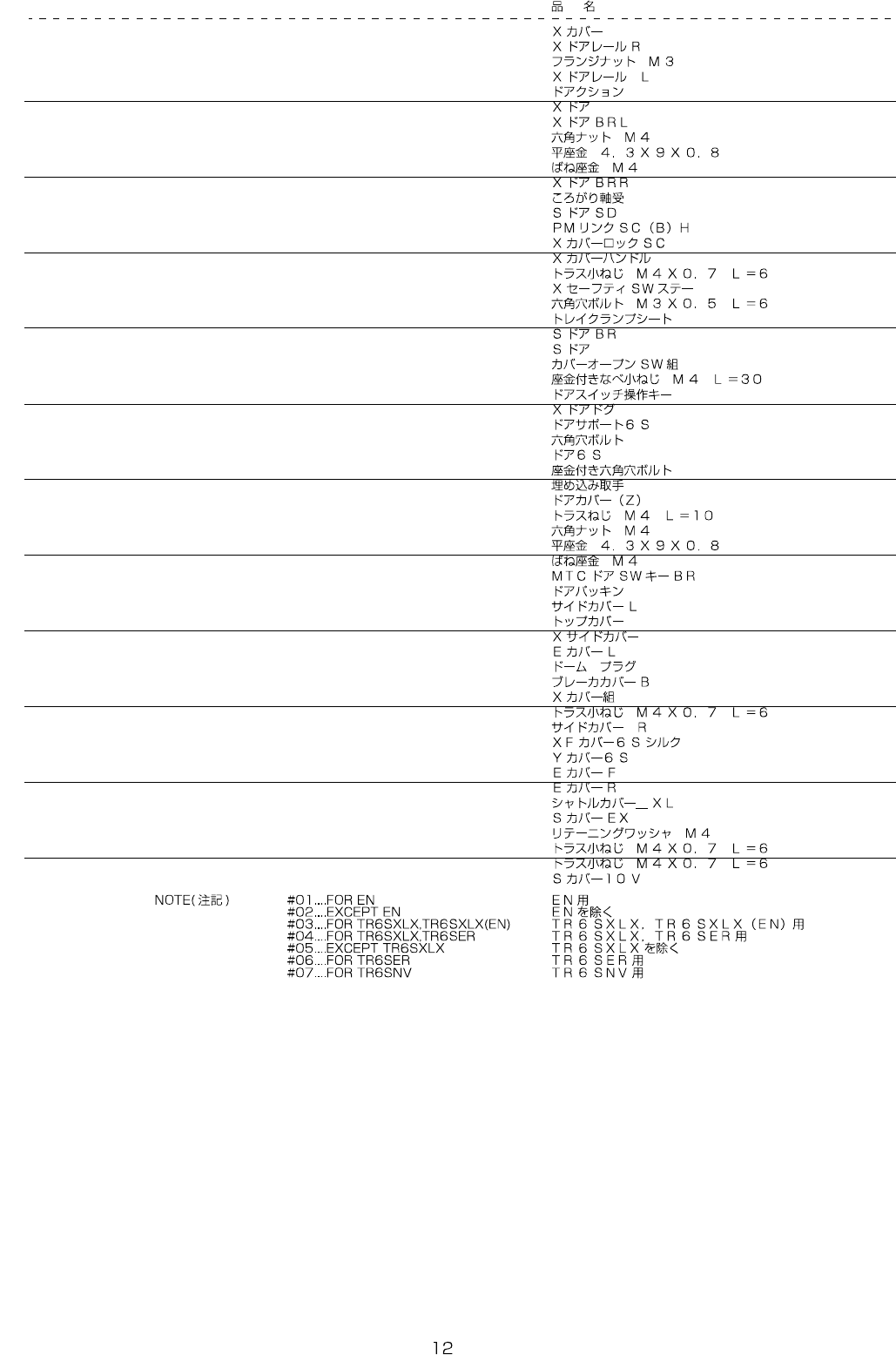

REF.NO NOTE PART NO D E S C R I P T I O N Qty

1 400-48881 X COVER 1

2 400-48885 X DOOR RAIL R 1

3 NM-3034000-SF FLANGE NUT 6

4 400-48886 X DOOR RAIL L 1

5 E1524-716-000 DOOR CUSHION 2

6 400-48882 X DOOR 1

7 400-48884 X DOOR BRL 1

8 NM-6040001-SC NUT M4 11

9 WP-0430801-SC WASHER 4.3X9X0.8 11

10

#05

WS-0410002-KN SPRING WASHER 11

11 400-48883 X DOOR BRR 1

12 SB-1040005-00 ROLLING SHAFT HOLDER 4

13 400-48899 S DOOR SD 2

14 E4560-531-000 PM LINK SC (B) H 1

15 400-49199 X COVER LOCK SC 1

16 E1046-717-000 X COVER HANDLE 1

17 SM-0040601-SC SCREW M4X0.7 L=6 2

18

#01

E2420-723-000 X SAFETY SW STAY 1

19 SM-6030602-TN HEX SCREW M3 X 6 6

20 E1572-726-000 TRAY CLAMP SHEET 1

21 400-48900 S DOOR BR 1

22 400-48901 S DOOR 1

23

#01

400-45206 COVER OPEN SW ASM 1

24

#01

SL-4043091-SC SCREW M4 L=30 2

25

#01

HA-0045500-20 SWITCH 1

26

#02

400-48717 X DOOR DOG 1

27 400-49058 DOOR SUPPORT 6S 1

28 SM-6030802-TN BOLT 2

29 400-48891 DOOR 6S 1

30 SL-6040892-TN BOLT 4

31 400-48894 EMBEDDED PULLS 1

32 E1063-717-000 DOOR COVER Z 1

33 SM-0041001-SC SCREW M4 L=10 6

34 NM-6040001-SC NUT M4 9

35 WP-0430801-SC WASHER 4.3X9X0.8 6

36

#05

WS-0410002-KN SPRING WASHER 6

37 SM-0040601-SC MTC DOOR SW KEY BR 26

38 400-48893 DOOR PACKING 1

39 400-48879 SIDE COVER L 1

40 400-48880 TOP COVER 1

41 400-48888 X SIDE COVER 1

42 400-48877 E COVER L 1

43 HX-0032600-0M DOME PLUG 1

44

#01

E2411-723-000 BREAKER COVER B 1

45

#05

E2005-723-0A0 X COVER ASM. 1

46 SM-0040601-SC SCREW M4X0.7 L=6 32

47 400-48878 SIDE COVER R 1

48 400-49939 XF COVER 6S SILK 1

49 400-48889 Y COVER 6S 1

50 400-48890 E COVER F 1

51 400-48892 E COVER R 1

52

#03

400-94981 S_COVER_XL 1

53

#06

400-49321 S COVER EX 1

54

#01

400-98346 RETAINING WASHER M4 6

55

#04

SM-0040601-SC SCREW M4X0.7 L=6 3

56

#01

SM-0040601-SC SCREW M4X0.7 L=6 3

57

#07

401-18288 S COVER 10V 1

- -

7. CONVEYOR UNIT

1 3

4

7

1 2

1 0

6

8

7 2

7 8

7 2

7 0

7 6

5 7

3 3

8 5

8 3

2 4

2 3

2 4

2 3

4 1

4 2

1 5 6 9

3 4

3 5

6 2

6 1

6 2

1 2 1

1 2 0

1 0 3

1 2 0

1 1 9

3 2

2 9

4 0

3 8

3 6

3 9

4 2

3 8

3 6

4 0

3 8

3 6

3 9

3 8

3 6

1 8

1 7

1 9

2 2

2 1

2 0

6 1

2 3

2 4

4 0

A

4 0

3

2 1 1

7 7

7 0

7 6

7 7

5 3

9 1 3 1

9 5 9 7

1 6 3

8 0 8 1 1 2 6

1 6 7 5

1 4

2 7

2 8

3 0

3 1

3 2

3 1

4 9

4 6

4 5

4 4

4 8

4 7

4 3

5 1

5 2

3 7

5 2

5 0

4 1

4 2

2 4

2 3

4 3

4 8

4 4

4 5

4 7

4 6

4 9

5 1

5 2

5 0

6 8

5 0

6 6

6 7

6 8

6 6

6 7

7 1

7 4

7 2

7 0

7 6

7 8

7 7

7 8

7 2

7 1

7 0

7 6

7 7

7 3 7 9 1 2 7

8 3

8 2

2 4

2 3

8 4

8 5

8 2

2 4

2 3

8 4

8 5

8 2

8 3

2 3

2 4

8 5

8 6 8 8

8 9 9 1

9 2 9 4

6 2

6 4

6 5

1 2 2

1 0 1

1 0 2

6 2

1 0 5

9 8 1 0 0

1 0 7

1 1 1

1 0 9

5

8 3

4 1

4 2

5 5

1 0 4

1 0 6

1 1 3

1 0 4

1 0 6

1 0 4

1 0 6

1 1 3

1 0 4

8 9 9 1

2 6

2 5

B

5 6

5 4

5 8

5 9

6 0

1 1 2

1 1 8

1 1 7

1 1 6

1 1 5

1 1 4

1 1 7

1 1 6

1 1 5

1 1 4

1 1 0

6 2

1 0 8

8 5

1 2 3

1 2 5

1 2 4

1 3 0

1 2 9

1 2 8

1 2 9

1 3 0

9 1 3 1

- -

REF.NO NOTE PART NO D E S C R I P T I O N Qty

1

#02

400-49099 C FRAME 6S 1

2

#02

E4405-71 7-000 C BELT 1234-2GT-6 1

3 E1 614-717-000 C BELT 252-3GT 1

4 HB-0041400-00 RELAY LY2 1

5 400-42045 CONVEYOR PCB ASM 1

6 400-45190 CONVEYOR L SENSOR ASM. 1

7 HB-0012500-00 RELAY G2R-1-S 1

8 400-45192 CONVEYOR R SENSOR ASM 1

9

#06

E2223-72 3-000 C BELT 6S 2

10 400-46163 EMERGENCY SW(CONVEYOR) ASM 1

11

#02

E2224-72 3-000 BELT 1140 1

12 400-45193 CONVEYOR RESET SW ASM. 1

13 400-45075 CONDENSER ASM. 1

14 400-45718 CONVEYOR MOTOR 1

15

#01

400-49022 C COVER A 6D 1

16

#01

400-49023 C COVER B 6D 1

17 SM-805 0402 -TP SCREW 4

18 400-13197 CONVEYOR COUPLING 1

19 400-49185 HANDLE SH 1

20 RE -0800000-K0 E-SHAPED SNAP RING (8MM) 2

21 SB -1100013-00 BEARIN G 1

22 400-48822 HANDLE SH BR 1

23 SB -1040001-00 BEARIN G 16

24 E2111-715-000 CONVEYOR PULLEY 16

25 SM-803 0602 -TP SCREW M3X0.5 L=6 2

26 400-00872 MOTOR PULLEY S 1

27 400-49096 C MOTOR BR 1

28 SL-4031291-SC SCREW M3X12 4

29 400-01078 SEN SOR BRAKET B

2

30 SL-4041091-SC SCREW M4 L=10 4

31 400-52500 SEN SOR BR A 2

32 400-01076 SEN SOR SLIDE PLATE 2

33 400-49097 RAIL GUID A 1

34 E1619-717-000 C PANEL 1

35 SM-003 0601 -SC SCREW M3X0.5 L=6 2

36 SL-4030891-SC SCREW M3X8 12

37 400-48819 RAIL GUIDE B 1

38 E3931-750-000 PULLEY WASHE R 4

39 400-00840 DRIVE PULLEY R 2

40 E2160-721-000 PULLEY FLANGE 4

41 SB -8160001-00 BEARIN G 4

42 SM-604 0802 -TN SCREW 16

43 400-50436 BRG BR 2

44 400-50437 BRG SH 2

45 SB -1040002-00 BALL BE ARING 2

46 RE -0300000-K0 E-RING 3 2

47 NM-6040001-SC NUT M4 2

48 400-50438 PULLEY S H 2

49 RE -0600000-K0 E-RING 6 2

50 NM-3040510-SL FLA NGE NUT 8

51 E2215-723-000 PULLEY S PACER 10.4 6

52 SM-404 2301 -SC SCREW M4X0.7 L=23 8

53 400-45718 AC MOTOR S.P.C. 1

54 400-00478 STUD 110 4

55 400-49098 RAIL GUIDE C 1

56 400-48824 BELT COVER A 2

57 400-48820 RAIL GUIDE D 1

58 SL-4040891-SC SCREW M4 L=8 4

59 400-48825 BELT COVER B 2

60 SL-4030891-SC SCREW M3X8 4

61 E2218-723-000 ADJUST P 2

62 SL-4040891-SC SCREW M4 L=8 19

63

#01

400-48857 C FRAME 6D 1

64 HX -0018800-0D BUSH 2

65 400-48815 C FRAME B(CE) 1

66 400-50439 SP 2

67 SM-604 1202 -TN SCREW M4X0.7 L=12 2

68 NM-6040001-SC NUT M4 2

69

#02

400-49020 C COVER A 6S 1

70 400-48818 RAIL SPACER 6S 4

71

#03

E2507-72 3-000 BELT COVER D 2

72 E2046-725-000 PWB INNER 4

73

#02

400-48816 C RAIL A 6S 1

74

#03

E2506-72 3-000 BELT COVER C 2

75

#02

400-49021 C COVER B 6S 2

76 E2208-723-000 PWB GUIDE 6S 4

77 SL-4031091-SC SCREW M3 X 10 12

78 SL-4031091-SC SCREW M3 X 10 8

79

#01

400-49007 C RAIL EX A

1

80

#02

400-48817 C RAIL B 6S 1

81

#01

400-49008 C RAIL EX B 1

82 SL-4030891-SC SCREW M3X8 14

83 NM-3040510-SL FLA NGE NUT 8

84 E2214-723-000 PULLEY S PACER 8.4 8

85 SM-404 2301 -SC SCREW M4X0.7 L=23 8

86 E2222-723-000 DRIVE SH 1

87

#01

E2250-72 3-000 DRIVE SH (E) 1

88

#04

400-94982 DRIVE_SH_ XL 1

89 400-48960 SCREW SH 2

90

#01

400-49009 SCREW SH EX 2

91

#04

400-94984 SCREW_SH_XL 2

92 E2219-723-000 GUIDE SH 2

93

#01

E2248-72 3-000 GUIDE SH (E) 2

94

#04

400-94983 GUIDE_SH_XL 2

95

#02

400-48823 C BASE 6S 1

96

#01

400-49260 C BASE EX 1

97

#04

400-94979 C_BASE_XL 1

98 400-48991 C BASE SUPPORT 2

99

#01

400-48997 C BASE SUPPORT EX 2

100

#04

400-94980 C_BASE_SUPPORT_XL 2

101 400-48814 C FRAME B 1

102 E2218-723-000 ADJUS T P 2

103 E2251-723-000 C O-S PULL EY 1

104 SB-1080002-00 SIDE BEARING 6

105 SM-0040601-SC SCREW M4X0.7 L=6 6

106 E2011-721-000 STOPPER COLL AR 3

107 SL-6051092-TN BOLT 4

108 400-48902 CONV SUPPORT BR 2

109 SL-6041092-TN SCREW 8

110

#03

E2508-72 3-000 C CABLE COVER 1

111

#03

SL-4 0408 91-SC SCREW M4 L=8 4

112 HX-0009600-00 EDGE BUSHING 1

113 E2220-723-000 SLIT COLLAR 4

114

#02

RE-0400000-K0 E-RING 4 2

115

#02

SB-1060009-00 BEARING 4

116

#02

E2848-53 1-000 WD GEAR SD (B) 2

117

#02

400-48821 TENSION BR 2

118 HX-0018800-0A BUSH 1

119 E1613-717-000 C DRIVE PULLEY 1

120 E2211-524-000 SCREW 6

121 E1104-717-000 XY MOTOR PULLEY 1

122 SL-6040892-TN BOLT 6

123

#04

E2234-72 3-000 C_SUPPORT_FOOT 2

124

#04

SL-6 0612 92-TN SCREW 4

125

#04

E4374-17 2-000 ADJUSTER(D-2A TYPE ) 2

126

#05

401-18286 C RAIL B 10 V 1

127

#05

401-18285 C RAIL A 10 V 1

128

#05

400-48869 RAIL SPACER 6D 2

129

#05

E3106-72 3-000 PWB GUIDE 6D 2

130

#05

SL-4 0310 91-SC SCREW M3 L=10 4

131

#05

E3111-72 3-000 C BELT 6D 2
