TR6SNR_TR6SNV_TR6SNX-Rev04PDFA - 第19页
- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 E1313-71 7-000 Z STACKER BASE L 1 2 E2008-716-000 LINEAR BUSH 4 3 E1314-717-000 Y RAIL 2 4 E1315-717-000 Z LINEAR BUSH STOPPER 4 5 SL-40408 91 -SC SCREW M4 L=8 8 6 40…
- -
8. Z UNIT
8 1
C
7 3
7 5
7 5
7 4
7 0
2 6
2 5
2 4
2 2
2 3
2 1
7
2 1
2 3
2 2
2 7
6
A
B
2 1
2 1
1 7
2 2
2
4
5
2
5
2 4
7 2
6 9
7 5
1
3
2
5
5B
4
2
3
C
A
2 3
4
4
8
9
1 0
1 1
1 2
1 3
1 4
1 5
1 6
1 8
1 8
1 9
2 0
2 0
1 9
2 3
2 2
3 2
2 8
3 3
2 9
3 4
3 1
3 1
3 0
3 5
3 8
3 6
4 6
4 7
4 6
4 7
4 3
4 4
4 5
4 1
3 9
4 1
4 0
4 8
3 7
4 9
5 0
5 3
5 3
5 2
5 1
5 4
5 5
5 6
5 7
5 8
5 9
6 1
6 2
6 3
6 4
6 6
6 8
6 7
6 8
6 0
7 1
7 3
4 2
D
D
7 6
7 6
7 9
7 9
7 7
7 8
7 7
7 8
8 0
8 0
6 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1313-717-000 Z STACKER BASE L 1
2 E2008-716-000 LINEAR BUSH 4
3 E1314-717-000 Y RAIL 2
4 E1315-717-000 Z LINEAR BUSH STOPPER 4
5 SL-4040891-SC SCREW M4 L=8 8
6 400-48938 Z BASE L 6S 2
7 SB-1120001-00 BEARING D=12X32 1
8 HX-0051900-00 FIXING BASE 2
9 SM-6051002-TN BOLT 1
10 400-48801 Z MOTOR BR 1
11 400-45703 SERVO MOTOR 1
12 SM-6051202-TN SCREW M5X0.8 L=12 4
13 HX-0029400-00 FIXED BASE 1
14 SL-4030691-SC SCREW M3X6 1
15 400-55809 MOTOR BR COVER 1
16 SL-6030692-TN BOLT 2
17 400-48682 Z BASE U 1
18 SL-6052592-TN BOLT 4
19 400-48681 Z BASE U BR 2
20 SL-6051292-TN BOLT 4
21 E1312-717-000 Z DAMPER 4
22 E1303-717-000 Z SHAFT SUPPORT 4
23 SM-6062502-TN HEXAGONAL-HOLE BOLT 8
24 400-48802 Z SHAFT700 2
25 400-48800 Z BALL SCREW 1
26 SM-6052002-TN BOLT 4
27 SL-6052592-TN BOLT 4
28 E1308-717-000 Z MOTOR COUPLING 1
29 400-48683 END PLATE 1
30 SL-6053592-TN BOLT 4
31 E1262-726-000 COLLAR ROUND 12X5 2
32 400-69754 BEARING 1
33 E1266-726-000 COLLAR ROUND 60 1
34 E1268-726-000 LOCK NUT RN12 1
35 SL-6051092-TN BOLT 4
36 PA-1001024-A0 FREE MOUNT CYLINDER 1
37 SM-6031202-TN BOLT 2
38 PC-0105080-00 SPEED CONTROLLER 2
39 400-48693 ZST SHUT GUIDE 1
40 400-48695 ZST SHUT DOG 2
41 SL-6030892-TN SCREW 2
42 400-48694 ZST SENSOR BR 1
43 SL-4030891-SC SCREW M3X8 2
44 HX-0029400-00 FIXED BASE 1
45 SL-4030691-SC SCREW M3X6 1
46 HD-0005700-0A PHOTO SENSOR 2
47 SL-4031081-SC SCREW M3 X 10 2
48 NM-6040003-SC NUT M4 2
49 400-48687 ZST BASE 6SNR 1
50 SL-6041092-TN SCREW 6
51 400-48690 ZST SIDE GUIDE R 1
52 400-48689 ZST SIDE GUIDE L 1
53 SL-4040891-SC SCREW M4 L=8 6
54 400-48691 ROCK RELEASE BR 1
55 SL-4040891-SC SCREW M4 L=8 2
56 400-48688 ZST STOPPER 2
57 SL-4040891-SC SCREW M4 L=8 4
58 400-48685 Z SENSOR PLATE 1
59 SL-4040891-SC SCREW M4 L=8 2
60 SL-4040891-SC SCREW M4 L=8 4
61 400-48986 ZST LOCK 1
62 SM-6040602-TN BOLT 2
63 HD-0009000-00 PHOTO SENSOR 1
64 SL-4030881-SC SCREW M3 L=8 2
65 E1310-717-000 Z CABLE BEAR 1
66 400-48860 Z CABLE BR 1
67 400-48696 ZST CABLE BR 1
68 SL-4030891-SC SCREW M3X8 4
69 400-48859 Z SENS BRB 1
70 400-48858 Z SENS BR 1
71 SL-4040891-SC SCREW M4 L=8 2
72 SL-4040891-SC SCREW M4 L=8 2
73 400-45713 PHOTO SENSOR 2
74 HD-0005700-0A PHOTO SENSOR 1
75 SL-4031081-SC SCREW M3 X 10 3
76 400-48734 SENSOR PL 2
77 400-45113 STK M MIS SET SENSOR ASM 2
78 SL-4031081-SC SCREW M3 X 10 4
79 400-46236 SENSOR BRACKET 2
80 SL-4030591-SC SCREW M3X5 4
81 HD-0017100-00 PHOTO SENSOR 1
- -

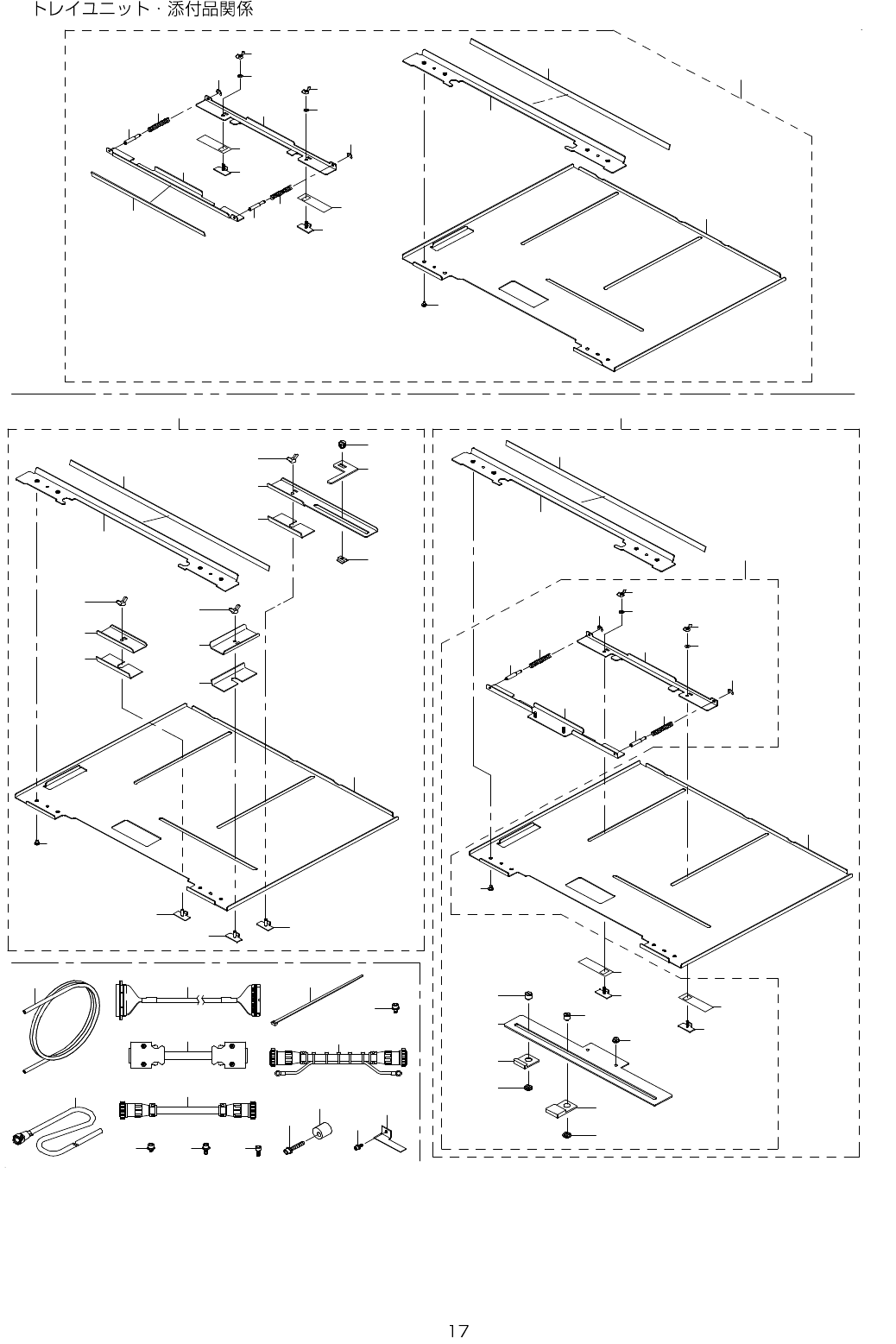

9. TRAY UNIT & APPEND PARTS COMPONENTS
1 5
4
5
6
7
8
9
8
9
1 0
1 1
1 2
1 3
1 1
1 2
1 3
1 4
1 4
1 0
2
3
1
2 3
2 1
2 2
2 0
3 3
1 8
3 6
2 2
2 0
2 1
2 3
2 4
2 5
2 6
2 7
3 0
2 9
2 8
1 7
3 1
3 4
3 5
3 7
3 8
3 9
4 0
4 1
4 0
4 1
4 5
4 2
4 6
4 4
4 2
4 6
4 4
4 3
4 5
4 7
4 8
4 9
5 0
5 0
5 1
5 1
5 2
4 3
1 6
1 9
5 5
6 2
5 7
5 4
5 3
5 6
5 8 5 9 6 0
6 1
6 3
6 5
6 4
6 6
6 7
3 2
