- - 10 . ST ACKE R UNI T 2 3 2 2 2 1 2 0 2 3 2 2 2 1 1 9 1 8 2 3 2 5 2 6 2 6 2 6 2 6 2 6 2 6 2 6 2 5 2 4 2 4 3 0 3 0 1 6 1 6 2 5 2 8 2 9 5 4 6 7 1 1 1 2 1 2 1 1 9 8 8 1 0 1 0 1 5 1 5 1 4 1 4 2 5 1 7 1 2 7 2 7 1 3 1 3 3…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-50174 TRAY UNIT(ST) 1
2 E1552-726-000 TRAY BASE SUPPORT (1)
3 E1553-726-000 TRAY SUPPORT SHEET (1)
4 SM-4030401-SC SCREW M3X0.5 L=4 (4)
5 E1570-726-000 TRAY HOLDER (ST) (1)
6 E1571-726-000 TRAY CLAMP (1)
7 E1572-726-000 TRAY CLAMP SHEET (1)
8 E1573-726-000 TRAY CLAMP SH (2)
9 E1574-726-000 TRAY CLAMP SP 4N (2)
10 RE-0200000-K0 E-RING (2)
11 E1575-726-000 HOLDER SD PLATE B (2)
12 WS-0310002-KN SPRING WASHER M3 (2)
13 NM-9030001-SC NUT (2)
14 E1582-726-000 HOLDER SHEET (2)
15 400-48961 TRAY BASE (1)
16
#01
400-50175 TRAY UNIT(A) 1
17
#01
E1552-726-000 TRAY BASE SUPPORT (1)
18
#01
E1553-726-000 TRAY SUPPORT SHEET (1)
19
#01
SM-4030401-SC SCREW M3X0.5 L=4 (4)
20
#01
E1576-726-000 TRAY HOLDER(A) (2)
21
#01
E1577-726-000 TRAY HOLDER SHEET (2)
22
#01
E1575-726-000 HOLDER SD PLATE B (2)
23
#01
NM-9030001-SC WING NUT M3X0.5 TYPE1 (2)
24
#01
E1578-726-000 TRAY HOLDER S (1)
25
#01
E1577-726-000 TRAY HOLDER SHEET (1)
26
#01
E1579-726-000 SIDE HOLDER (1)
27
#01
E1580-726-000 TRAY HOLDER NUT (1)
28
#01
E1581-726-000 TRAY HOLDER NOB (1)
29
#01
E1575-726-000 HOLDER SD PLATE B (1)
30
#01
NM-9030001-SC WING NUT M3X0.5 TYPE1 (1)
31
#01
400-48961 TRAY BASE (1)
32
#01
400-51150 2INCH TRAY UNIT 1
33
#01
400-48961 TRAY BASE (1)
34
#01
E1552-726-000 TRAY BASE SUPPORT (1)
35
#01
E1553-726-000 TRAY SUPPORT SHEET (1)
36
#01
SM-4030401-SC SCREW M3X0.5 L=4 (4)
37
#01
400-51151 2INCH TRAY ADAPTER (1)
38
#01
E1570-726-000 TRAY HOLDER (ST) (1)
39
#01
400-48980 TRAY CLAMP (1)
40
#01
E1573-726-000 TRAY CLAMP SH (2)
41
#01
E1574-726-000 TRAY CLAMP SP 4N (2)
42
#01
E1575-726-000 HOLDER SD PLATE B (2)
43
#01
E1582-726-000 HOLDER SHEET (2)
44
#01
NM-9030001-SC WING NUT M3X0.5 TYPE1 (2)
45
#01
RE-0200000-K0 E-RING 2 (2)
46
#01
WS-0310002-KN SPRING WASHER M3 (2)
47
#01
400-48981 TRAY CLAMP PL (1)
48
#01
400-48982 TRAY CLAMP A (1)
49
#01
400-48983 TRAY CLAMP B (1)
50
#01
400-48984 TRAY CLAMP NUT (2)
51
#01
400-48985 TRAY CLAMP NOB (2)
52
#01
NM-3034000-SF FLANGE NUT M3 (2)
53 BT-0600400-EC TUBE HOSE, BLUE 2
54
#02
E9522-716-0A0 I/F CABLE ASM. 1 1
55
#03
400-96157 MTC/MTS I/F CABLE ASM 1
56 E9599-705-0A0 JOINT CABLE ASM. 1
57 E9100-723-AA0 AC POWER CABLE ASM 1
58
#03
SL-6040692-TN BOLT M4 L=6 8
59
#03
SL-6041092-TN SCREW 8
60
#03
SM-6041002-TN BOLT 2
61
#03
EA-9500B02-00 CABLE BAND 150 4
62
#04
400-49751 AC PWR CABLE(TR6CE) ASM 1
63
#05
SL-4040891-SC SCREW M4 L=8 1
64 E1348-700-000 SAFETY COVER STOPPER 1
65 SL-6042592-TN SCREW 1
66 400-49190 FIX BR 1
67 SL-6030892-TN SCREW M3 L=8 1
- -

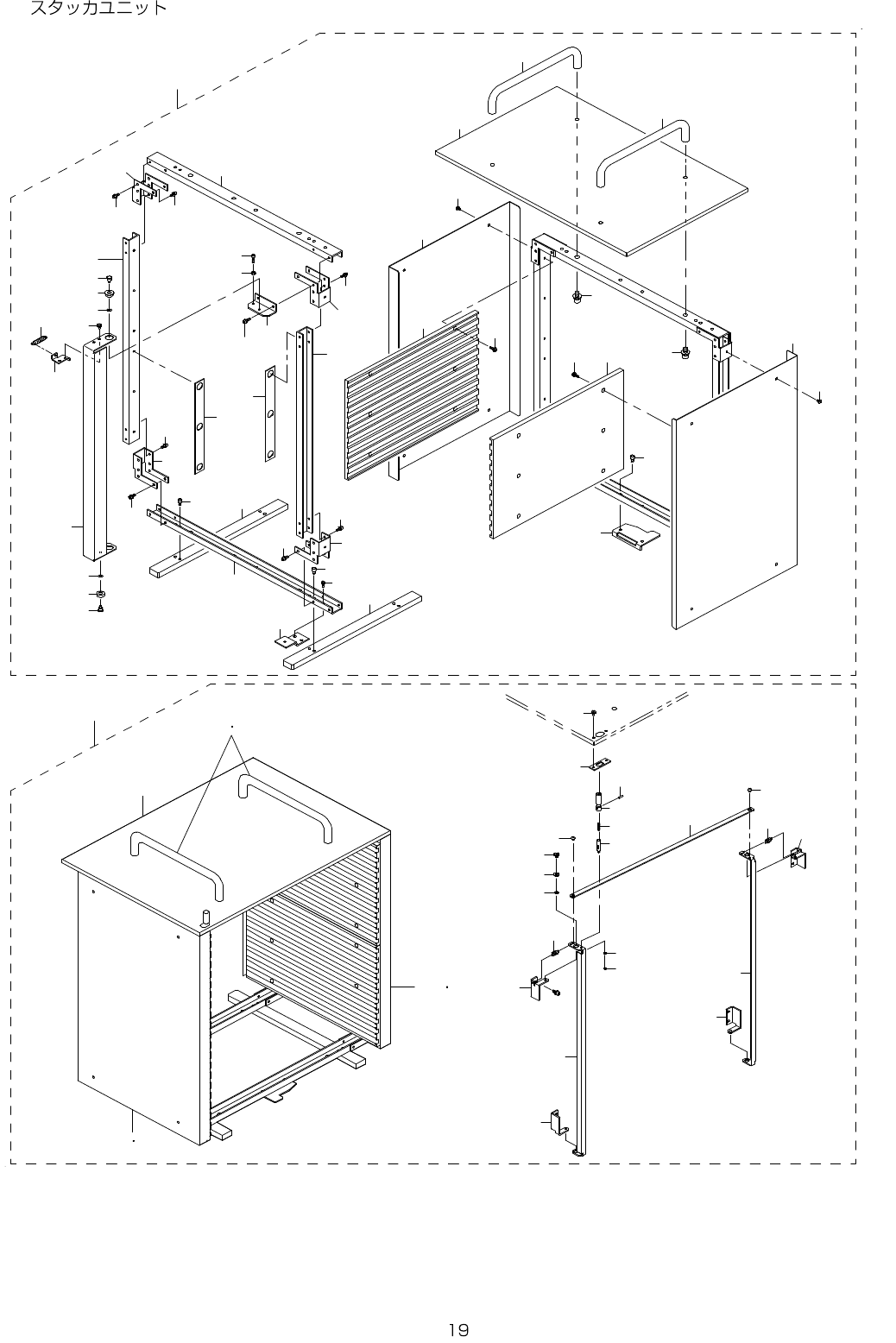

10. STACKER UNIT
2 3
2 2
2 1
2 0
2 3
2 2
2 1
1 9
1 8
2
3
2 5
2 6
2 6
2 6
2 6
2 6
2 6
2 6
2 5
2 4
2 4
3 0
3 0
1 6
1 6
2 5
2 8
2 9
5
4
6
7
1 1
1 2
1 2
1 1
9
8
8
1 0
1 0
1 5
1 5
1 4
1 4
2 5
1 7
1
2 7
2 7
1 3
1 3
3 8
3 9
4 0
5 5
5 7
5 6
4 5
4 6
4 3
4 4
5 0
5 3
5 4
5 2
5 1
4 1
4 8
4 9
4 7
4 0
3 5 3 6
5 1
3 4 3 7
3 2
3 3 3 7
4 2
3 1
- -

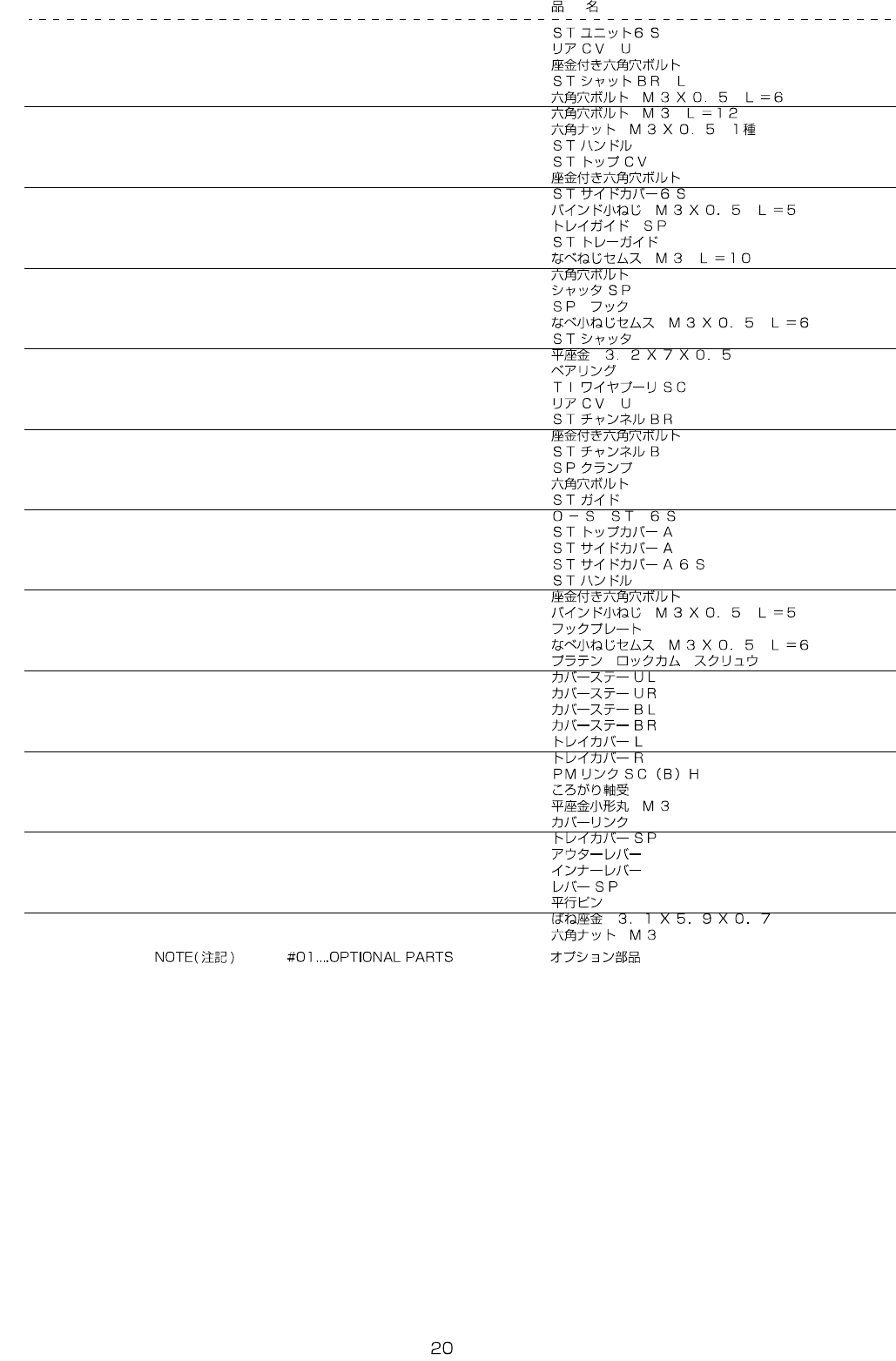

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49290 ST UNIT 6S 1
2 400-48751 REAR CV U (1)
3 SL-6031092-TN SCREW (2)
4 400-48752 ST SHUT BR L (1)
5 SM-6030602-TN HEX SCREW M3 X 6 (2)
6 SM-6031202-TN BOLT (1)
7 NM-6030001-SC NUT M3 (1)
8 E1513-717-000 ST HANDLE (2)
9 400-48754 ST TOP CV (1)
10 SL-6061292-TN SCREW (4)
11 E2041-723-000 ST SIDE COVER 6S (2)
12 SM-5030501-SC SCREW M3 L=5 (8)
13 400-52111 TRAY GUIDE SP (8)
14 E1505-717-000 ST TRAY GUIDE (4)
15 SL-4031081-SC SCREW M3 X 10 (24)
16 SM-6040602-TN BOLT (8)
17 E4612-717-000 SHUTTER SP (1)
18 400-48755 SP HOOK (1)
19 SL-4030691-SC SCREW M3X6 (2)
20 400-48753 ST SHUTTER (1)
21 WP-0320501-SC WASHER M3 (1)
22 400-56994 BEARING (1)
23 E2133-531-000 TI WIRE PULLEY SC (1)
24 400-48750 REAR CV U (4)
25 400-54965 ST CHANNEL BR (8)
26 SL-6030892-TN SCREW (64)
27 E2069-723-000 ST CHANNEL B (4)
28 E1510-717-000 SP CLAMP (1)
29 SM-6040602-TN BOLT (2)
30 E1511-717-000 ST GUIDE (2)
31
#01
400-50152 O-S ST 6S 1
32
#01
E1526-717-000 ST TOP COVER A (1)
33
#01
E1539-717-000 ST SIDE COVER A (1)
34
#01
E2063-723-000 ST SIDE COVER A6S (1)
35
#01
E1513-717-000 ST HANDLE (2)
36
#01
SL-6061292-TN SCREW (4)
37
#01
SM-5030501-SC SCREW M3 L=5 (8)
38
#01
E1537-717-000 HOOK PLATE (1)
39
#01
SL-4030691-SC SCREW M3X6 (2)
40
#01
E1038-871-000 PLATEN LOCK CAM SCREW (2)
41
#01
E1527-717-000 COVER STAY UL (1)
42
#01
E1528-717-000 COVER STAY UR (1)
43
#01
E1529-717-000 COVER STAY BL (1)
44
#01
E1530-717-000 COVER STAY BR (1)
45
#01
E1531-717-000 TRAY COVER L (1)
46
#01
E1532-717-000 TRAY COVER R (1)
47
#01
E4560-531-000 PM LINK SC (B) H (4)
48
#01
SB-1040004-00 ROLLING SHAFT HOLDER (4)
49
#01
WP-0320500-SC WASHER M3 (4)
50
#01
E1533-717-000 COVER LINK (1)
51
#01
E1534-717-000 TRAY COVER SP (2)
52
#01
E1535-717-000 OUTER LEVER (1)
53
#01
E1536-717-000 INNER LEVER (1)
54
#01
E1538-717-000 LEVER SP (1)
55
#01
PH-0200063-C0 PIN (1)
56
#01
WS-0310002-KN SPRING WASHER M3 (1)
57
#01
NM-6030003-SC NUT M3 (1)
