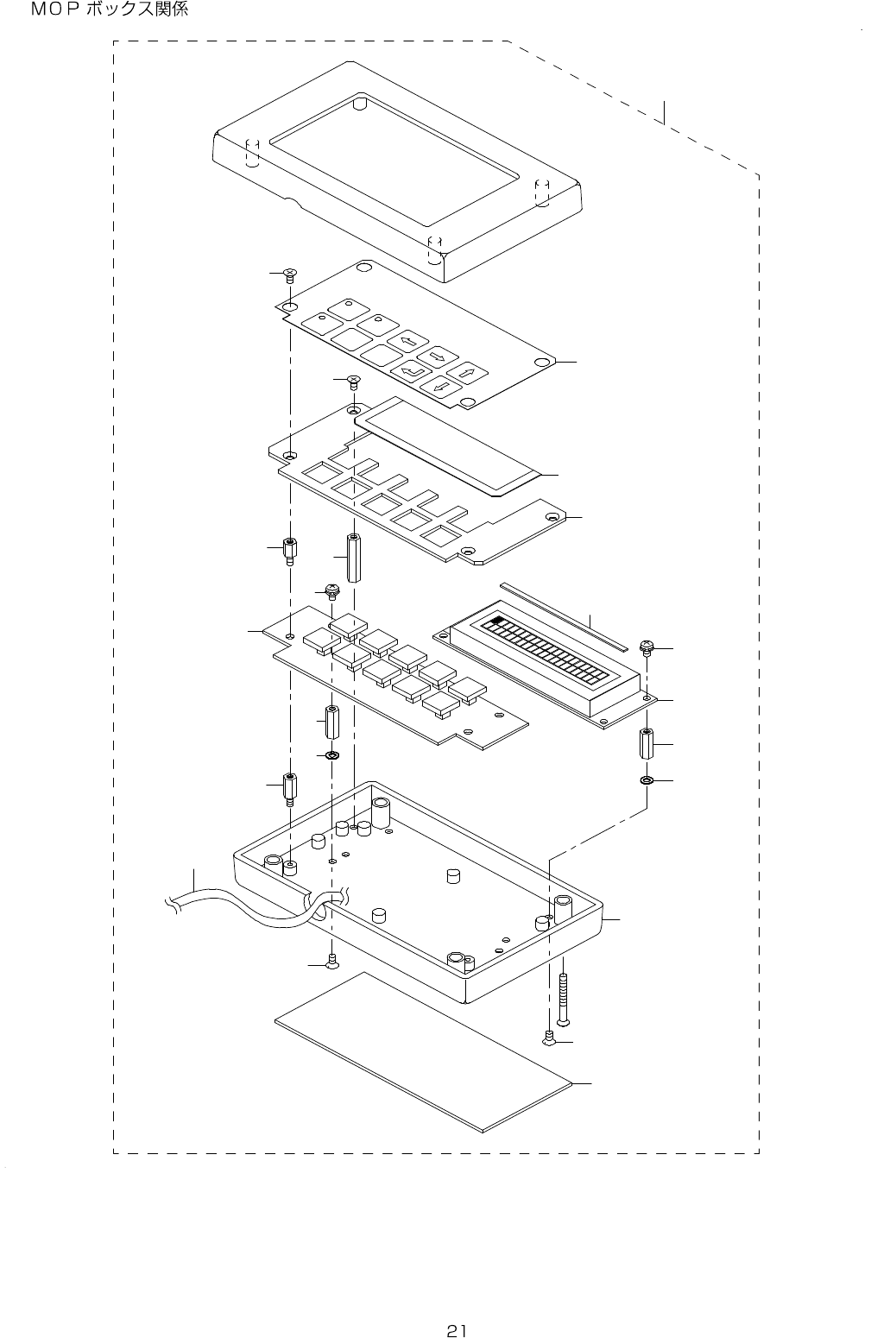

11. MOP BOX COMPONENTS
1 3
3
2
9
1 7
4
7
8
5
6
1 8
1 2
1 2
9
1 7
1 4
1 1
1 5
1 0
1 2
1 2
1 6
1
- -

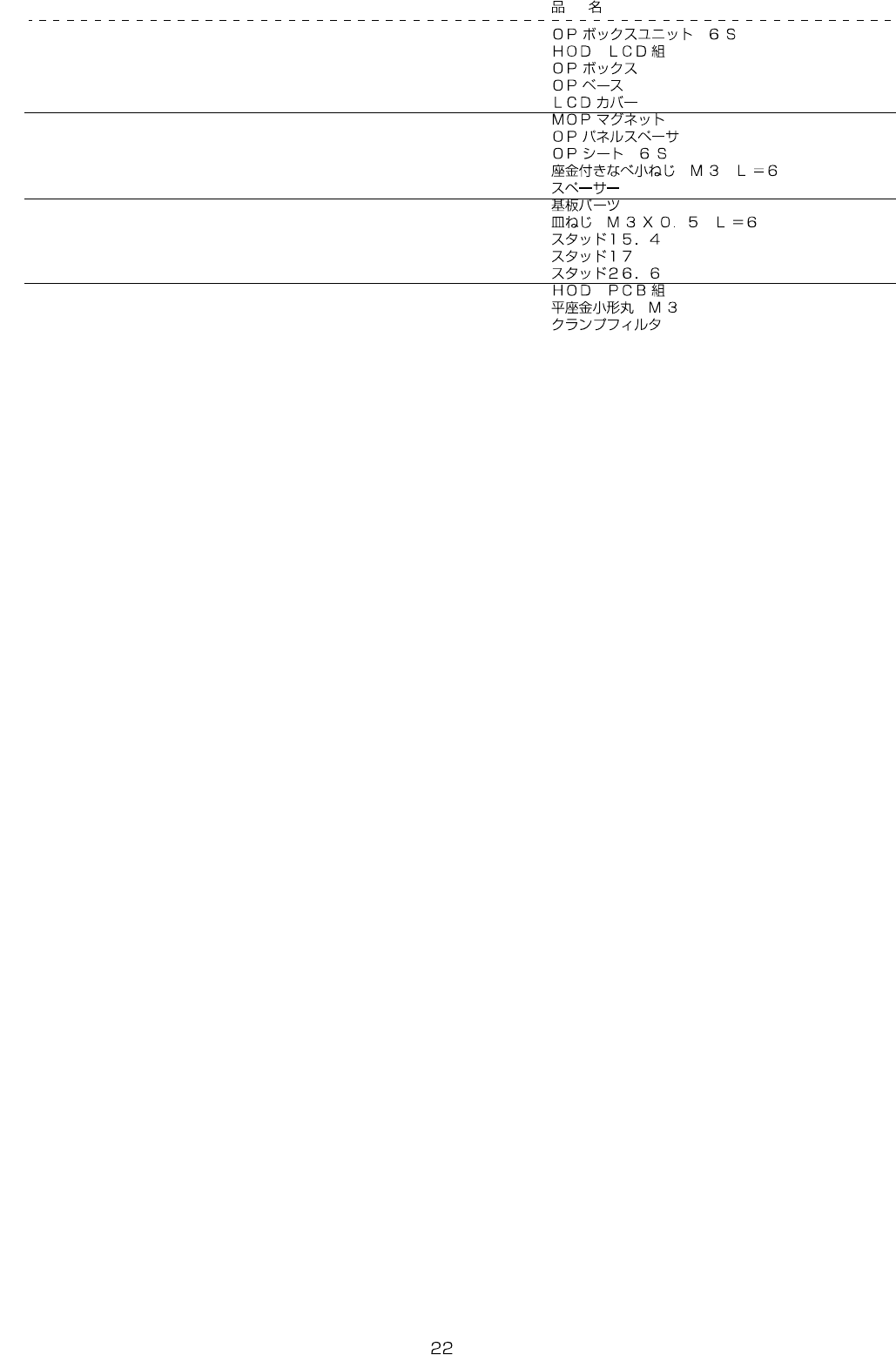

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49292 OP BOX UNIT 6S 1
2 400-46251 HOD LCD ASM (1)
3 400-48826 OP BOX (1)
4 400-48827 OP BASE (1)
5 E2505-716-000 LCD COVER (1)
6 E2506-716-000 MOP MAGNET (1)
7 E2502-716-000 MOP PANEL SPACER (1)
8 400-49935 OP SHEET 6S (1)
9 SL-4030681-SC SCREW M3 L=6 (6)
10 HX-0035400-0B PCB SUPPORT L=8MM (2)
11 HX-0035400-0D BASE PARTS (2)
12 SM-1030601-SC SCREW M3 L=6 (12)
13 400-48828 STUD15.4 (4)
14 400-48829 STUD17 (2)
15 400-48830 STUD26.6 (2)
16 400-41206 HOD PCB ASM (1)
17 WP-0320500-SC WASHER M3 (6)
18 HN-0014900-00 CLAMP FILTER(L) (1)
- -
