12. OPTION COMPONENTS
3 2
2 9
3 0
3 3
1 7
1 6
9
3 6
3 5
1 8
1 2
1 0 1 1
1 4
1 9
2 7
2 6
2 4 2 5
2 2
2 0 2 1
2 3
2
1
3
4
4
5
5
6
6
7 8
7 8
3
S PE E D CON T R O L
0
1 0
2 0
3 0
4 0
5 0
6 0
7 0
8 0
9 0
1 0 0
2 8
4 2
3 9
3 7
3 8
4 1
4 0
3 1
1 3
1 5
3 4
3 7
4 3
4 5
4 6
4 4
4 8
4 7
6 1
5 0
7 1
7 0
6 7
6 9
6 7
6 8
6 3
5 1
5 2
5 3
5 4
5 5
5 6
5 7
5 8
5 8
5 8
4 9
5 9
5 9
5 9
6 0
6 0
7 3
7 2
5 5
5 5
7 3
6 2
6 3
6 4
6 5
6 5
6 6
6 6
6 5
6 3
6 4
6 4
5 2
5 2
- -

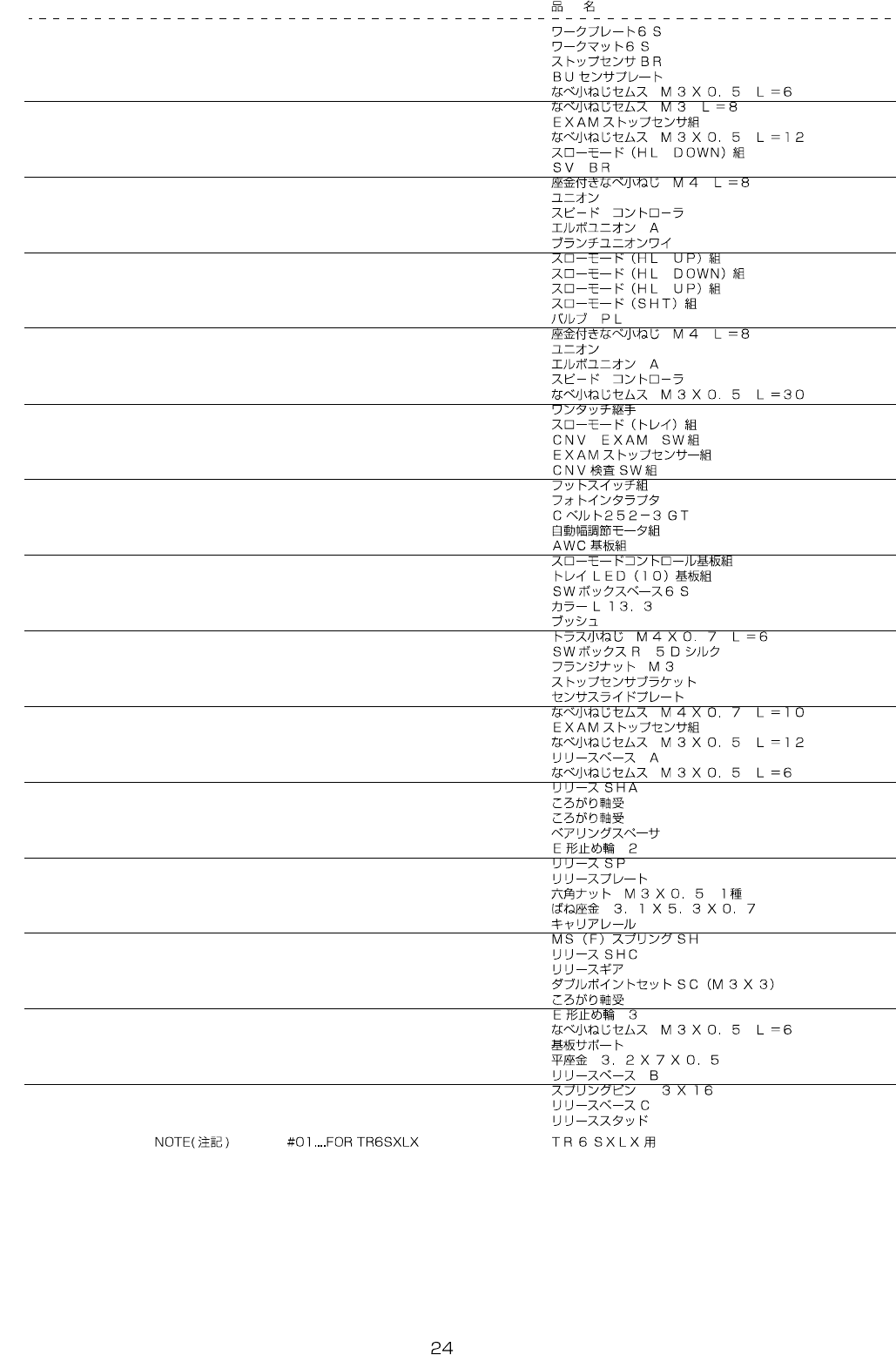

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-48998 WORK PLATE 6S 1
2 E2237-723-000 WORKMAT 6S 1
3 400-49014 STOP SENSOR BR 2
4 E2093-725-000 BU SENSOR PLATE 2
5 SL-4030691-SC SCREW M3X6 4
6 SL-4030891-SC SCREW M3X8 4
7 400-45196 EXAM STOP SENSOR ASM 2
8 SL-4031291-SC SCREW M3X12 2
9 400-45183 SLOW MODE(HL DOWN) ASM. 1
10 400-48763 SV BR 1
11 SL-4040891-SC SCREW M4 L=8 3
12 400-49261 UNION 4
13 PC-0124010-00 SPEED CONTROLLER 4
14 PJ-3040452-02 ELBOW UNION A 1
15 PJ-3080400-04 BRANCH UNION 4
16 400-45181 SLOW MODE(HL UP) ASM. 1
17 400-45179 SLOW MODE(HR DOWN) ASM. 1
18 400-45177 SLOW MODE(HR UP) ASM. 1
19 400-45185 SLOW MODE (SHT) ASM. 1
20 400-48806 VALVE PL 1
21 SL-4040891-SC SCREW M4 L=8 2
22 400-49261 UNION 2
23 PJ-3040452-02 ELBOW UNION A 2
24 PC-0124010-00 SPEED CONTROLLER 2
25 SL-4033091-SC SCREW M3 L=30 2
26 PJ-3080400-02 QUICK COUPLING 2
27 400-45187 SLOW MODE (TRAY) ASM. 1
28 400-45194 CNV EXAM SW ASM 1
29 400-45196 EXAM STOP SENSOR ASM. 1
30 400-45194 CNV EXAMINATION SW ASM. 1
31 400-45197 FOOT SWITCH ASM. 1
32 HD-0017100-00 PHOTO SENSOR 1
33 E1614-717-000 C BELT 252-3GT 1
34 400-45712 MOTOR CABLE ASM. 1
35 400-42153 AWC PCB ASM. 1
36 400-42575 SLOW MODE CTRL PCB ASM. 1
37 400-42216 TRAY LED (10) PCB ASM 2
38 400-48727 SW BOX BASE 6S 1
39 E5746-723-000 COLLER L13.3 12
40 HX-0022100-0E BUSH 1
41 SM-0040601-SC SCREW M4X0.7 L=6 4
42 400-50039 SW BOX R 5D SILK 1
43 NM-3034000-SF FLANGE NUT 12
44
#01
400-94970 STOP_SENSOR_BR 1
45
#01
400-01076 SENSOR SLIDE PLATE 1
46
#01
SL-4041091-SC SCREW M4 L=10 1
47
#01
400-45196 EXAM STOP SENSOR ASM 1
48
#01
SL-4031291-SC SCREW M3X12 1
49 400-48962 RELEASE BASE A 1
50 SL-4030691-SC SCREW M3X6 3
51 E2044-723-000 RELEASE SHA 1
52 SB-1030007-00 ROLLING SHAFT HOLDER 3
53 SB-1030005-00 BEARING 1
54 E2045-723-000 BEARING SPACER 1
55 RE-0200000-K0 E-RING 3
56 E2046-723-000 RELEASE SP 1
57 E2047-723-000 RELEASE PLATE 1
58 NM-6030001-SC NUT M3 3
59 WS-0310002-KM SPRING WASHER 3.1X5.3X0.7 3
60 E2048-723-000 CARRIER RAIL 2
61 E4402-531-000 MS (F) SPRING SH 1
62 E2051-723-000 RELEASE SHC 1
63 E2052-723-000 RELEASE GEAR 3
64 E2250-525-000 SET SCREW 3
65 SB-1040011-00 BEARING 6
66 RE-0300000-K0 E-RING 3 4
67 SL-4030691-SC SCREW M3X6 3
68 HX-0035400-0K BASE SUPPORT 1
69 WP-0320501-SC WASHER M3 2
70 400-48963 RELEASE BASE B 1
71 PS-0300162-KH SPRING PIN 3X16 2
72 E2049-723-000 RELEASE BASE C 1
73 E2050-723-000 RELEASE STUD 2
- -

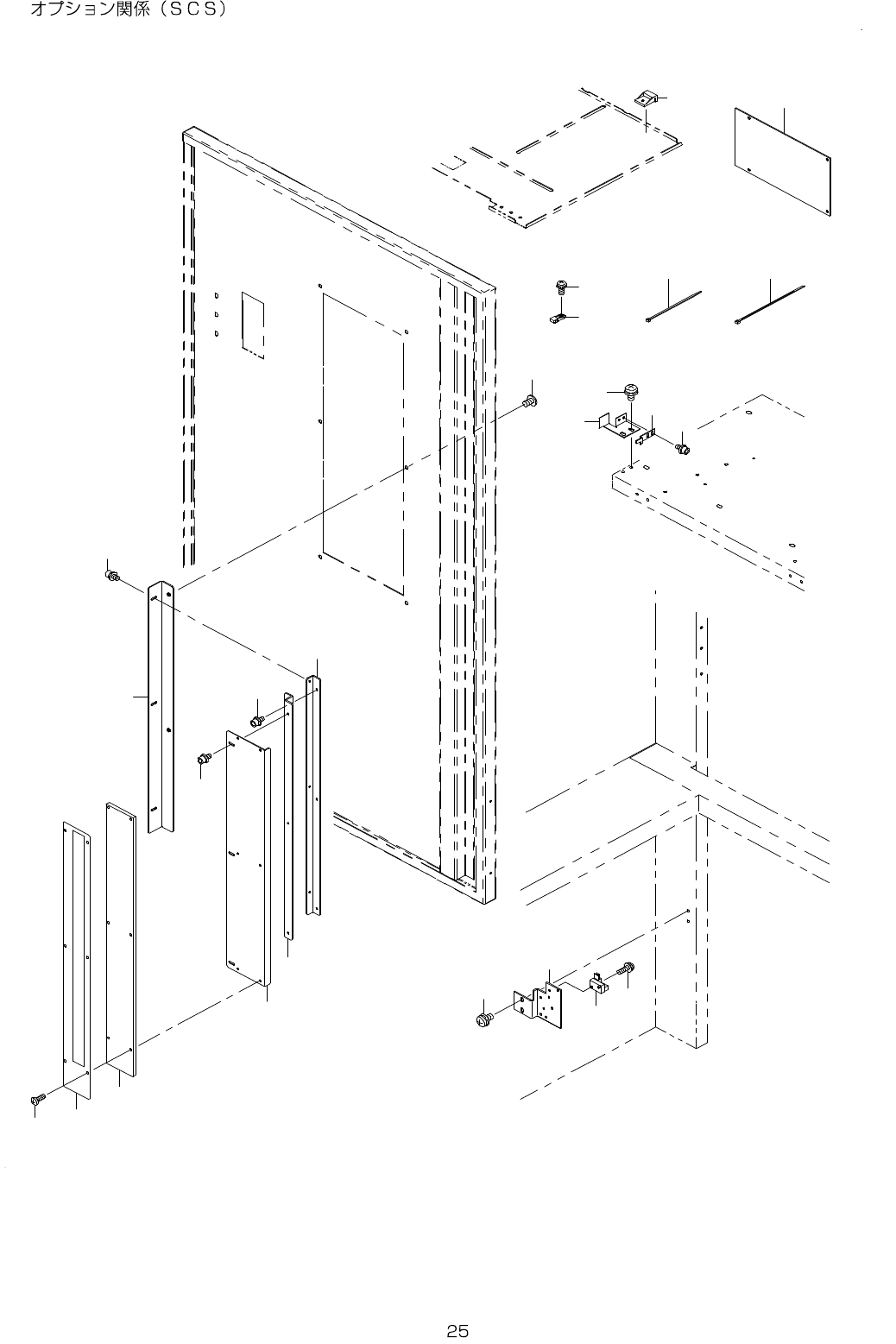

13. OPTION COMPONENTS (SCS)
6
7
1 2
1 1
9
1 0
1 3
1 4
2 0
1 5
1
1 7
1 6
1 8 1 9
2 1
2 2
2 4
2 3
2
3
4
2 5
5
8
