↵ Tasks and Kits Programmer Port... and ProMaster Port... Set Message Editor... System Security Figure 3-19 Selecting Security Options These screens allow you to change the configuration on the two RS-232C ports on the P…

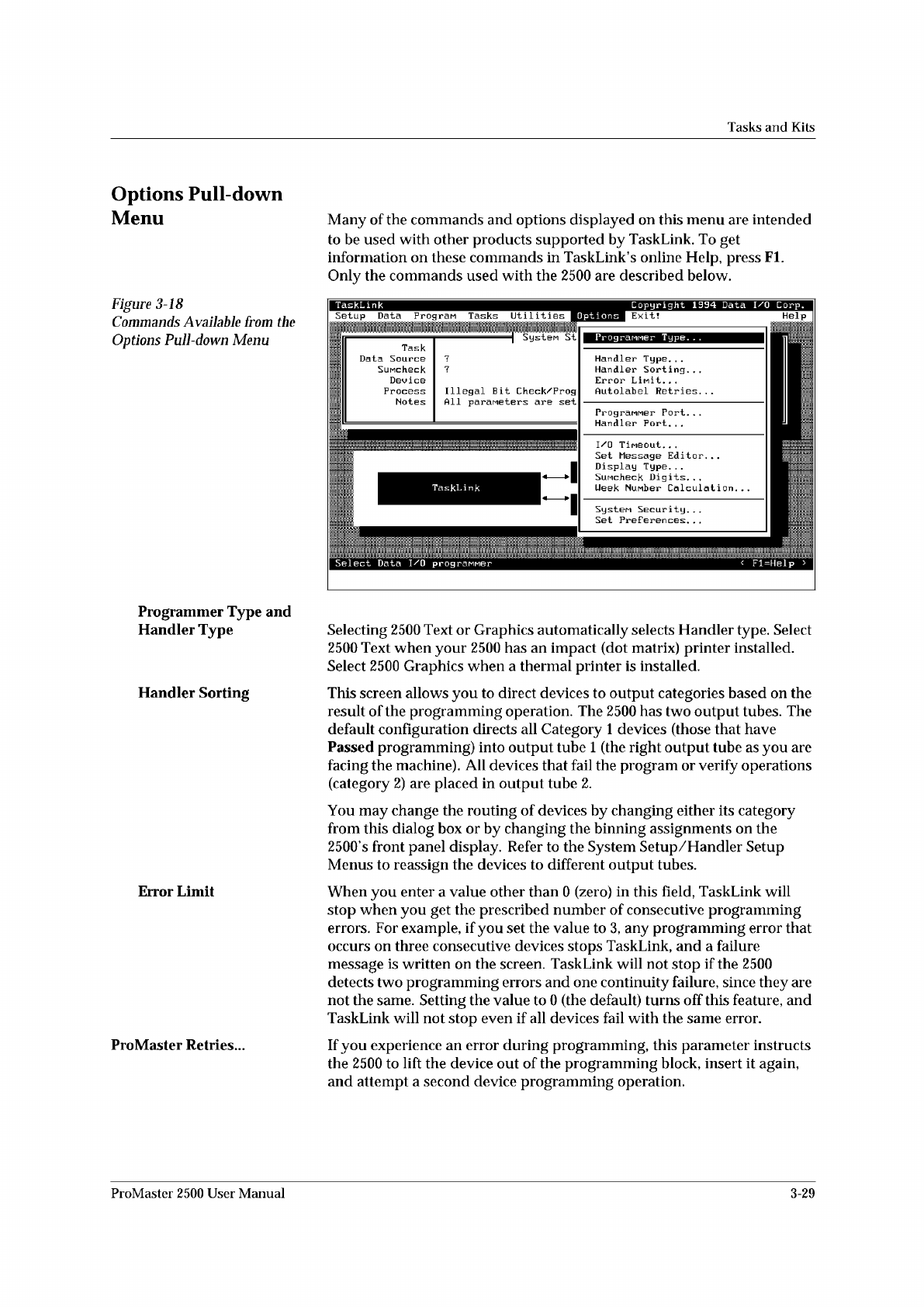

Tasks
and
Kits
Options
Pull-down
Menu
Figure
3-18
Commands
Available
from
the
Options
Pull-down
Menu
Programmer
Type
and
Handler
Type
Handler
Sorting
Error
Limit
ProMaster
Retries...
Many
of
the
commands
and
options
displayed
on
this
menu
are
intended
to
be
used
with
other
products
supported
by
TaskLink.
To
get
information
on
these
commands
in
TaskLink's
online
Help,
press
Fl.
Only
the
commands
used
with
the
2500
are
described
below.
Selecting
2500
Text
or
Graphics
automatically
selects
Handler
type.
Select
2500
Text
when
your
2500
has
an
impact
(dot
matrix)
printer
installed.
Select
2500
Graphics
when
a
thermal
printer
is
installed.
This
screen
allows
you
to
direct
devices
to
output
categories
based
on
the
result
of
the
programming
operation.
The
2500
has
two
output
tubes.
The
default
configuration
directs
all
Category
1
devices
(those
that
have
Passed
programming)
into
output
tube
1
(the
right
output
tube
as
you
are
facing
the
machine).
All
devices
that
fail
the
program
or
verify
operations
(category
2)
are
placed
in
output
tube
2.
You
may
change
the
routing
of
devices
by
changing
either
its
category
from
this
dialog
box
or
by
changing
the
binning
assignments
on
the
2500's
front
panel
display.
Refer
to
the
System
Setup/Handler
Setup
Menus
to
reassign
the
devices
to
different
output
tubes.
When
you
enter
a
value
other
than
0
(zero)
in
this
field,
TaskLink
will
stop
when
you
get
the
prescribed
number
of
consecutive
programming
errors.
For
example,
if
you
set
the
value
to
3,
any
programming
error
that
occurs
on
three
consecutive
devices
stops
TaskLink,
and
a
failure
message
is
written
on
the
screen.
TaskLink
will
not
stop
if
the
2500
detects
two
programming
errors
and
one
continuity
failure,
since
they
are
not
the
same.
Setting
the
value
to
0
(the
default)
turns
off
this
feature,
and
TaskLink
will
not
stop
even
if
all
devices
fail
with
the
same
error.
If
you
experience
an
error
during
programming,
this
parameter
instructs
the
2500
to
lift
the
device
out
of
the
programming
block,
insert
it
again,
and
attempt
a
second
device
programming
operation.
ProMaster
2500
User
Manual
3-29
↵

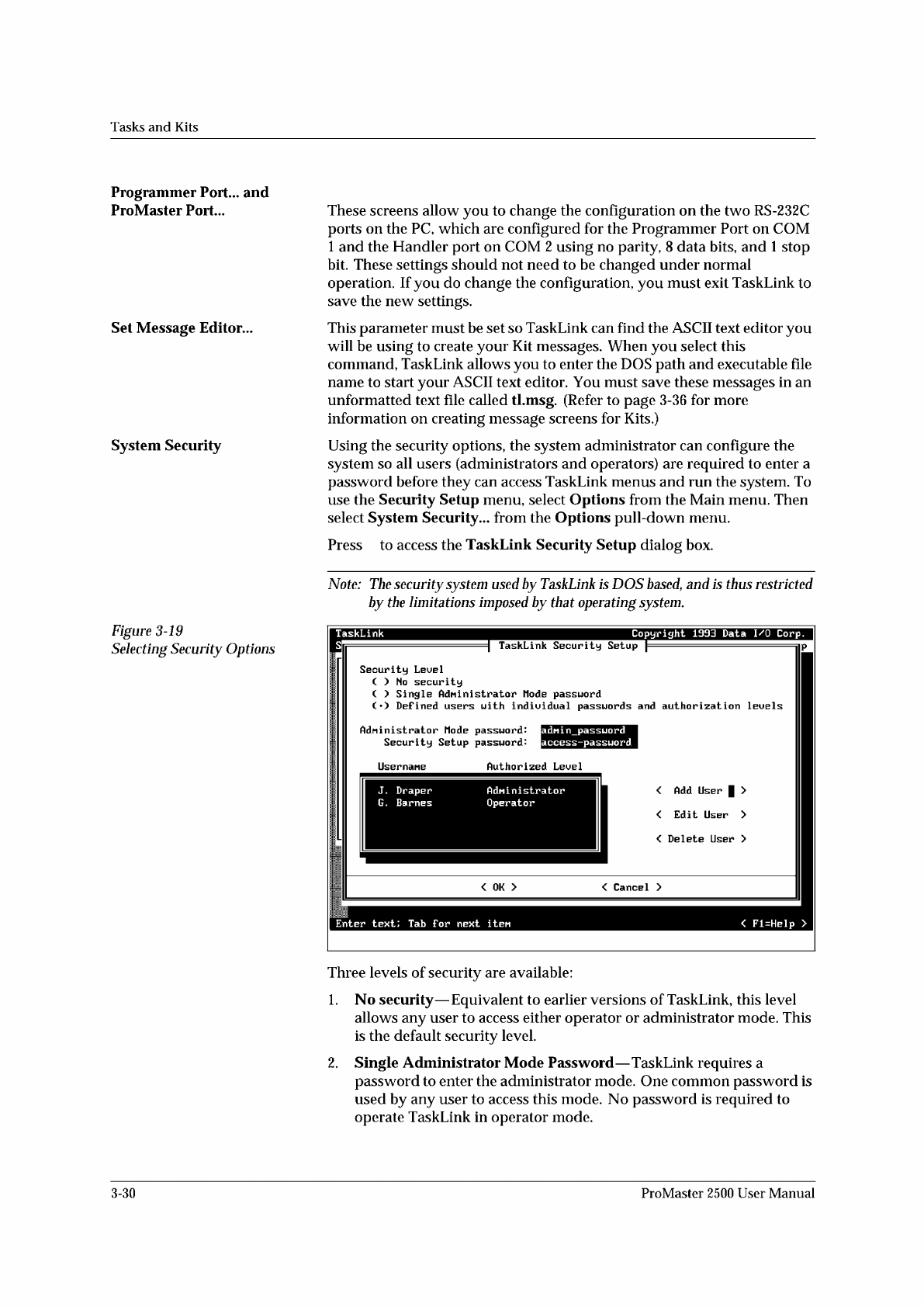

Tasks
and
Kits
Programmer
Port...
and
ProMaster
Port...
Set
Message
Editor...
System
Security
Figure
3-19
Selecting
Security
Options
These
screens
allow
you
to
change
the
configuration
on
the
two
RS-232C
ports
on
the
PC,
which
are
configured
for
the
Programmer
Port
on
COM
1
and
the
Handler
port
on
COM
2
using
no
parity,
8
data
bits,
and
1
stop
bit.
These
settings
should
not
need
to
be
changed
under
normal
operation.
If
you
do
change
the
configuration,
you
must
exit
TaskLink
to
save
the
new
settings.
This
parameter
must
be
set
so
TaskLink
can
find
the
ASCII
text
editor
you
will
be
using
to
create
your
Kit
messages.
When
you
select
this
command,
TaskLink
allows
you
to
enter
the
DOS
path
and
executable
file
name
to
start
your
ASCII
text
editor.
You
must
save
these
messages
in
an
unformatted
text
file
called
tl.msg.
(Refer
to
page
3-36
for
more
information
on
creating
message
screens
for
Kits.)
Using
the
security
options,
the
system
administrator
can
configure
the
system
so
all
users
(administrators
and
operators)
are
required
to
enter
a
password
before
they
can
access
TaskLink
menus
and
run
the
system.
To
use
the
Security
Setup
menu,
select
Options
from
the
Main
menu.
Then
select
System
Security...
from
the
Options
pull-down
menu.
Press
to
access
the
TaskLink
Security
Setup
dialog
box.
Note:
The
security
system
used
by
TaskLink
is
DOS
based,
and
is
f/ius
restricted
by
the
limitations
imposed
by
that
operating
system.
Three
levels
of
security
are
available:
1.
No
security
—
Equivalent
to
earlier
versions
of
TaskLink,
this
level
allows
any
user
to
access
either
operator
or
administrator
mode.
This
is
the
default
security
level.
2.
Single
Administrator
Mode
Password
—
TaskLink
requires
a
password
to
enter
the
administrator
mode.
One
common
password
is
used
by
any
user
to
access
this
mode.
No
password
is
required
to
operate
TaskLink
in
operator
mode.
3-30
ProMaster
2500
User
Manual

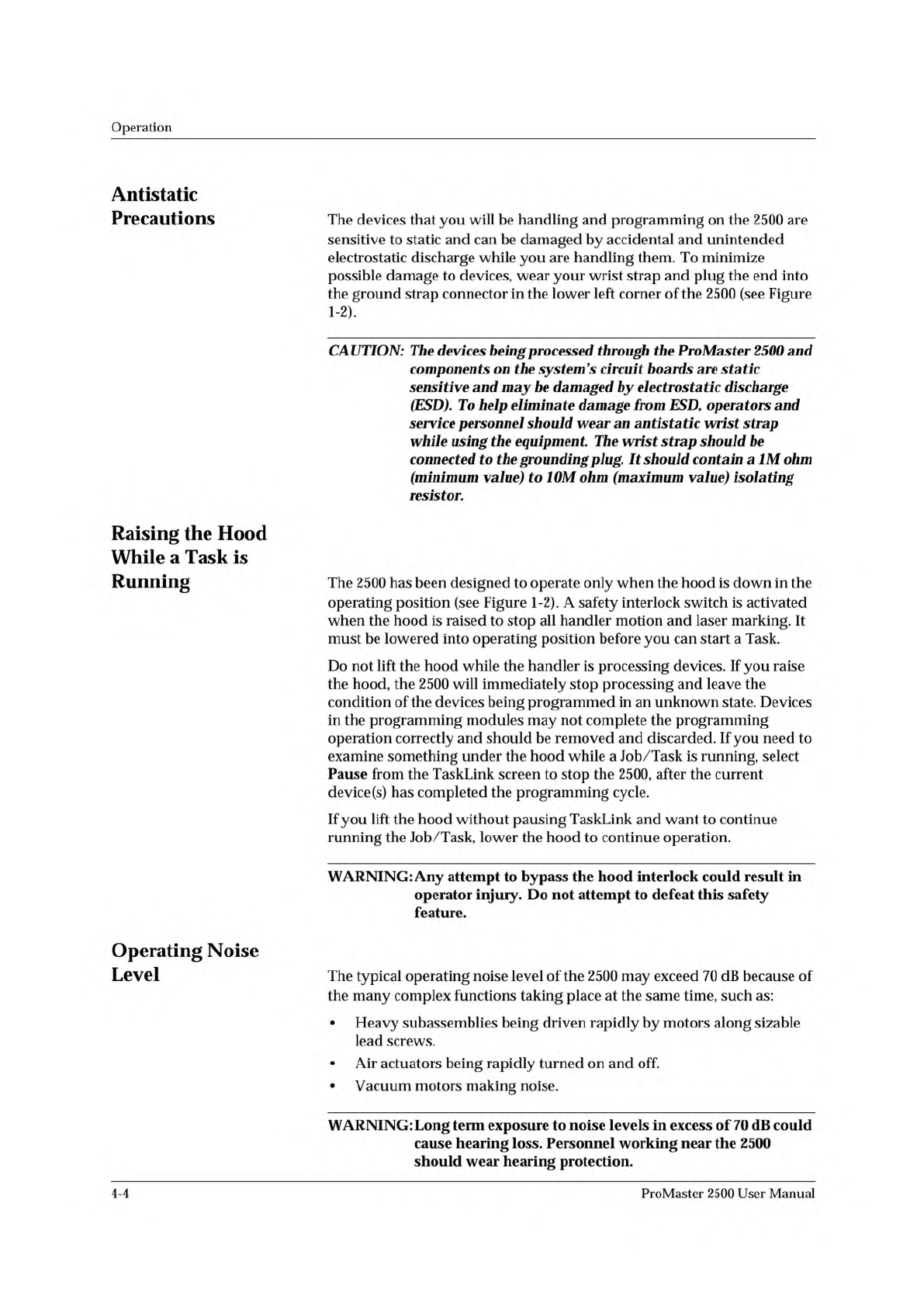

Operation
Antistatic
Precautions
The
devices
that
you
will
be
handling
and
programming
on
the
2500
are
sensitive
to
static
and
can
be
damaged
by
accidental
and
unintended
electrostatic
discharge
while
you
are
handling
them.
To
minimize
possible
damage
to
devices,
wear
your
wrist
strap
and
plug
the
end
into
the
ground
strap
connector
in
the
lower
left
corner
of
the
2500
(see
Figure
1-2).
CAUTION:
The
devices
being
processed
through
the
ProMaster
2500
and
components
on
Se
system's
circuit
boards
are
static
sensitive
and
may
be
damaged
“
electrostatic
discharge
(ESD).
To
help
eliminate
damage
from
ESD,
operators
and
service
personnel
should
wear
an
antistatic
wrist
strap
while
using
the
equipment.
The
wrist
strap
should
be
connected
to
the
grounding
plug.
It
should
contain
a
IM
ohm
(minimum
value)
to
10M
ohm
(maximum
value)
isolating
resistor.
Raising
the
Hood
While
a
Task
is
Running
The
2500
has
been
designed
to
operate
only
when
the
hood
is
down
in
the
operating
position
(see
Figure
1-2).
A
safety
interlock
switch
is
activated
when
the
hood
is
raised
to
stop
all
handler
motion
and
laser
marking.
It
must
be
lowered
into
operating
position
before
you
can
start
a
Task.
Do
not
lift
the
hood
while
the
handler
is
processing
devices.
If
you
raise
the
hood,
the
2500
will
immediately
stop
processing
and
leave
the
condition
of
the
devices
being
programmed
in
an
unknown
state.
Devices
in
the
programming
modules
may
not
complete
the
programming
operation
correctly
and
should
be
removed
and
discarded.
If
you
need
to
examine
something
under
the
hood
while
a
Job/Task
is
running,
select
Pause
from
the
TaskLink
screen
to
stop
the
2500,
after
the
current
device
(s)
has
completed
the
programming
cycle.
If
you
lift
the
hood
without
pausing
TaskLink
and
want
to
continue
running
the
Job/Task,
lower
the
hood
to
continue
operation.
WARNING:
Any
attempt
to
bypass
the
hood
interlock
could
result
in
operator
injury.
Do
not
attempt
to
defeat
this
safety
feature.
Operating
Noise
Level
The
typical
operating
noise
level
of
the
2500
may
exceed
70
dB
because
of
the
many
complex
functions
taking
place
at
the
same
time,
such
as:
•
Heavy
subassemblies
being
driven
rapidly
by
motors
along
sizable
lead
screws.
•
Air
actuators
being
rapidly
turned
on
and
off.
•
Vacuum
motors
making
noise.
WARNING:
Long
term
exposure
to
noise
levels
in
excess
of
70
dB
could
cause
hearing
loss.
Personnel
working
near
the
2500
should
wear
hearing
protection.
4-4
