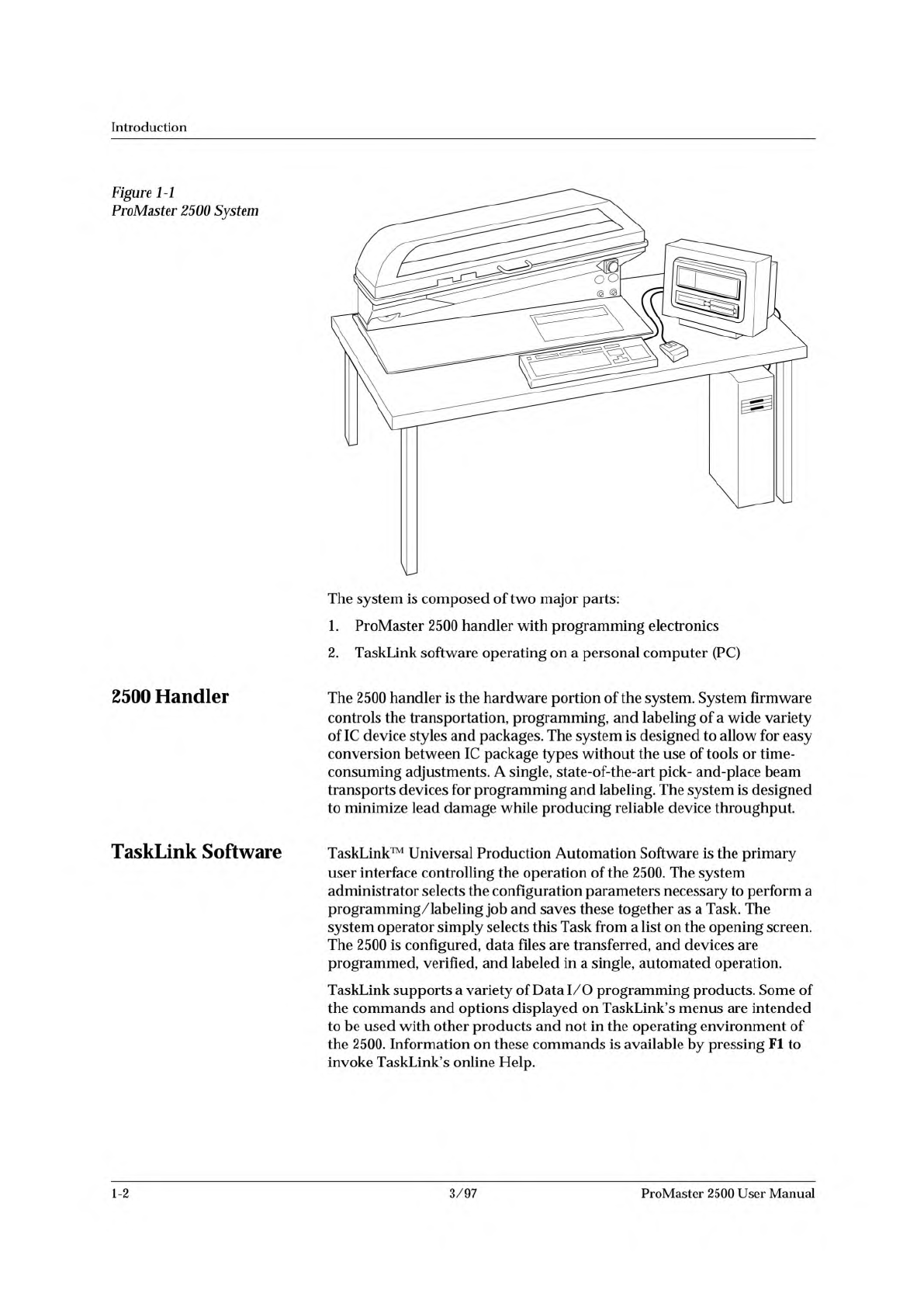

1825-2 Introduction Figure 1-1 ProMaster 2500 System The system is composed of two major parts: 1. ProMaster 2500 handler with programming electronics 2. TaskLink software operating on a personal computer (PC) 2500 Handl…
pmhelp@data-io.com

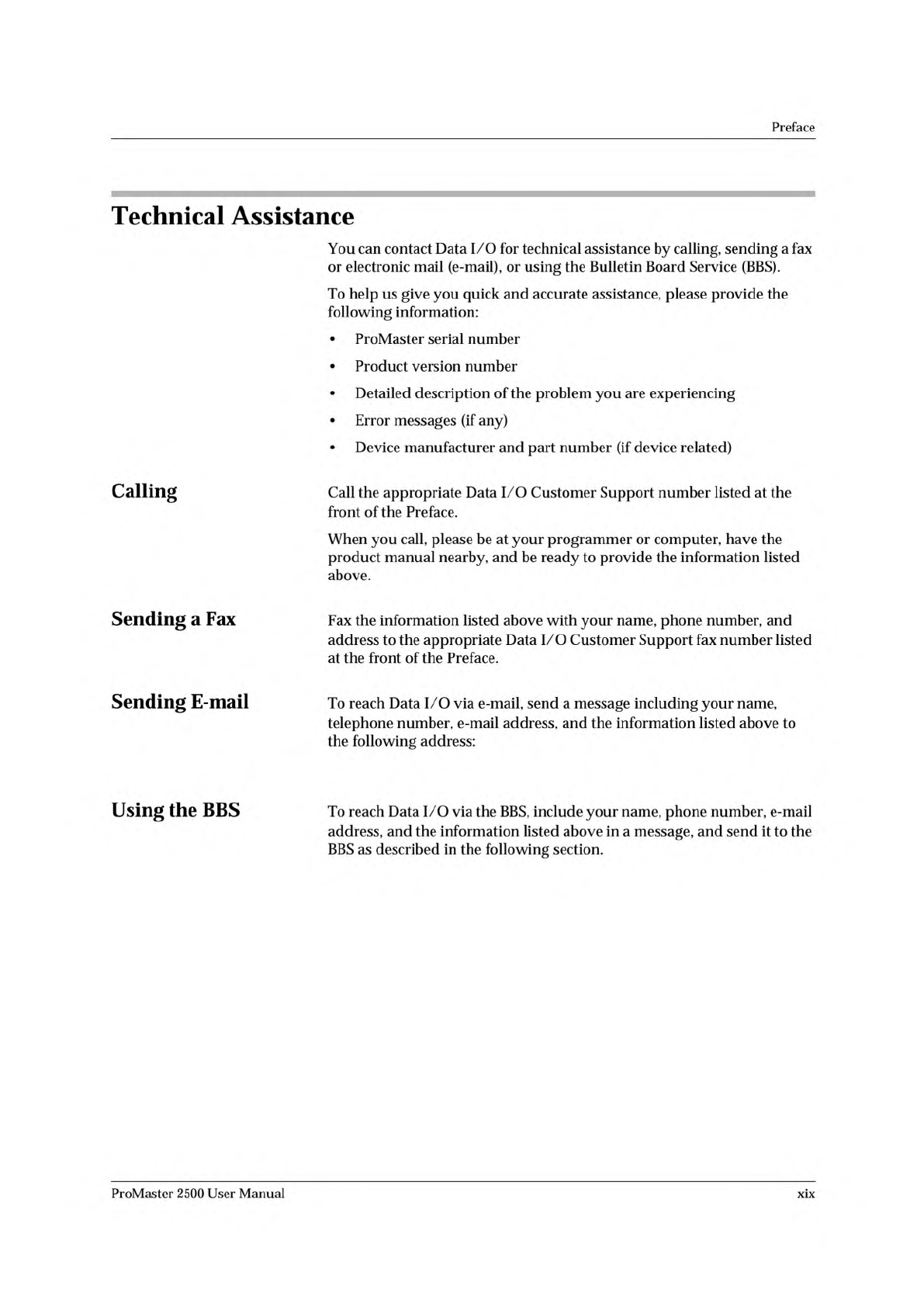

Preface
Technical
Assistance
You
can
contact
Data
I/O
for
technical
assistance
by
calling,
sending
a
fax
or
electronic
mail
(e-mail),
or
using
the
Bulletin
Board
Service
(BBS).
To
help
us
give
you
quick
and
accurate
assistance,
please
provide
the
following
information:
•
Pro
Master
serial
number
•
Product
version
number
•
Detailed
description
of
the
problem
you
are
experiencing
•
Error
messages
(if
any)
•
Device
manufacturer
and
part
number
(if
device
related)
Calling
Call
the
appropriate
Data
I/O
Customer
Support
number
listed
at
the
front
of
the
Preface.
When
you
call,
please
be
at
your
programmer
or
computer,
have
the
product
manual
nearby,
and
be
ready
to
provide
the
information
listed
above.
Sending
a
Fax
Fax
the
information
listed
above
with
your
name,
phone
number,
and
address
to
the
appropriate
Data
1/
0
Customer
Support
fax
number
listed
at
the
front
of
the
Preface.
Sending
E-mail
To
reach
Data
I/O
via
e-mail,
send
a
message
including
your
name,
telephone
number,
e-mail
address,
and
the
information
listed
above
to
the
following
address:
Using
the
BBS
To
reach
Data
I/O
via
the
BBS,
include
your
name,
phone
number,
e-mail
address,
and
the
information
listed
above
in
a
message,
and
send
it
to
the
BBS
as
described
in
the
following
section.
ProMaster
2500
User
Manual
xix
1825-2
Introduction
Figure
1-1
ProMaster
2500
System
The
system
is
composed
of
two
major
parts:
1.
ProMaster
2500
handler
with
programming
electronics
2.
TaskLink
software
operating
on
a
personal
computer
(PC)
2500
Handler
TaskLink
Software
The
2500
handler
is
the
hardware
portion
of
the
system.
System
firmware
controls
the
transportation,
programming,
and
labeling
of
a
wide
variety
of
IC
device
styles
and
packages.
The
system
is
designed
to
allow
for
easy
conversion
between
IC
package
types
without
the
use
of
tools
or
time¬
consuming
adjustments.
A
single,
state-of-the-art
pick-
and-place
beam
transports
devices
for
programming
and
labeling.
The
system
is
designed
to
minimize
lead
damage
while
producing
reliable
device
throughput.
TaskLink™
Universal
Production
Automation
Software
is
the
primary
user
interface
controlling
the
operation
of
the
2500.
The
system
administrator
selects
the
configuration
parameters
necessary
to
perform
a
programming/labeling
job
and
saves
these
together
as
a
Task.
The
system
operator
simply
selects
this
Task
from
a
list
on
the
opening
screen.
The
2500
is
configured,
data
files
are
transferred,
and
devices
are
programmed,
verified,
and
labeled
in
a
single,
automated
operation.
TaskLink
supports
a
variety
of
Data
I/O
programming
products.
Some
of
the
commands
and
options
displayed
on
TaskLink's
menus
are
intended
to
be
used
with
other
products
and
not
in
the
operating
environment
of
the
2500.
Information
on
these
commands
is
available
by
pressing
Fl
to
invoke
TaskLink's
online
Help.
1-2
3/97
ProMaster
2500
User
Manual
Preface
Warranty
Information
Data
I/O
Corporation
warrants
this
product
to
be
free
from
defects
in
material
and/or
workmanship
for
a
period
of
twelve
months
from
the
original
date
of
shipment
to
the
buyer.
The
warranty
does
not
include
normal
wear
or
replacement
components,
programming
sockets,
drive
belts,
rollers,
and
socket
contacts
that
contact
devices
being
processed.
This
warranty
shall
apply
only
if
the
product
fails
to
function
properly
under
the
normal
intended
use.
Should
this
product
fail
to
be
in
good
working
order
anytime
during
the
twelve-month
warranty
period,
Data
I/O
Corporation,
shall
at
its
sole
option,
repair
or
replace
this
product
at
no
additional
charge,
except
as
set
forth
below.
The
foregoing
is
the
sole
responsibility
of
Data
I/O
Corporation
under
this
warranty,
and
any
liability
for
incidental
or
consequential
damages
is
expressly
disclaimed.
Repair
parts
and
replacement
products
shall
be
on
an
exchange
basis
and
shall
be
either
new
or
reconditioned.
All
replaced
parts
and
products
shall
become
the
property
of
Data
I/O
Corporation.
Parts
will
be
delivered
to
buyer
for
repair
by
buyer
or,
at
buyer's
option,
the
product
may
be
returned
to
Data
1/
O
Corporation
for
repair.
Warranty
coverage
will
not
be
granted
if,
in
the
sole
opinion
of
Data
I/O
Corporation,
the
defect
or
malfunction
was
caused
by
accident,
abuse
or
misuse,
neglect,
improper
packing,
or
improper
or
unauthorized
modifications
or
service.
Problems
resulting
from
use
of
non-Data
I/O
labels,
ribbons,
and
other
components
will
invalidate
this
warranty
and
result
in
service
charges.
The
buyer
is
responsible
for
returning
the
product,
properly
packaged
in
its
original
container
or
equivalent,
to
a
Data
I/O
service
office.
Any
insurance
or
shipping
costs
incurred
in
presenting
or
sending
the
product
for
service
is
the
sole
responsibility
of
the
buyer.
This
warranty
is
in
lieu
of
any
other
warranty,
expressed
or
implied,
including
but
not
limited
to,
any
implied
warranty
of
merchantability
or
fitness
for
a
particular
purpose,
and
any
other
obligations
or
liability
on
the
part
of
Data
I/O
Corporation.
ProMaster
2500
User
Manual
xxi
