1 Introduction Product Description What Is the ProMaster 2500? The Data I/O ProMaster™ 2500 is an automated, integrated circuit (IC) handler/ programmer system. It transports, programs, tests, and labels devices and then…
1749-3
OUTPUT TUBES
AIR PRESSURE
GAUGE
AIR PRESSURE
ADJUSTMENT KNOB
DISK DRIVE
BASE
INPUT
TUBE
MAIN PLATE
GROUND WRIST
STRAP CONNECTOR
(on the side)
FRONT PANEL
E-STOP BUTTON
HOOD
Introduction
General
Features
This
section
describes
the
major
hardware
components
on
the
2500.
The
components
are
divided
into
three
broad
categories:
external
features,
features
under
the
hood,
and
internal
features.
Note:
Illustrations
加
this
manual
show
the
ProMaster
2500
with
an
E-stop
button,
hood
interlock
switch,
labeler
cover,
and
a
modified
hood
with
a
handle.
Handlers
with
the
dot
matrix
labeler
installed
do
not
have
these
additional
features.
External
Features
The
primary
external
features
of
the
ProMaster
2500
are
identified
in
Figure
1-2.

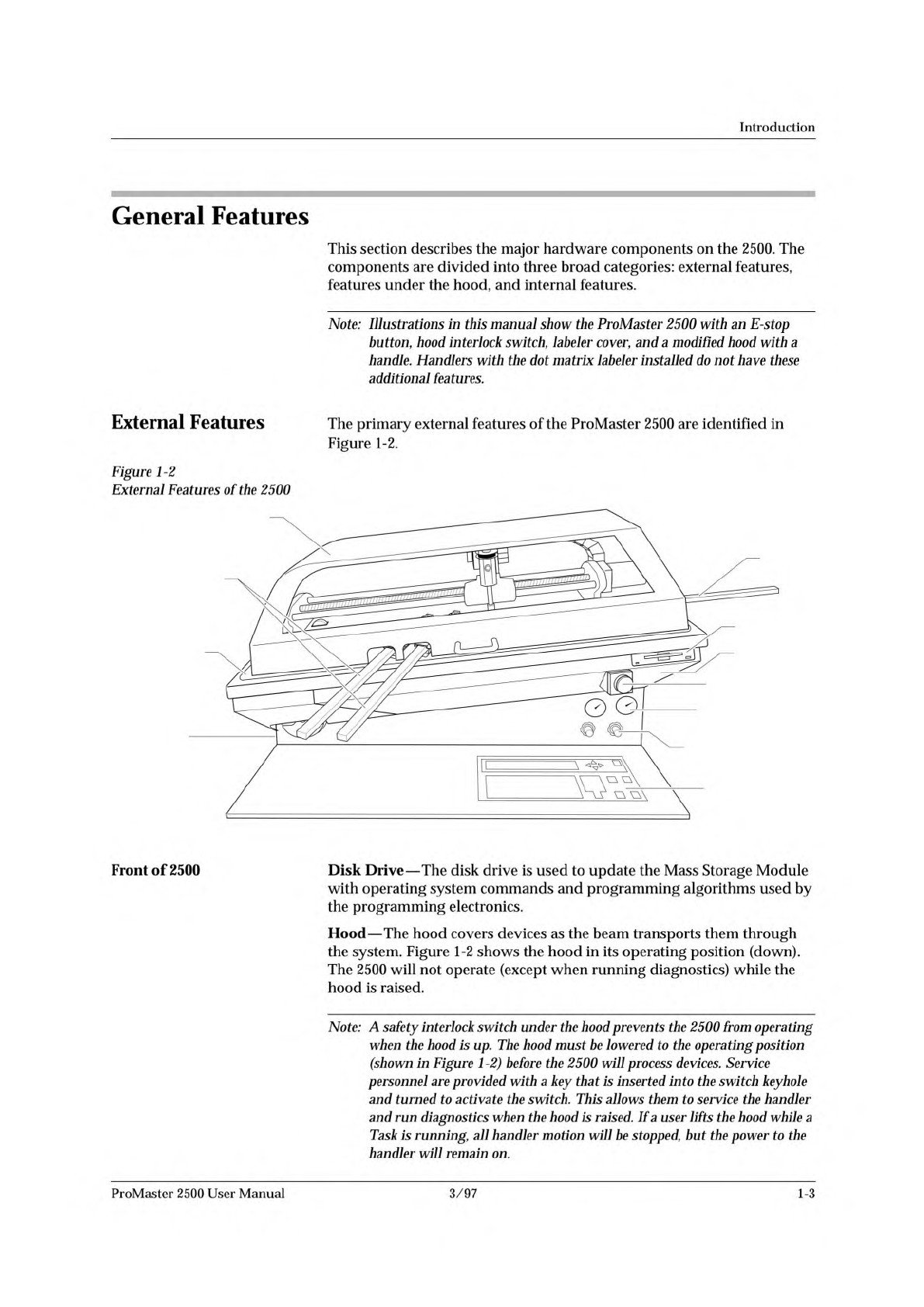

Figure
1-2
External
Features
of
the
2500
Front
of
2500
Disk
Drive
—
The
disk
drive
is
used
to
update
the
Mass
Storage
Module
with
operating
system
commands
and
programming
algorithms
used
by
the
programming
electronics.
Hood
—
The
hood
covers
devices
as
the
beam
transports
them
through
the
system.
Figure
1-2
shows
the
hood
in
its
operating
position
(down).
The
2500
will
not
operate
(except
when
running
diagnostics)
while
the
hood
is
raised.
Note:
A
safety
interlock
switch
under
the
hood
prevents
the
2500
from
operating
when
the
hood
is
up.
The
hood
must
be
lowered
to
the
operating
position
(shown
in
Figure
1-2)
before
the
2500
will
process
devices.
Service
personnel
are
provided
with
a
key
that
is
inserted
into
the
switch
keyhole
and
turned
to
activate
the
switch.
This
allows
them
to
service
the
handler
and
run
diagnostics
when
the
hood
is
raised.
If
a
user
lifts
the
hood
while
a
Task
is
running,
handler
motion
will
be
stopped,
but
the
power
to
the
handler
will
remain
on.
ProMaster
2500
User
Manual
3/97
1-3
1

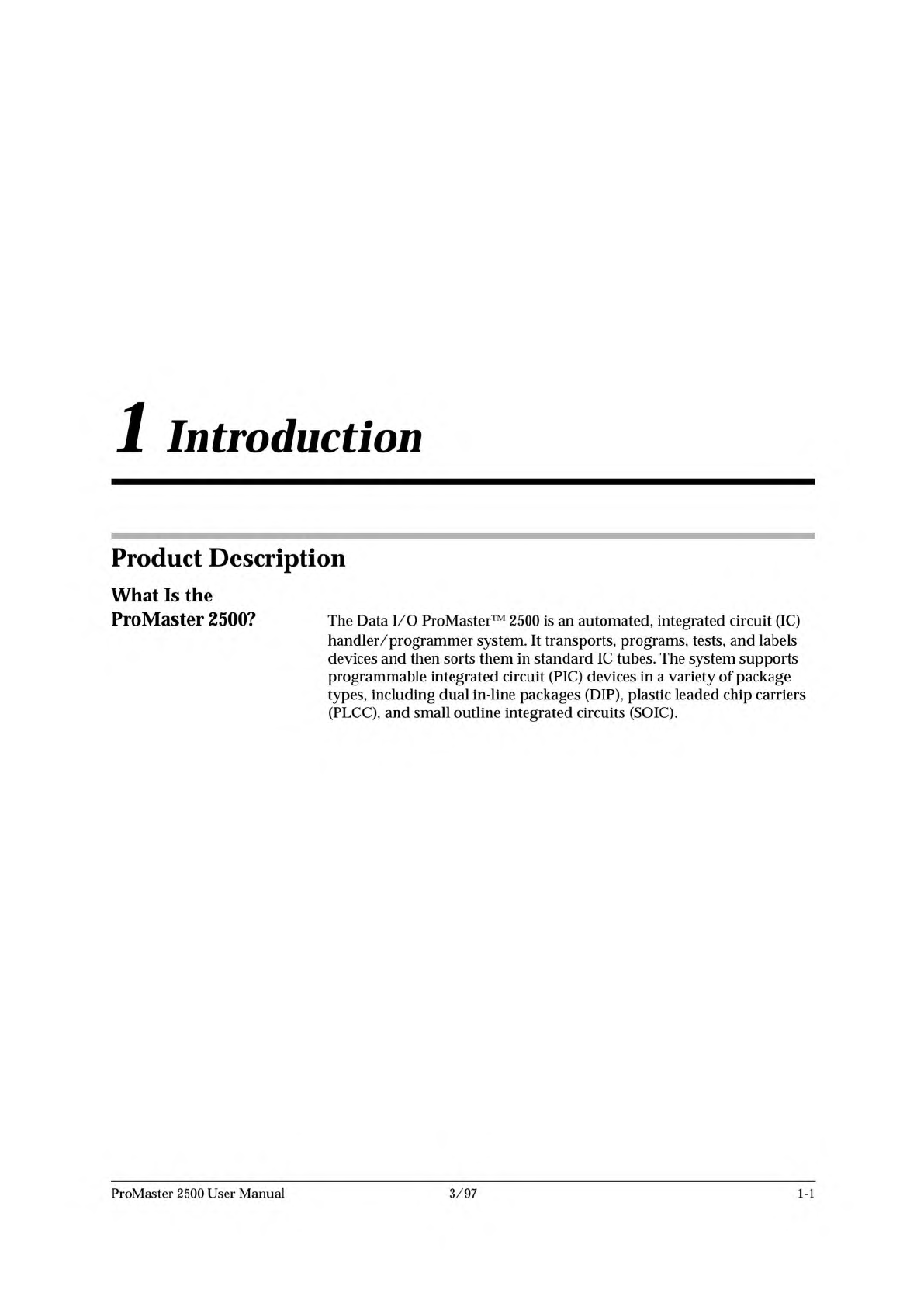

Introduction
Product
Description
What
Is
the
ProMaster
2500?
The
Data
I/O
ProMaster™
2500
is
an
automated,
integrated
circuit
(IC)
handler/
programmer
system.
It
transports,
programs,
tests,
and
labels
devices
and
then
sorts
them
in
standard
IC
tubes.
The
system
supports
programmable
integrated
circuit
(PIC)
devices
in
a
variety
of
package
types,
including
dual
in-line
packages
(DIP),
plastic
leaded
chip
carriers
(PLCC),
and
small
outline
integrated
circuits
(SOIC).
ProMaster
2500
User
Manual
3/97
1-1
1825-2
Introduction

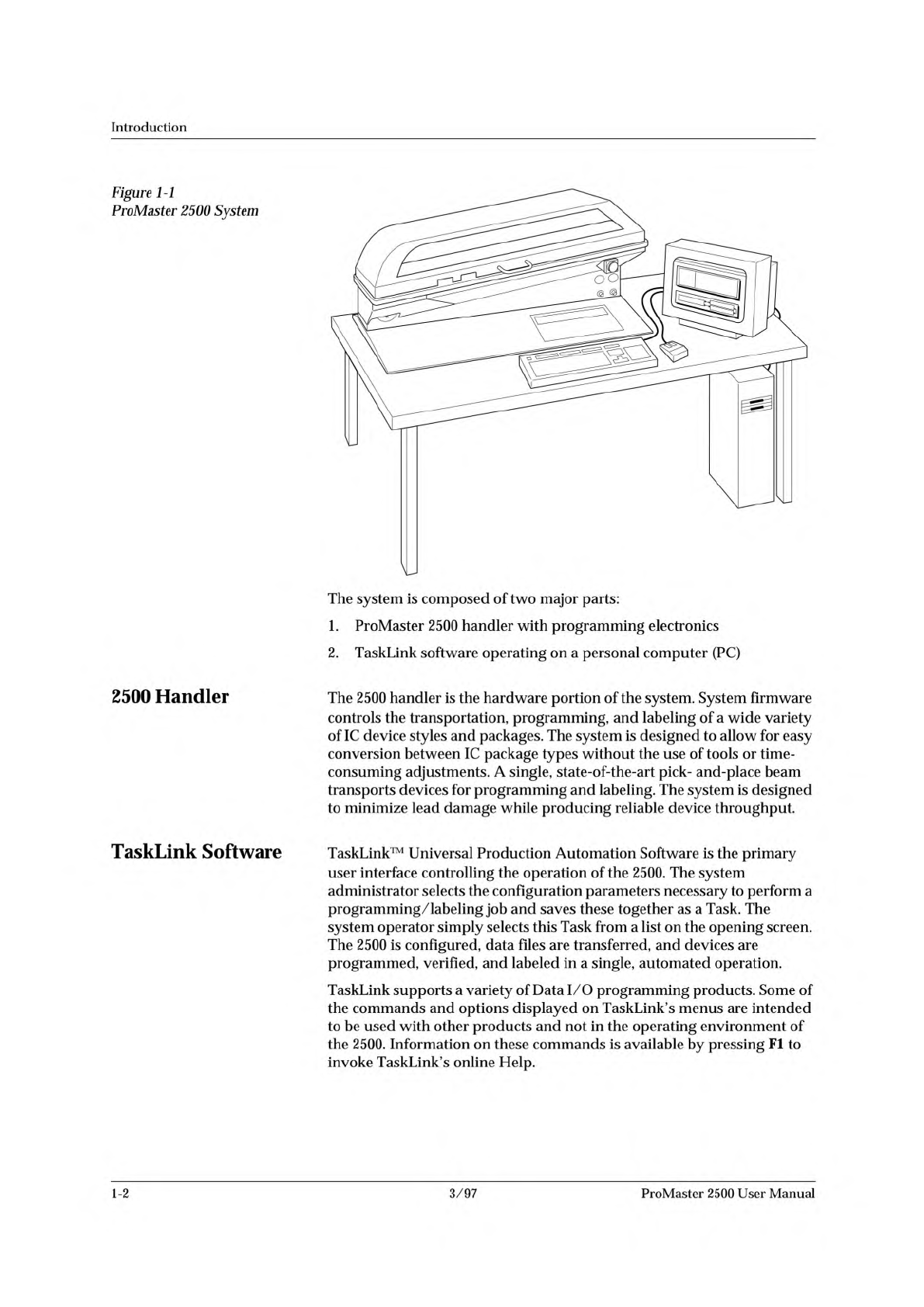

Figure
1-1
ProMaster
2500
System
The
system
is
composed
of
two
major
parts:
1.
ProMaster
2500
handler
with
programming
electronics
2.
TaskLink
software
operating
on
a
personal
computer
(PC)
2500
Handler
TaskLink
Software
The
2500
handler
is
the
hardware
portion
of
the
system.
System
firmware
controls
the
transportation,
programming,
and
labeling
of
a
wide
variety
of
IC
device
styles
and
packages.
The
system
is
designed
to
allow
for
easy
conversion
between
IC
package
types
without
the
use
of
tools
or
time¬
consuming
adjustments.
A
single,
state-of-the-art
pick-
and-place
beam
transports
devices
for
programming
and
labeling.
The
system
is
designed
to
minimize
lead
damage
while
producing
reliable
device
throughput.
TaskLink™
Universal
Production
Automation
Software
is
the
primary
user
interface
controlling
the
operation
of
the
2500.
The
system
administrator
selects
the
configuration
parameters
necessary
to
perform
a
programming/labeling
job
and
saves
these
together
as
a
Task.
The
system
operator
simply
selects
this
Task
from
a
list
on
the
opening
screen.
The
2500
is
configured,
data
files
are
transferred,
and
devices
are
programmed,
verified,
and
labeled
in
a
single,
automated
operation.
TaskLink
supports
a
variety
of
Data
I/O
programming
products.
Some
of
the
commands
and
options
displayed
on
TaskLink's
menus
are
intended
to
be
used
with
other
products
and
not
in
the
operating
environment
of
the
2500.
Information
on
these
commands
is
available
by
pressing
Fl
to
invoke
TaskLink's
online
Help.
1-2
3/97
ProMaster
2500
User
Manual
