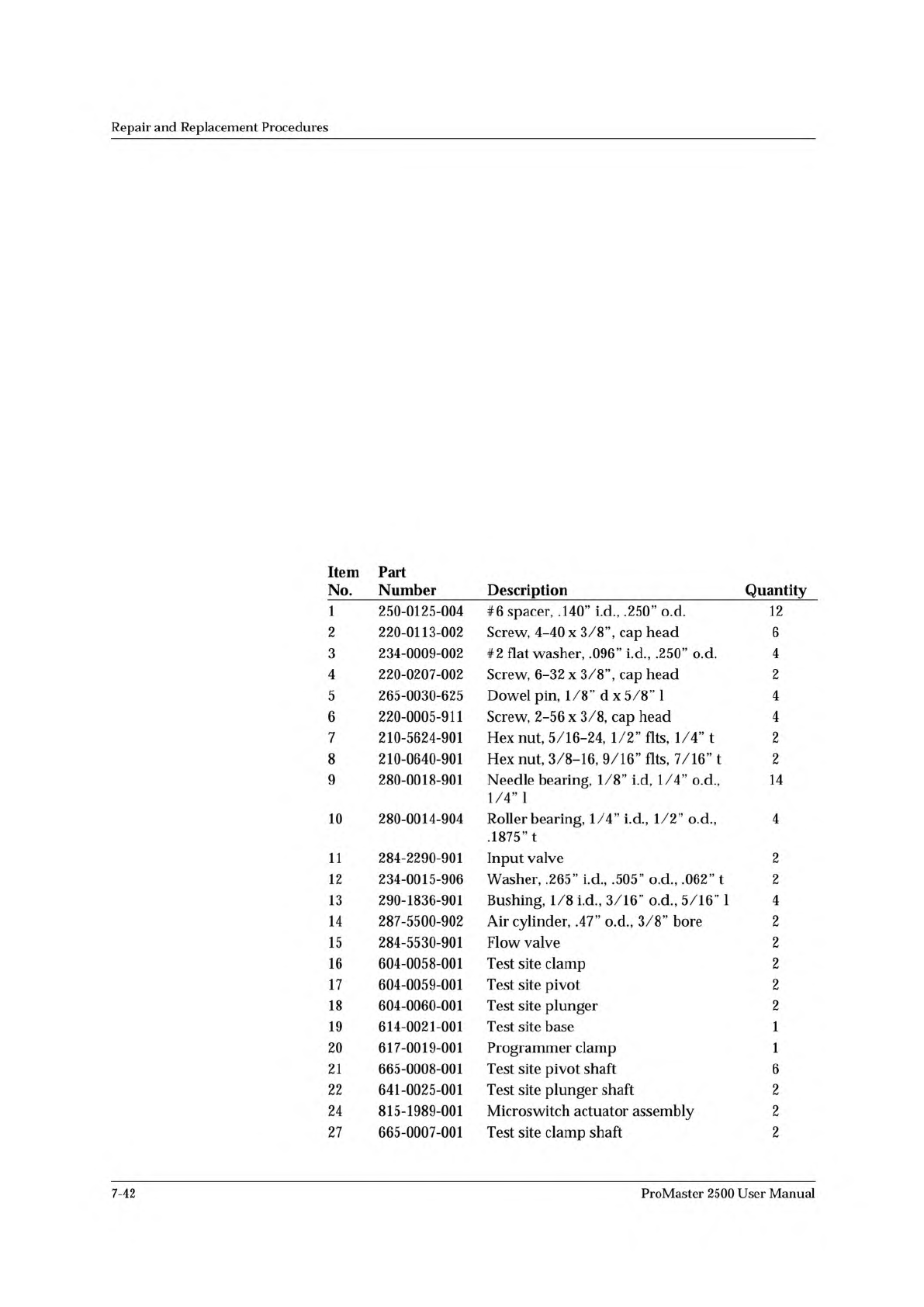

Repair and Replacement Procedures Figure 7-30 Carriage Assembly ProMaster 2500 User Manual 7-43
Repair
and
Replacement
Procedures
Item
No.
Part
Number
Description
Quantity
1
250-0125-004
#6
spacer,
.140”
i.d.,
.250”
o.d.
12
2
220-0113-002
Screw,
4-40
x
3/8”，
cap
head
6
3
234-0009-002
#2
flat
washer,
.096”
id,
.250”
o.d.
4
4
220-0207-002
Screw,
6-32
x
3/8”，
cap
head
2
5
265-0030-625
Dowel
pin,
1/8”
d
x
5/8T
4
6
220-0005-911
Screw,
2-56
x
3/8,
cap
head
4
7
210-5624-901
Hex
nut,
5/16-24,
1/2”
fits,
1/4"
t
2
8
210-0640-901
Hex
nut,
3/8-16,
9/16”
fits,
7/16”
t
2
9
280-0018-901
Needle
bearing,
1/8M
i.d,
1/4”
o.d.,
1/4”
1
14
10
280-0014-904
Roller
bearing,
l/4n
i.d.,
l/2n
o.d.,
.1875”
t
°
4
11
284-2290-901
Input
valve
2
12
234-0015-906
Washer,
.265”
id,
.505”
o.d.,
.062”
t
2
13
290-1836-901
Bushing,
1/8
id,
3/16”
o.d.,
5/16”
1
4
14
287-5500-902
Air
cylinder,
.47”
o.d.,
3/8”
bore
2
15
284-5530-901
Flow
valve
2
16
604-0058-001
Test
site
clamp
2
17
604-0059-001
Test
site
pivot
2
18
604-0060-001
Test
site
plunger
2
19
614-0021-001
Test
site
base
1
20
617-0019-001
Programmer
clamp
1
21
665-0008-001
Test
site
pivot
shaft
6
22
641-0025-001
Test
site
plunger
shaft
2
24
815-1989-001
Microswitch
actuator
assembly
2
27
665-0007-001
Test
site
clamp
shaft
2
7-42
ProMaster
2500
User
Manual
Repair
and
Replacement
Procedures
Figure
7-30
Carriage
Assembly
ProMaster
2500
User
Manual

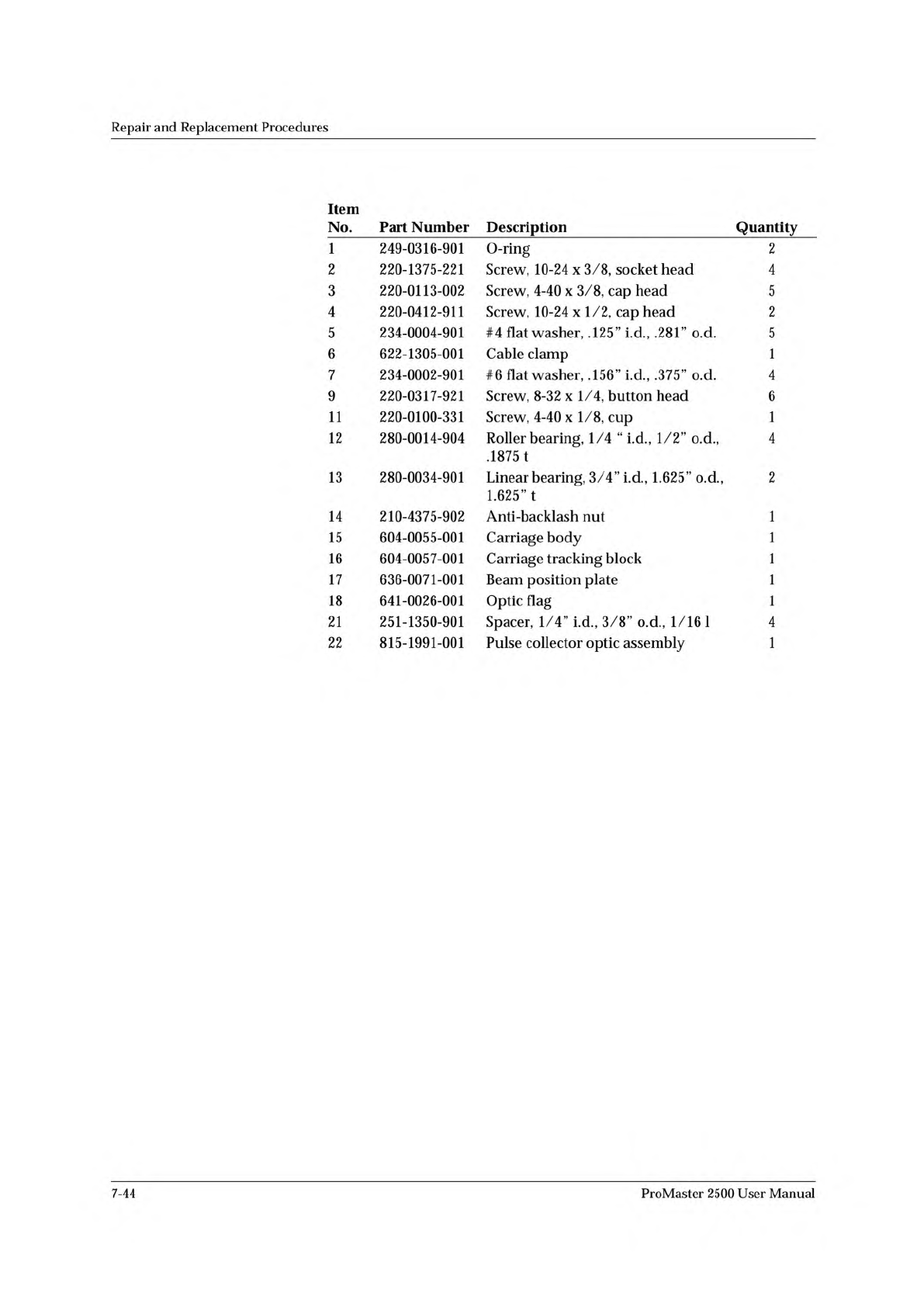

7-43
Repair
and
Replacement
Procedures
Item
No.
Part
Number
Description
Quantity
1
249-0316-901
O-ring
2
2
220-1375-221
Screw,
10-24
x
3/8,
socket
head
4
3
220-0113-002
Screw,
4-40
x
3/8,
cap
head
5
4
220-0412-911
Screw,
10-24
x
1/2,
cap
head
2
5
234-0004-901
#4
flat
washer,
.125”
i.d.,
.281”
o.d.
5
6
622-1305-001
Cable
clamp
1
7
234-0002-901
#6
flat
washer,
.156M
i.d.,
.375”
o.d.
4
9
220-0317-921
Screw,
8-32
x
1/4,
button
head
6
11
220-0100-331
Screw,
4-40
x
1/8,
cup
1
12
280-0014-904
Roller
bearing,
1/4
“
i.d.,
1/2”
o.d.,
4
.1875
t
13
280-0034-901
Linear
bearing,
3/4”
id,
1.625”
o.d.,
2
1.625”
t
14
210-4375-902
Anti-backlash
nut
1
15
604-0055-001
Carriage
body
1
16
604-0057-001
Carriage
tracking
block
1
17
636-0071-001
Beam
position
plate
1
18
641-0026-001
Optic
flag
1
21
251-1350-901
Spacer,
1/4”
id,
3/8”
o.d.,
1/16
1
4
22
815-1991-001
Pulse
collector
optic
assembly
1
7-44
ProMaster
2500
User
Manual
