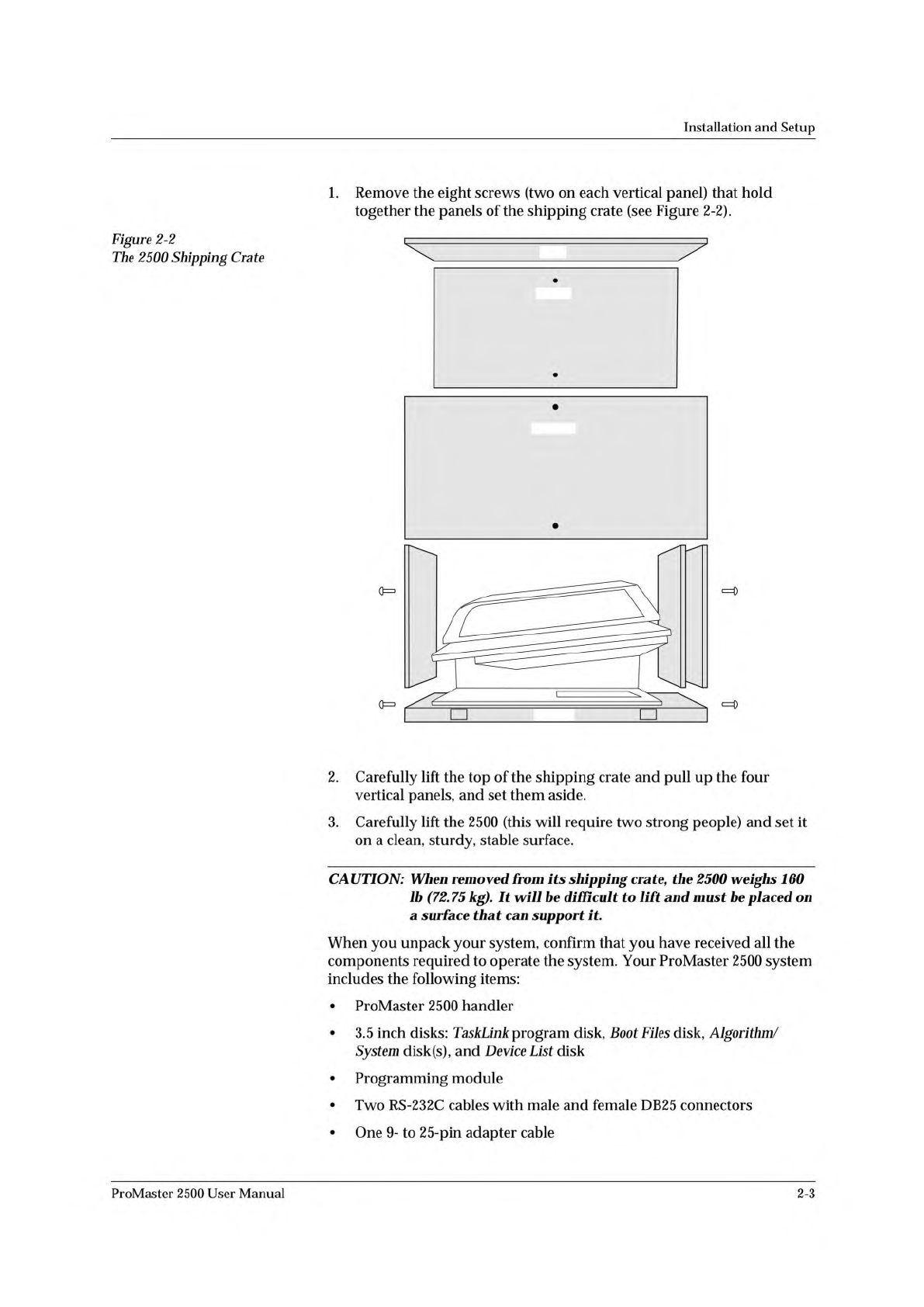

Installation
and
Setup
Figure
2-2
The
2500
Shipping
Crate
1.
Remove
the
eight
screws
(two
on
each
vertical
panel)
that
hold
together
the
panels
of
the
shipping
crate
(see
Figure
2-2).
2.
Carefully
lift
the
top
of
the
shipping
crate
and
pull
up
the
four
vertical
panels,
and
set
them
aside.
3.
Carefully
lift
the
2500
(this
will
require
two
strong
people)
and
set
it
on
a
clean,
sturdy,
stable
surface.
CAUTION:
When
removed
from
its
shipping
crate
f
the
2500
weighs
160
lb
(72.
75
kg).
It
be
difficult
to
lift
and
must
be
placed
on
a
surface
that
can
support
it.
When
you
unpack
your
system,
confirm
that
you
have
received
all
the
components
required
to
operate
the
system.
Your
ProMaster
2500
system
includes
the
following
items:
•
ProMaster
2500
handler
•
3.5
inch
disks:
TaskLink
program
disk,
Boot
Files
disk,
Algorithm/
System
disk(s),
and
Device
List
disk
•
Programming
module
•
Two
RS-
232c
cables
with
male
and
female
DB25
connectors
ProMaster
2500
User
Manual
•
One
9-
to
25-pin
adapter
cable
2-3
PROMASTER 2500
DISKS
POWER CORD
USER
MANUAL
1763-3
RS-232 CABLE (2)
P
r
o
M
a
s
t
e
r
2
5
0
0
TASKLINK
DISK
LABEL
ROLL
1/4" INPUT AIR LINE
(With 2 adapters)
PROGRAMMING
MODULE
9 - 25 PIN
CABLE
SPARES KIT
CHUCK SET

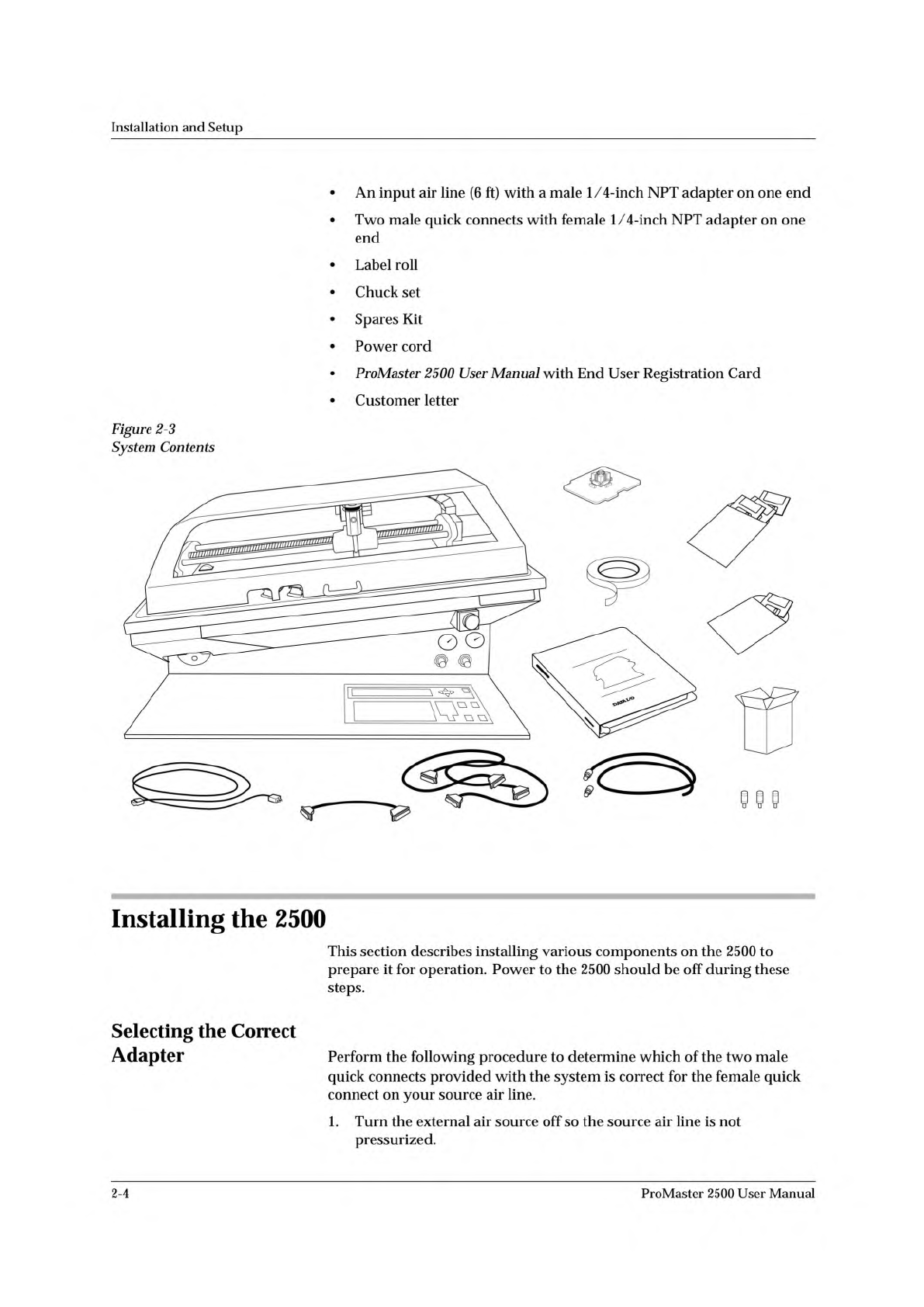

Installation
and
Setup
•
An
input
air
line
(6
ft)
with
a
male
1/4-inch
NPT
adapter
on
one
end
•
Two
male
quick
connects
with
female
1/
4-inch
NPT
adapter
on
one
end
•
Label
roll
•
Chuck
set
•
Spares
Kit
•
Power
cord
•
ProMaster
2500
User
Manual
with
End
User
Registration
Card
•
Customer
letter
Figure
2-3
System
Contents
Installing
the
2500
This
section
describes
installing
various
components
on
the
2500
to
prepare
it
for
operation.
Power
to
the
2500
should
be
off
during
these
steps.
Selecting
the
Correct
Adapter
Perform
the
following
procedure
to
determine
which
of
the
two
male
quick
connects
provided
with
the
system
is
correct
for
the
female
quick
connect
on
your
source
air
line.
1.
Turn
the
external
air
source
off
so
the
source
air
line
is
not
pressurized.
2-4
ProMaster
2500
User
Manual
MALE QUICK CONNECT
(With female 1/4 NPT)
FEMALE QUICK CONNECT
(Knurled Sleeve)
1957-1
FILTER/REGULATOR
Installation
and
Setup
2.
Pull
the
sliding
knurled
sleeve
back
and
insert
one
of
the
male
quick
connects.
3.
Release
the
knurled
sleeve
and
check
the
connection
to
ensure
that
it
is
locked
in
place
and
seated
correctly.
Only
one
of
the
two
male
quick
connects
will
seat
correctly
with
the
female
connector
you
have
on
your
source
air
line
(see
Figure
2-4).
4.
Remove
the
male
quick
connect
by
pulling
back
the
knurled
sleeve.
If
necessary,
repeat
this
process
with
the
other
male
connector
to
identify
the
appropriate
mating
piece.
Figure
2-4
Selecting
the
Correct
Quick
Connect
Connecting
the
Input
Air
Line
The
ProMaster
2500
needs
a
clean,
dry,
filtered,
oil-free
input
air
source.
Follow
these
steps
to
connect
your
external
air
source
to
the
2500.
CAUTION:
O",
excessive
moisture,
or
poorly
filtered
input
air
will
affect
the
performance
of
the
system
and
will
void
the
warranty
on
the
air
circuits.
1.
Insert
the
plastic
end
of
the
air
line
(the
end
without
the
1/4-inch
NPT
adapter)
through
the
2500's
air
input
collar
(see
Figure
2-5).
2.
Screw
the
appropriate
male
quick
connect
on
the
1/4-inch
NPT
adapter
on
the
input
air
line
that
is
supplied
with
the
system.
3.
Connect
the
source
air
line
to
the
2500
by
pulling
back
the
knurled
sleeve
and
inserting
the
male
quick
connect,
releasing
the
sleeve
at
the
same
time
as
the
male
end
is
fully
inserted.
4.
Turn
on
the
system
air
and
make
sure
that
your
external
regulator
is
set
to
80
PSI
(5.5
bar).
ProMaster
2500
User
Manual
2-5
