← ↑ → ↓ * * PROMASTER 2500 MAIN MENU * * ENTER THE NUMBER OF THE DES IRED FUNCTION 1 - OPERATIONS 3 - S YSTEM SETUP 2 - FILE UTILITIES 4 - D IAGNOSTICS * * * OPERATIONS MENU * * * 1 - PROGRAM/TEST & LABEL 4 - LABEL O…

100%1 / 448
* * PROMASTER 2500 MAIN MENU * *
ENTER THE NUMBER OF THE DESIRED FUNCTION
1 - OPERATIONS 3 - SYSTEM SETUP
2 - FILE UTILITIES 4 - DIAGNOSTIC
* * * SYSTEM SETUP MENU * * *
1 - GENERAL 4 - MAIN MENU
2 - LABELER
3 - HANDLER
* * * GENERAL SETUP MENU * * *
1 - AUDIBLE ALARM 4 - SETUP MENU
2 - REMOTE BAUD RATE
3 - PROGRAMMER BAUD RATE
ENTER NUMBER OF REMOTE BAUD RATE
DESIRED (X):
1 - 1200 2 - 2400 3 - 4800 4 - 9600
5 - 19200 6 - 38400
DO YOU WANT AUDIBLE ALARM OFF?
(Y OR N):

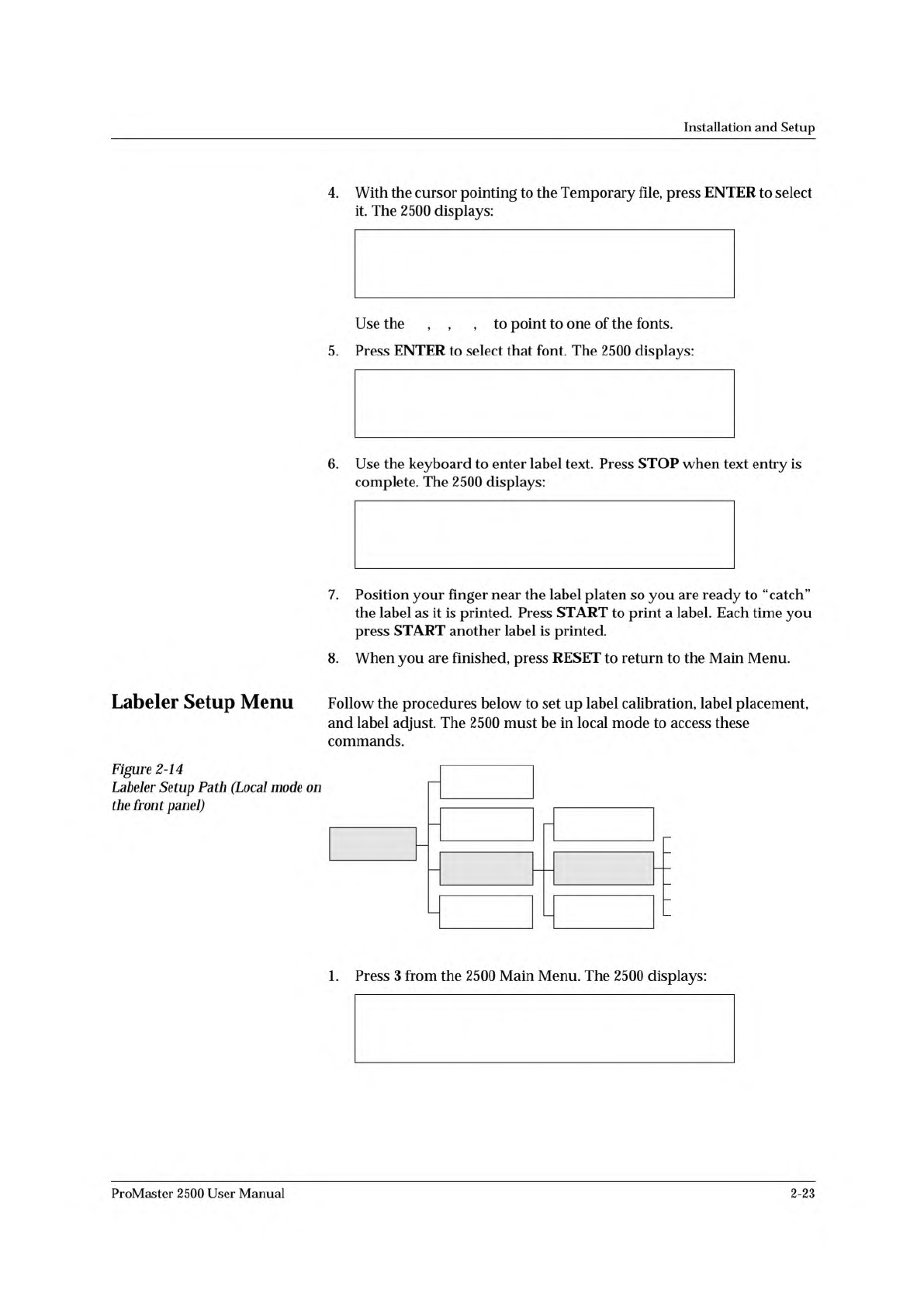

Installation
and
Setup
General
2500
Setup
Remote
and
Programmer
Port
Baud
Rates
Audible
Alarm
The
following
procedures
describe
changing
the
system's
serial
port
baud
rates
and
enabling
or
disabling
the
audible
alarm.
You
must
put
the
2500
in
local
mode
before
performing
these
steps.
Other
2500
front
panel
commands
are
described
in
Chapter
6
and
Appendix
F.
The
default
baud
rate
of
the
remote
and
programmer
ports
is
9600.
To
change
either
baud
rate
follow
the
procedure
below.
1.
From
the
2500
Main
Menu,
press
3
to
select
SYSTEM
SETUP.
The
2500
displays:
2.
Press
1
to
select
the
GENERAL
SETUP
MENU.
3.
Press
2
to
select
REMOTE
BAUD
RATE.
4.
Press
the
number
corresponding
to
the
baud
rate
you
want
to
use.
To
return
to
the
Main
Menu,
press
RESET.
If
the
AUDIBLE
ALARM
is
enabled,
a
tone
is
emitted
for
every
keystroke
and
error
message.
To
enable
or
disable
the
Audible
Alarm,
press
1
from
the
General
Setup
Menu.
If
the
alarm
is
currently
enabled,
the
2500
displays:
If
it
is
disabled,
ON
appears
instead
of
OFF.
Press
Y
if
you
want
to
toggle
to
the
other
state.
ProMaster
2500
User
Manual
2-21
← ↑ → ↓
* * PROMASTER 2500 MAIN MENU * *
ENTER THE NUMBER OF THE DESIRED FUNCTION
1 - OPERATIONS 3 - SYSTEM SETUP
2 - FILE UTILITIES 4 - DIAGNOSTICS
* * * OPERATIONS MENU * * *
1 - PROGRAM/TEST & LABEL 4 - LABEL ONLY
2 - LOAD MASTER 5 - PRINT ONLY
3 - PROGRAM/TEST ONLY 6 - PURGE
PRINT LABEL
TEMPORARY FILE1 FILE2 FILE3
FILE 4 FILE5 FILE6 FILE7
ENTER FILE NAME:
PRINT LABEL FILE NAME: FILE5
PRESS START TO PRINT
A LABEL
Installation
and
Setup
Adjusting
Print
Quality
and
Label
Position
This
section
describes
several
parameters
that
affect
the
appearance
of
characters
on
the
label.
Some
of
these
labeling
parameters
are
changed
by
entering
commands
on
the
2500's
front
panel
while
it
is
in
the
local
mode.
Others
parameters
are
accessible
in
the
middle
of
a
Task
after
you
press
STOP
on
the
2500's
keyboard
and
then
enter
a
specific
key
sequence.
STOP
commands
are
used
to
pause
a
Task
so
you
can
make
an
adjustment
and
then
continue
the
Task
from
the
same
place.
A
complete
list
of
all
the
STOP
commands
is
located
in
Appendix
B.
When
you
change
one
of
these
parameters,
it
is
often
useful
to
print
a
label
to
evaluate
the
new
setting.
Print
Only
Command
Using
the
Print
Only
command
is
an
efficient
method
of
checking
the
quality
and
position
of
text
on
a
label
by
printing
a
label
without
having
to
apply
it
to
a
device.
You
can
experiment
with
new
settings
for
the
print
parameters
and
thereby
create
the
label
style
you
will
use
when
running
your
Tasks.
To
use
this
feature
follow
the
steps
below.
1.
Press
1
from
the
Main
Menu
to
select
OPERATIONS.
The
2500
displays:
2.
Press
5
to
select
PRINT
ONLY.
The
2500
displays:
3.
Use
the
, , ,
and
keys
to
point
to
a
file.
If
you
select
the
Temporary
file,
continue
with
step
4.
If
you
point
to
any
of
the
other
files
listed
on
the
2500's
display,
press
ENTER
to
select
the
file.
The
2500
displays:
Proceed
to
step
7.
2-22
ProMaster
2500
User
Manual
← ↑ → ↓
PRINT LABEL TEMPORARY FILE
AUTO-SEL 26 CPI 26 CPI S 20 CPI
18 CPI 16 CPI T 12 CPI T
MOVE TO SELECTION THEN PRESS ENTER
TTTT | TEMPORARY FILE
HHHH | COLUMN: 01 ROW: 01
| PRESS STOP WHEN
| EDITING IS COMPLETE
PRINT LABEL FILE NAME: FILE5
PRESS START TO PRINT
A LABEL
* * * SYSTEM SETUP MENU * * *
1 - GENERAL 4 - MAIN MENU
2 - LABELER
3 - HANDLER
SYSTEM
SETUP
Label Calibration
Label Placement
Label Adjust
Print Mode
Label Type
Setup Menu
DIAGNOSTICS
MAIN MENU
HANDLER
GENERAL
FILE
UTILITIES
OPERATIONS
1343-4
LABELER
Installation
and
Setup
4.
With
the
cursor
pointing
to
the
Temporary
file,
press
ENTER
to
select
it.
The
2500
displays:
Use
the
, ,
,
to
point
to
one
of
the
fonts.
5.
Press
ENTER
to
select
that
font.
The
2500
displays:
6.
Use
the
keyboard
to
enter
label
text.
Press
STOP
when
text
entry
is
complete.
The
2500
displays:
7.
Position
your
finger
near
the
label
platen
so
you
are
ready
to
“catch”
the
label
as
it
is
printed.
Press
START
to
print
a
label.
Each
time
you
press
START
another
label
is
printed.
8.
When
you
are
finished,
press
RESET
to
return
to
the
Main
Menu.
Labeler
Setup
Menu
Follow
the
procedures
below
to
set
up
label
calibration,
label
placement,
and
label
adjust.
The
2500
must
be
in
local
mode
to
access
these
commands.
Figure
2-14
Labeler
Setup
Path
(Local
mode
on
the
front
panel)
1.
Press
3
from
the
2500
Main
Menu.
The
2500
displays:
ProMaster
2500
User
Manual
2-23
