ENTER THERMAL INTENSITY (X):
Installation
and
Setup
Adjusting
the
Print
Intensity
of
the
Thermal
Printer
You
can
change
the
factory
default
setting
for
print
intensity
by
using
the
STOP
command
while
the
2500
is
processing
devices.
Note:
The
print
head
uses
more
energy
when
the
intensity
value
is
increased.
The
life
expectancy
for
the
print
head
is
shorter
when
this
setting
is
set
to
a
high
value.
Select
a
print
intensity
value
that
produces
a
legible
label
while
not
creating
excessive
wear.
The
range
for
intensity
is
from
1
to
21.
The
darkest
character
is
printed
when
intensity
is
set
to
21.
Follow
the
procedure
below
to
change
the
current
thermal
intensity
value.
1.
Press
STOP.
The
2500
pauses
while
it
is
running
a
Task.
2.
Press
LOWER
CASE
+
I.
The
display
on
the
2500
prompts
you
to
enter
a
new
value.
3.
Press
and
to
enter
a
new
thermal
intensity
value
between
1
and
2
1
(as
described
above).
4.
Press
START
to
continue
running
the
Task.
Updating
the
2500
Three
different
updates
are
periodically
distributed
for
the
2500:
•
ProMaster
2500
Algorithm/System
Software
—
This
software
updates
the
programming
algorithms
and
the
programming
electronics
system
files.
It
is
installed
from
update
disks
inserted
in
the
2500's
disk
drive.
•
TaskLink
Software
—
This
update
to
TaskLink
is
inserted
in
the
PC's
floppy
disk
drive
and
installed
onto
the
hard
drive.
•
Firmware
—
This
is
an
EPROM
update
of
the
operating
system
firmware
on
the
2500
controller
board.
The
installation
procedures
for
the
Algorithm/System
and
TaskLink
software
updates
are
included
with
the
User
Notes
that
are
distributed
periodically.
The
firmware
update
installation
procedures
are
described
in
the
following
section
(see
Figures
2-20
and
C-2).
ProMaster
2500
User
Manual
2-29
Installation
and
Setup

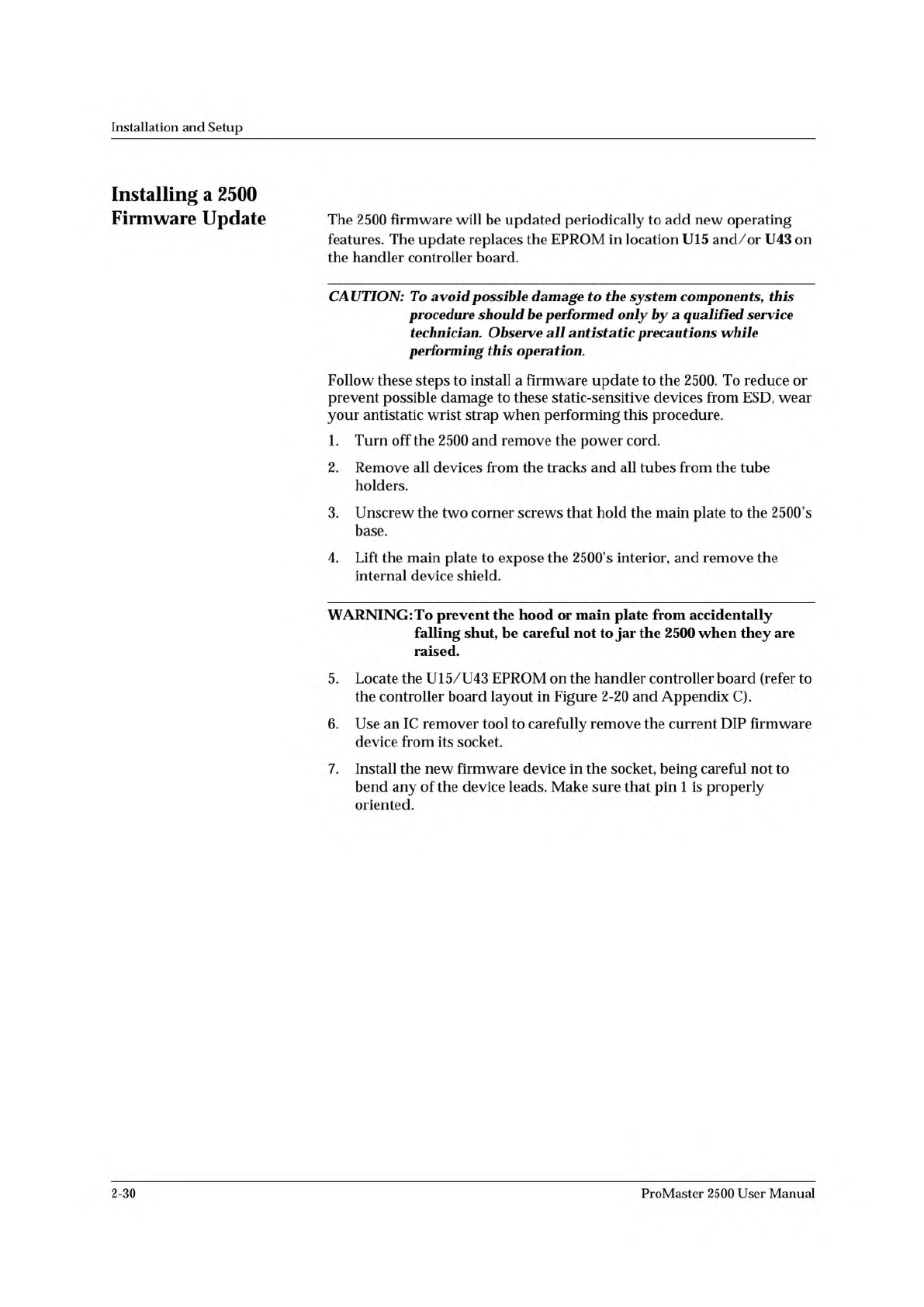

Installing
a
2500
Firmware
Update
The
2500
firmware
will
be
updated
periodically
to
add
new
operating
features.
The
update
replaces
the
EPROM
in
location
U15
and/or
U43
on
the
handler
controller
board.
CAUTION:
To
avoid
possible
damage
to
the
system
components,
this
procedure
should
be
performed
only
by
a
qualified
service
technician.
Observe
antistatic
precautions
while
performing
this
operation.
Follow
these
steps
to
install
a
firmware
update
to
the
2500.
To
reduce
or
prevent
possible
damage
to
these
static-sensitive
devices
from
ESD,
wear
your
antistatic
wrist
strap
when
performing
this
procedure.
1.
Turn
off
the
2500
and
remove
the
power
cord.
2.
Remove
all
devices
from
the
tracks
and
all
tubes
from
the
tube
holders.
3.
Unscrew
the
two
corner
screws
that
hold
the
main
plate
to
the
2500's
base.
4.
Lift
the
main
plate
to
expose
the
2500's
interior,
and
remove
the
internal
device
shield.
WARNING:
To
prevent
the
hood
or
main
plate
from
accidentally
falling
shut,
be
careful
not
to
jar
the
2500
when
they
are
raised.
5.
Locate
the
U15/U43
EPROM
on
the
handler
controller
board
(refer
to
the
controller
board
layout
in
Figure
2-20
and
Appendix
C).
6.
Use
an
IC
remover
tool
to
carefully
remove
the
current
DIP
firmware
device
from
its
socket.
7.
Install
the
new
firmware
device
in
the
socket,
being
careful
not
to
bend
any
of
the
device
leads.
Make
sure
that
pin
1
is
properly
oriented.
2-30
ProMaster
2500
User
Manual
↵
OPTIC TEST - ADC = 200 - VAC = 23
11100000001111101111111100 ENC = 13107
| | | | | U15 REV 1.00
5 10 15 20 25 U43 REV 1.00
1955-2
+5V
-12V
+12V
+36V
+90V
CR111
CR75
CR99
CR51
CR87
CR63
CR112
CR76
CR100
CR52
CR88
CR64
CR113
CR77
CR101
CR53
CR89
CR65
CR114
CR78
CR102
CR54
CR90
CR66
+24V
S8
S7
S5
S6
S2
S3
S1
S4
U15
EPROM
U43
EPROM
Installation
and
Setup
Figure
2-20
Location
of
Firmware
EPROMs
on
the
Main
Controller
Board
Updating
the
Package
Types
in
TaskLink
8.
Install
the
device
shield,
lower
the
main
plate,
and
then
tighten
the
corner
screws.
9.
Plug
in
the
power
cord
and
turn
on
the
2500.
10.
Check
the
new
firmware
version
by
going
to
the
Optics
diagnostic
test
(see
page
5-32).
The
front
panel
displays
the
new
firmware
version
as
U15
REV
XXX
and
U43
REV
YYY.
Note:
You
must
perform
the
ProMaster
Package
Update
in
TaskLink
after
installing
new
firmware
in
the
2500.
The
new
2500
firmware
may
have
added
a
new
package
type
not
supported
on
the
old
version.
Complete
the
following
steps
to
update
TaskLink
with
the
new
package
type
so
that
it
will
appear
as
an
option
on
the
TaskLink
screens.
1.
From
the
TaskLink
main
screen,
select
the
Utilities
option.
2.
From
the
Utilities
pull-down
menu,
select
ProMaster
Package
Update.
3.
Press
to
begin
the
update.
ProMaster
2500
User
Manual
2-31
