↵ ↵ Tasks and Kits Introduction to Kits Kits are Tasks that have been daisy-chained together so several can be run as one large job. The most common use for Kits is to string together the separate Tasks used to program a…
Tasks
and
Kits
Set
Preferences...
Figure
3-21
Configuring
Operating
Preferences
This
set
of
check
boxes
allows
you
to
configure
some
of
TaskLink
s
optional
system
prompts
and
operating
preferences.
Press
Fl
to
invoke
TaskLink
s
online
Help
for
more
information
on
the
choices
presented.
Programer
Type.
.
.
Set
Preferences
<
Cancel
>
<
OK
>
Systen
St
Data
S
PROMPT
FOR
PASS
LIMIT
AT
START
OF
SESSION
Shou
Statistics
at
End
of
Session
Pop-Up
SuMcheck
Uindou
After
Transf
er/Load
Operation
Beep
After
Completion
of
Device
Operations
Sound
On
Display
Fanil
y/P
in
out
Code
with
Device
Name
Provide
Help
Uhen
Right
Mouse
Button
Pressed
Discard
Serial
Number
on
Device
Failure
Uerif
y
RAM
SuMcheck
for
Each
Device
Give
Option
to
Purge
ProMaster
After
Processing
Enable
PrograMMer
Disk
Options
EX：
EX：
EX：
LXJ
E
]
[ ]
EX：
[ ]
L
J
j
覆
Press
Space
to
toggle
(
X
=
ON)
:
Tab
f
or
next
iten
I
TaskLink
Copyright
1995
Data
I/O
Corp.
II
Setup
Data
Progran
Tasks
Utilities
0
P
t
i
o
n
w
Help
Two
of
the
options
that
are
particularly
useful
with
the
ProMaster
2500
are
described
in
the
following
sections.
Purge
ProMaster
After
Processing
This
option
directs
the
2500
to
remove
all
devices
from
the
track
sections,
moving
them
to
an
output
tube.
The
operator
does
not
have
to
manually
remove
devices
from
the
tracks
and
load
them,
observing
correct
polarity,
into
tubes.
TaskLink
displays
a
purge
dialog
box
when:
•
Devices
are
in
the
track
at
the
end
of
a
Task
or
programming
session.
•
A
Task
has
been
terminated
by
the
operator.
•
The
next
Task
in
a
Kit
uses
a
different
device
type.
The
Purge...
dialog
box
prompts
the
operator
to
choose
<OK>
to
start
purging
parts
from
the
system.
If
<
CANCEL
>
is
selected,
any
parts
in
the
tracks
must
be
removed
by
the
operator.
Remove
the
input
tube
if
it
has
any
devices
and
make
sure
that
at
least
one
empty
output
tube
is
installed
before
selecting
<OK>.
TaskLink
will
send
all
devices
detected
in
the
input
track
through
the
2500
before
it
completes
the
purge
operation.
Enable
Programmer
Disk
TaskLink
(VI.
4
or
higher)
will
create
and
load
your
data
files
on
either
the
2500,s
floppy
drive
or
the
MSM.
To
see
the
new
commands
displayed
on
the
TaskLink
menus,
you
must
select
the
Enable
Programmer
Disk
Options
from
the
Set
Preferences
dialog
box.
3-32
ProMaster
2500
User
Manual
↵
↵
Tasks
and
Kits

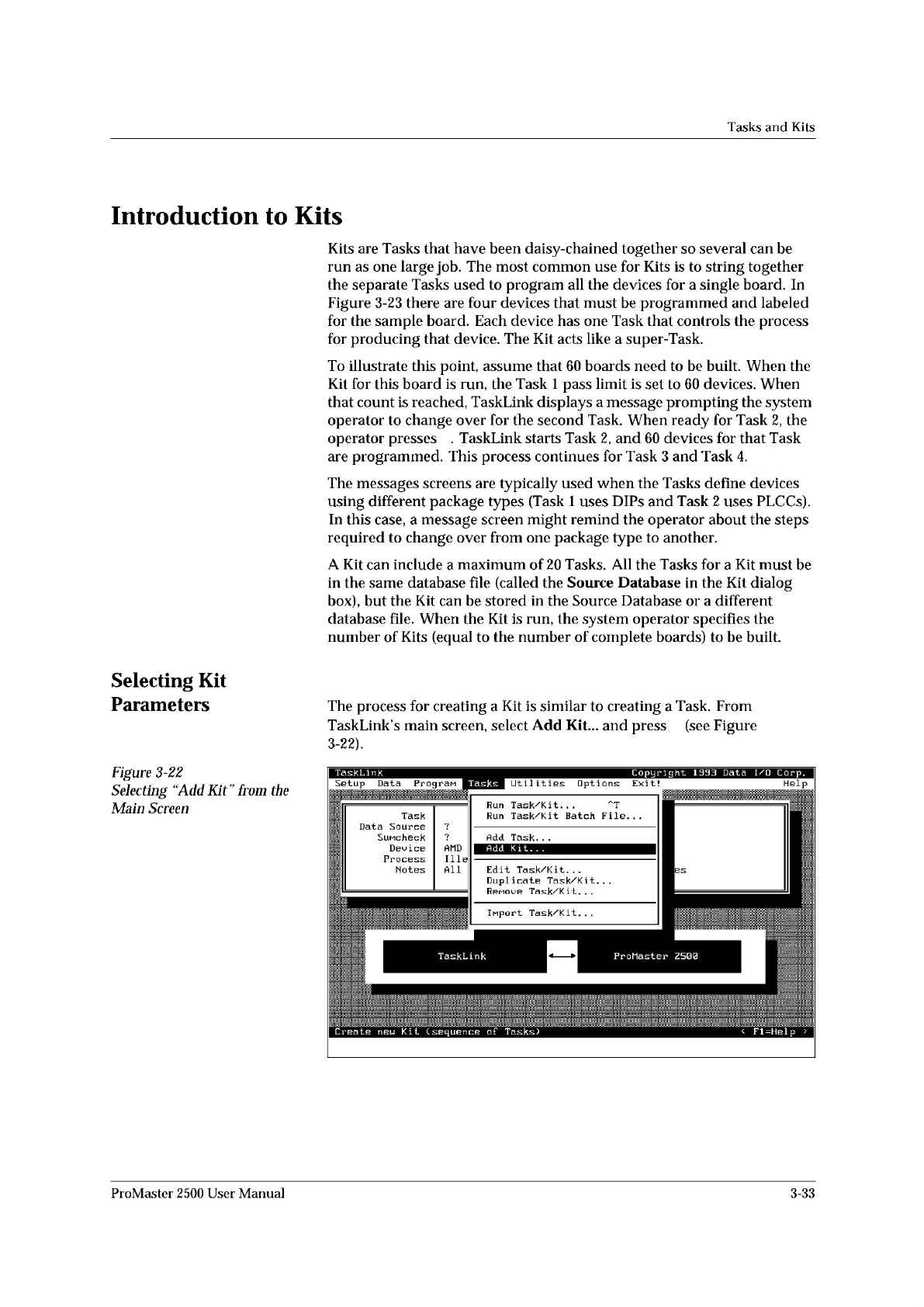

Introduction
to
Kits
Kits
are
Tasks
that
have
been
daisy-chained
together
so
several
can
be
run
as
one
large
job.
The
most
common
use
for
Kits
is
to
string
together
the
separate
Tasks
used
to
program
all
the
devices
for
a
single
board.
In
Figure
3-23
there
are
four
devices
that
must
be
programmed
and
labeled
for
the
sample
board.
Each
device
has
one
Task
that
controls
the
process
for
producing
that
device.
The
Kit
acts
like
a
super-Task.
To
illustrate
this
point,
assume
that
60
boards
need
to
be
built.
When
the
Kit
fbr
this
board
is
run,
the
Task
1
pass
limit
is
set
to
60
devices.
When
that
count
is
reached,
TaskLink
displays
a
message
prompting
the
system
operator
to
change
over
for
the
second
Task.
When
ready
for
Task
2,
the
operator
presses
.
TaskLink
starts
Task
2,
and
60
devices
for
that
Task
are
programmed.
This
process
continues
for
Task
3
and
Task
4.
The
messages
screens
are
typically
used
when
the
Tasks
define
devices
using
different
package
types
(Task
1
uses
DIPs
and
Task
2
uses
PLCCs).
In
this
case,
a
message
screen
might
remind
the
operator
about
the
steps
required
to
change
over
from
one
package
type
to
another.
A
Kit
can
include
a
maximum
of
20
Tasks.
All
the
Tasks
for
a
Kit
must
be
in
the
same
database
file
(called
the
Source
Database
in
the
Kit
dialog
box),
but
the
Kit
can
be
stored
in
the
Source
Database
or
a
different
database
file.
When
the
Kit
is
run,
the
system
operator
specifies
the
number
of
Kits
(equal
to
the
number
of
complete
boards)
to
be
built.
Selecting
Kit
Parameters
The
process
for
creating
a
Kit
is
similar
to
creating
a
Task.
From
TaskLink
s
main
screen,
select
Add
Kit...
and
press
(see
Figure
3-22).
Figure
3-22
Selecting
“Add
Kit”
from
t
加
Main
Screen
ProMaster
2500
User
Manual
3-33
Tasks
and
Kits
Figure

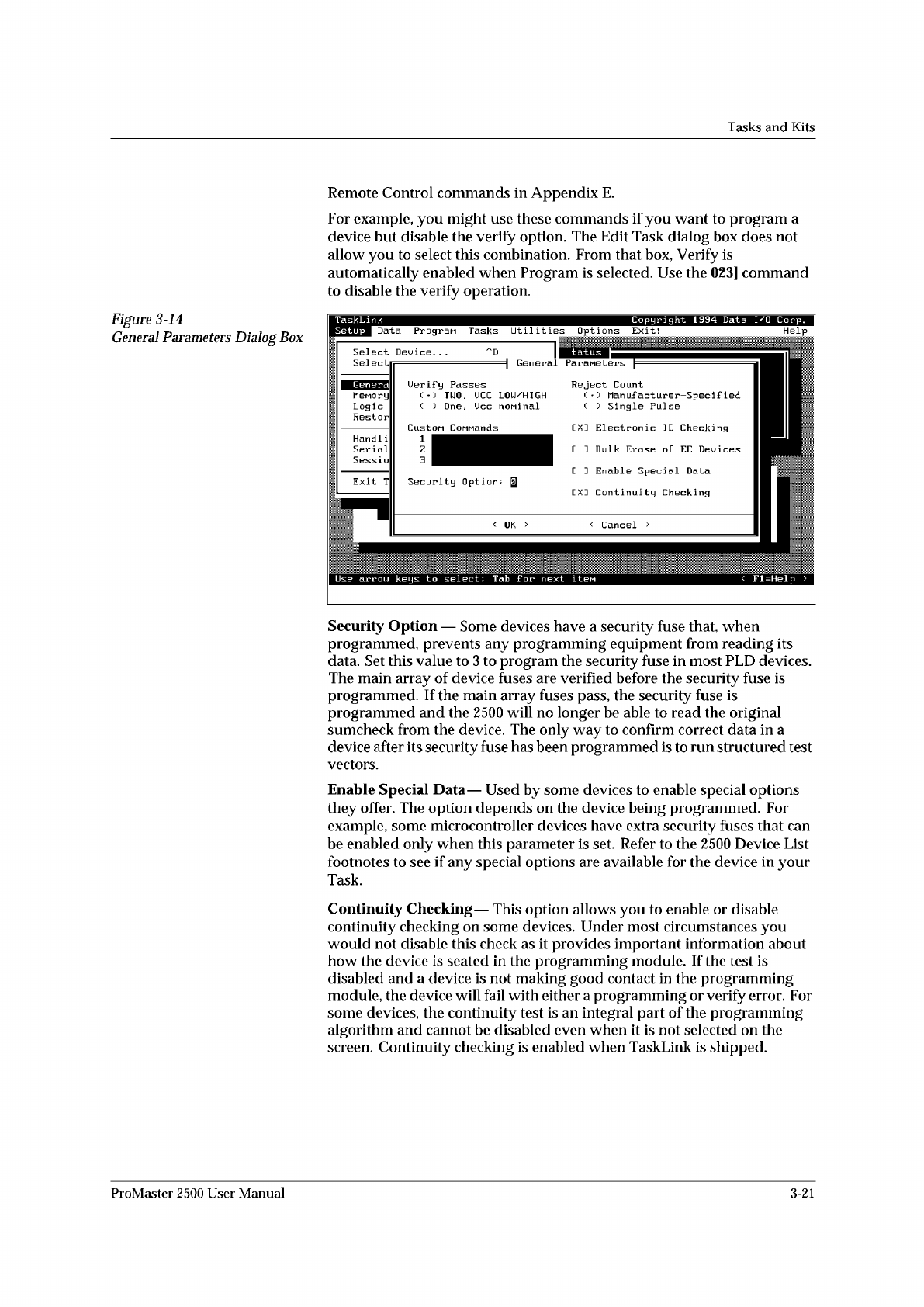

3-14
General
Parameters
Dialog
Box
Remote
Control
commands
in
Appendix
E.
For
example,
you
might
use
these
commands
if
you
want
to
program
a
device
but
disable
the
verify
option.
The
Edit
Task
dialog
box
does
not
allow
you
to
select
this
combination.
From
that
box,
Verify
is
automatically
enabled
when
Program
is
selected.
Use
the
023]
command
to
disable
the
verify
operation.
Security
Option
—
Some
devices
have
a
security
fuse
that,
when
programmed,
prevents
any
programming
equipment
from
reading
its
data.
Set
this
value
to
3
to
program
the
security
fuse
in
most
PLD
devices.
The
main
array
of
device
fuses
are
verified
before
the
security
fuse
is
programmed.
If
the
main
array
fuses
pass,
the
security
fuse
is
programmed
and
the
2500
will
no
longer
be
able
to
read
the
original
sumcheck
from
the
device.
The
only
way
to
confirm
correct
data
in
a
device
after
its
security
fuse
has
been
programmed
is
to
run
structured
test
vectors.
Enable
Special
Data
—
Used
by
some
devices
to
enable
special
options
they
offer.
The
option
depends
on
the
device
being
programmed.
For
example,
some
microcontroller
devices
have
extra
security
fuses
that
can
be
enabled
only
when
this
parameter
is
set.
Refer
to
the
2500
Device
List
footnotes
to
see
if
any
special
options
are
available
for
the
device
in
your
Task.
Continuity
Checking
—
This
option
allows
you
to
enable
or
disable
continuity
checking
on
some
devices.
Under
most
circumstances
you
would
not
disable
this
check
as
it
provides
important
information
about
how
the
device
is
seated
in
the
programming
module.
If
the
test
is
disabled
and
a
device
is
not
making
good
contact
in
the
programming
module,
the
device
will
fail
with
either
a
programming
or
verify
error.
For
some
devices,
the
continuity
test
is
an
integral
part
of
the
programming
algorithm
and
cannot
be
disabled
even
when
it
is
not
selected
on
the
screen.
Continuity
checking
is
enabled
when
TaskLink
is
shipped.
ProMaster
2500
User
Manual
3-21
