1.7 Assembly
1.7.1 Removing the old empty tape guide channel

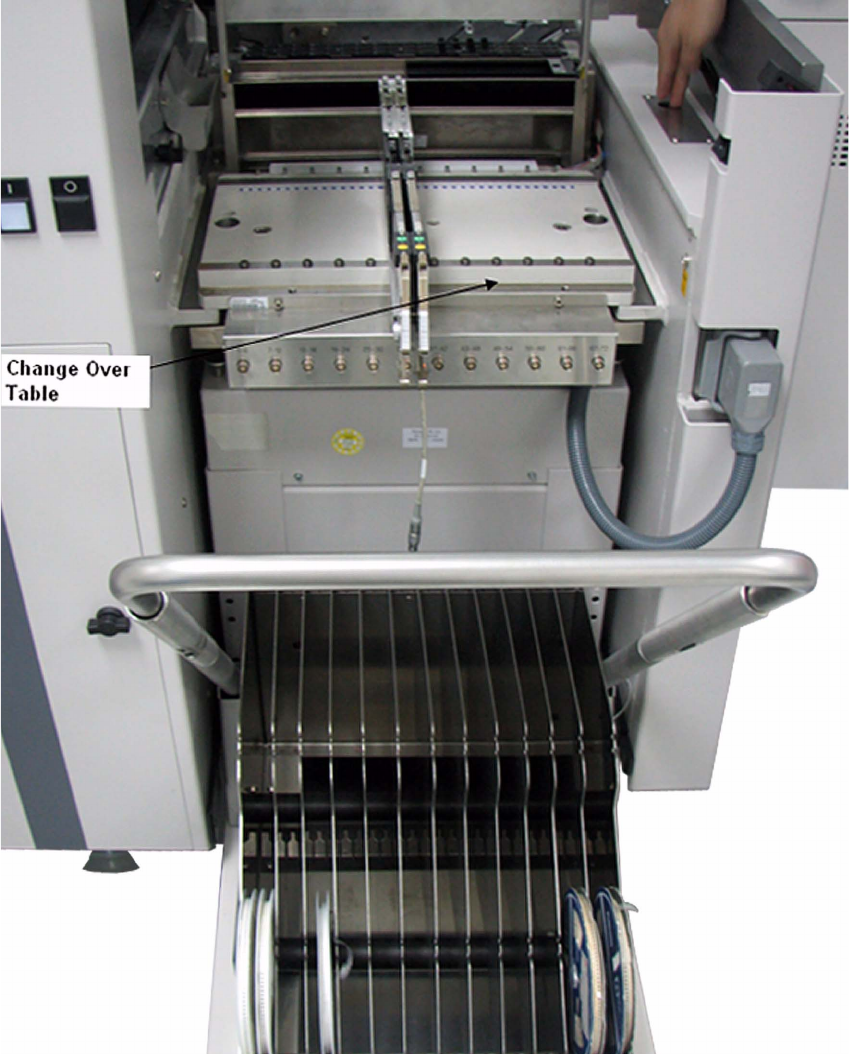

: Remove the old changeover table (COT) from the machine.
1
1 Assembly instructions Special design Empty Tape Duct SIPLACE HS-60 / D4 SIPLACE
08/2007 Edition
10

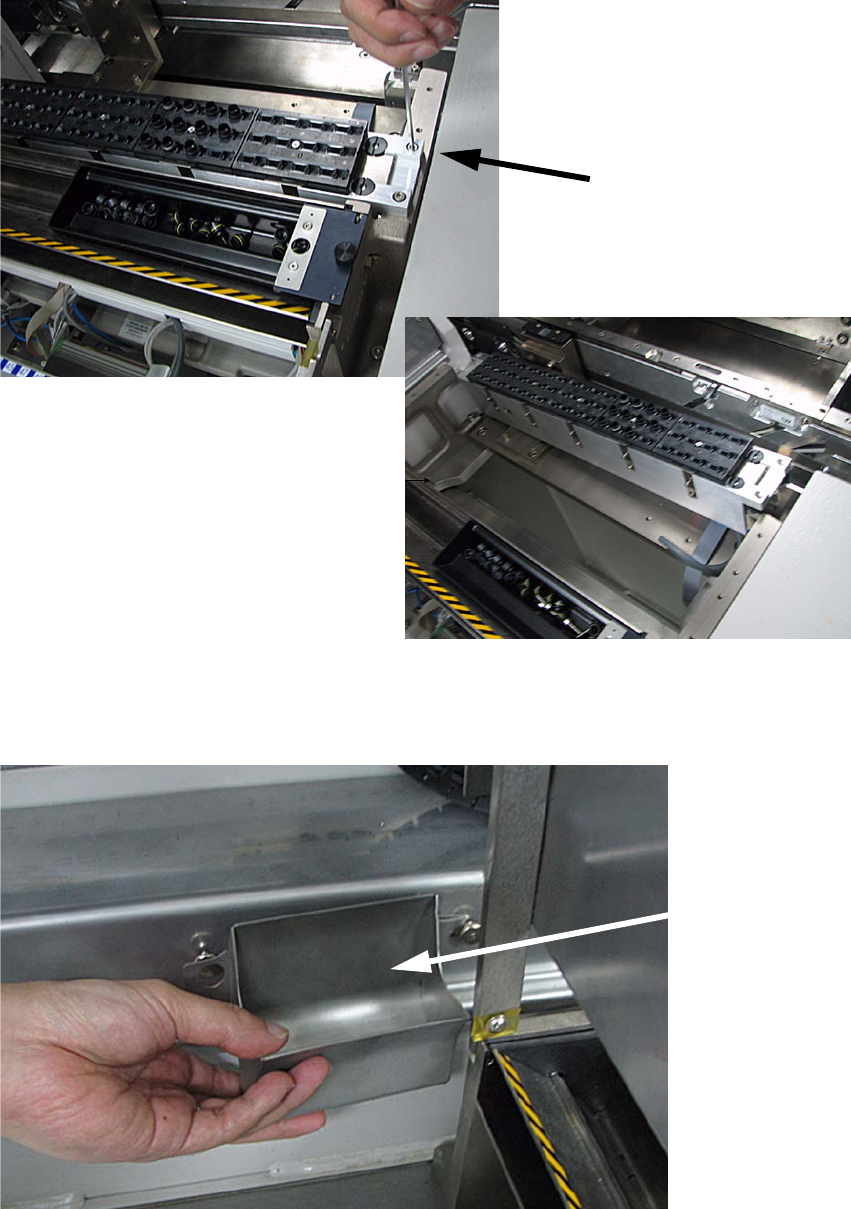

: Unscrew the nozzle changer from the empty tape guiide channel and place it in the side.
1
1
: Remove the component reject box.
1
Remove nozzle changer
Component
reject box
SIPLACE 1 Assembly instructions Special design Empty Tape Duct SIPLACE HS-60 / D4
08/2007 Edition
11

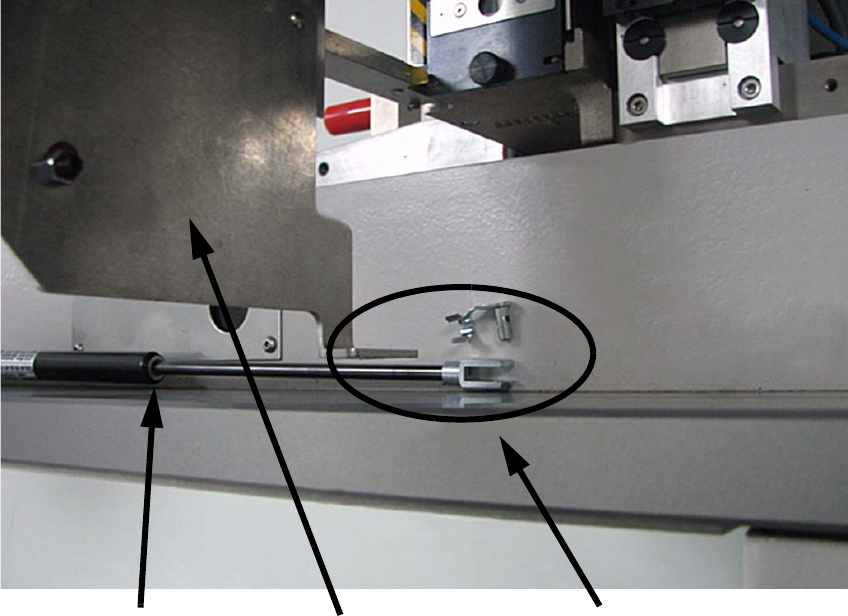

: Remove the joint connecting the gas spring to the component table lock.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Feeder cover flap
Gas spring
Joint
