1 Assembly instructions Special design Empty Tape Duct SIPLACE HS-60 / D4 SIPLACE 08/2007 Edition 12 : Remove the feeder cover flap from th e empty tape guide chan nel. For easy removal loosen the 4 screws holding the fl…
SIPLACE 1 Assembly instructions Special design Empty Tape Duct SIPLACE HS-60 / D4
08/2007 Edition
11
: Remove the joint connecting the gas spring to the component table lock.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Feeder cover flap
Gas spring
Joint
1 Assembly instructions Special design Empty Tape Duct SIPLACE HS-60 / D4 SIPLACE
08/2007 Edition
12
: Remove the feeder cover flap from the empty tape guide channel.
For easy removal loosen the 4 screws holding the flap to the holder in the component table
lock.
1
1
: Remove the reject device nozzle changer.
1
NOTE:
The four screws holding the flap to the
side holders can be loosened for easy
removal of feeder cover flap
Feeder cover flap
Feeder cover flap
SIPLACE 1 Assembly instructions Special design Empty Tape Duct SIPLACE HS-60 / D4
08/2007 Edition
13

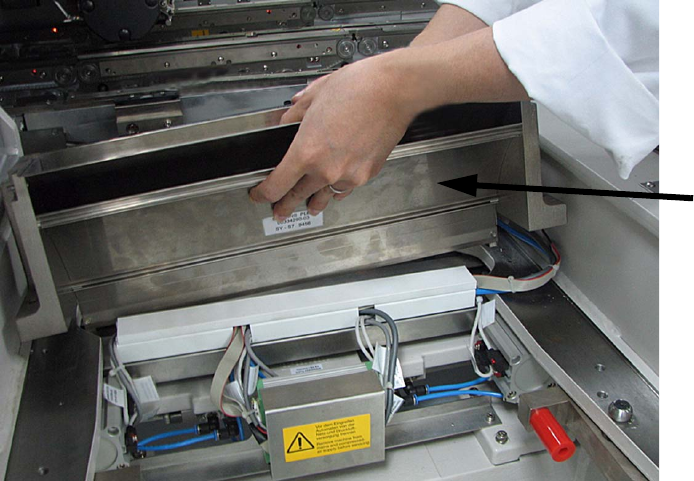

: Unscrew the 4 screws holding the empty tape duct and remove it from the machine.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Empty tape
guide channel
