Illustrated Parts Breakdown 1-121
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-120
120 #4 FLAT WASHER —
121 8-32 X 1/2" LHCS —
122 4-40 X 1/4" FHS —
123 10-32 X 3/8" FHS —
124 #10 FLAT WASHER (ZINC) —
125 10-32 X 1 1/8"SHCS —
126 6-32 X 1 3/4"SHCS —
127NS P0005 FITTING, BARB, 10-32"TO 5/64" ID TUBE 4
129 P4153 SCREW, SHOULDER, .188"DIA. X .375" 2
130 6-32 X 5/16" BHS —
131 P6299 HINGE, COVER, PROHEAD —
132 6-32 X 3/8" BHS —
133 #6 NYLOCK NUT —
Programmable Squeegee Assembly 1005488 Parts Listing (continued)
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
Illustrated Parts Breakdown
1-121
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-122

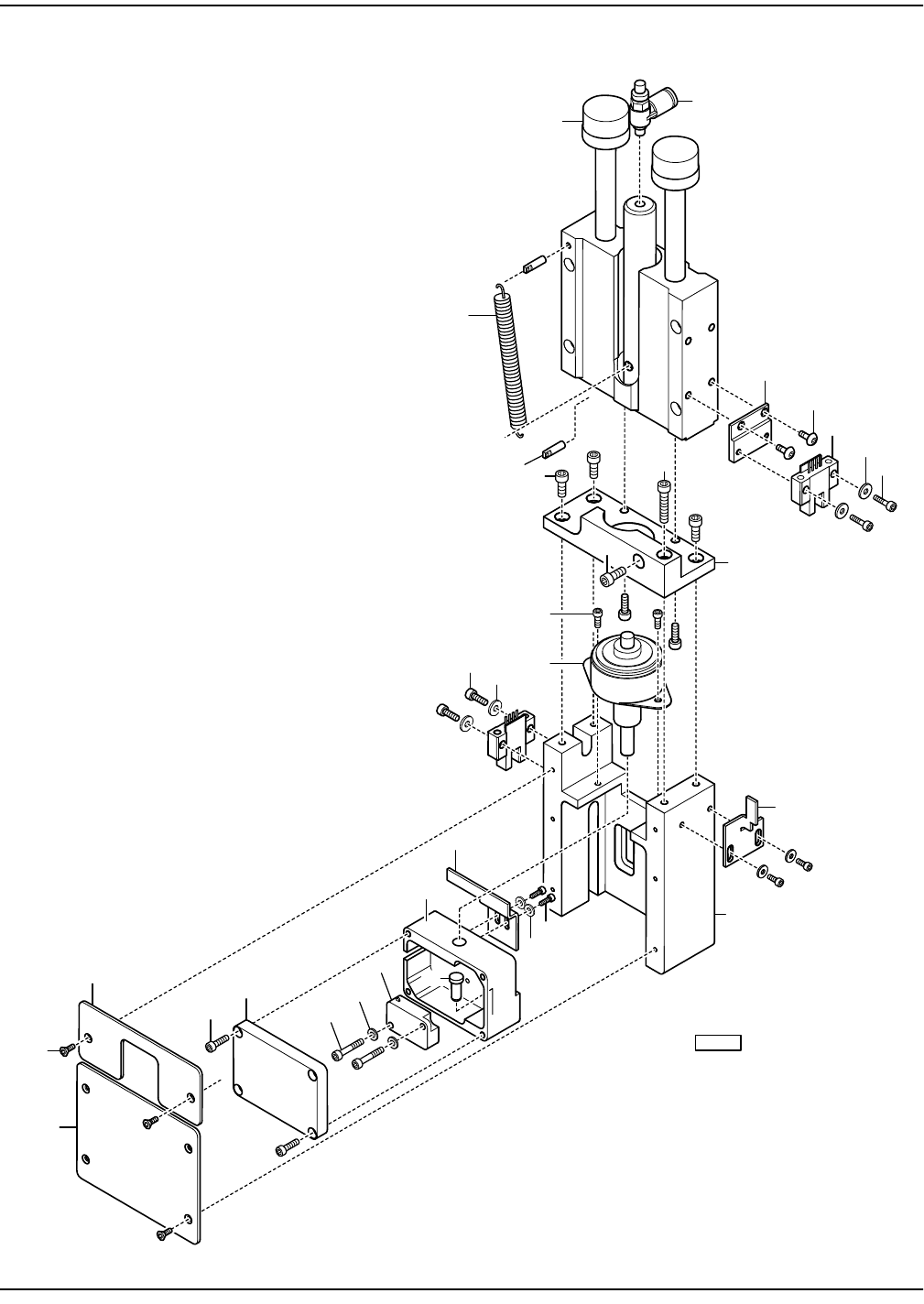

Optional Tactile Sensor Assembly 990305 (1 of 1)
990305
1
2
27
23
20
16
4
24
3
3
17
19
20
9
2
5
22
12
7
25
26
21
20
8
9
10
13
6
18
11
14
9
