Illustrated Parts Breakdown 1-129 61 P3664 CONNECTOR , 3 POSITION W/16 IN LEADS 5 62NS P3886 LABEL, SELF-LAMINATING 5 63 P4746 BRACKET, MANIFOLD MOUNTING 2 64 P4747 KIT, THREADED ROD MOUNTING 2 65 P4748 MANIFOLD, DASH 2 …
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-128
31 P2775 CLAMP, CABLE, 1/2" 4
32 P3292 FITTING, ELBOW, MINI, 10-32 2
33 P3020 FITTING, UNION " Y" 1
34 8-32 X 3/8" SHCS —
35 #8 FLAT WASHER —
36 8-32 X 3/8" BHS —
37 8-32 X 1/4" SHCS —
38 1/4-20 X 5/8" SHCS —
39 8-32 X 7/8" SHCS —
40 1/4-20 X 1/2" SHCS —
41 1/4" FLAT WASHER —
42 10-32 X 3/8" BHS —
43 10-32 X 3/8" SHCS —
44 #10 FLAT WASHER —
45 10-32 X 1/4" BHS —
46 M4 X 20MM SHCS —
47 6-32 X 1" BHS —
48 4-40 X 1/4" SHCS —
49 #4 FLAT WASHER —
50 4-40 X 1 1/8" SHCS —
51 1/4-20 X 1/2" SHCS —
52 P1713 FITTING, 1/4" MULTI TEE CONNECTOR 1
53NS 1001873 KIT, HARNESS, PROHEAD CARRIAGE 1
54 1001524 BRACKET, CONNECTOR VALVE STACK 1
55 P1651 SCREW, LOCK ASSEMBLY 2
56 P1698 FITTING, 5/32" PLUG 5
57 P3292 FITTING, ELBOW, MINI, 10-32 10
58 P3422 FITTING, ELBOW 1
59NS P3544 CONTACT, PIN, 24-20 CPC SERIES 2 10
60 P3660 VALVE, 4-WAY 5
Programmable Squeegee Carriage Assembly 990232 Parts Listing (continued)
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
Illustrated Parts Breakdown
1-129
61 P3664 CONNECTOR, 3 POSITION W/16 IN LEADS 5
62NS P3886 LABEL, SELF-LAMINATING 5
63 P4746 BRACKET, MANIFOLD MOUNTING 2
64 P4747 KIT, THREADED ROD MOUNTING 2
65 P4748 MANIFOLD, DASH 2 LEFT HEADER 1
66 P4749 MANIFOLD, DASH 2 UNIVERSAL 3
67 P4750 MANIFOLD, DASH 2 CYLINDER PORT SIDE 1
68 P4753 PLUG, SLOTTED 10-32 5
69 P4756 CONNECTOR, SNAP-IN CONTACT 1
70 P5604 LABEL, POLYESTER 5
Programmable Squeegee Carriage Assembly 990232 Parts Listing (continued)
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-130

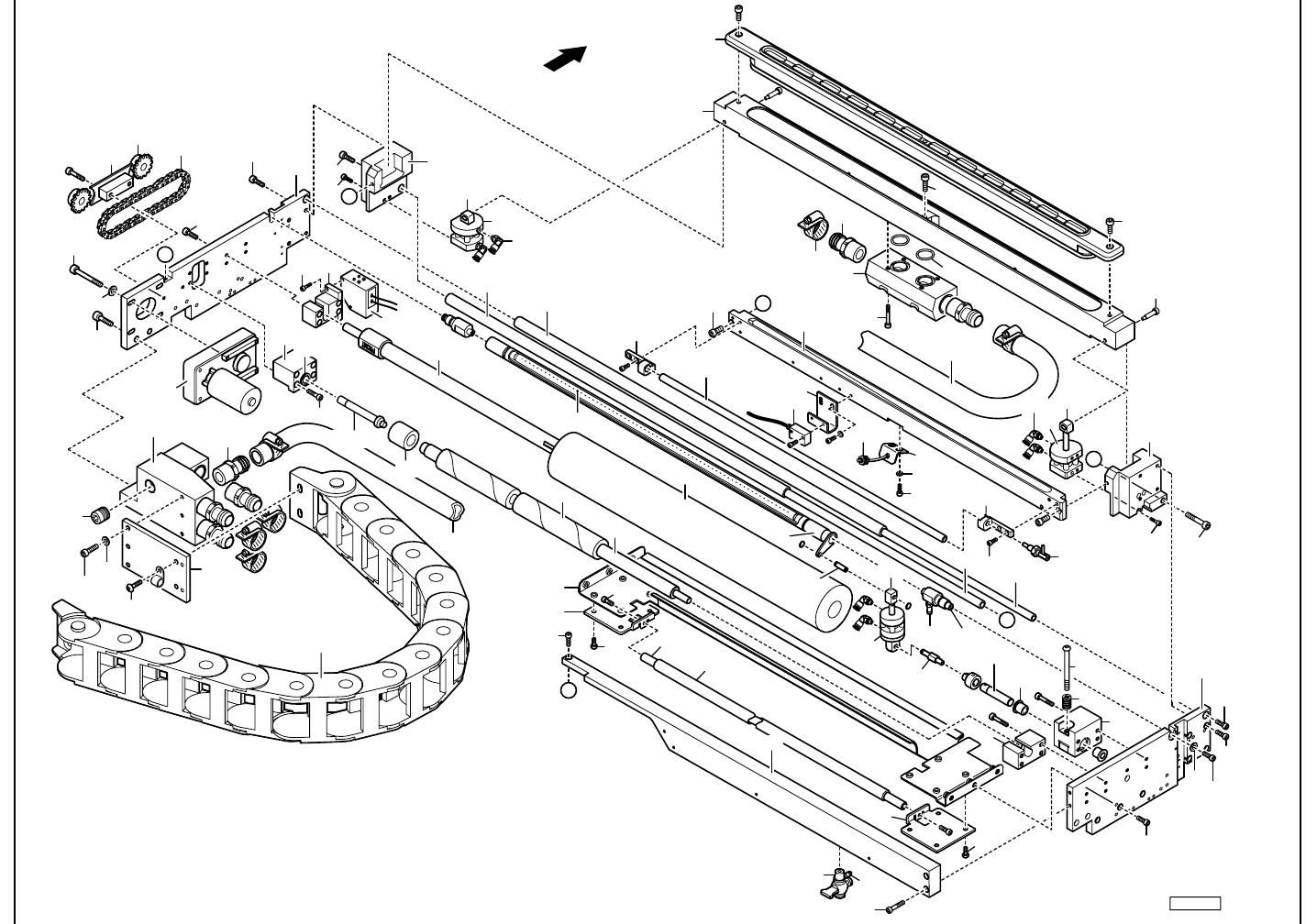

Ultra Wiper Assembly 1006005 (1 of 1)
55
38
37
69
70
56,83
20
50
13
52
39
3
4
45
7
24
26
30
31
49
2
54
65
8
18
67
62
60
35
65
66
53
56,83
46
21
92
91
22
23,88
37
83
10
5
12
48
28
82
11
71
73
74
75
76
6
63
87
44
25
1
59
58
58
40,90
14
41
47
61
58
59
67
85,86
58
1006005
51
9
15
72
81,88,89
27
93
91
95
17
58
A
68
36
43
19
58
32
61
A
79
78
42
29
16
57
58
94
94
61
2
3
59
64
4
B
B
C
C
39
Front of
Printer
