Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-136 Board T ransport T racks Assembly OPT03/OPT04 (1 of 1) 10 9 8 7 6 4,5 2 3 1 See Above OPT03/04 1 4 1 5 These parts are installed on each …
Illustrated Parts Breakdown
1-135
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-136

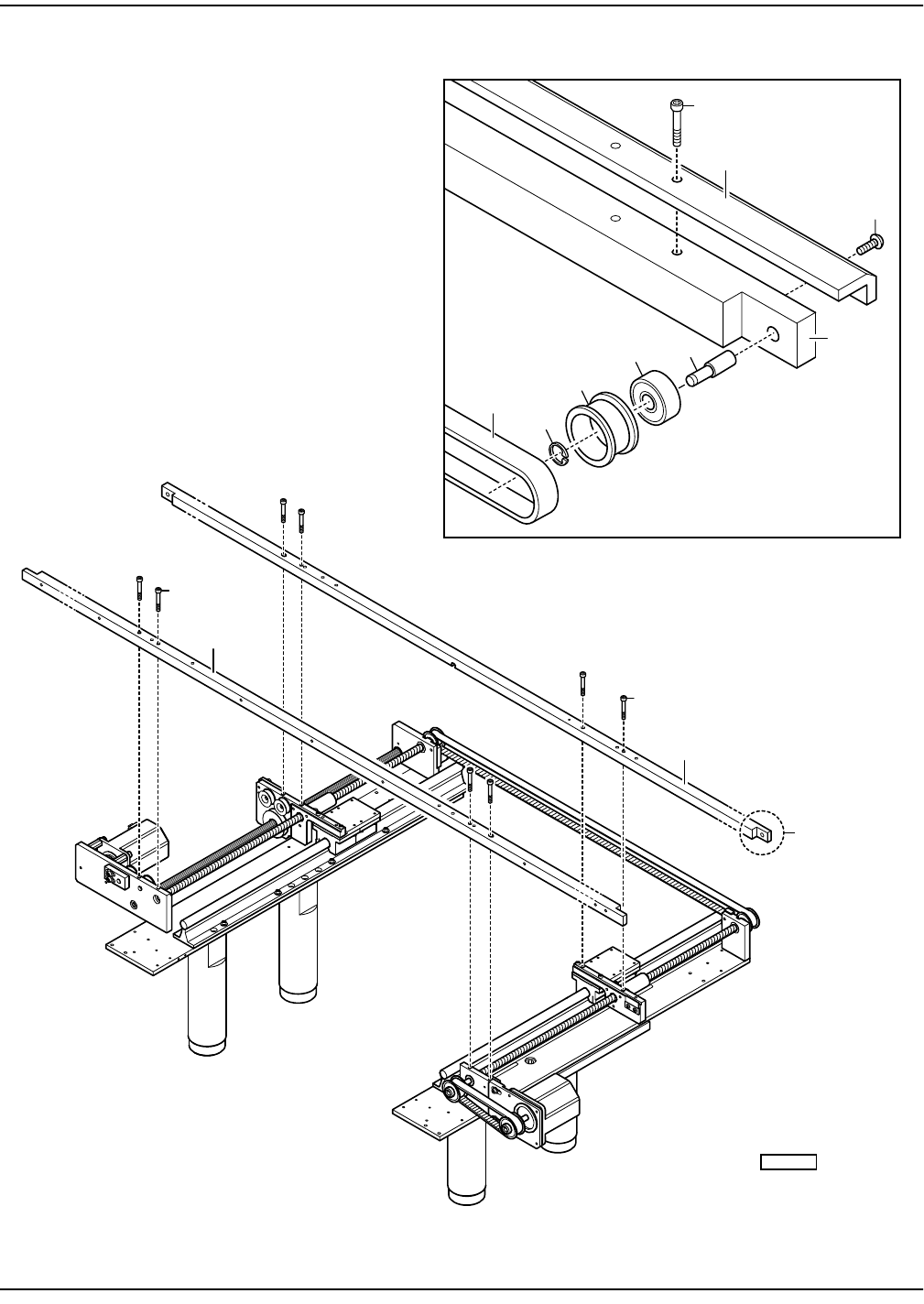

Board Transport Tracks Assembly OPT03/OPT04 (1 of 1)
10
9
8
7
6
4,5
2
3
1
See Above
OPT03/04
1
4
1
5
These parts are installed
on each end of both Tracks
Illustrated Parts Breakdown
1-137
Board Transport Tracks Assembly OPT03/OPT04 Parts Listing
Key # Part # Description Quantity
OPT03 ASSY, BOARD TRANSPORT TRACK, 51.0" (1295.4MM) 1
OPT04 ASSY, BOARD TRANSPORT TRACK, 66.0" (1676.4MM) 1
1 8-32 X 7/8" SHCS —
2A A2-1372 TRACK, TOP, 51.0" (1295.4MM) 2
2B A2-1390 TRACK, TOP, 66.0" (1676.4MM) 2
3 6-32 X 3/8" BHS —
4A A2-1371 TRACK, REAR, CENTER, 51.0" (1295.4MM) 1
4B A2-1391 TRACK, REAR, CENTER, 66.0" (1676.4MM) 1
5A A2-1370 TRACK, FRONT, CENTER, 51.0" (1295.4MM) 1
5B A2-1389 TRACK, FRONT, CENTER, 66.0" (1676.4MM) —
6 A2-1107 SHAFT, FLANGED PULL RT 4
7 P0802 BEARING, RADIAL 4
8 A2-1106 PULLEY, HANDLING SYSTEM RACKS 4
9 P2164 RING, RETAINING 4
10A P2194 BELT, CONVEYOR, .25" X 137.0" LG. X .038" TH 2
10B P4469 BELT, CONVEYOR, .25" X 106.0" LG. X .038" TH 2
quantities are of entire assembly
NS not shown
