Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-14 Upper Drawer Assembly 990339 (3 of 3) 53 51 53 33 14 13 11 14 15 6 12 12 35 29 12 12 28 33 35 33 28 28 28 35 33 34 33 34 33 990339_3 70 6 …
Illustrated Parts Breakdown
1-13
Upper Drawer Assembly 990339 (2 of 3)
KP5
78
74
1005706
990339_2
91
92
92
89
96
95
97
93
94
90
71
73
76
85
77
75
79
99
80
81
82
98
84
83
88
87
101
102
101
102
72
XT3
90
86
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-14

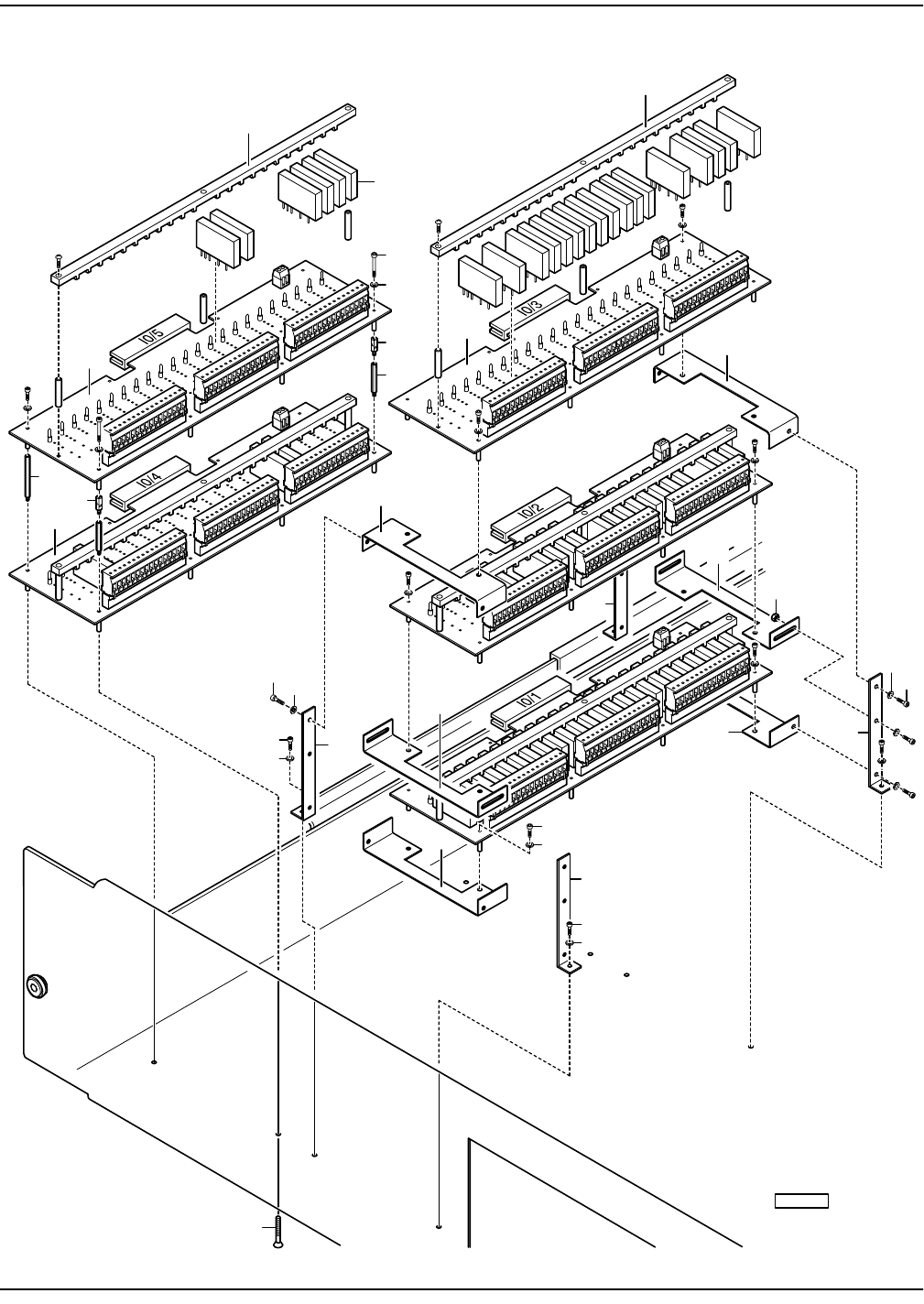

Upper Drawer Assembly 990339 (3 of 3)
53
51
53
33
14
13
11
14
15
6
12
12
35
29
12
12
28
33
35
33
28
28
28
35
33
34
33
34
33
990339_3
70
6
6
36
29
Illustrated Parts Breakdown
1-15
Upper Drawer Assembly 990339 Parts Listing
Key # Part # Description Quantity
1NS CA-101 CABLE, RIBBON, I/O 4
2NS CA-184 CABLE, OPTO RACK PC-101 INTERFACE 1
3 1002927 DRAWER, ELECTRICAL, UPPER 1
5NS STUD, SELF-CLINCHING, 10-32 —
6 P2270 BOARD, DIGITAL, I/O 5
7 A2-1492 SUPPLY, POWER, (MODIFICATION) 1
8NS P0452 BASE, CABLE TIE, ADHESIVE MOUNTING 15
9 1002928 BRACKET, POWER SUPPLY 1
10 P2825 POWER SUPPLY, 5VDC ,TUV CERTIFIED 1
11 P3882 STANDOFF, 1/4" HEX X 1 3/4", F/F 6-32, AL 4
12 A2-461 I/O MOUNTING BRACKET STAND 4
13 P3881 STANDOFF, 1/4 HEX X , 1-1/4", F/F 6-32 AL 4
14 P3883 STANDOFF, HINGED 1/4" X 5/8", M-F, BRASS 4
15 6-32 X 1" SHCS —
16 P6445 STANDOFF, 1/4"DIA. X 2 1/2 "LG 6
17 PC-279 BOARD, PCA, MOTION, 4 AXIS MOTION, MOTHERBOARD 1
18NS PW-029 BOARD, PC, MOTION, MOTHERBOARD 1
19NS P3451 CONNECTOR, MTA-100 POST HDR, 4 PIN, STR. POS 24
20 P3459 CONNECTOR, STRAIGHT HEADER, DUPONT #71912-150 1
21 P3457 CONNECTOR, STRAIGHT HEADER, DUPONT #71912-116 4
22NS P3562 CONNECTOR, 6 CIRCUIT, VERTICAL HEADER 1
23NS P4248 CONNECTOR, 32 PIN, FEMALE 4
24NS P5424 CAPACITOR, 10UF, 16VDC SURGE 1
25NS P5423 RESISTOR, 4.7K, OHM, 1/2 W, 5% 2
26NS P1775 FUSE, 1A, 250V, PCB MOUNT, BUSSMAN #PCC-1 1
27NS P1776 FUSE, 1A, 250V, PCB 1
28 A2-459 BRACKET, FIXED I/O MOUNTING 4
29 A2-460 I/O MOUNTING BRACKET, ADJ. I/O MOUNTING 2
30 P4053 STANDOFF, 1/4"HEX X 2 .937 ", M/F, 8-32, AL 4
31 1002696 COVER, MOTION BOARD 1
quantities are of entire assembly
NS not shown
