Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-142 Small/Large V acuum Chucks Assembly APOPT 18/APOPT 19 (1 of 1) APOPT18/19 27 32 31 28 39 35 36 25 26 38 33 5 41 29 34 30 40 43 41 42 41 F…
Illustrated Parts Breakdown
1-141
Side Snuggers Assembly APOPT 16 Parts Listing
Key # Part # Description Quantity
1 A2-1151 SCREW, CAP 2
2 A2-1267 MOUNT, SLIDING PIN 2
3 A2- 1268 MOUNT, SLIDING PIN 2
4 A2-1269 MOUNT, DOVETAIL 4
5 A2-1270 PIN, CONTACT 8
6NS A2-1271 MOUNT, SLIDING PIN 2
7NS A2-1272 MOUNT, SLIDING PIN 2
8 A2-1273 MOUNT, SLIDE PIN 2
9 A2-1274 PISTON 2
10 A2-1276 BODY, SNUGGER 2
11 A2-1327 COLLAR, GUIDE 2
12 P0005 FITTING, BARB 10-32 X 5/64" ID 3
13 P0008 SPRING, COMPRESSION 2
14 P0683 PLUG, MALE 10-32 LOW PRES. 1
15 P0718 FITTING, TEE, BARB I
16 P0961 TUBING, POLY 025" WALL 4
17 P1011 U-CUP SEAL 3/8" OD X 3/32" TH 2
18 P1350 FITTING 90 DEG 10-32 X 1/16" 2
19 P 1377 KNOB, THUMB SCREW 12
20 P2155 RESTRICTOR, ORIFICE 2
21NS P3660 VALVE, 4-WAY 1
22 4-40 X 3/8" SHCS —
23 # 4 FLAT WASHER —
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-142

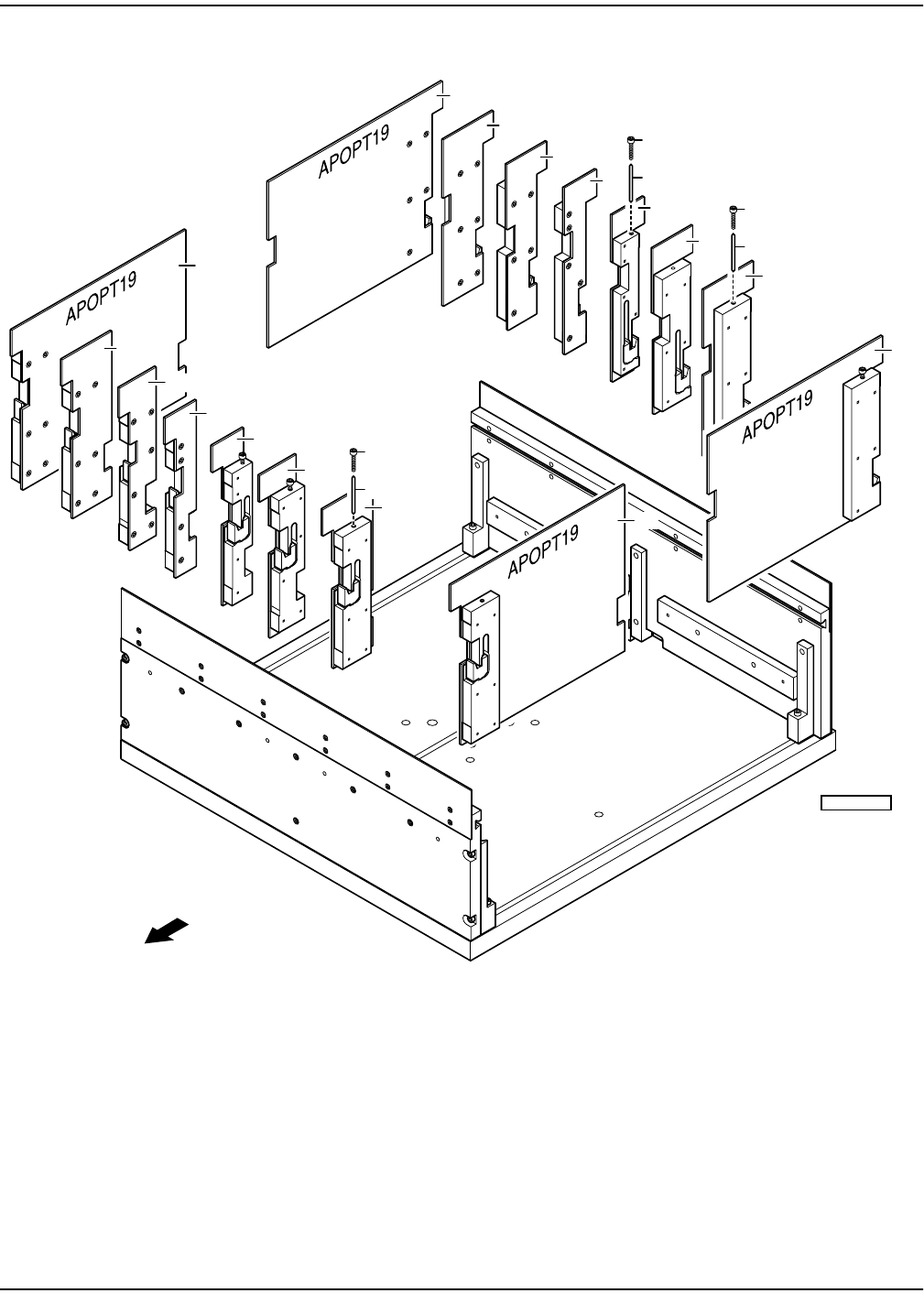

Small/Large Vacuum Chucks Assembly APOPT 18/APOPT 19 (1 of 1)
APOPT18/19
27
32
31
28
39
35
36
25
26
38
33
5
41
29
34
30
40
43
41
42
41
Front of
Printer
37
Illustrated Parts Breakdown
1-143
Small/Large Vacuum Chucks Assembly APOPT 18/APOPT 19 Parts Listing
Key # Part # Description Quantity
5 A2-369 PIN, OUTSIDE, SET 1
25 A2-424-P1 (ASSEMBLY) FRONT VACUUM CHUCK 1
26 A2-424-P2 (ASSEMBLY) FRONT VACUUM CHUCK 1
27 A2-425-P1 (ASSEMBLY) REAR VACUUM CHUCK 1
28 A2-425-P2 (ASSEMBLY) REAR VACUUM CHUCK 1
29 A2-426-P1 (ASSEMBLY) FRONT VACUUM CHUCK 1
30 A2-426-P2 (ASSEMBLY) FRONT VACUUM CHUCK 1
31 A2-427-P1 (ASSEMBLY) REAR VACUUM CHUCK 1
32 A2-427-P2 (ASSEMBLY) REAR VACUUM CHUCK 1
33 A2-428-P1 (ASSEMBLY) FRONT VACUUM CHUCK 1
34 A2-428-P2 (ASSEMBLY) FRONT VACUUM CHUCK 1
35 A2-429-P1 (ASSEMBLY) REAR VACUUM CHUCK 1
36 A2-429-P2 (ASSEMBLY) REAR VACUUM CHUCK 1
42 A2-368 PIN, REAR, SET 1 1
43 A2-386 PIN, REAR, SET 2-6 1
APOPT19 PARTS LISTING
37 A2-434-P1 (ASSEMBLY) FRONT VACUUM CHUCK 1
38 A2-434-P2 (ASSEMBLY) FRONT VACUUM CHUCK 1
39 A2-435-P1 (ASSEMBLY) REAR VACUUM CHUCK 1
40 A2-435-P2 (ASSEMBLY) REAR VACUUM CHUCK 1
41 10-32 X 1 3/4" SHCS —
quantities are of entire assembly
NS not shown
