Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-162 Standard Stencil Wiper Assembly OPT53 (1 of 3) 41 1 36 3 31 42 35 3 8 11 22 36 44 See Sheet 2 for mounting on Vision Gantry See Sheet 2 f…
Illustrated Parts Breakdown
1-161
990260 ASSEMBLY PARTS LISTING (PART OF APOPT 52)
1 000125 TANK, 2 GALLON, POLYETHYLENE 1
2 P0045 FITTING, ELBOW 90 DEGREES BRASS, 3/8" OD X 1/4" NPT 1
4 001510 BRACKET, MOUNTING SOLVENT PUMP 1
5NS P0156 CLAMP, WIRE/CABLE 3/16" ID. X 3/8" W/NYLON 8.0IN
6NS P0979 CAUTION LABEL 1
7NS P0980 LABEL, "FUSE" 1
10 P2067 LABEL, "SOLVENT CAUTION" 1
11 P2117 VALVE, SOLENOID 1
12 P2126 SENSOR, LOW LEVEL 1
13 P6479 FITTING, MALE ELBOW, C-TYPE,1/4" TU X 1/4" NPT 1
14 P2261 FILTER, FLUID, IN-LINE, 1/4" ID 1
15 P2263 CONTACT, SOCKET, 24-18 AWG MOLEX MINI 4
16 P6341 TUBING, POLYETHYLENE .17" ID X .025" OD 16.0 IN.
19 P3113 CLAMP, EAR STEPLESS, 3/8" 4
20 P3115 TUBING, POLYETHYLENE 1/4 " ID X 3/8" OD 108.0 IN.
21 10-32 X 3/8" SHCS —
22 #10 FLAT WASHER —
30 #8 HEX NUT —
31 #8 FLAT WASHER —
32 #8 LOCK WASHER —
35 1000892 #LABEL, WARNING 1
37 P4494 SPACER, 1/4" ROUND —
38 1006941 LABEL, FILL 1
Vacuum Stencil Wiper Assembly OPT52 Parts Listing (continued)
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-162

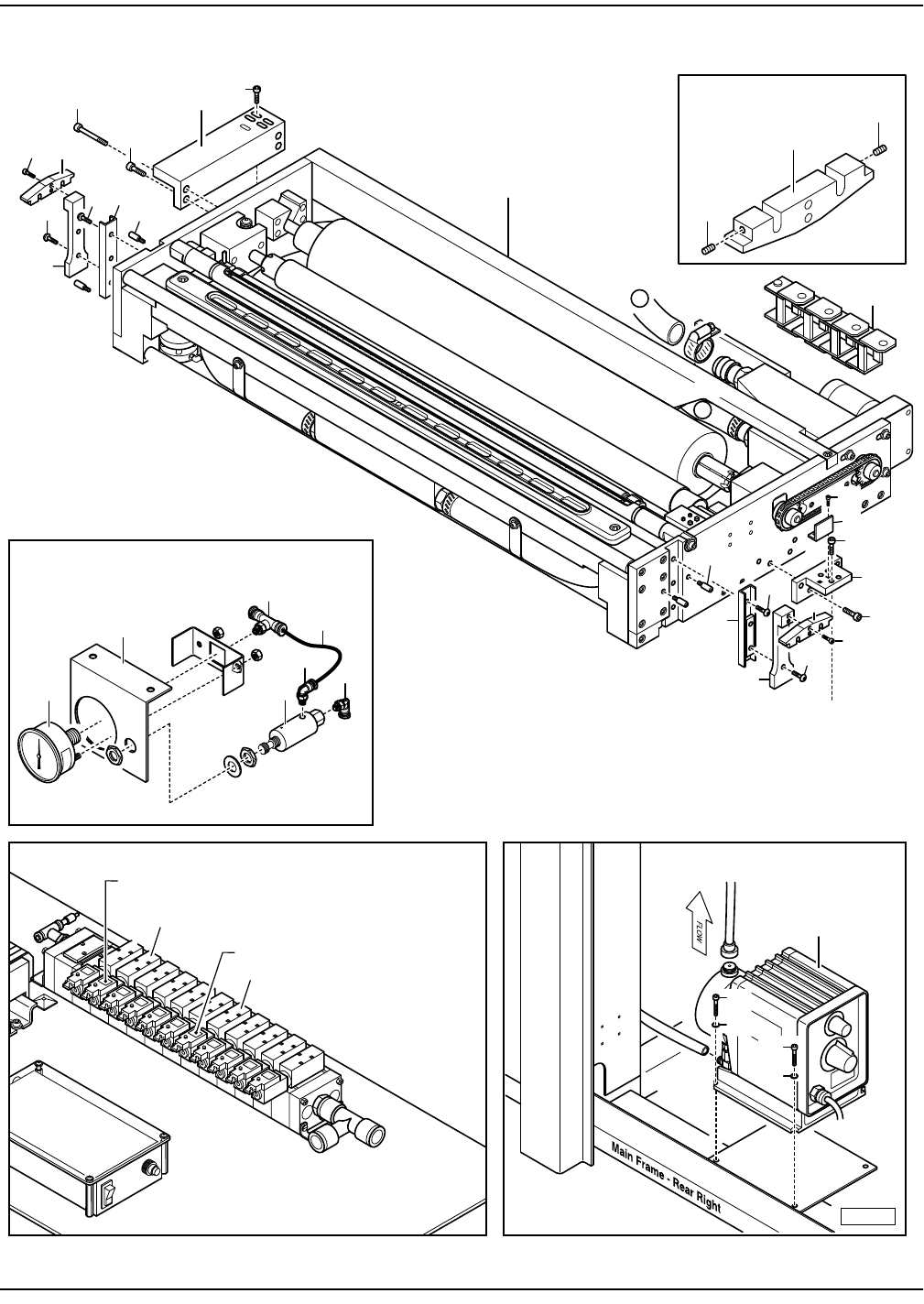

Standard Stencil Wiper Assembly OPT53 (1 of 3)
41
1
36
3
31
42
35
3
8
11
22
36
44
See Sheet 2 for
mounting on
Vision Gantry
See Sheet 2 for
mounting on
Vision Gantry
35
22
31
8
11
42
2
41
7
43
Air Out
B
OPT53_1
23
23
8
Set Screws are installed
in both Locking Blocks
B
Air Out
990352
OPT53 OPT53
See IPB 1006005
Solvent Out
to Solenoid Valve
3
6
5
4
5
Solvent In
from Tank
2
*
Y11
Y6
1
1
Pneumatics Tray
Part found in OPT53
Parts Listing
*
990512
8
4
9
9
5
3
1
Mounts at rear right
of Vision Frame
Illustrated Parts Breakdown
1-163

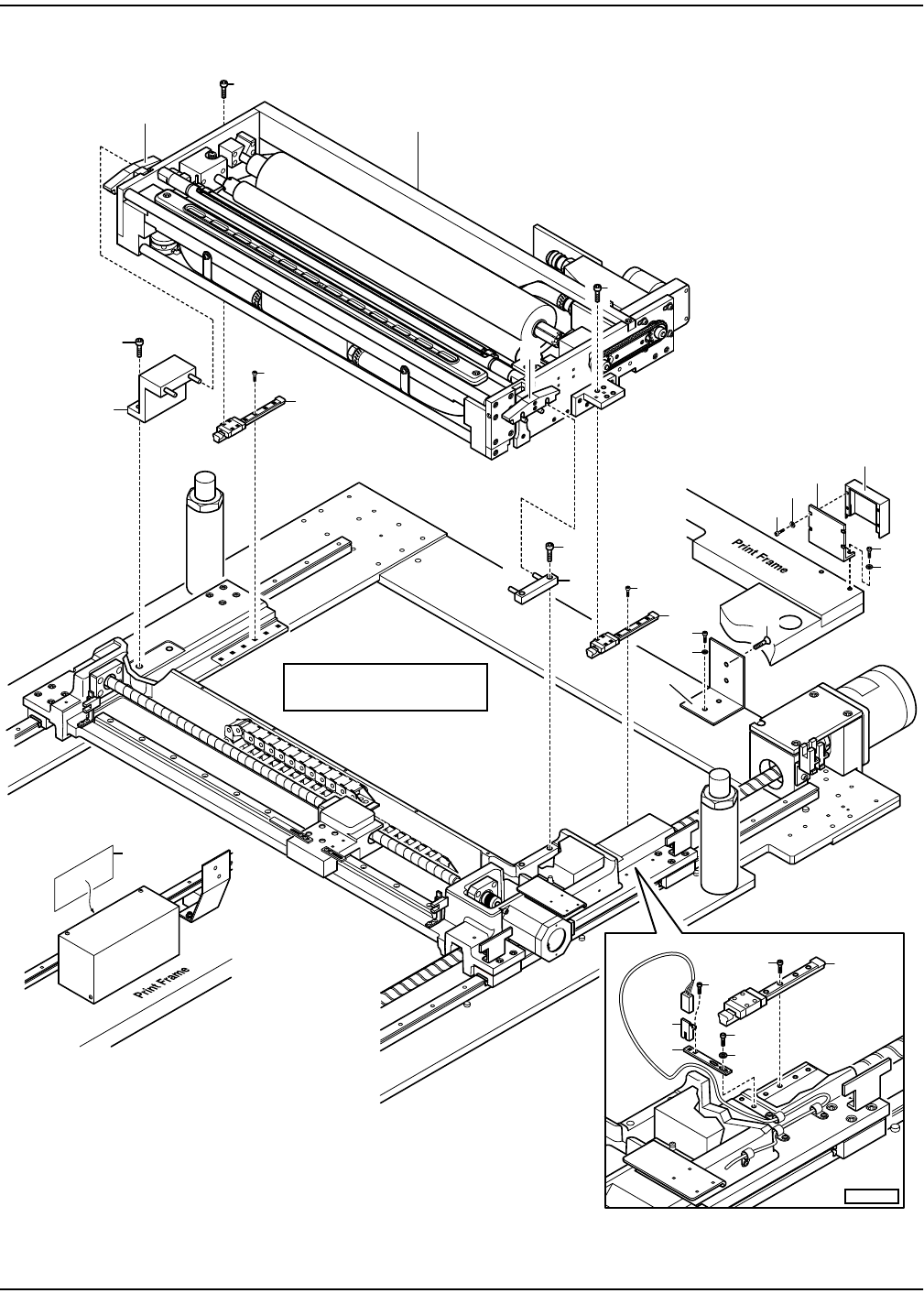

Standard Stencil Wiper Assembly OPT53 (2 of 3)
34
21
21
30
10
36
34
40
4
36
41
41
8
9
Cut aways
show
mounting
locations
34
21
6
31
19
33
46
OPT53_2
Note: Pins on
Left and Right Lock Pin Blocks (#9,#10)
fit in to slots on Locking Blocks (#8)
5
45
31
33
43
33
8
990352
14
37
See IPB 1006005
