3471_01 - 第23页
Illustrated Parts Breakdown 1-23 Lower Drawer Assembly 990340 (2 of 2) 88 86 85 87 87 88 86 85 85 89 79 79 80 78 78 83 84 91 90 76 93 93 94 94 94 97 97 97 76 76 76 76 76 76 76 76 77 77 77 82 82 30 24 30 24 81 30 24 95 84…
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-22

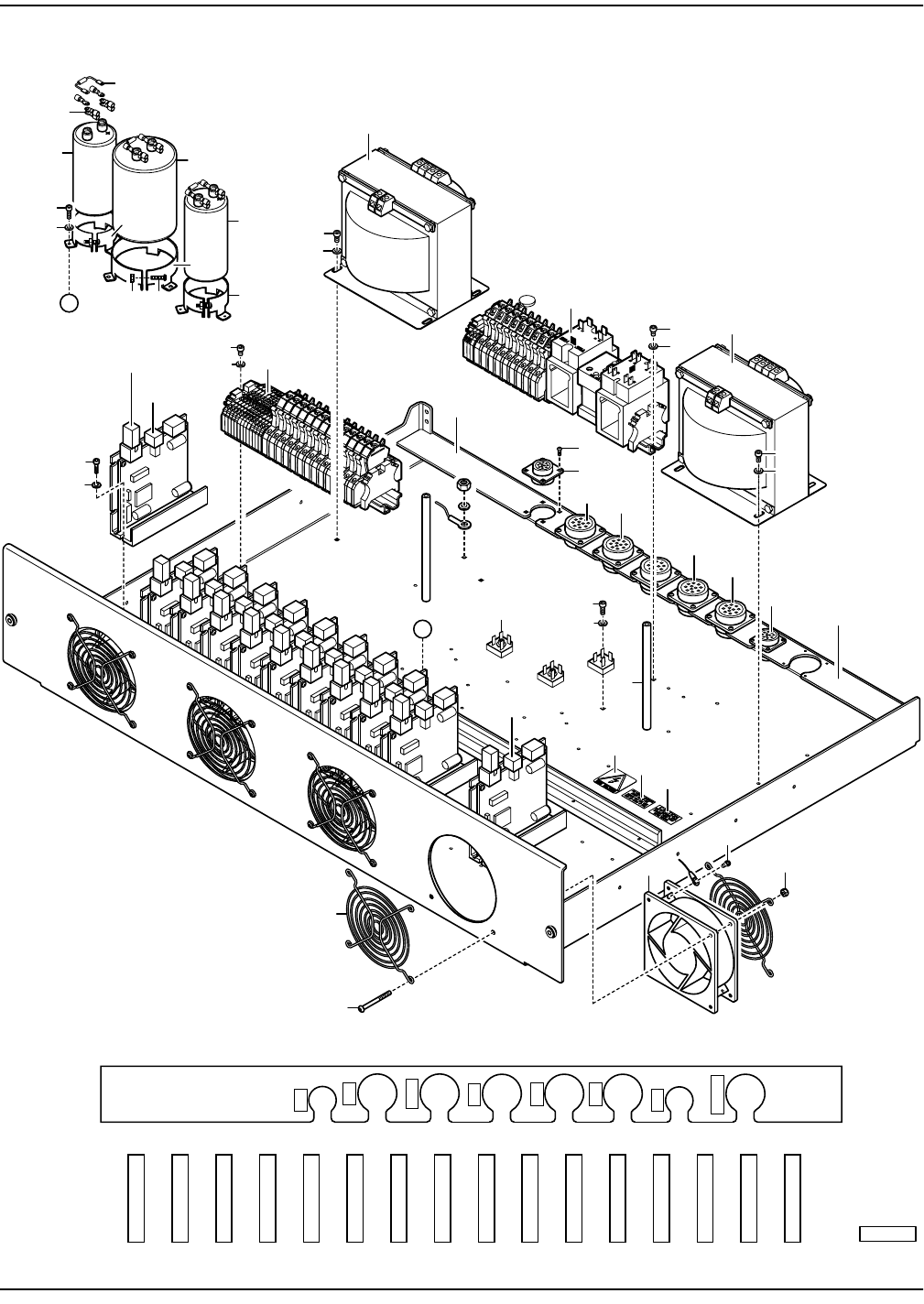

Lower Drawer Assembly 990340 (1 of 2)
69
6
4
5
3
74
5
13
22
2
2
27
16
15
35
14
21
28
24
23
1
26
7
9
20
18
17
19
34
10
990340_1
30
24
C3
C1
C2
TV2
XT4
XT5
75
29
24
11
31
8
33
32
22
14
12
TV3
30
24
33
24
25
VC3
VC1
VC2
A
A
See below
See below
J48
P33
SPARE
J46
J49
J47
P113
P45
RECEPTACLE CONNECTORS REFERENCE DESIGNATORS (Back of Drawer)
STEPPER DRIVER DESIGNATORS (Front of Drawer)
X AXIS
Y AXIS
THETA
Z AXIS
SQ. ST
SQ. DOWN
SQDSL
VIS X
VIS Y
TRACK WIDTH
PASTE DISP
TACTILE
SPARE
SPARE
SPARE
TRANS
Illustrated Parts Breakdown
1-23

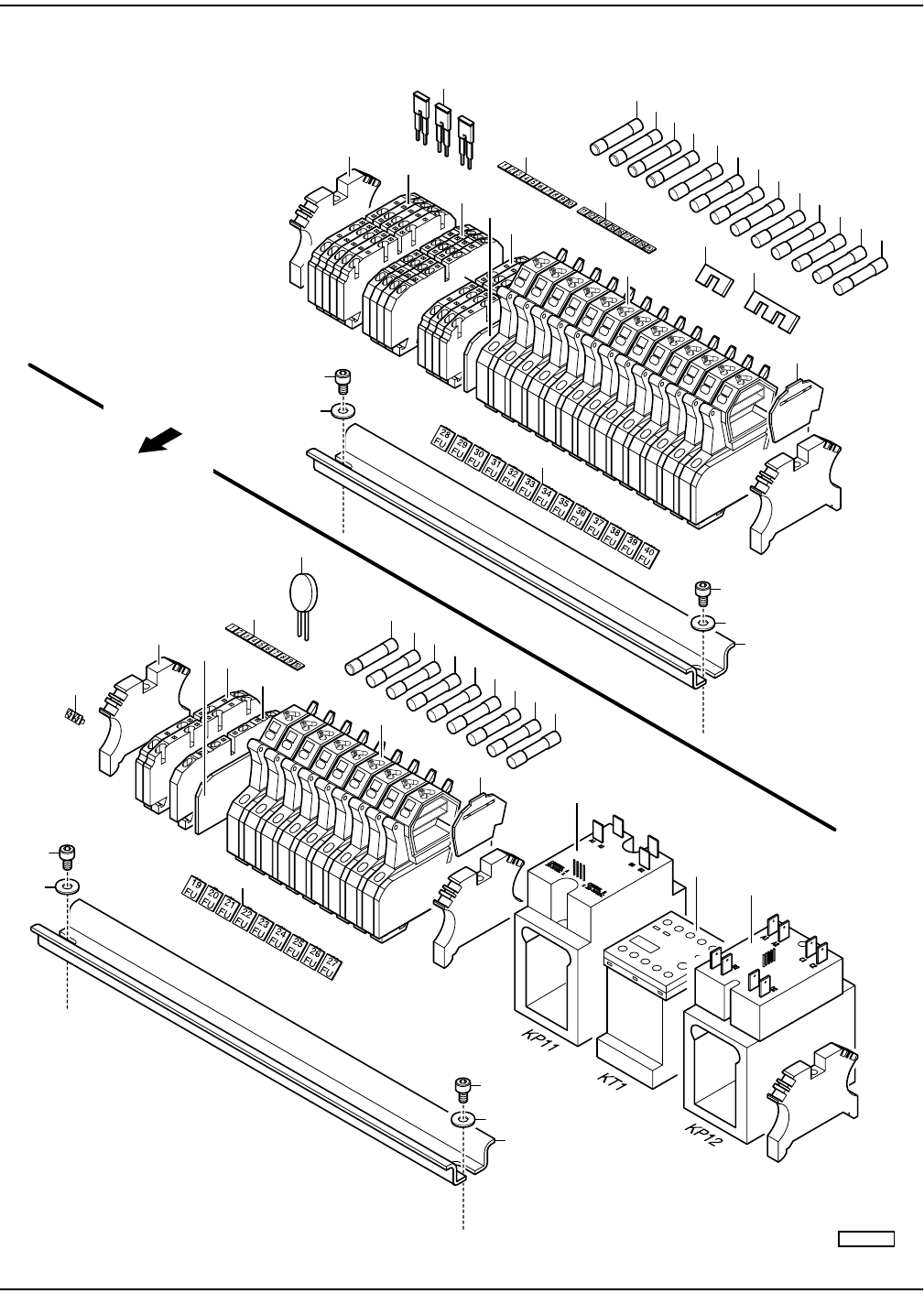

Lower Drawer Assembly 990340 (2 of 2)
88
86
85
87
87
88
86
85
85
89
79
79
80
78
78
83
84
91
90
76
93
93
94
94
94
97
97
97
76
76
76
76
76
76
76
76
77
77
77
82
82
30
24
30
24
81
30
24
95
84
100
XT5
XT4
Front of
Printer
990340_2
83
98
92
30
24
101
99
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-24
Lower Drawer Assembly 990340 Parts Listing
Key # Part # Description Quantity
1 1002371 DRAWER, LOWER (DRIVER) 1
2 P0883 BRACKET, CAPACITOR 2
3 P0884 BRACKET, CAPACITOR, 3" DIA. 1
4 P0881 CAPACITOR, 100WVDC 1
5 P4916 CAP, 20K MFD 50V 2
6 P0886 RESISTOR, 2.2K OHM 5%, WIREWOUND 3
7 P0890 DIODE, MODULE, 25 AM 3
8 P0888 FAN, 115 VOLT 4
9 P3522 CONNECTOR, CPC RECEPTACLE, 13-7 1
10 4-40 X 3/8" BHS —
11 8-32 X 2" BHS —
12 P5836 TRANSFORMER, STEPPER, 52VAC SEC 620VAC 1
13 P5837 TRANSFORMER, STEPPER, 32VAC SEC 640VAC 1
14 #10 FLAT WASHER —
15 P0979 LABEL, ‘CAUTION’ 1
16 P0980 LABEL, ‘FUSE’ 1
17 P3520 CONNECTOR, CPC RECEPTACLE, 23-19 1
18 P3518 CONNECTOR, CPC PLUG, 23-24 1
19 P3512 CONNECTOR, CPC RECEPTACLE, 23-37 1
20 P1349 CONNECTOR, 37 PIN 2
21 1002400 XT5 TERMINAL ASSEMBLY 1
22 10-32 X 5/16" BHS —
23 P3251 DRIVER, STEPPER 10
24 #8 FLAT WASHER —
25 P4720 DRIVER, STEPPER 1
26 P5117 STANDOFF, 3/8" RD, F/F, 10-32, AL 2
27 002119 LABEL, CAUTION, ‘RISK OF SHOCK’ 1
28 8-32 X 1/2" SHCS —
29 8-32 X 1" SHCS —
30 8-32 X 1/4" SHCS —
quantities are of entire assembly
NS not shown
