Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-26
62NS P3876 TERMINAL, WIRE, SLIP-ON 8
63NS P3873 CABLE, 2 SHIELDED 720.0 IN.
64NS P3870 CLAMP, CABLE, D-SUB, UNSHIELDED 13
65NS P3542 CONTACT, PIN, 24-20, CPC, SERIES 2 39
66NS P3548 CONTACT, PIN, 16-12, CPC, SERIES 3 2
67NS P3252 CONNECTOR, PLUG, D-S, POS, W/O GND INDENT 13
68NS P0620 TIE, CABLE, SELF-LOCKING 25
69 P0629 TERMINAL, WIRE, RING, INSUL, 16-14 GA., #1 21
70NS P0756-2 WIRE, RED, 14 AWG 100.0 IN.
73NS P3537 CONTACT, SOCKET,CPC, SERIES 1 78.0 IN.
76 P0703 FUSE, 5A, 250V, SLO-BLO, CERAMIC BODY 9
77 P0869 FUSE, 8A, 250V, SLO-BLO, CERAMIC BODY 3
78 P2193-00 MARKER, BLANK 22
79 P2193-01 MARKER, STRIP 1 THRU 10 2
80 P2193-02 MARKER, STRIP 11 THRU 20 1
81 P2220-10 RAIL, 10” MOUNTING 1
82 P2559 FUSE, 1A, 250V, SLO-BLO, CERAMIC BODY 2
83 P3760 TERMINAL BLOCK, FUSE 22
84 P3761 PLATE, FUSE END 22
85 P3762 TERMINAL BLOCK 11
86 P3766 COVER, TERMINAL BLOCK 2
87 P3808 BLOCK, TERMINAL GND 5
88 P3809 PLATE, END, TERMINAL 5
89 P3860 JUMPER, 2-POSITION 3
90 P4649 JUMPER, 2 POSITION, FUSEBLOCK 2
91 P5040 JUMPER, 3-POSITION, FUSE, CAGE CLAMP TYPE 1
92 P0585 VARISTOR, METAL OXIDE 1
93 P0726 FUSE, 10A, 250V, SLO-BLO, CERAMIC BODY 2
94 P1403 FUSE, 15A, 250V, SLO-BLO, CERAMIC BODY 3
95 P2220-12 RAIL, 12” MOUNTING 1
Lower Drawer Assembly 990340 Parts Listing
(continued)
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
Illustrated Parts Breakdown
1-27
96NS P2930 TUBING, TEFLON 3.0 IN.
97 P4355 FUSE, 8A, 250V, SLO-BLO 3
98 P5151 MARKER, AC VOLTAGE, YELLOW W/BLACK AC 2
99 P5333 RELAY, 24VDC, DELAY TIMER 1
100 P5458 RELAY, SOLID-STATE, CURRENT, 24VDC CTRL 1
101 P5705 RELAY, SOLID-STATE, CURRENT, QUAD OUTPUT 1
102NS P5876 COVER, MOTOR AMPLIFIER 1
Lower Drawer Assembly 990340 Parts Listing
(continued)
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-28

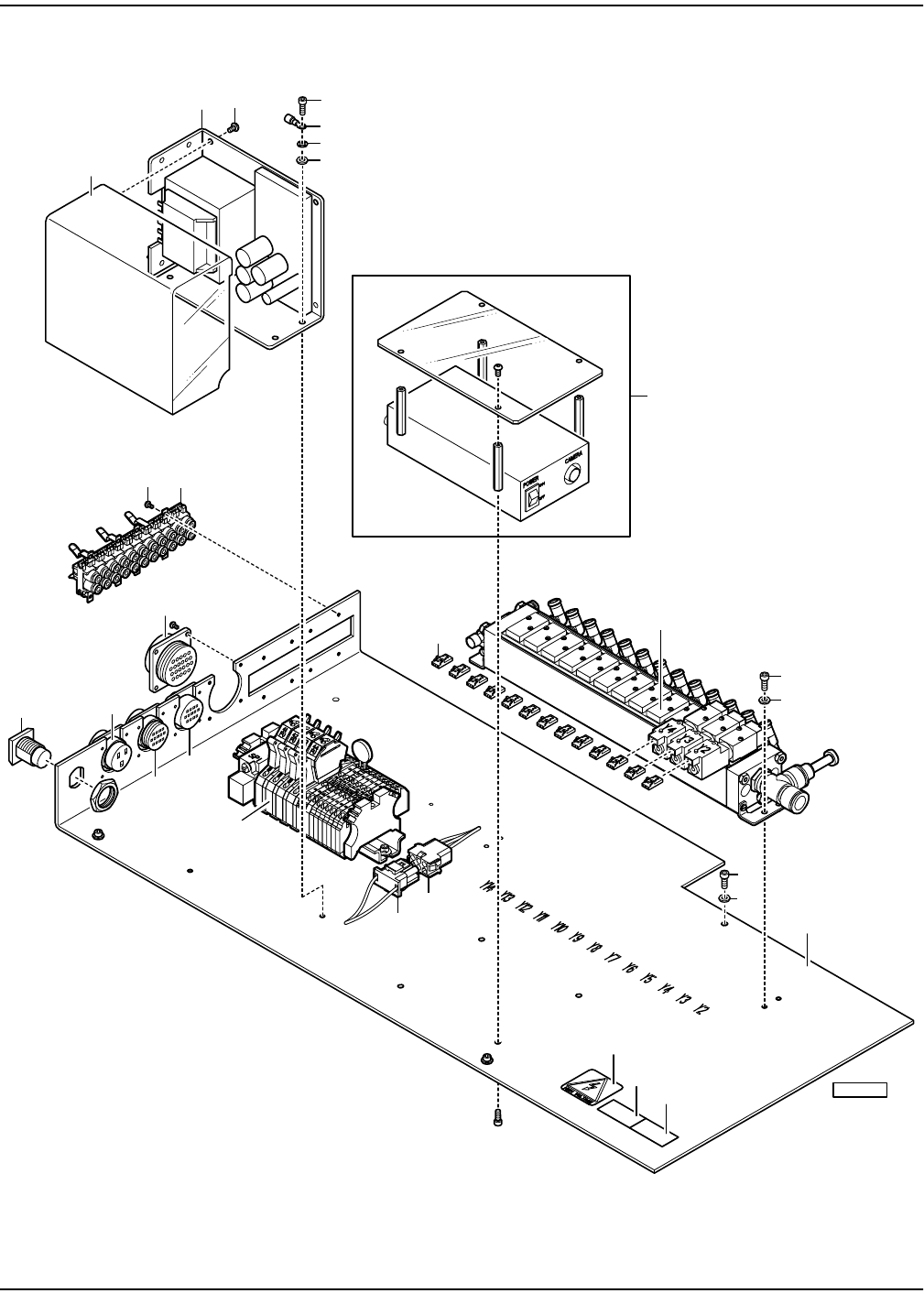

Pneumatics Tray Assembly 990341 (1 of 2)
422
12
17
20
19
16
3
23
15
1
14
13
8
7
6
6
5
26
Valve Stack Assembly
See IPB 990089
2
27
24
25
990341_1
16
17
16
17
XT9
SK1
P24
J35
J185
P37
GS3
