Illustrated Parts Breakdown 1-41 W orknest Assembly Parts Listing 990099 (1 of 1) Key # Part # Description Quantity 1 A2-1299 TABLE, WORKTABLE 1 2 A2-185 BRACE, VACUUM CHUCK 1 3 A2-199 N UT, TABLE 3 4NS A2-282 V ACUUM SE…
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-40
Worknest Assembly 990099 (1 of 1)
990099
14
6
9
7
6
17
17
17
18
17
17
18
12
19
19
10
1
11
3
Table Nut (#3)
Shown in position
Front of
Printer
Nut installs
under Worktable
8,15,16
17
17
17
13
19
2
19
20
22
21
Illustrated Parts Breakdown
1-41
Worknest Assembly Parts Listing 990099 (1 of 1)
Key # Part # Description Quantity
1 A2-1299 TABLE, WORKTABLE 1
2 A2-185 BRACE, VACUUM CHUCK 1
3 A2-199 NUT, TABLE 3
4NS A2-282 VACUUM SEAL PLATE 1
5NS A2-285 NUT, VACUUM SEAL 1
6 A2-298 CLAMP WEDGE 2
7 A2-371 ASSEMBLY, REAR VACUUM CHUCK 1
8 A2-374 ASSEMBLY, FRONT VACUUM CHUCK 1
9 A2-407-P1 VACUUM CHUCK BRACE, LEFT 1
10 A2-407-P2 VACUUM CHUCK BRACE, RIGHT 1
11 A2-572 BRACE, FRONT VACUUM 3
12 A2-787-P1 CLAMP WEDGE, FRONT RIGHT 1
13 A2-787-P2 CLAMP WEDGE, FRONT LEFT 2
14 P1640 LABEL, RULER, FRONT VACUUM CHUCK 1
15 A2-184 MOUNT, VACUUM CHUCK 2
16 A2-212 VACUUM CHUCK PLATE 1
17 10-32 X 1/2" SHCS —
18 #10 FLAT WASHER —
19 10-32 X 2" SHCS —
20 8-32 X 5/8" SHCS —
21 # 8 FLAT WASHER —
22 # 8 LOCK WASHER —
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-42

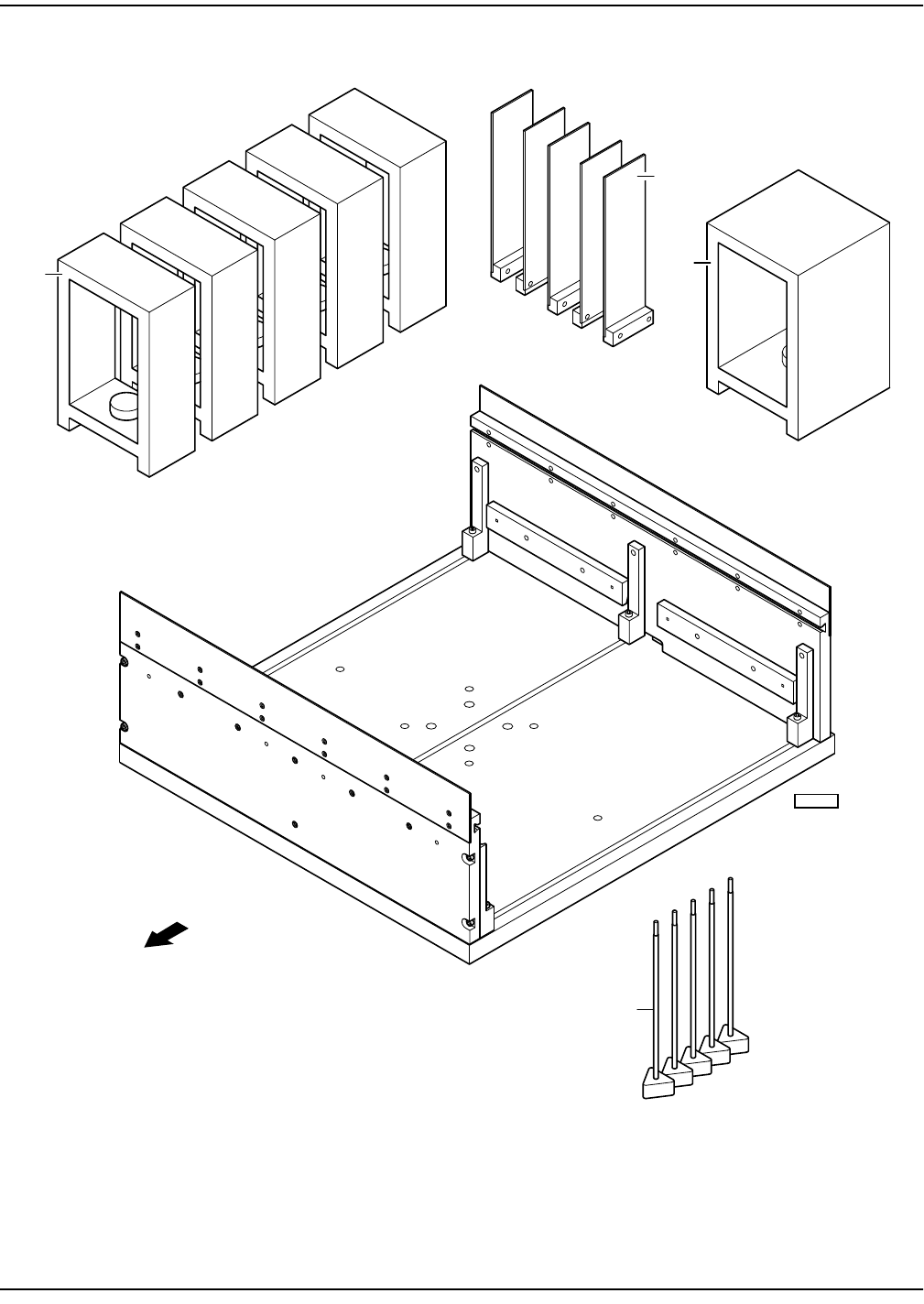

Worknest Accessories Kit Assembly 990105 (1 of 1)
Front of
Printer
1
2
3
4
990105
