Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-50 Theta Drive Assembly 990157 (1 of 1) 990157 24 7 8 21 19 5 3 4 11 19 22 24 12 13 2 25 A 6 23 14 15 18 1 2 A 9 10 20 16 MOUNTING 27 26 25 F…

Illustrated Parts Breakdown

1-49

38 001535 BRACKET, THETA 2

39 001356 BRACKET, IGUS TRACK 1

51 8-32 X 1/2" SHCS —

52 M4 X 16MM SHCS —

53 M4 X 20MM SHCS —

54 M6 X 20MM SHCS —

55 M8 X 16MM SHCS —

56 1/4-20 X 1" SHCS —

57 6-32 X 1/2" SHCS —

58 6-32 X 1" SHCS —

59 1/4-20 X 1/2" FHS —

60 3/8-18 X 1" SHCS —

62 1/4-20 X 7/8" SHCS —

63 6-32 JAM NUT —

64 10-32 NYLOCK NUT —

65 #8 FLAT WASHER —

66 10-32 X 1" SHCS —

67 1/4-20 X 5/8" SHCS —

68 1/4-20 X 1 1/2" SHCS —

69 1/4" FLAT WASHER —

70 10-32 X 5/8" SHCS —

72 8-32 X 3/8" SHCS —

73 1/2-13 X 4" SHCS —

74 1/4-20 JAM NUT —

75 1/4" LOCK WASHER —

76 1/4-20 NYLOCK NUT —

Base X, Y, Theta Movement Assembly 990092 Parts Listing (continued)

Key # Part # Description Quantity

quantities are of entire assembly

NS not shown

Ultraprint 2000 Hi

Series Illustrated Parts Breakdown/Engineering Drawings

1-50

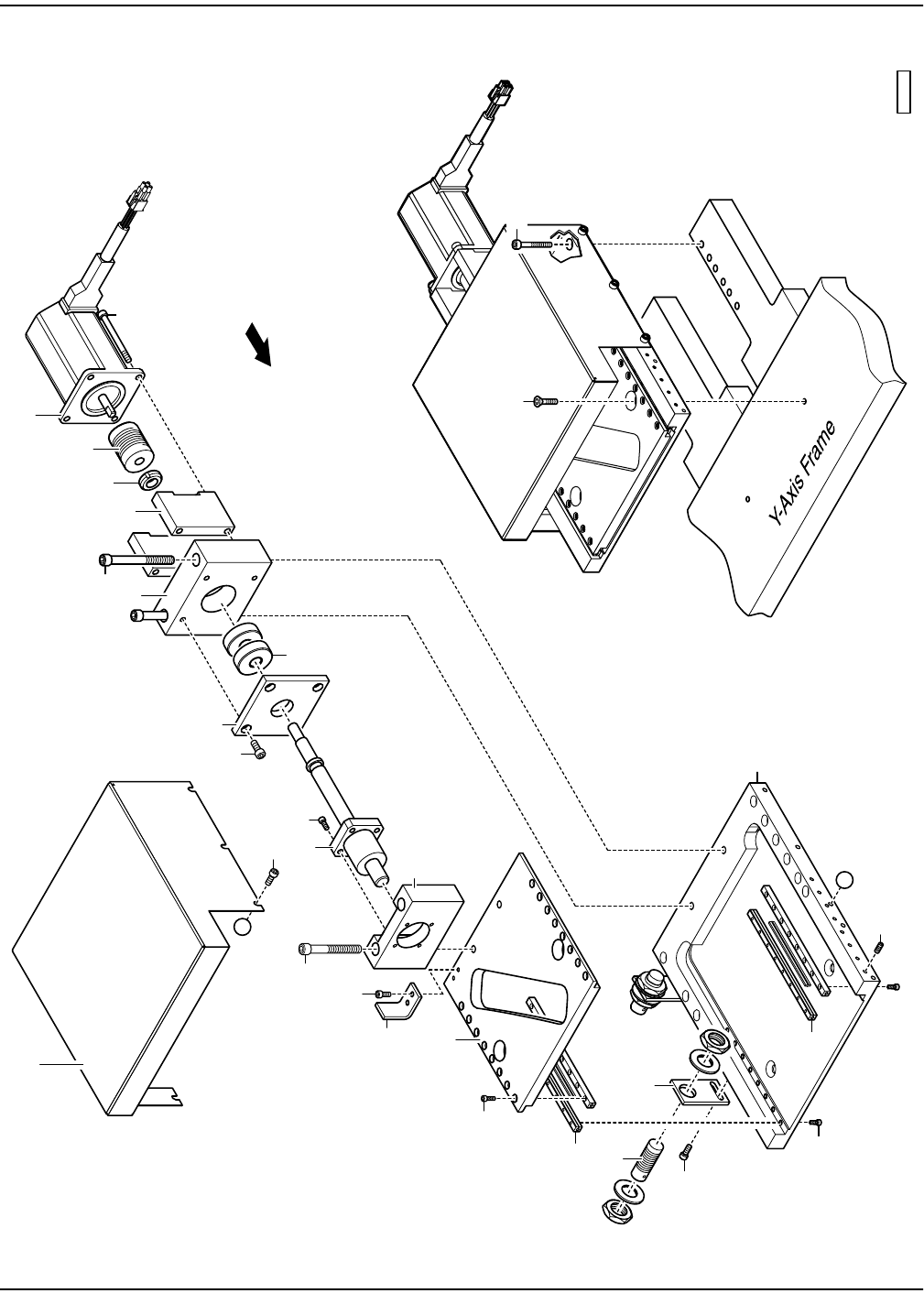

Theta Drive Assembly 990157 (1 of 1)

990157

MOUNTING

Front of

Printer

Illustrated Parts Breakdown

1-51

Theta Drive Assembly 990157Parts Listing

Key # Part # Description Quantity

1 001359 HOUSING, THETA 1

2 P2166 BEARINGS, LINEAR 2

3 A2-1120 CAM, THETA 1

4 A2-1122 SUPPORT, BALL NUT 1

5 P2165 SCREW, BALL, 12MM X 2.5 W/PRELOAD NUT TYPE 1

6 A2-1126 BLOCK, BEARING 1

7 P0847 BEARING, RADIAL 2

8 A2-1123 PLATE, RETAINING 1

9 A2-1124 MOUNT, DRIVE 2

10 1003310-3 ASSEMBLY, MOTOR, MODIFICATION, STENCIL THETA 1

11 001537 FLAG, PROXIMITY SWITCH 1

12 A2-1125 BRACKET, PROXIMITY SWITCH 2

13 P0183 SWITCH, PROXIMITY 2

14 P0837 LOCKNUT, SN-00 1

15 P0849 COUPLING, THRU BORE 5/16" 1

16 001358 COVER, THETA DRIVE 1

18 6-32 X 3/8" SHCS, OVAL PT SET —

19 6-32 X 3/8" SHCS —

20 10-24 X 2" SHCS —

21 10-24 X 3/8" SHCS —

22 1/4-20 X 2" SHCS —

23 1/4-20 X 2 1/2" SHCS —

24 8-32 X 3/8" SHCS —

25 M3 X 8MM SHCS —

26 1/4-20 X 7/8" FHS —

27 10-32 X 7/8" SHCS —

quantities are of entire assembly

NS not shown
