Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-52 Handling System Assembly 990108 (1 of 1) 11 3 56 10 6 56 92 71 30 75 73 57 8 72 56 37 16 34 38 39 35 36 5 56 4 60 7 13 12 8 7 10 52 53 49 …
Illustrated Parts Breakdown
1-51
Theta Drive Assembly 990157Parts Listing
Key # Part # Description Quantity
1 001359 HOUSING, THETA 1
2 P2166 BEARINGS, LINEAR 2
3 A2-1120 CAM, THETA 1
4 A2-1122 SUPPORT, BALL NUT 1
5 P2165 SCREW, BALL, 12MM X 2.5 W/PRELOAD NUT TYPE 1
6 A2-1126 BLOCK, BEARING 1
7 P0847 BEARING, RADIAL 2
8 A2-1123 PLATE, RETAINING 1
9 A2-1124 MOUNT, DRIVE 2
10 1003310-3 ASSEMBLY, MOTOR, MODIFICATION, STENCIL THETA 1
11 001537 FLAG, PROXIMITY SWITCH 1
12 A2-1125 BRACKET, PROXIMITY SWITCH 2
13 P0183 SWITCH, PROXIMITY 2
14 P0837 LOCKNUT, SN-00 1
15 P0849 COUPLING, THRU BORE 5/16" 1
16 001358 COVER, THETA DRIVE 1
18 6-32 X 3/8" SHCS, OVAL PT SET —
19 6-32 X 3/8" SHCS —
20 10-24 X 2" SHCS —
21 10-24 X 3/8" SHCS —
22 1/4-20 X 2" SHCS —
23 1/4-20 X 2 1/2" SHCS —
24 8-32 X 3/8" SHCS —
25 M3 X 8MM SHCS —
26 1/4-20 X 7/8" FHS —
27 10-32 X 7/8" SHCS —
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-52

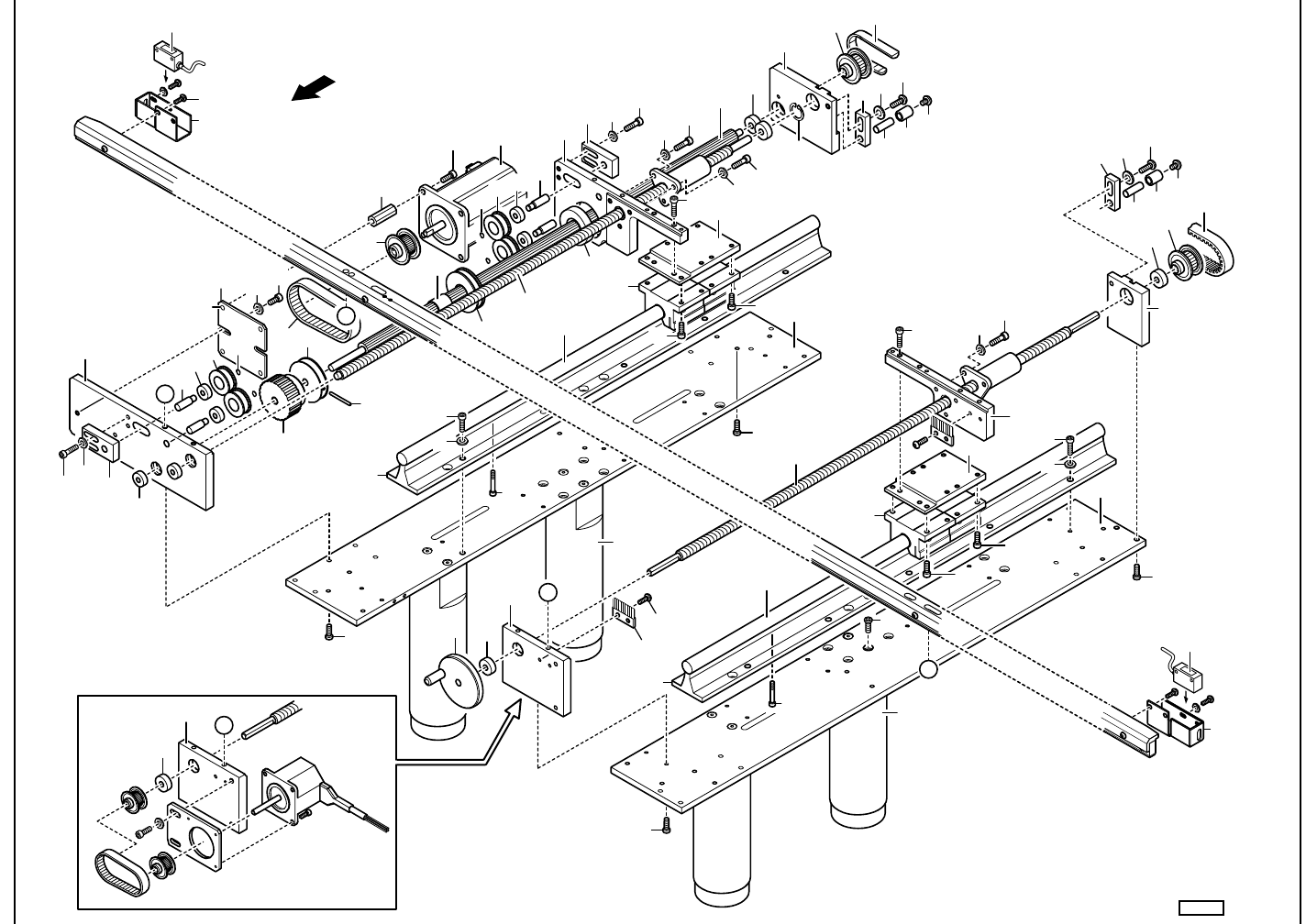

Handling System Assembly 990108 (1 of 1)
11
3
56
10
6
56
92
71
30
75
73
57
8
72
56
37
16
34
38
39
35
36
5
56
4
60
7
13
12
8
7
10
52
53
49
47
48
55
54
25
22
24
16
21
43
45
32
33
31
29
17
26
22
24
24
25
30
25
42
15
92
16
40
34
24
94
96
100
A
20
19
B
83
16
80
81
18
A
B
990108
54
37
38
39
35
36
54
13
12
57
21
20
18
19
44
24
50
11
6
24
59
71
B
16
99
99
See Option 20
Front of
Printer
57
8
8
57
Illustrated Parts Breakdown
1-53
Handling System Assembly 990108 Parts Listing
Key # Part # Description Quantity
3 001614 PLATE, RAIL SUPPORT 1
4 001336 SUPPORT, TRACKS 2
5 10-32 X 1/2" LOW HEAD SHCS —
6 A2-277 SUPPORT, SHAFT, MODIFIED 2
7 #6 FLAT WASHER —
8 6-32 X 1/2" SHCS —
10 P1409-205 SHAFT (PD), 20.5" L X .5" DIA., Y=2.0 2
11 6-32 X 7/8" SHCS —
12 P0812 BEARING, LINEAR , .5" SHAFT X 1.5" LONG, OPEN 2
13 A2-258 PLATE, BEARING 1
15 001613 BEARING, SUPPORT, LEFT REAR 1
16 P0801 BEARING, RADIAL 6
17 001611 MOUNT, MOTOR SUPPORT 1
18 A2-1107 SHAFT, FLANGED PULLEY SHORT 4
19 A2-1110 PULLEY, HANDLING SYSTEM TRACKS (CENTER) 4
20 P0802 BEARING, RADIAL 4
21 P2164 RING, RETAINING 4
22 001370 BLOCK, CONVEYOR TENSION 2
23 A2-1105 SHAFT, FLANGED PULLEY, LONG 2
24 #8 FLAT WASHER —
25 8-32 X 5/8" SHCS —
26 001368 LEAD SCREW, LEFT 1
29 001612 NUT, PLATE, LEFT 1
30 8-32 X 1/2" SHCS —
31 P0800 BEARING, RADIAL 1
32 A2-227 SPLINE, INTERNAL 1
33 A2-1116 ROLLER, REAR DRIVE 1
34 A2-206 BLOCK, TENSION 2
35 #10 FLAT WASHER —
36 10-32 X 1/2" BHS 1
quantities are of entire assembly
NS not shown
