Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-64 Standard T actile Sensor Assembly 990314 (1 of 1) 990314 19 17 1 10 23 18 22 16 21 14 9 2 20 12 13 4 6 15 3 5 8 7 5 11
Illustrated Parts Breakdown
1-63
76 001399 PLATE, ATTACHMENT, NUT/CASTING 1
77 1/4-20 X 1 1/4" SHCS —
79 001433 BRACKET, CABLE CARRIER 1
80 P3352 CARRIER, CABLE, 19 LINKS 1
81 P1297-4 IGUS END BRACKET 2
84 001438 BRACKET, IGUS FRONT FIXED 1
85 001392 COVER, SQUEEGEE, SIDE 2
86 4-40 X 1/4" BHS —
Standard Printhead Squeegee Assembly 990178 Parts Listing
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-64

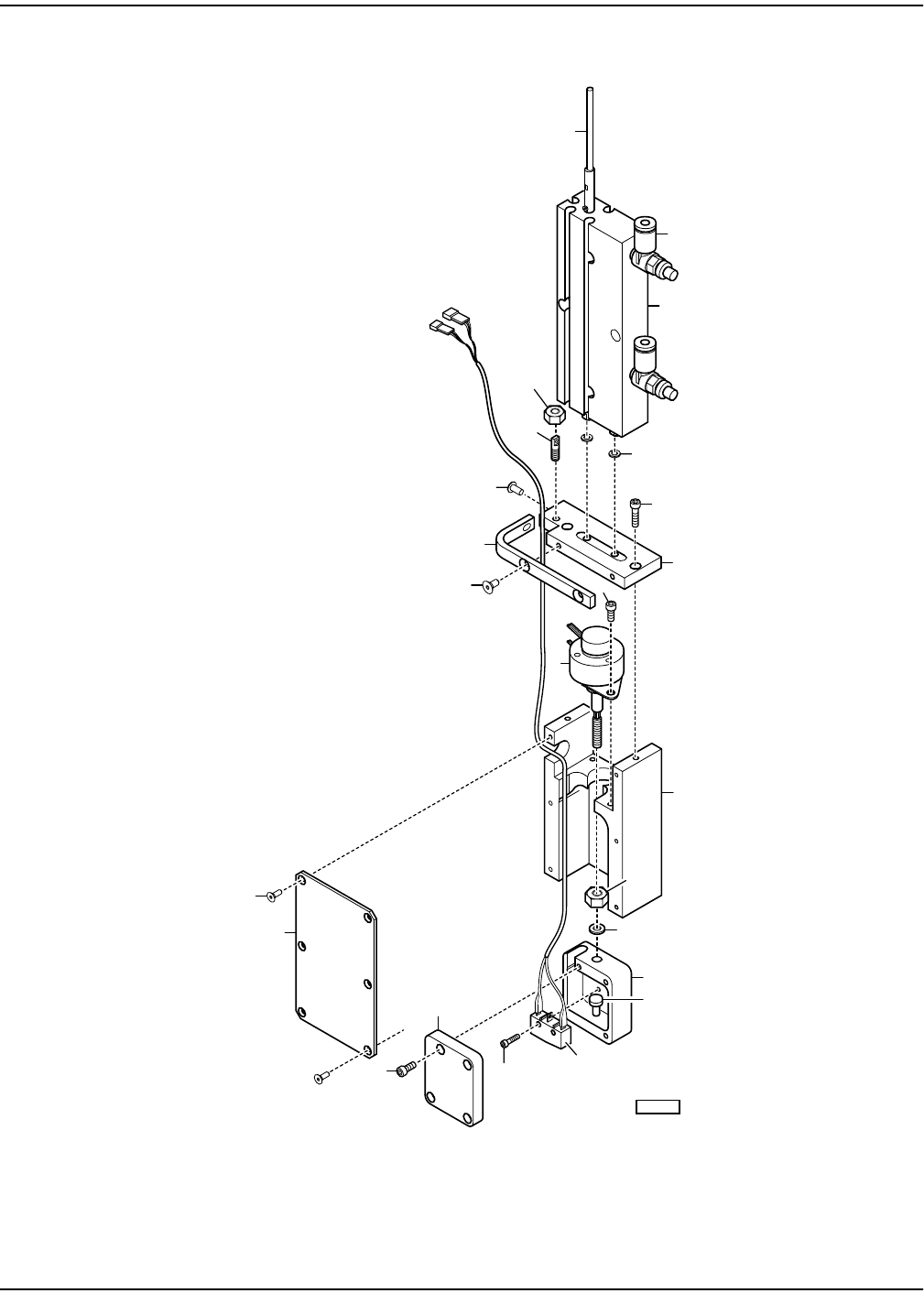

Standard Tactile Sensor Assembly 990314 (1 of 1)
990314
19
17
1
10
23
18
22
16
21
14
9
2
20
12
13
4
6
15
3
5
8
7
5
11
Illustrated Parts Breakdown
1-65
Standard Tactile Sensor Assembly 990314 Parts Listing
Key # Part # Description Quantity
1 P5783 CYLINDER, AIR, TWIN ROD, 10MM BORE X 2" STROKE 1
2 1002004 HOUSING, TACTILE SENSOR 1
3 1002440 ASSEMBLY, TACTILE MOTOR 1
4 1002002 HOUSING, SWITCH SENSOR MOUNT 1
5 4-40 X 1/4" SHCS —
6 1002000 ACTUATOR, SWITCH 1
7 CA-445 ASSEMBLY, CABLE, STENCIL SENSOR 1
8 2-56 X 5/16" SHCS —
9 1002005 PLATE, ADAPTER CYLINDER MOUNTING 1
10 #4 LOCK WASHER, HELICAL SPRING —
11 1002003 COVER, HOUSING SWITCH 1
12 #10 LOCK WASHER, HELICAL SPRING 1
13 10-32 HEX NUT —
14 4-40 X 3/8" SHCS —
15 1002006 COVER, TACTILE SENSOR 2
16 1002133 CLIP, RETAINING 1
17 P2901 FITTING, SPEED CONTROLLER, 5/32" 2
18 P3708 ANCHOR, SPRING 6-32 X .63" 1
19 1004185 SENSOR, TACTILE UP, (ASSEMBLY) 1
20 2-56 X 1/4" FHS —
21 4-40 X 1/4" FHS 2
22 4-40 X 1/4" BHS 1
23 8-32 HEX NUT —
quantities are of entire assembly
NS not shown
