Ultraprint 2000 Hi E Series Illustrated Parts Breakdown/Engineering Drawings 1-70 Vision Gantry Assembly 990112 (1 of 1) 990112 32 31 1 28 29 30 24 28 29 30 24 19 20 26 27 25 22 42 23 24 23 24 34 34 4 4 4 33 36 3 2 C E 8…
Illustrated Parts Breakdown
1-69
73 10-32 X 7/8" SHCS —
74 10-32 X 5/8" SHCS —
75 1/4" FLAT WASHER —
76 8-32 X 1/2" BHS —
77 6-32 X 3/8" BHS —
78 10-32 X 1/2" BHS —
79 001603 BLOCK, PRINTHEAD CLAMP 4
80 3/8-16 X 1 3/4" SHCS —
81 100544 BAFFLE, STENCIL DEFLECTOR 1
82 10-32 X 3/4" SHCS —
83 M4 X 25MM SHCS —
84 10-32 X 2" SHCS —
85 10-32 X 1/4" BHS —
Printhead Assembly 990100 Parts Listing (continued)
Key # Part # Description Quantity
quantities are of entire assembly
NS not shown
Ultraprint 2000 Hi
E
Series Illustrated Parts Breakdown/Engineering Drawings
1-70
Vision Gantry Assembly 990112 (1 of 1)
990112
32
31
1
28
29
30
24
28
29
30
24
19
20
26
27
25
22
42
23
24
23
24
34
34
4
4
4
33
36
3
2
C
E
8
21
4
6
7
D
B
C
B
D
E
37
38
18
39
35
A
33
5
A
41
20
20
20
20
Illustrated Parts Breakdown
1-71

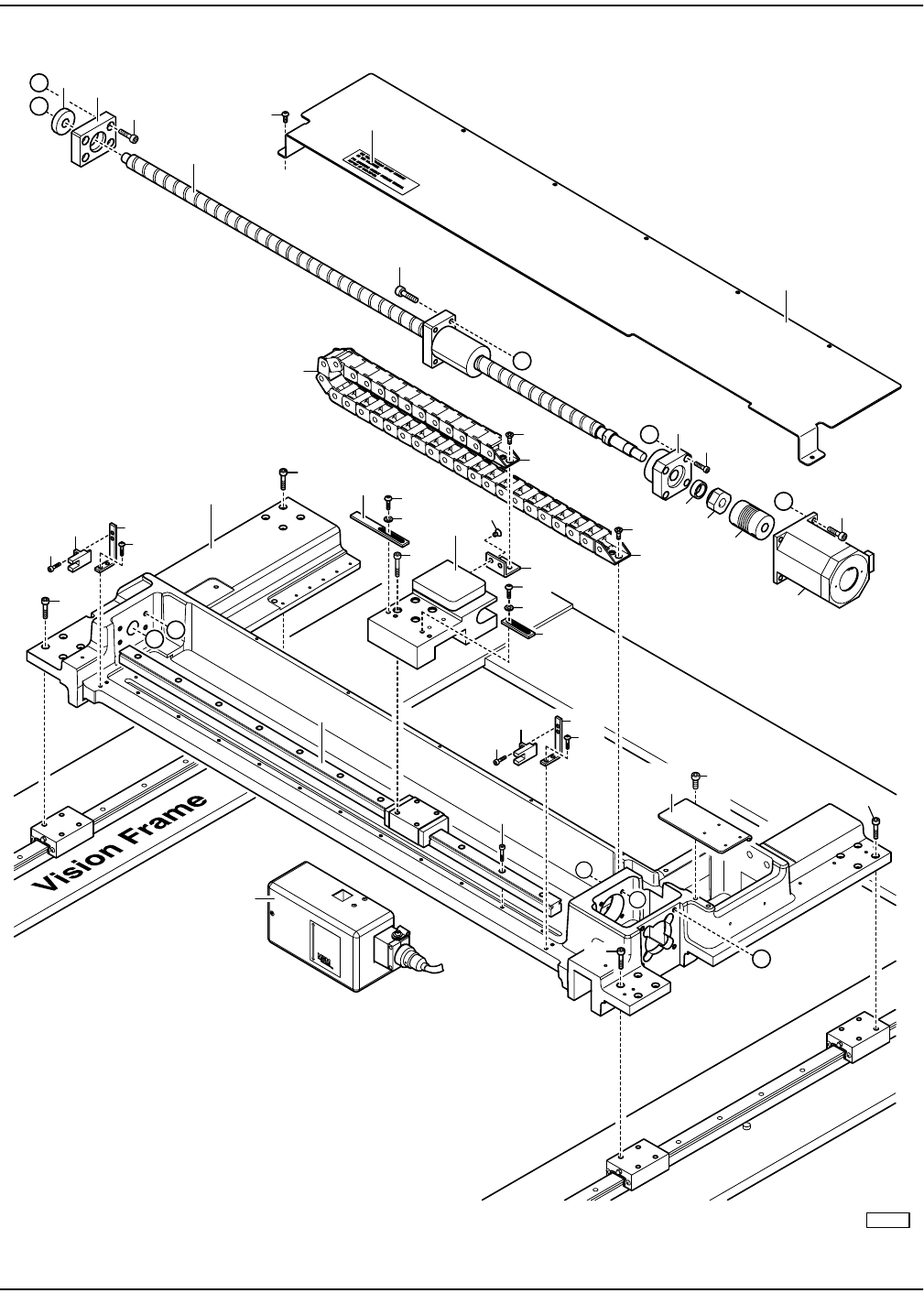

Vision Gantry Assembly 990112 Parts Listing
Key # Part # Description Quantity
1 001500 GANTRY, VISION (MACHINED) 1
2 P3378 BEARING, LINEAR RAIL 1
3 M3 X 16MM SHCS —
4 P3376 KIT, BEARING SUPPORT 1
5 M4 X 20MM SHCS —
6 001502 BLOCK, BEARING FRONT X BALL SREW 1
7 10-32 X 5/8" SHCS —
8 P3375 ASSEMBLY, BALL SCREW & NUT 1
9NS 990250 KIT, VISION CABLE 1
10NS CA-200 CABLE, LAMPS, VISION 1
11NS CA-232-1 CABLE, MOTOR, EXTENSION, VISION X 1
12NS CA-233 ASSEMBLY, CABLE, 3D INSPECT 1
13NS CA-235-1 CABLE, VISION-X (+) PROXIMITY SENSOR 1
14NS CA-235-2 CABLE, VISION-X (-) PROXIMITY SENSOR 1
15NS CA-236-1 CABLE, VISION-X (+) PROXIMITY SENSOR, EXTENSION 1
16NS CA-236-2 CABLE, VISION-X (-) PROXIMITY SENSOR, EXTENSION 1
17NS CA-473 ASSY, CABLE, BOARD STOP, EXTENSION IN CAMERA, 2K 1
18 10-32 X 1/2" SHCS —
19 001494 BLOCK, VISION PROBE MOUNTING 1
20 M4 X 16MM SHCS —
21 M5 X 16MM SHCS —
22 001507 FLAG, X-POSITION LIMIT SWITCH 1
23 #6 FLAT WASHER —
24 6-32 X 3/8" BHS —
25 001526 FLAG, X-POSITION LIMIT 1
26 001508 BRACKET, X IGUS TRACK 1
27 6-32 X 3/8" FHS —
28 001488 BRACKET, X-POSITION SENSOR MOUNTING 2
29 P2700 PHOTOMICROSENSOR, SLIM, LIGHT ON/DARK ON 2
30 4-40 X 1/4" SHCS —
quantities are of entire assembly
NS not shown
